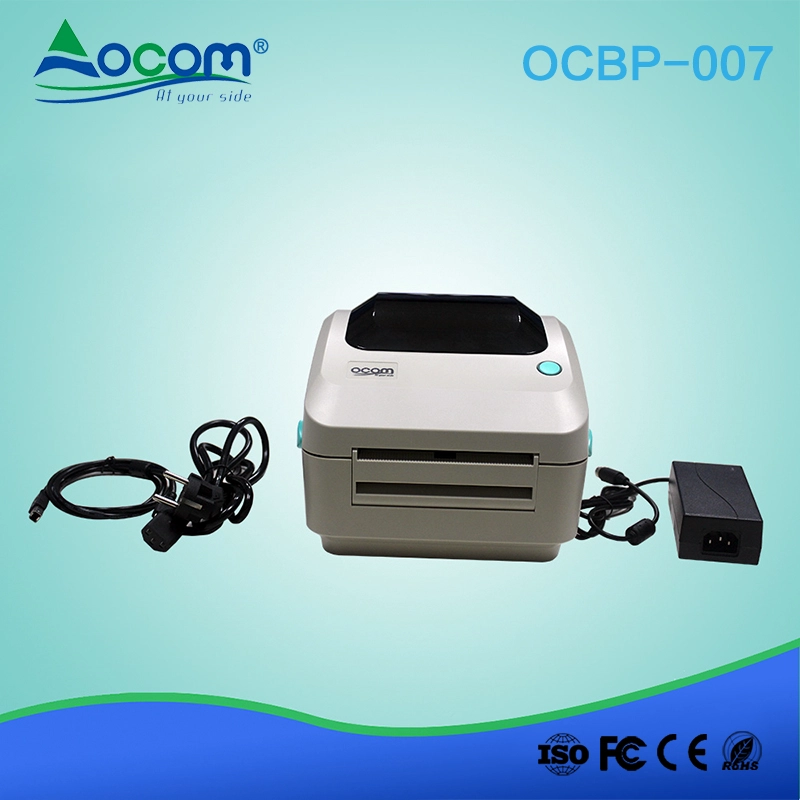

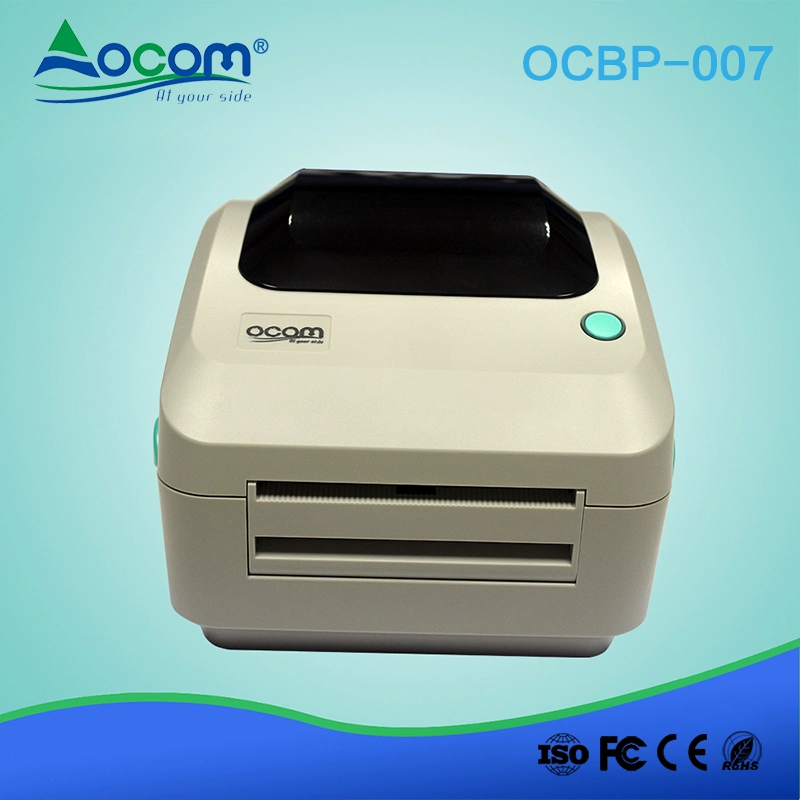

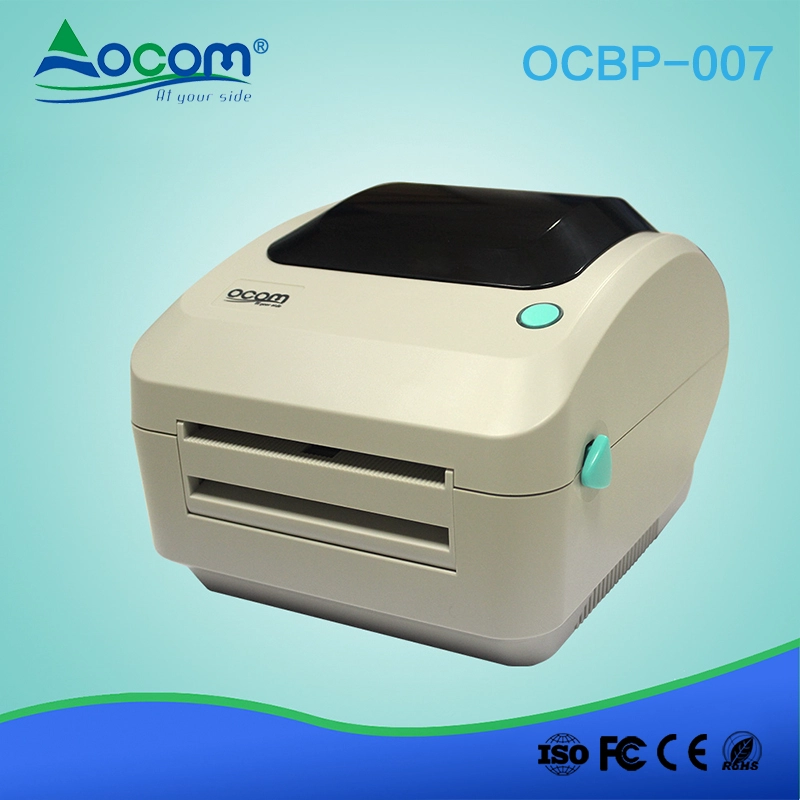

Direct Desktop Address Shipping Thermal Label PrinterDirect Desktop Address Shipping Thermal Label PrinterDirect Desktop Address Shipping Thermal Label Printer

Direct Desktop Address Shipping Thermal Label Printer

  • 4 Inch Direct Thermal Barcode Label Printer
  • Interface: USB, USB+Serial, USB+Parallel, USB+LAN, USB+Bluetooth, USB+WIFI for option;
  • 200Mhz 32-bit RISC CPU;
  • Memory: 8MB SDRAM, 4MB Flash;
  • Resolution: 203dpi(8dots/s);
  • MCBF(life): 100km;
  • Printing speed: MAX=102mm/s (4");
  • Paper width: 20mm~112mm;
  • Printing width: MAX=108mm;
  • Paper roll diameter: MAX=100mm;
  • Label paper auto position;
  • Extra paper roll stand , and automatical label peel off  function for options;
  • BMP, PCX, BAC images download store.
  • Cover openning sensor;

OCBP-007A Direct Desktop Address Shipping Thermal Label Printer

(M/N:OCBP-007)




Features

High quality double-walled clamshell design

 32-bit RISC CPU

 8MB SDRAM,4MB Flash

 Head-up sensor

 203 dpi resolution

 102mm(4'''')/s high printing speed

 108mm printing width

 20-112mm (0.78”-4.4”)adjustable media width

Specification

Parameter

Resolution

8 dots/mm(203DPI)

Printing method

Direct Thermal

Max.print speed

102 mm (4”)/S

Max.print width

108 mm (4.25”)

Max.print length

2286 mm (90”)

Media type

Continuous, gap, black mark, fan-fold and punched hole

Media width

20-112mm (0.78”-4.4”)

Media thickness

0.06~0.16mm((2.36~6.3mil)

Label length

10~2,286mm(0.4''''~90'''')

Label roll capacity

127 mm (5“) OD (outside wound)

Enclosure

Double-walled plastic

Physical dimension

240 mm(W)× 211 mm(H)× 166 mm (D)

Weight

2.15kg

Processor

32-bit RISC CPU

Memory

4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB

Interface

USB 2.0

Internal fonts

8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.

Barcode

1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST

2D bar code:PDF-417, Maxicode, DataMatrix, QR code

Font and barcode rotation

0°、90°、180°、270°

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing















Application


Power Plug for Plug
