(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer

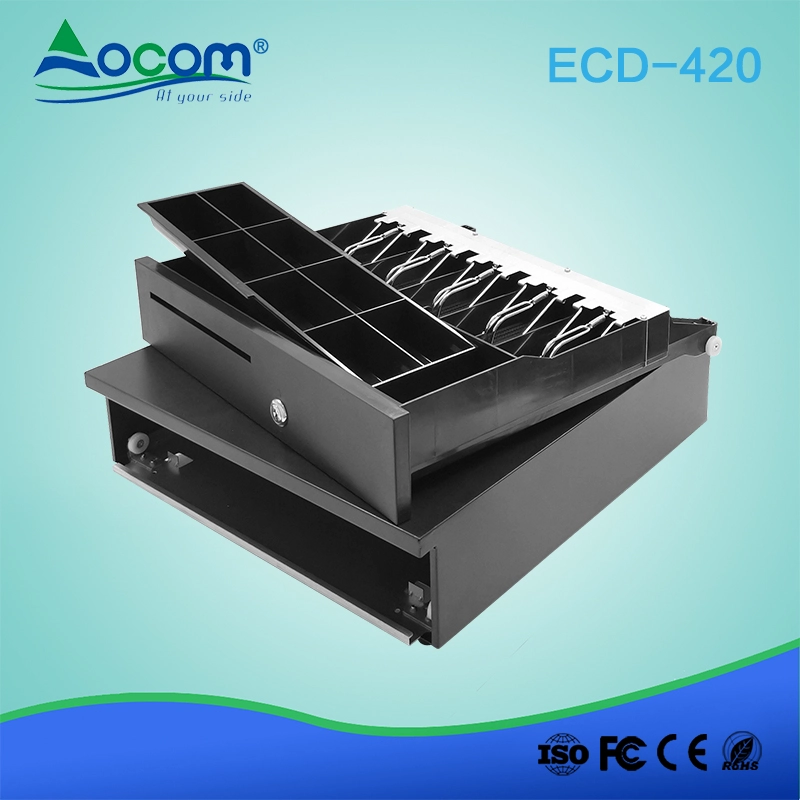

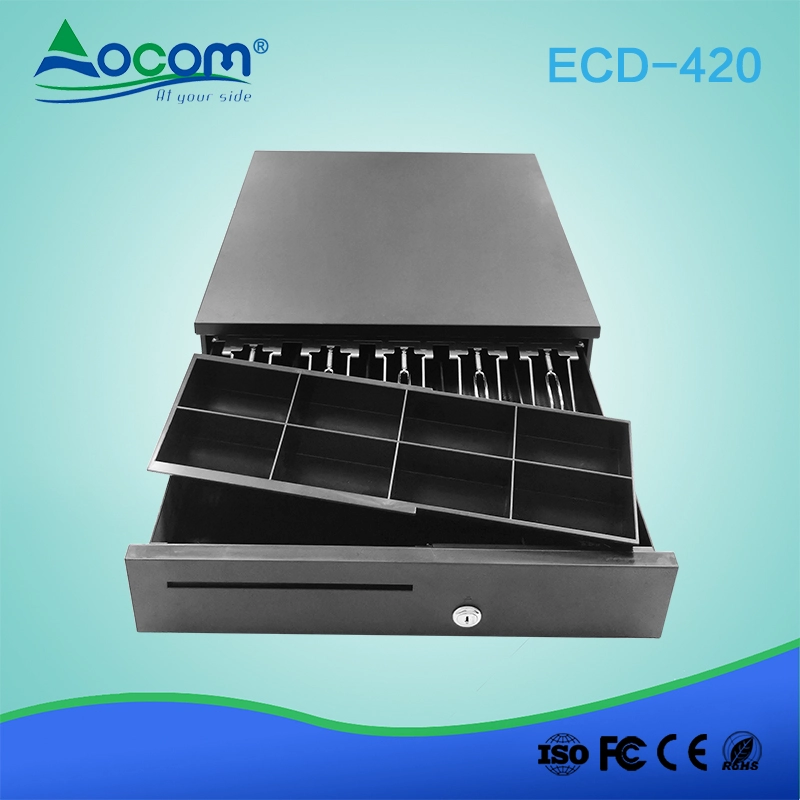

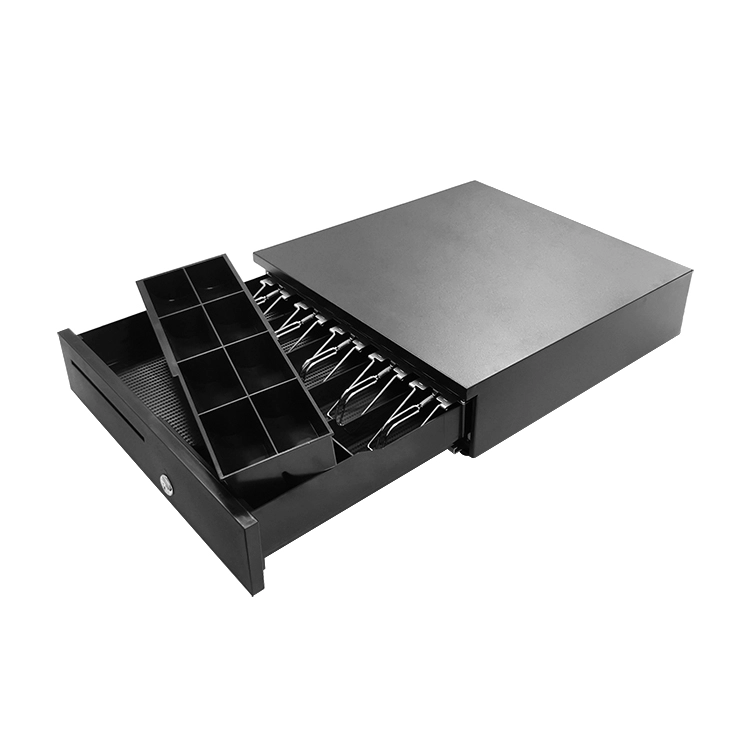

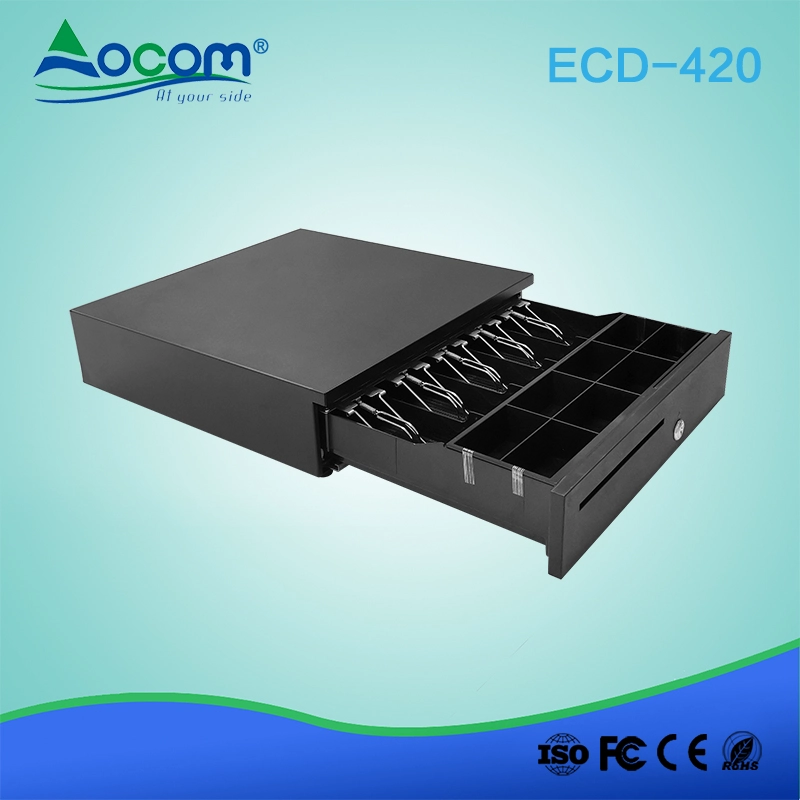

(ECD-420-X) 5B8C or 6B4C Electronic Cash Drawer

  • The shell is made of SECC and SPCC
  • Textured hybrid powder coat
  • Compatible with 12V -24V Wide voltage
  • 3-position locks
  • One check slot
  • 5B8C or 6B4C for optional
  • Micro-switch Sensor for optional
  • Bottom outlet to make the desktop more tidy
  • Pluggable wire for easy maintenance

 5B8C or 6B4C Electronic Cash Drawer

 (Model No.: ECD-420-X)


Features:

The shell is made of SECC and SPCC;
Textured hybrid powder coat;
Compatible with 12V -24V Wide voltage;
3-position locks;
One check slot;
5B8C or 6B4C for optional;
Micro-switch Sensor for optional;
Bottom outlet to make the desktop more tidy;
Pluggable wire for easy maintenance.



Specifications:



Materials

The upper cover use 0.8mm SPCC, bottom cover use1.0mm SECC

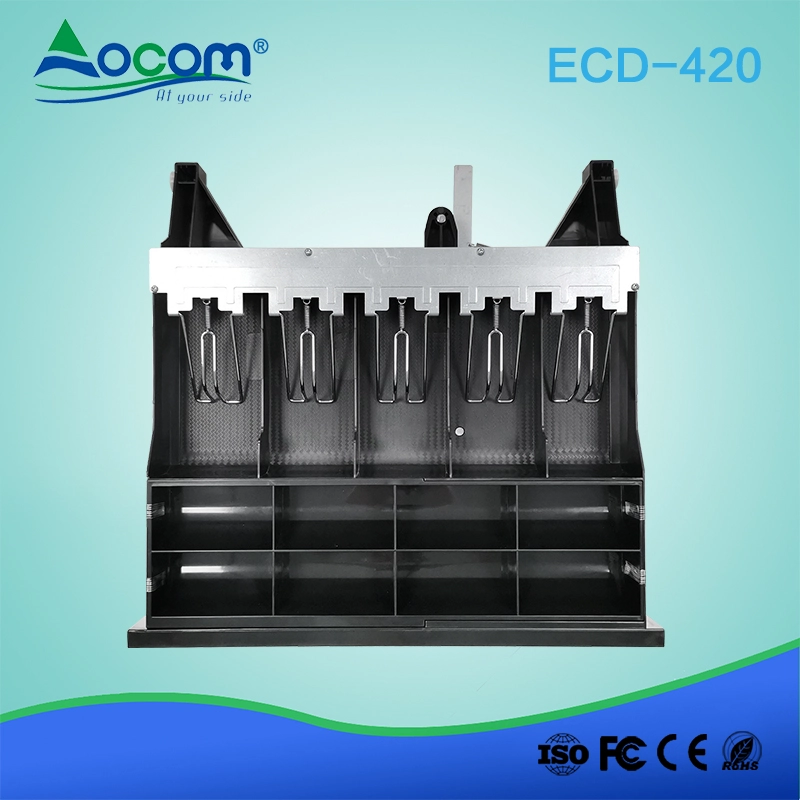

Bill tray

5bill or 6bill ( 5B8C Standard, 6B4C for optional)

Width

79/78/72/72/67mm

Coin tray

8coin or 4coin

lock

3positionlocks( Locked&can be trigged&opened)

Power

12V- 24V wide voltage

Slot

Single check slot

Lifetime

Tested to minimum one million cycles

Interface

RJ11 or RJ12 (RJ12 for Micro-switch Sensor function )

Color

Black or White

weight

4.5 kg (net), 5.2 kg (gross)

Dimensions

405(D) x 420(W) x 100mm(H) (with feet of 10mm)

Box Dimensions

480WX465DX 160H
