Efficient decoding rate One Dimensional CCD Barcode ScannerEfficient decoding rate One Dimensional CCD Barcode ScannerEfficient decoding rate One Dimensional CCD Barcode ScannerEfficient decoding rate One Dimensional CCD Barcode ScannerEfficient decoding rate One Dimensional CCD Barcode ScannerEfficient decoding rate One Dimensional CCD Barcode Scanner

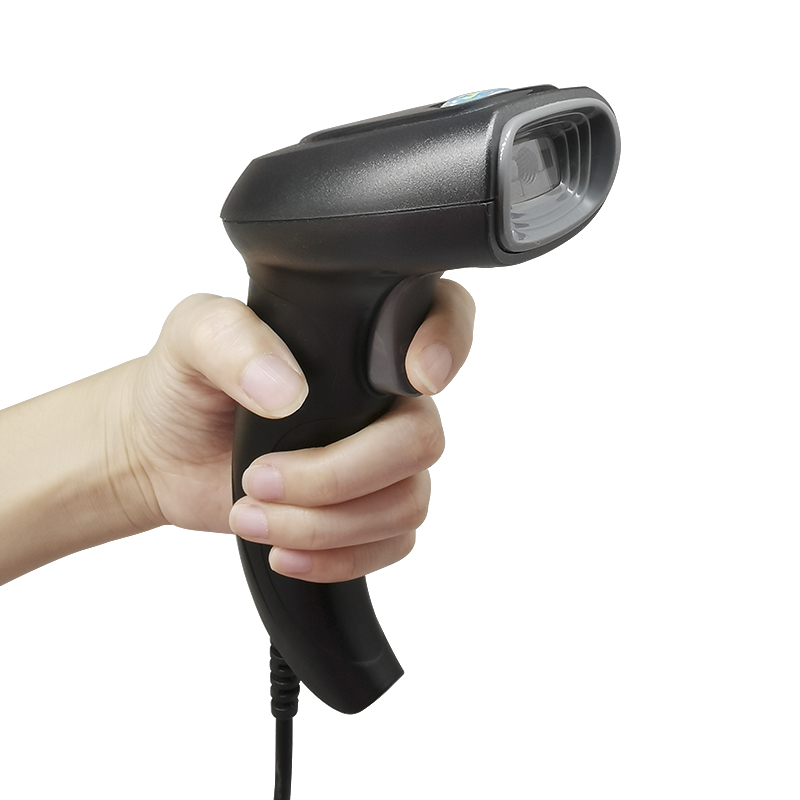

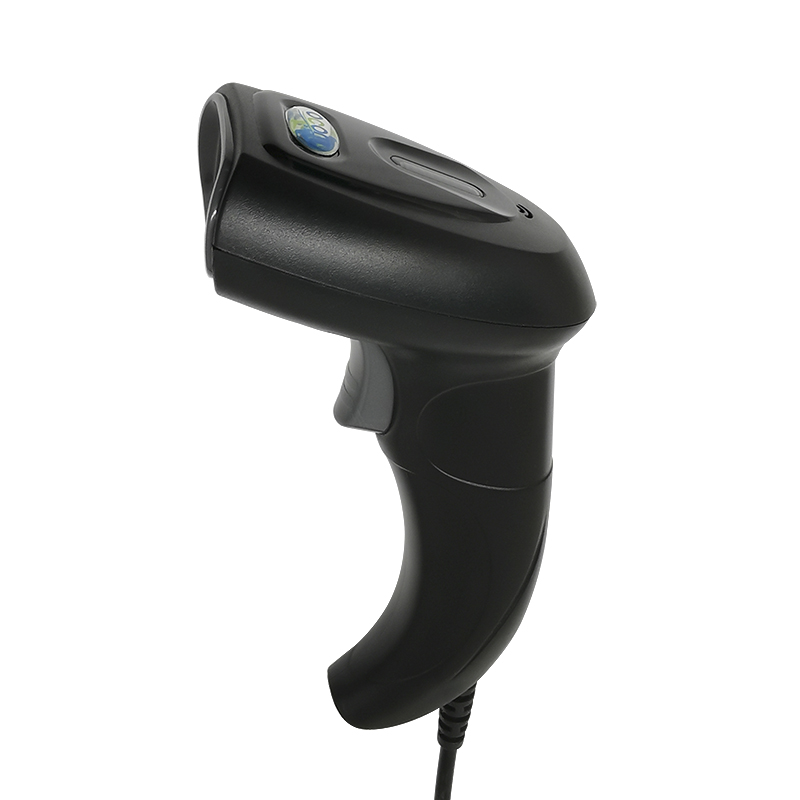

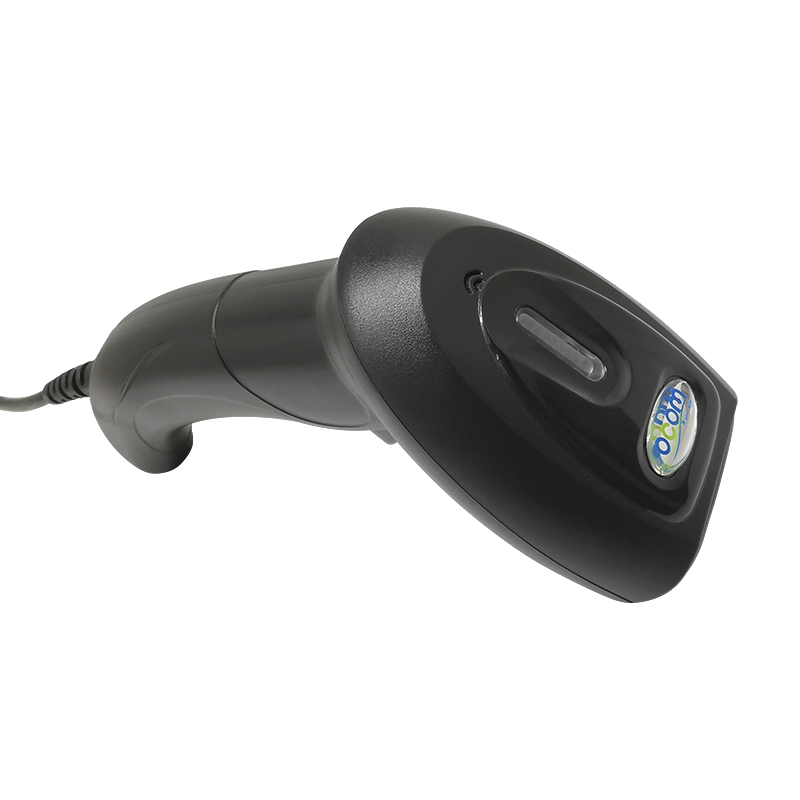

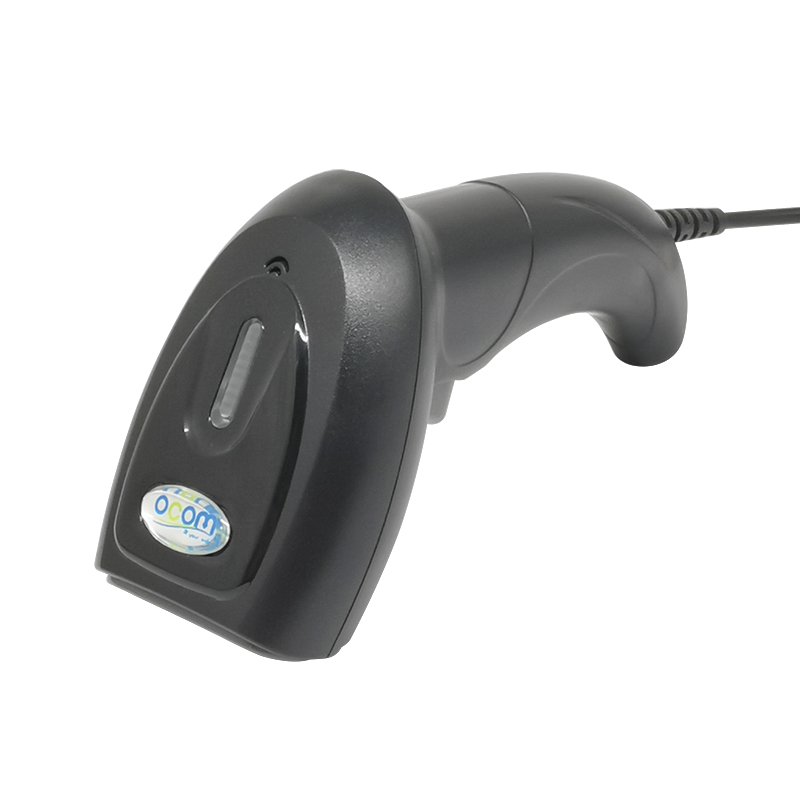

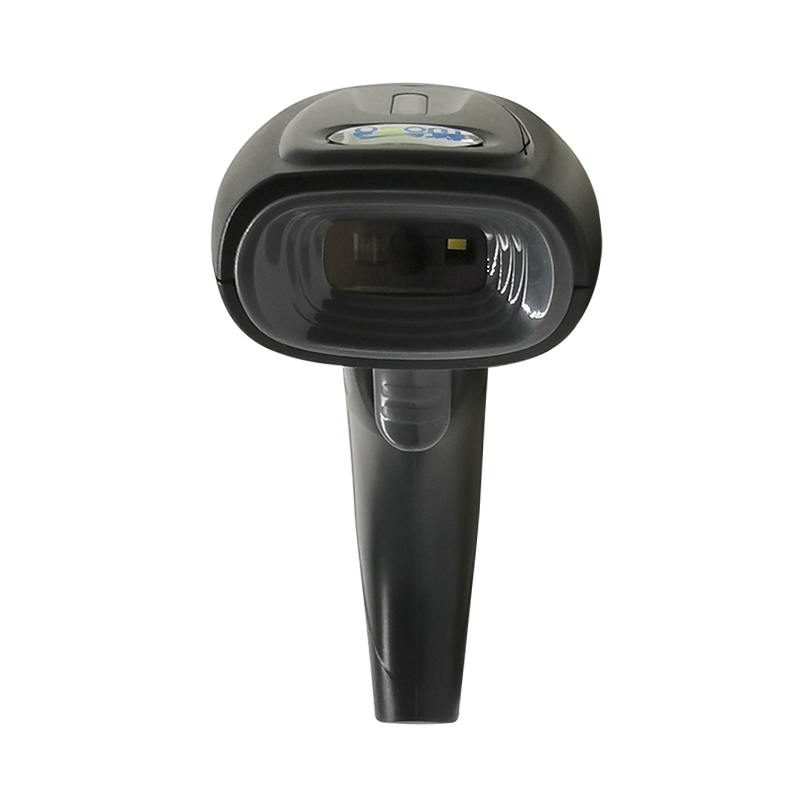

Efficient decoding rate One Dimensional CCD Barcode Scanner

  • 2500 pixel CCD sensor
  • 280 scans per second
  • No needdriver, plug and play.
  • Ability to scan 3mil density barcodes
  • Support reading bar codes from screen.
  • Support Manual/Auto/Continue scanning mode
  • Efficient decoding rate and ultra-low error rate.
  • Many kinds of one-dimensional bar code can be identified.
Efficient decoding rate One Dimensional CCD Barcode Scanner
(Model:OCBS-C006)



Feature

2500 pixel CCD sensor
280 scans per second
No needdriver, plug and play.
Ability to scan 3mil density barcodes
Support reading bar codes from screen.
Support Manual/Auto/Continue scanning mode
Efficient decoding rate and ultra-low error rate.
Many kinds of one-dimensional bar code can be identified.


Specification

Performance Parameters

Processor

32-bit ARM processor

Electrical Parameters

Image Sensor

2500 pixel CCD sensor

Light Source

LED (wavelength 660nm ± 10nm)

Scan Speed

280 scans per second

Scan Angle

Skew ±55° roll ±25° pitch ±75°

Scanning Distance

(60%Contrast) (25mil)40cm,(15mil)32cm,(10mil)22cm,(5mil)11cm,(3mil)3cm

Scanning Width

≤ 110mm

Resolution

≥0.1mm(4mil)

Minimum Contrast

15%

Decoding Capability

Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7,

All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, , WPC code

matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412 . UPC-A, UPC-E, Code 128, Code 93, Coda bar, IATA, MSl/PLESSY, Code 32, STD

Electrical Parameters

Voltage

4.5 ~ 5.5V DC V1 ± 5%

Current

Operating

100 ~ 110mA

Standby

 30 ~ 40mA

Mechanical Parameters

Dimensions

170mm(L)×60mm(W)×95mm(H)

Weight

185g

Case Material

ABS

Interfaces

USB

Environmental Parameters

Operating Temperature

-200 ℃ ~ 50

Storage Temperature

 -40 ℃ ~ 70

Humidity

0% ~ 98%non-condensing

Illumination

0 ~ 70,000 lux

Typical Scanning Distance

5mil  UPC

40mm - 160mm

10mil  Code93

20mm - 240mm

15mil  EAN13

40mm - 250mm

20mil  code128

40mm - 380mm

40mil  code128

80mm -520mm
