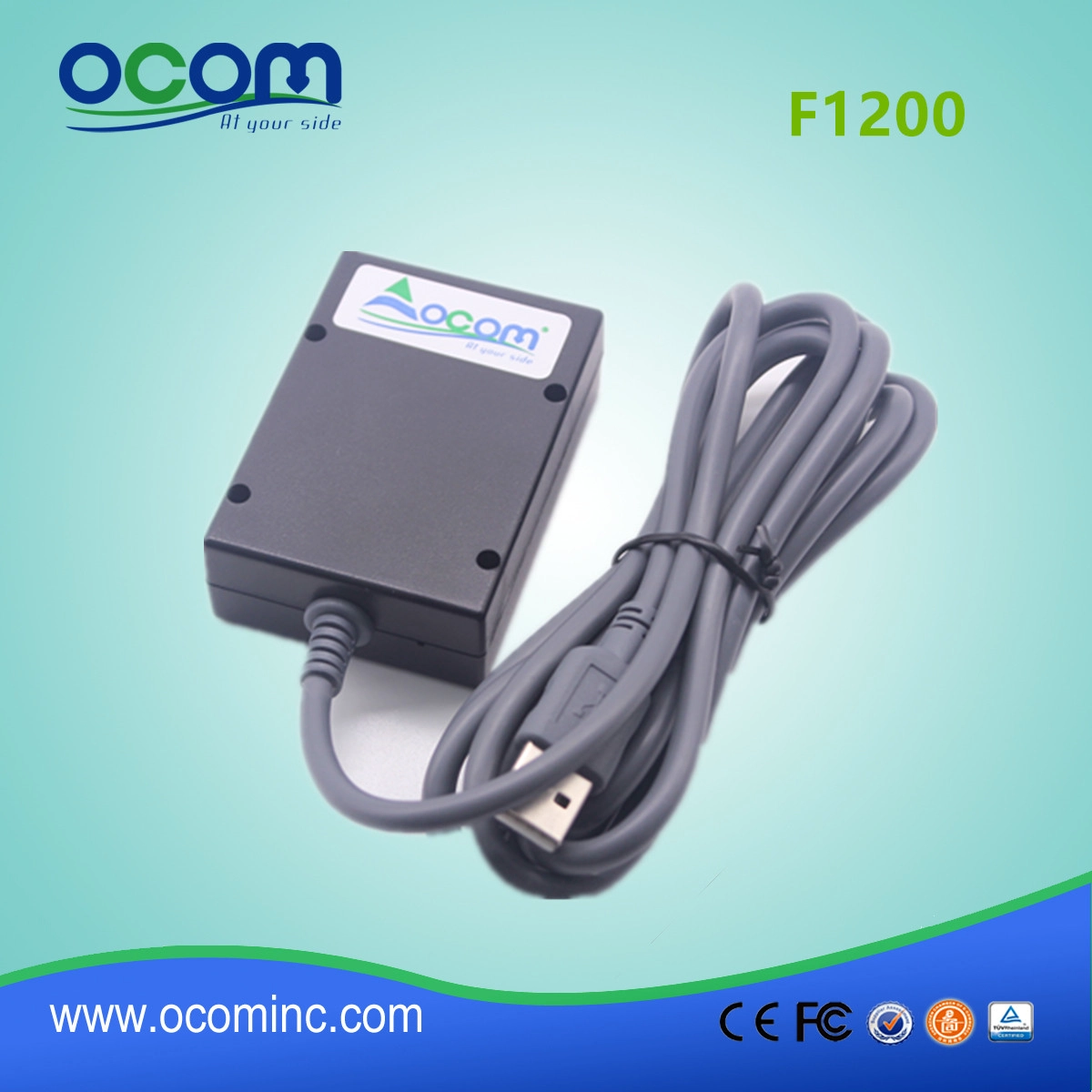

(F1200) 1D Fixed CCD Barcode Scanner
- ARM-32bit cortex high speed processor:class-leading swift decoding
- 3.3mil high resolution:easy to read high-density 1D bar-codes
- Read bar-codes on electronic screen: ideal for mobile payment
- Support TTL- RS232/USB/PS2 port
- Scan Rate: 300 scans /second
- Sensor: Linear CCD sensor

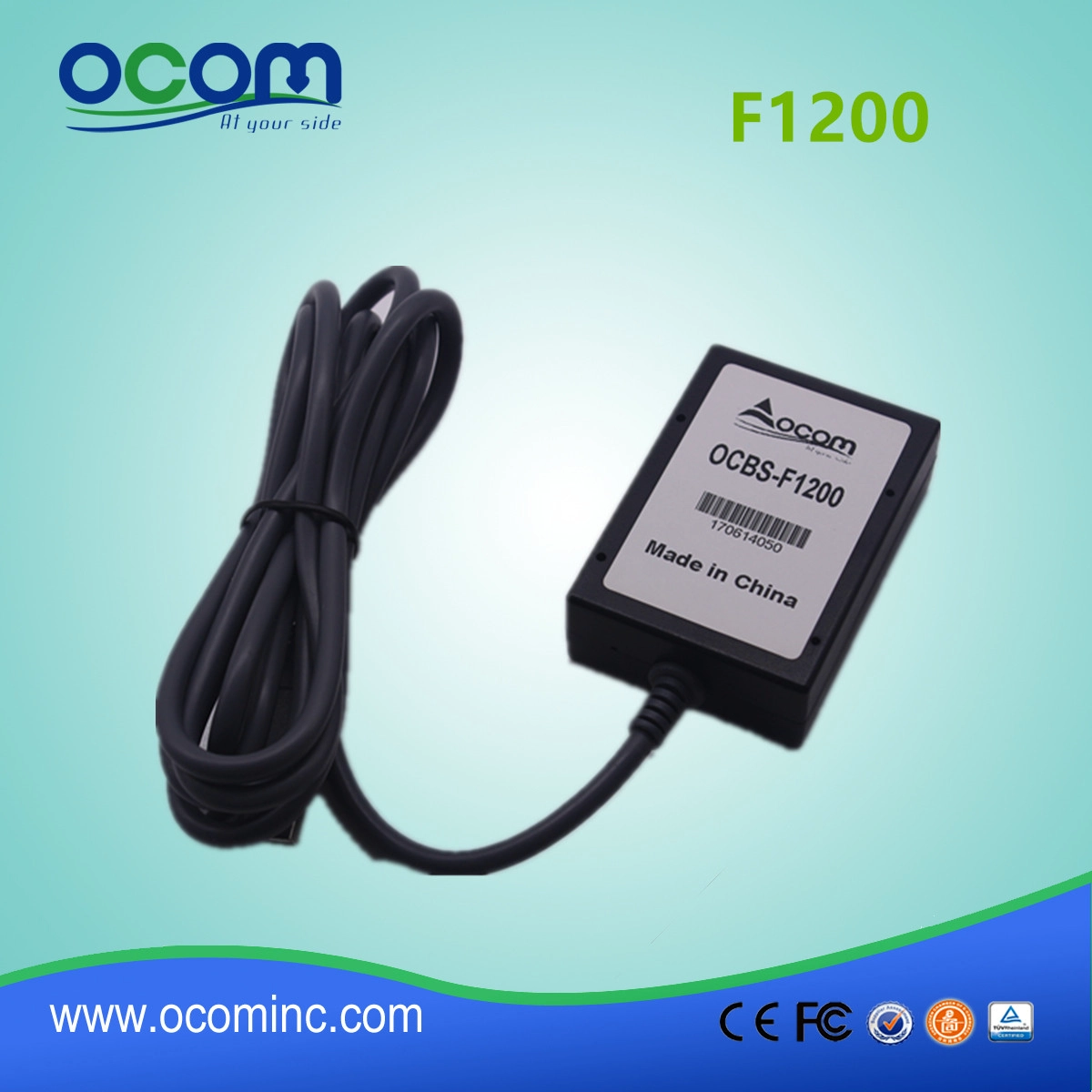

1D Fixed CCD BarcodeScanner
(M/N:OCBS-F1200)
Features
- ARM-32bit cortex high speed processor:class-leading swift decoding
- 3.3mil high resolution:easy to read high-density 1D bar-codes
- Read bar-codes on electronic screen: ideal for mobile payment
- Support TTL- RS232/USB/PS2 port
- Scan Rate: 300 scans /second
- Sensor: Linear CCD sensor
Data interface
FPC12pin pitch 0.5 data interface
 |
|
|
PIN# |
signal |
I/O |
Description |
|
|
1 |
NC |
- |
Floating |
|
|
2 |
VCC |
- |
power supply |
|
|
3 |
GND |
- |
Power ground |
|
|
4 |
RX |
Input |
TTL-RS232 receive |
|
|
5 |
TX |
Output |
TTL-RS232 send |
|
|
6 |
D-/HOST DATA |
Input/output |
USB_D- signal/PS2_HOST DATA |
|
|
7 |
D+/HOST CLK |
Input/output |
USB_D+ signal/PS2_HOST CLK |
|
|
8 |
KB DATA |
- |
PS2_KB DATA |
|
|
9 |
Buzz |
Output |
Buzzer output signal |
|
|
10 |
LED |
Output |
Indicator light input signal |
|
|
11 |
KB CLK |
- |
PS2_KB CLK |
|
|
12 |
KEY |
Input |
Trigger input signal,Keep low level for more 20ms more than 20ms to touch保持低电平20ms以上可触发读码 |
|
|
|
|
|
Than 20ms to trigger reading |
Wireinterface
1. USB
2. RS232 port
Parameters
|
Performance parameters |
||
|
|
Light Source |
632nm LED light |
|
|
Sensor |
Linear CCD Sensor |
|
|
Processor |
ARM32-bit |
|
|
Resolution |
≥4mil/0.1mm@PCS90% |
|
|
Depth of field |
3-50CM |
|
|
Scan Rate |
300 scans/second |
|
|
scanning method |
Key trigger、Always bright scan、Command control scan |
|
|
|
Pitch:±60° |
|
|
Scan Angle |
Roll: ±30° |
|
|
|
Skew: ±60° |
|
|
Working Voltage |
DC 3.3V-5V |
|
|
Current |
110mA（working Current）；30mA（Standby Current） |
|
|
Print Contrast |
≥25% |
|
|
Ambient light resistance |
100,000Lux Max |
|
|
Bar-code type |
EAN-8, EAN-13, Codabar, CODE11，CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5， Matrix 2 of 5，Industrial 2 of 5 , MSI，Plessey, ITF14. |
