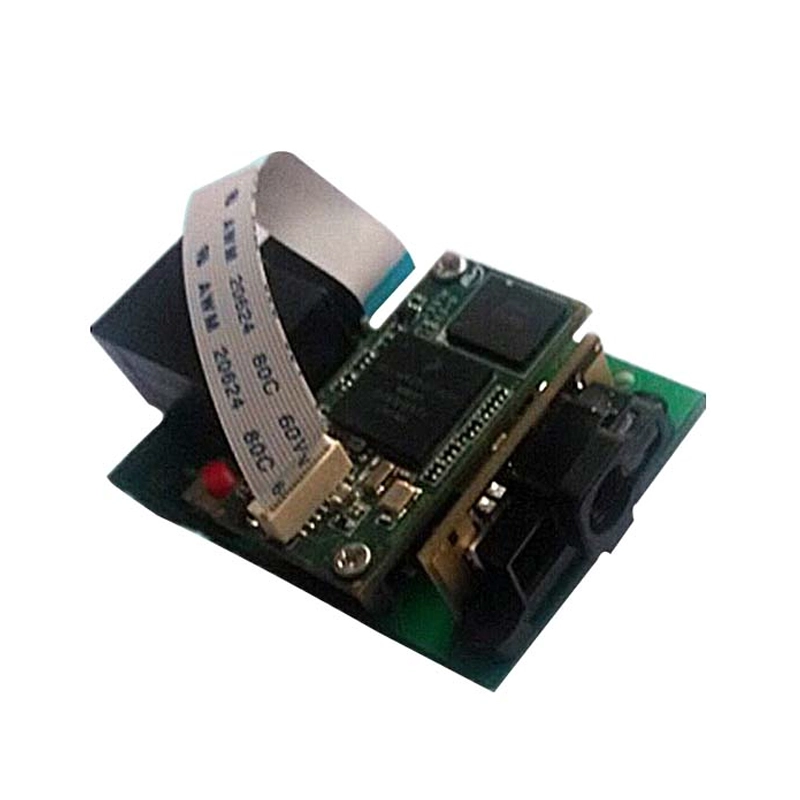

(F3100/F4100) 2D Fixed Barcode Scanner Module

(F3100/F4100) 2D Fixed Barcode Scanner Module

  • Engine: 31.7mm (L) x 12.2mm (H) x 12mm (D);
  • Decode board: 38mm (L) x 19mm (W) x 7.5mm (D);
  • Light Source: Aimer: 617 nm LED, Illumination: 625 nm LEDs;
  • Field of View: 39° (H) x 25° (V);
  • Roll: 0 - 360° ;
  • Pitch: ± 65° or greater;
  • Yaw: ± 60° or greater;
  • Print Contrast: 25% minimum reflective difference;
  • OCBS-F4100:with case and data cable;
  • OCBS-F3100: without case & data cable.

2D Fixed Barcode Scanner Module

(Model No.: OCBS-F3100/F4100)

FEATURE:

Engine: 31.7mm (L) x 12.2mm (H) x 12mm (D);
Decode board: 38mm (L) x 19mm (W) x 7.5mm (D);
Light Source: Aimer: 617 nm LED, Illumination: 625 nm LEDs;
Field of View: 39° (H) x 25° (V);
Roll: 0 - 360° ;
Pitch: ± 65° or greater;
Yaw: ± 60° or greater;
Print Contrast: 25% minimum reflective difference;
OCBS-F4100:with case and data cable;
OCBS-F3100: without case & data cable.



Typical Performance*

Typical Working Ranges

HD Focus Range

SR Focus Range

Bar Code Type

Symbol Density

Near

Far

Near

Far

Code 39

5.0 mil

0mm

90mm

60mm

130mm

100% UPCA

13.0 mil

5mm

180mm

30mm

300mm

Code 39

20.0 mil

5mm

250mm

35mm

350mm

PDF 417

6.8 mil

0mm

85mm

40mm

150mm

Data Matrix

10.0 mil

0mm

70mm

50mm

130mm

QR Code

20.0 mil

0mm

180mm

25mm

250mm

Resolution 1D Code 39

3 mil (0.076mm)

5 mil (0.127mm)

Resolution 2D Data Matrix

5 mil (0.127mm)

6.7 mil (0.170mm)

*Performance may be impacted by bar code quality and environmental conditions.
