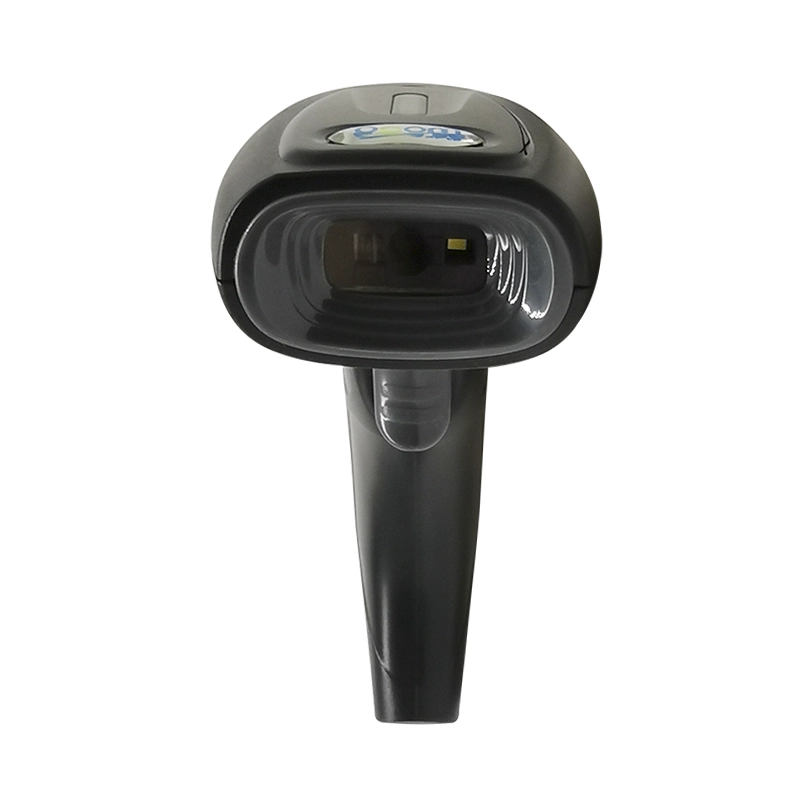

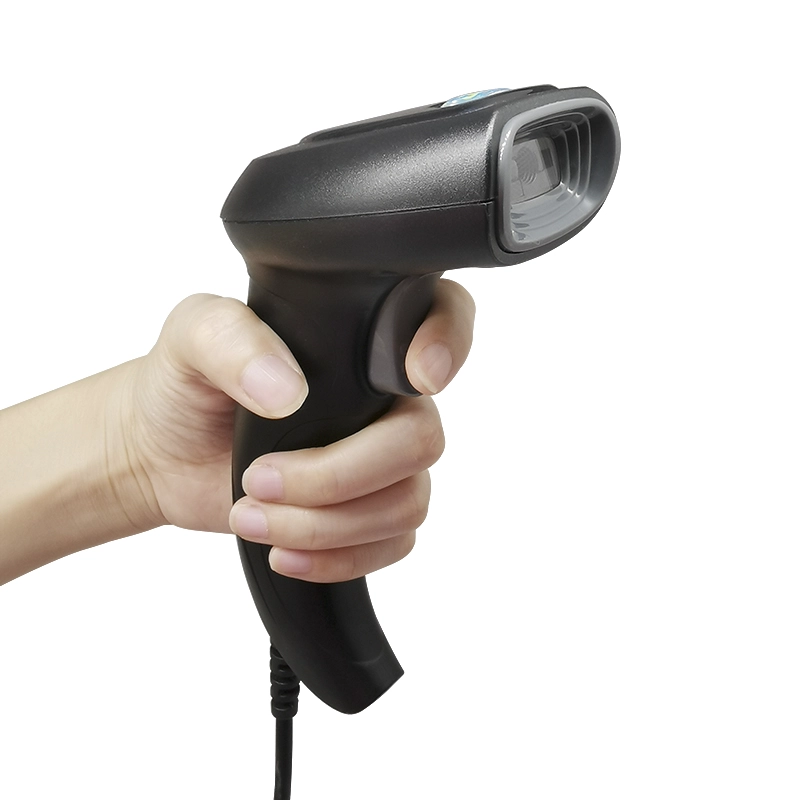

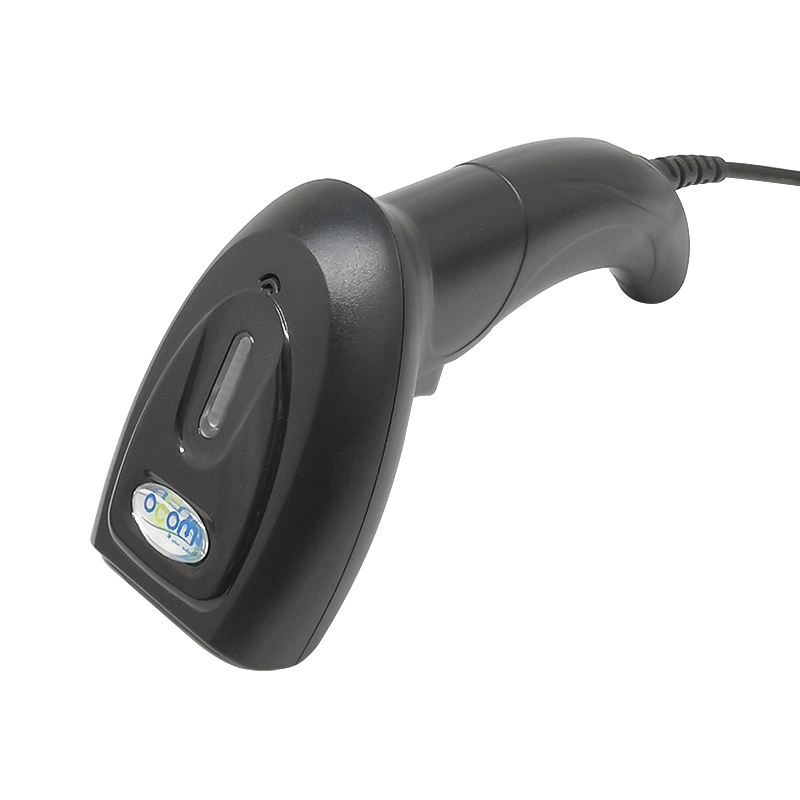

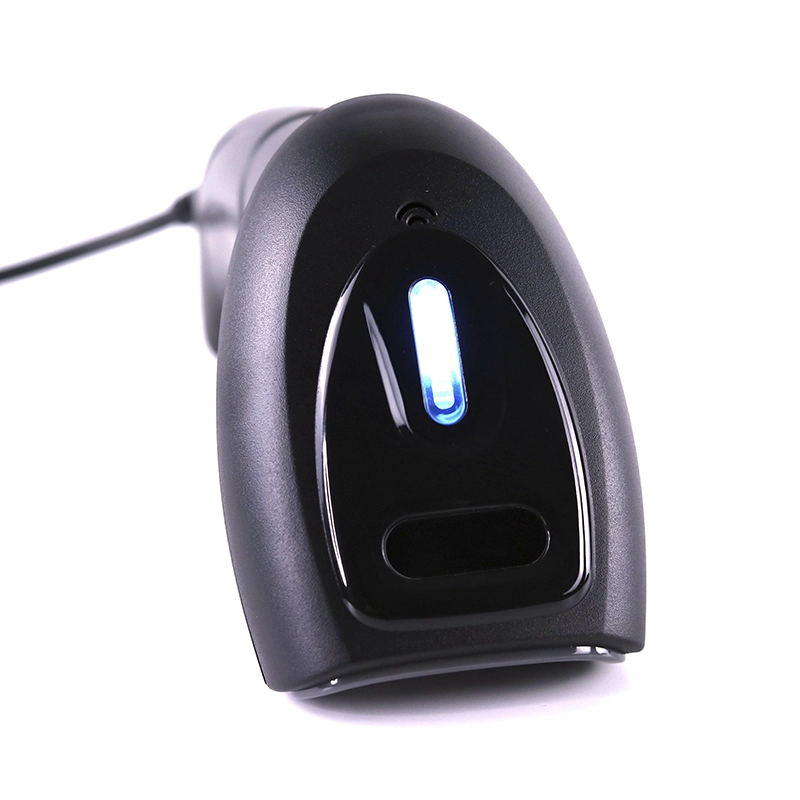

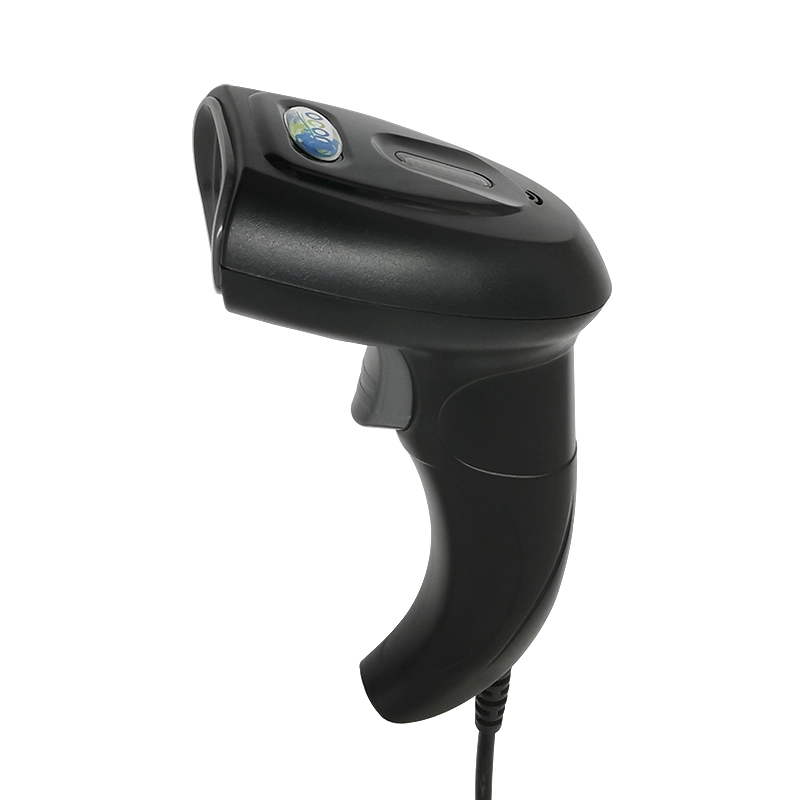

Factory Supply New Product Wired 2d CMOS Barcode Scanner
- High performance imaging technology;
- 1MP High Pixel 1MP(1280*800);
- Omni-directional scanning;
- High compatibility for all major 1D and 2D symbols;
- Can read the barcode on the screen and color barcode;
- 4mil excellent scanning accuracy;
- Multi special function setting supported;
- Support ASCII extension code and special characters.
Factory Supply New Product Wired 2d CMOS Barcode Scanner
(Model No.: OCBS-2013)
Feautre:
High performance imaging technology;
1MP High Pixel 1MP(1280*800);
Omni-directional scanning;
High compatibility for all major 1D and 2D symbols;
Can read the barcode on the screen and color barcode;
4mil excellent scanning accuracy;
Multi special function setting supported;
Support ASCII extension code and special characters.
Specification:
|
Function |
||
|
Light source |
White LED |
|
|
Beep |
Supported |
|
|
Stand |
Optional |
|
|
Indicator |
Green LED, beep |
|
|
Scan performance |
||
|
Sensor |
CMOS |
|
|
Resolution |
1280*800,256 gray levels |
|
|
Maximum decoding speed |
13mil UPC 40cm/s |
|
|
Reading angle |
horizontally 50 deg; vertically 20 Deg |
|
|
Precision |
≥4mil |
|
|
Decode capability
|
1D |
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code93, Code 11 (USD-8), MSI/Plessey |
|
2D |
PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1 Composite |
|
|
Depth of field |
Code 39(5mil)：50mm~120mm Code 39(10mil)：25mm~250mm UPC/EAN (13mil)：20mm~320mm Data Matrix(7.5mil)：63mm~150mm PDF417(6.6mil)：62mm~145mm |
|
|
Sensitivity |
Inclination ±45° @0°Roll and 0°Skew Rotation ±30° @0°Pitch and 0°Skew Deflection ±45° @0°Roll and 0°Skew |
|
|
Electrical |
||
|
Interface |
USB or USB virtual COM(virtual serial port) |
|
|
Input Voltage |
3.3v~5v DC |
|
|
Standard Power |
2.0w (400mA) |
|
|
Max Power |
2.5w (450mA) |
|
|
DC adapter |
Max 5.5V 1A |
|
|
LED CLASS |
Class I |
|
|
User Environment |
||
|
Operate Temperature |
-20 deg C ~ +60 deg C (-4 Deg F to 144 deg F) |
|
|
Storage Temperature |
-30 deg C ~ +70 Deg C (-22 Deg F to 158 deg F) |
|
|
Humidity |
5% - 95%(non- condensation) |
|
|
Drop resistance: |
1.5m (5.0ft) drops to concrete |
|
|
IP class |
IP54 |
|
|
Light intensity |
Working: sun lights, fluorescent lights |
|
