Handheld 1D/2D Barcode Scanner ReaderHandheld 1D/2D Barcode Scanner ReaderHandheld 1D/2D Barcode Scanner ReaderHandheld 1D/2D Barcode Scanner ReaderHandheld 1D/2D Barcode Scanner Reader

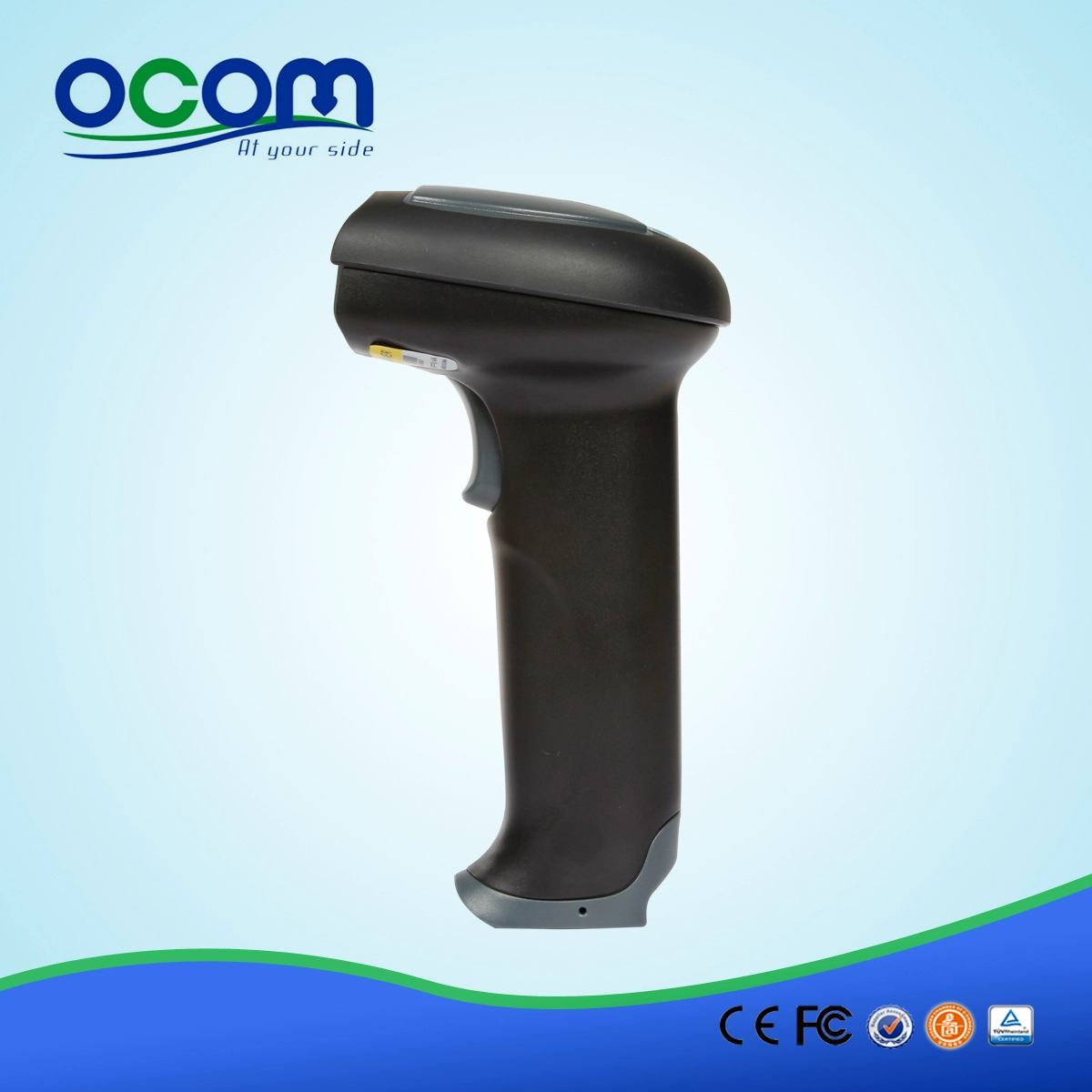

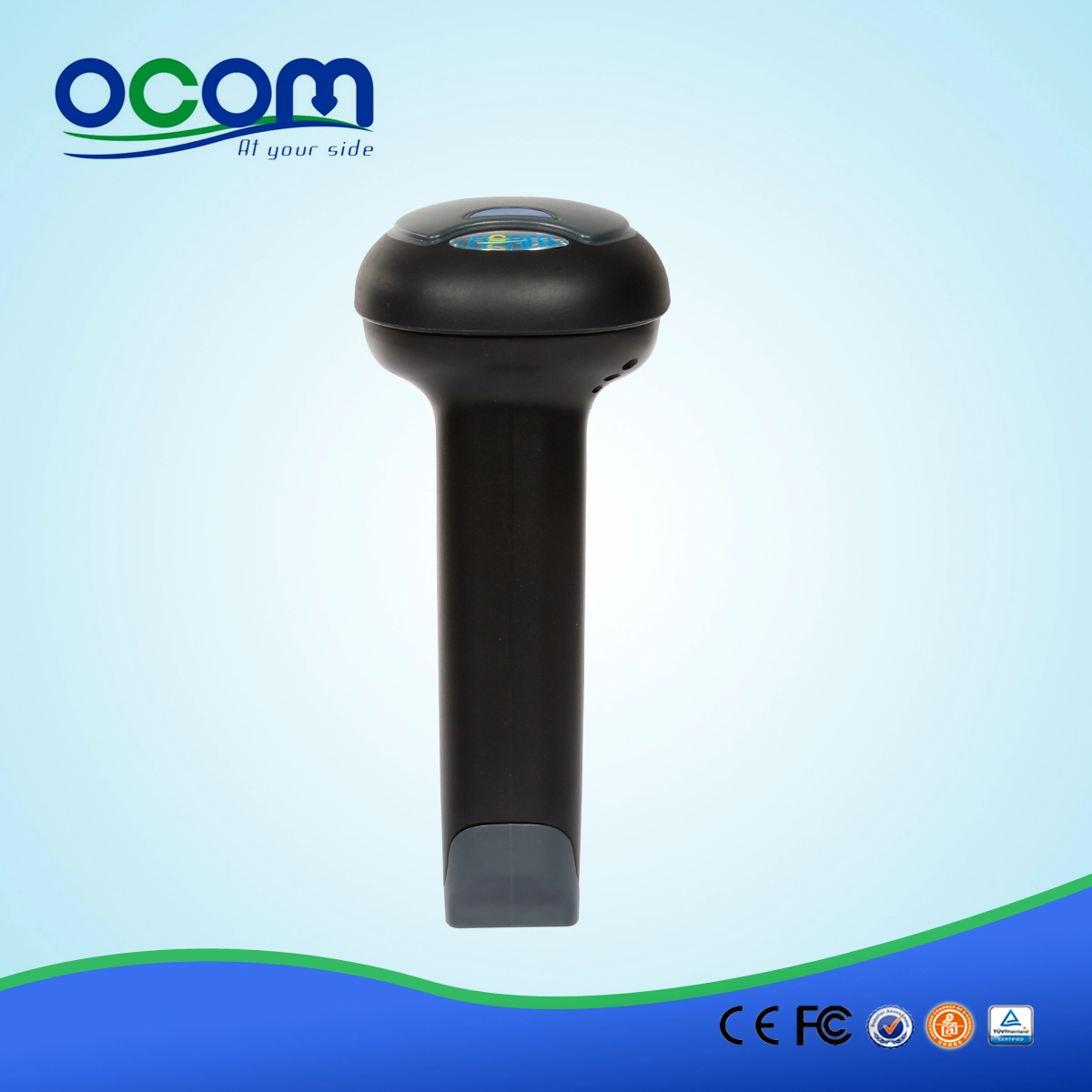

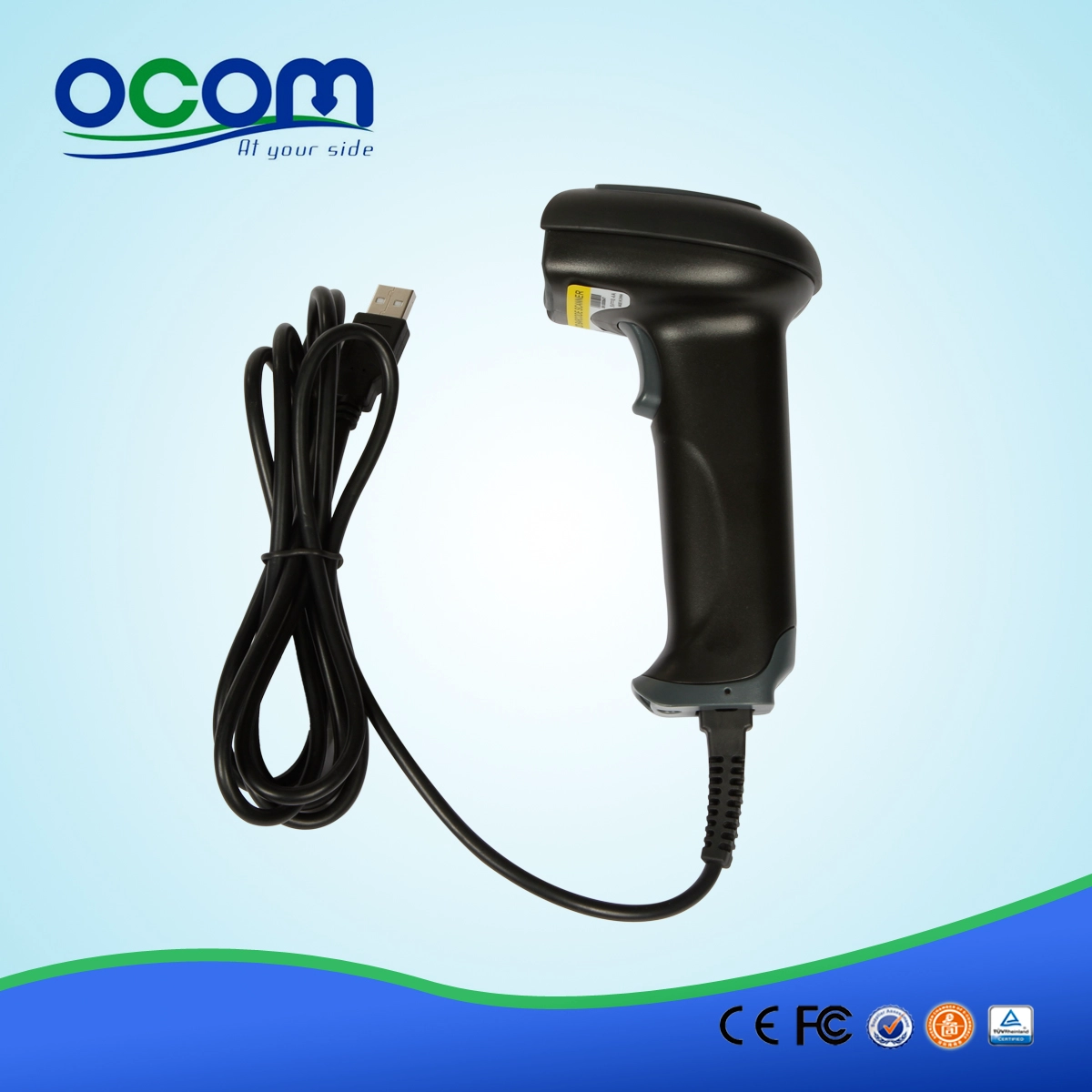

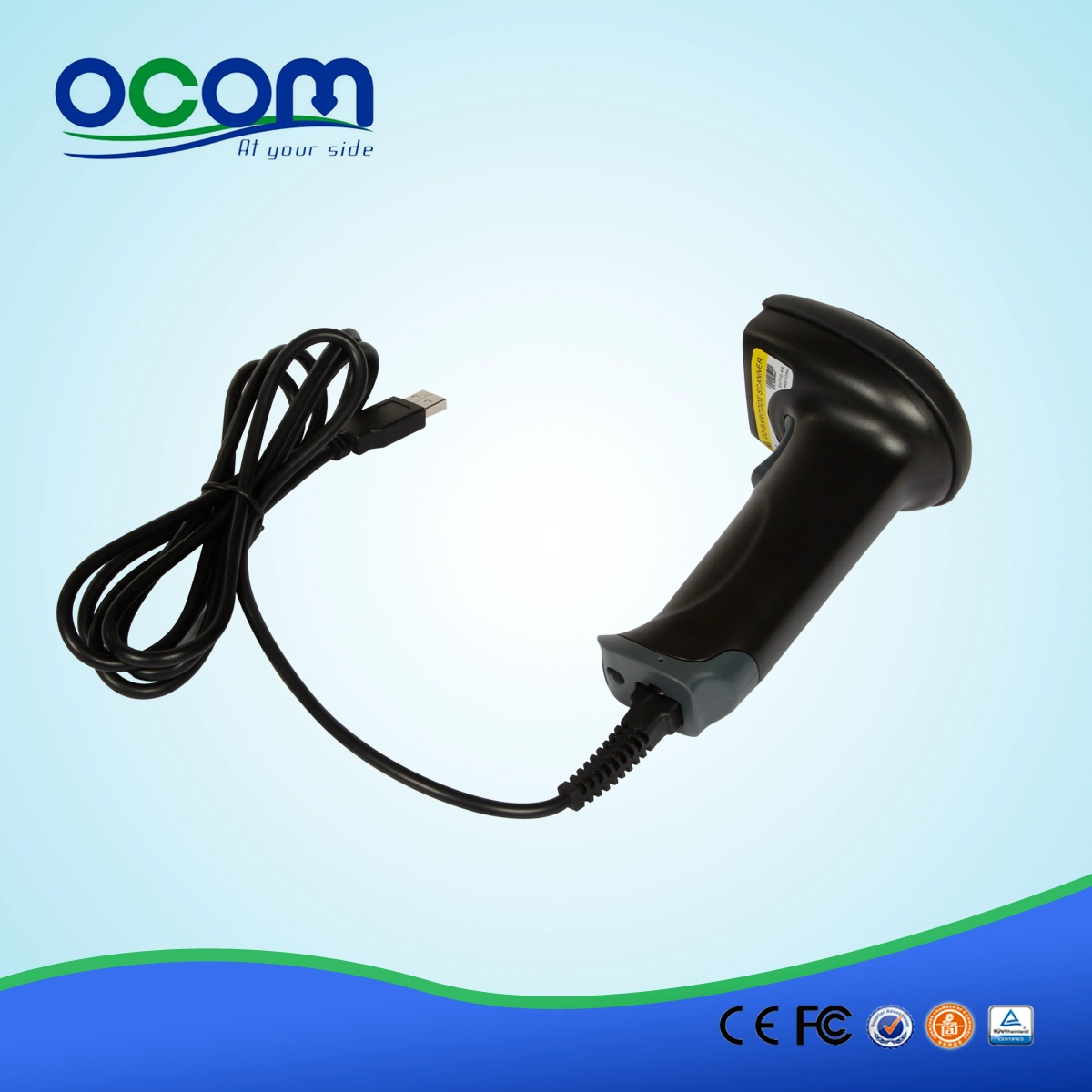

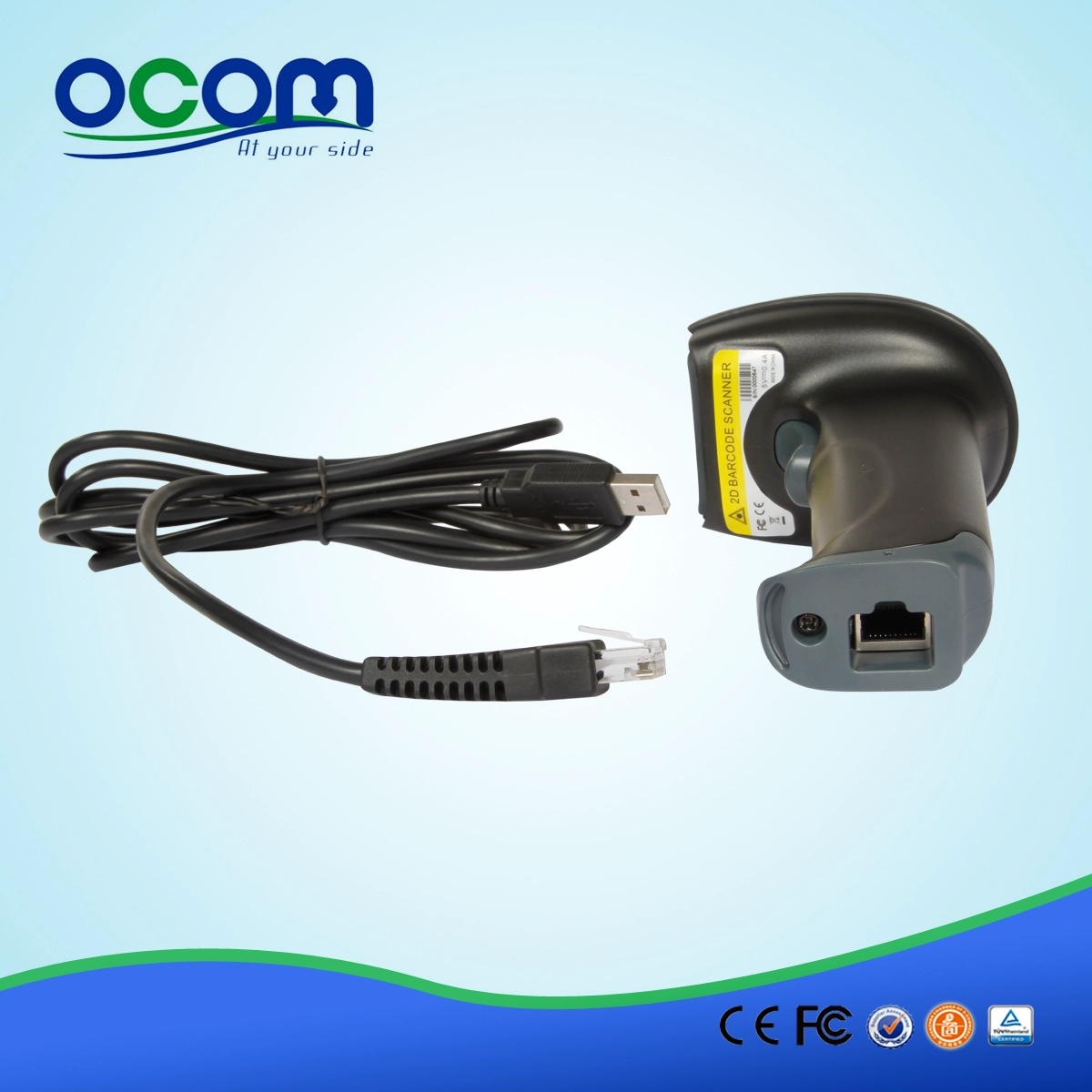

Handheld 1D/2D Barcode Scanner Reader

  • Handheld Barcode Scanner for 1D/2D barcode
  • CMOS image technology based;
  • RS232 or  USB interfaces optional
  • CPU: 32bit RISC 312 Mhz
  • Resolution: 752 * 480
  • Light Source: LED(622 nm - 628 nm)
  • Scan Rate: 100scans/sec
  • Precision: ≥ 5mil
  • Depth of Scan Field: 35 mm ~ 210 mm
  • Dimensions: 156mm * 68mm * 83 mm
Handheld 1D/2D Barcode Scanner Reader
(Model: OCBS-2004 )

Specifications:

Performance Characteristics

Image Sensor:
CMOS
Resolution:
752 * 480
Light Source:

LED(622 nm - 628 nm)

Light Intensity:
330 LUX (130 mm )
Illumination:
0 ~ 100,000 LUX
Symbology:
2D

PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080,100,140), Aztec, Maxicode, etc.

1D

Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar,etc.

Precision:
≥ 5mil
Depth of Scan Field:
35 mm ~ 210 mm

Print Contrast Signal:

≥ 30%
Roll/ Pitch/ Skew:
360°/±60°/±60°
Physical Characteristics
Interface:
RS232 / USB
Power Consumption:
2 W
Voltage:
DC 5 V (4.5-5.5V)
Current:
Idle
78 mA (idle) 400 mA(working) 18 mA (standby)
Weight:
235 g
Dimensions:
156 * 68 * 83 mm

User Environment

Operate Temperature:
-5degree C~+45degree C
Storage Temperature:
-40degree C~+60degree C
Humidity:

5% - 95%(non-condensing)

Safe
Certificates:

FCC Part15 Class B, CE EMC Class B


Product Details:
2d barcode scanner2d barcode scanner2d barcode scanner2d barcode scanner2d barcode scanner2d barcode scanner2d barcode scanner2d barcode scanner
