Handheld Android Industrial Mobile Data Terminal with Barcode ScannerHandheld Android Industrial Mobile Data Terminal with Barcode ScannerHandheld Android Industrial Mobile Data Terminal with Barcode ScannerHandheld Android Industrial Mobile Data Terminal with Barcode Scanner

Handheld Android Industrial Mobile Data Terminal with Barcode Scanner

  • FEATURE:
  • Android5.1 Operation System;
  • 1G RAM,8G ROM,TF card can up to 64 GB ;
  • 28nm ARM Qual-core cortex A53,1.3-1.5GHz
  • Support 4G LTE and 3G WCDMA;
  • GPS,A-GPS satellite positioning;
  • 5 million pixels, with LED, automatic focusing;
  • SIM card, PSAM card, Micro SD (TF) Card Expand Port;
  • Rechargeable Li-polymer Battery 3.7V 4000mAh ;
  • Color 4.0 inch QVGA imitative glass durable touch screen;
  • Sealed Environment: IP65;
  • 6 sides can bear impact from 1.5m drop to cement floor.

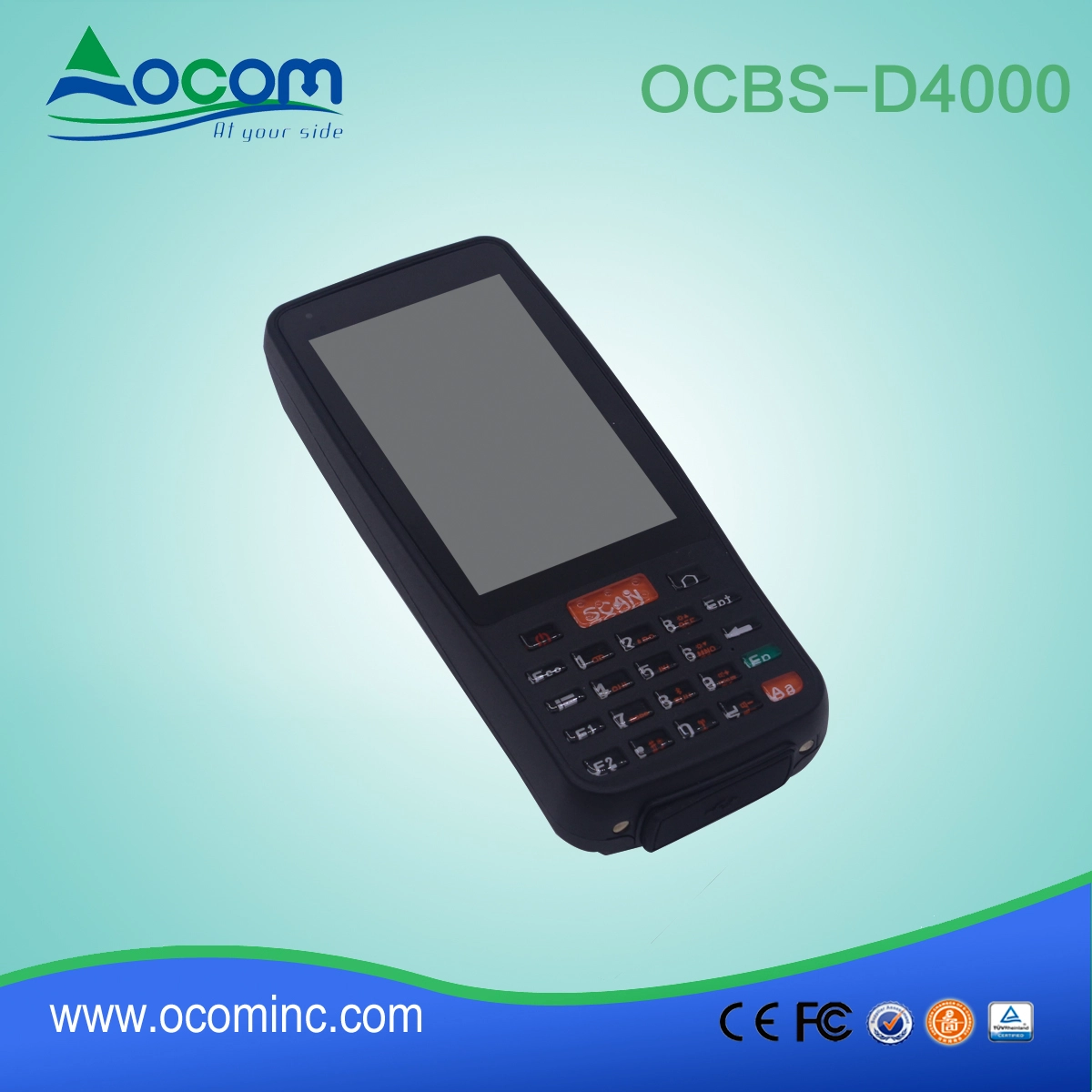

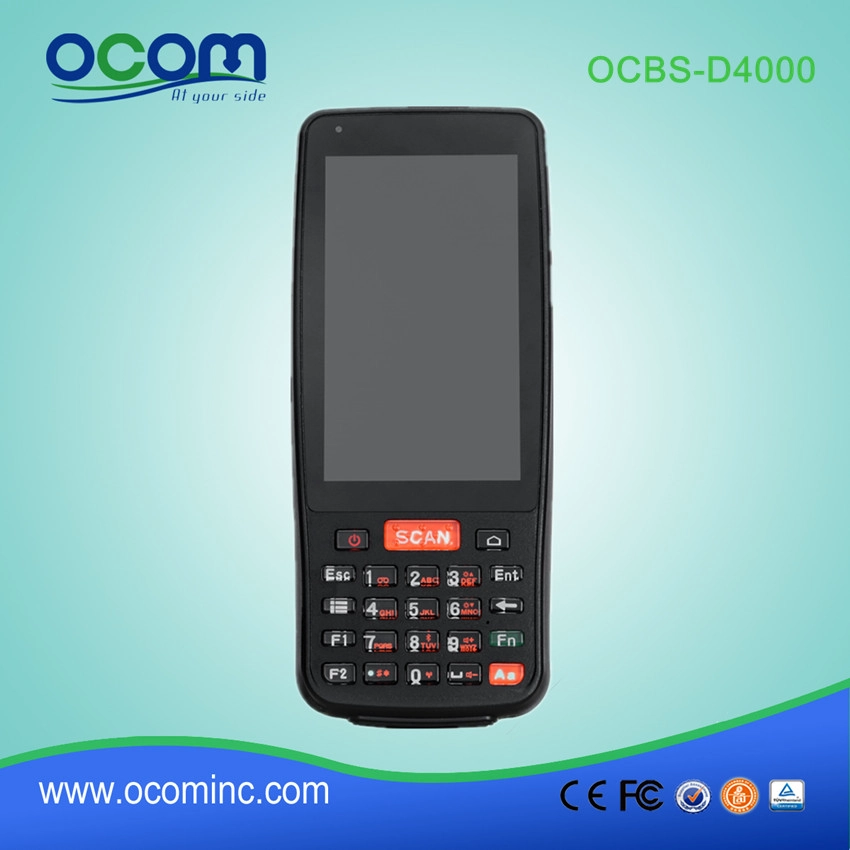

Handheld Android Industrial Mobile Data Terminal with Barcode Scanner

(OCBS-D4000)

FEATURE:

Android5.1 Operation System;

1G RAM,8G ROM,TF card can up to 64 GB ;

28nm ARM Qual-core cortex A53,1.3-1.5GHz

Support 4G LTE and 3G WCDMA;

GPS,A-GPS satellite positioning;

5 million pixels, with LED, automatic focusing(Option);

SIM card, PSAM card, Micro SD (TF) Card Expand Port;

Rechargeable Li-polymer Battery 3.7V 4000mAh ;

Color 4.0 inch QVGA imitative glass durable touch screen;

Sealed Environment: IP65;

6 sides can bear impact from 1.5m drop to cement floor.



Physical Parameter

Size

157 mm x 76 mm x 28 mm

 324g

 324g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480*800 (QVGA size)
The brightness of LED Backlight is adjustable

Expand Port

SIM card, , Micro SD (TF) Card

Communication Interface

USB2.0 Device,

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh

Performance Parameter

CPU

28nm ARM Qual-core cortex A53,1.3-1.5GHz



RAM

1G RAM

Flash ROM

Standard 8G NAND Flash Storage
Micro SD/TF port (Max up to 64G)

Data Communication

WI-FI

Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover

LTE

FDD-(B1 B3 B7 B8 B28), TDD-( B38 B39 B40 B41)

WCDMA

/GSM

WCDMA:

850MHZ,  Uplink:824MHZ-849MHZ;  Downlink: 869MHZ-894MHZ

900MHZ,  Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ

1800MHZ,Uplink:1710MHZ-1785MHZ;  Downlink: 1805MHZ-1880MHZ

1900MHZ ,Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ

Bluetooth

Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m

Operating Environment

Operating Temperature

-10 to 50 degree

Storage Temperature

-25 to 70 degree

Environment Humidity

0%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP65

Development Environment

Operating System

Android5.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect

One dimensional laser scanner

Mingde966 Standard ,Symbol 955, HoneywellN4313(for optional)

Resolution

4Mil minimum width

Ambient Light

10000ft.candles(107640 lux)

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47o±35o(Standard) / 35o±3o(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition

CCDScanner

CCD 2D engine Standard, HONEYWELL N3680 for optional

The Sensor Resolution

752(level)×480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID

HF

13.56MHz;ISO14443A protocol

Camera

5 million pixels, with LED, automatic focusing  for Optional

GPS

Support A-GPS
