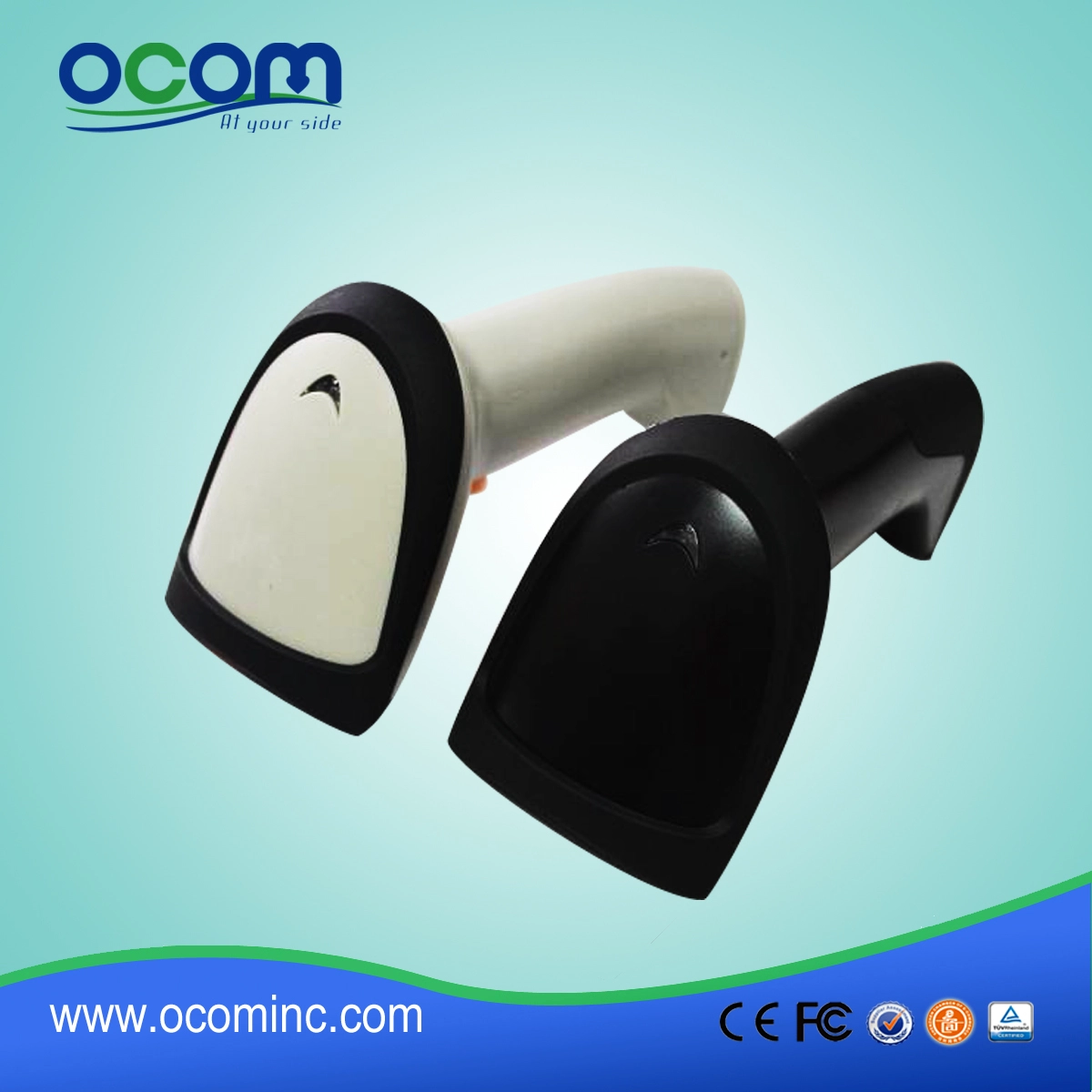

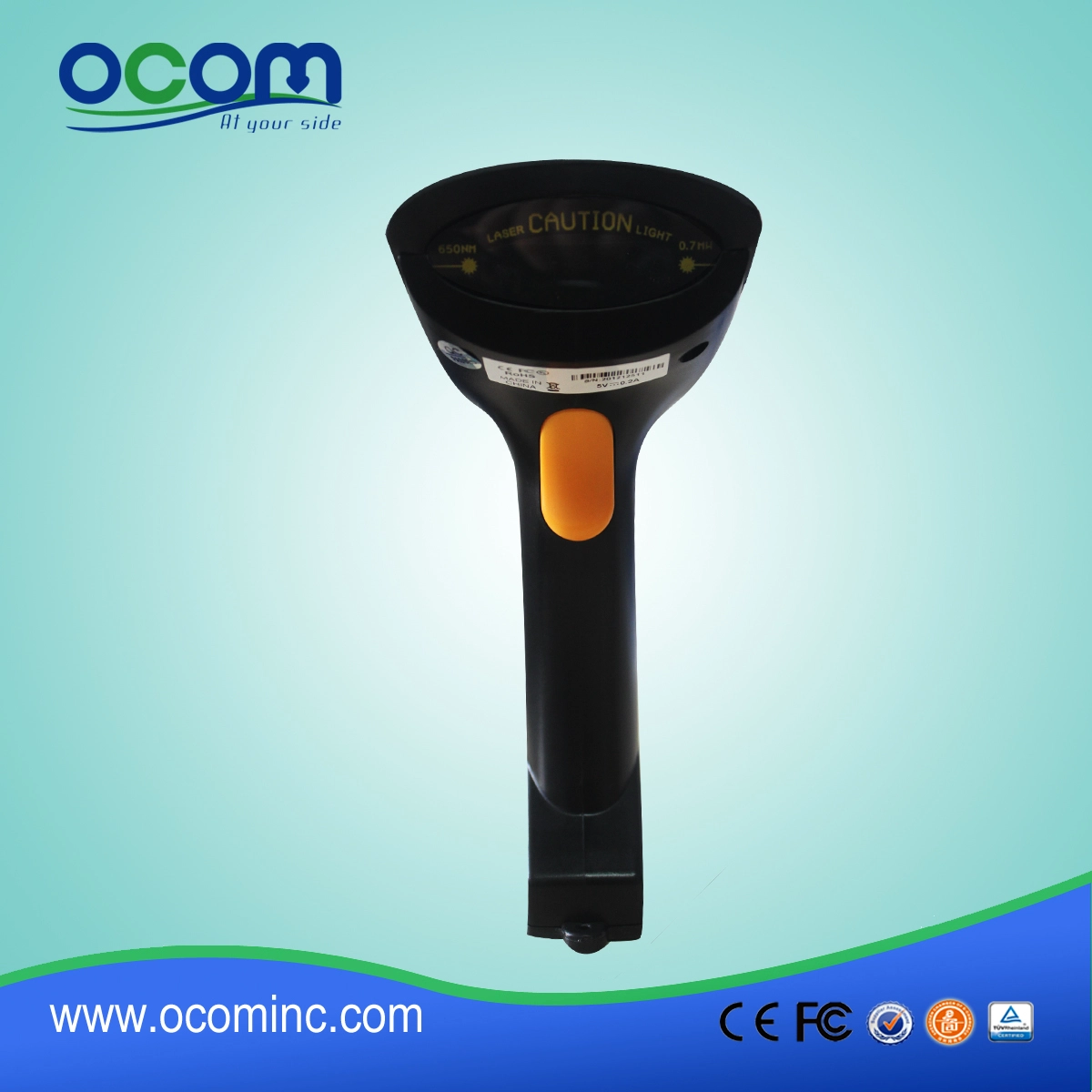

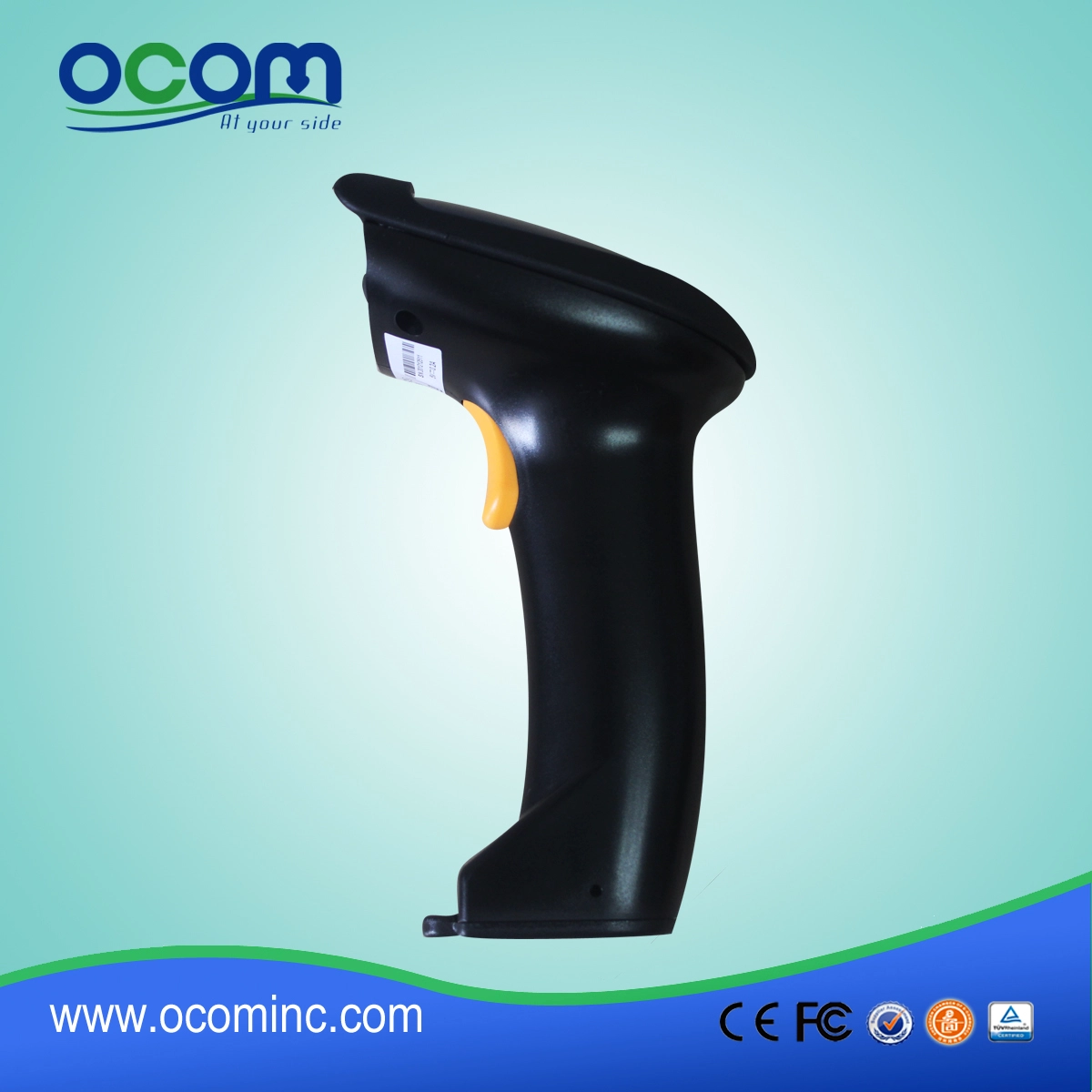

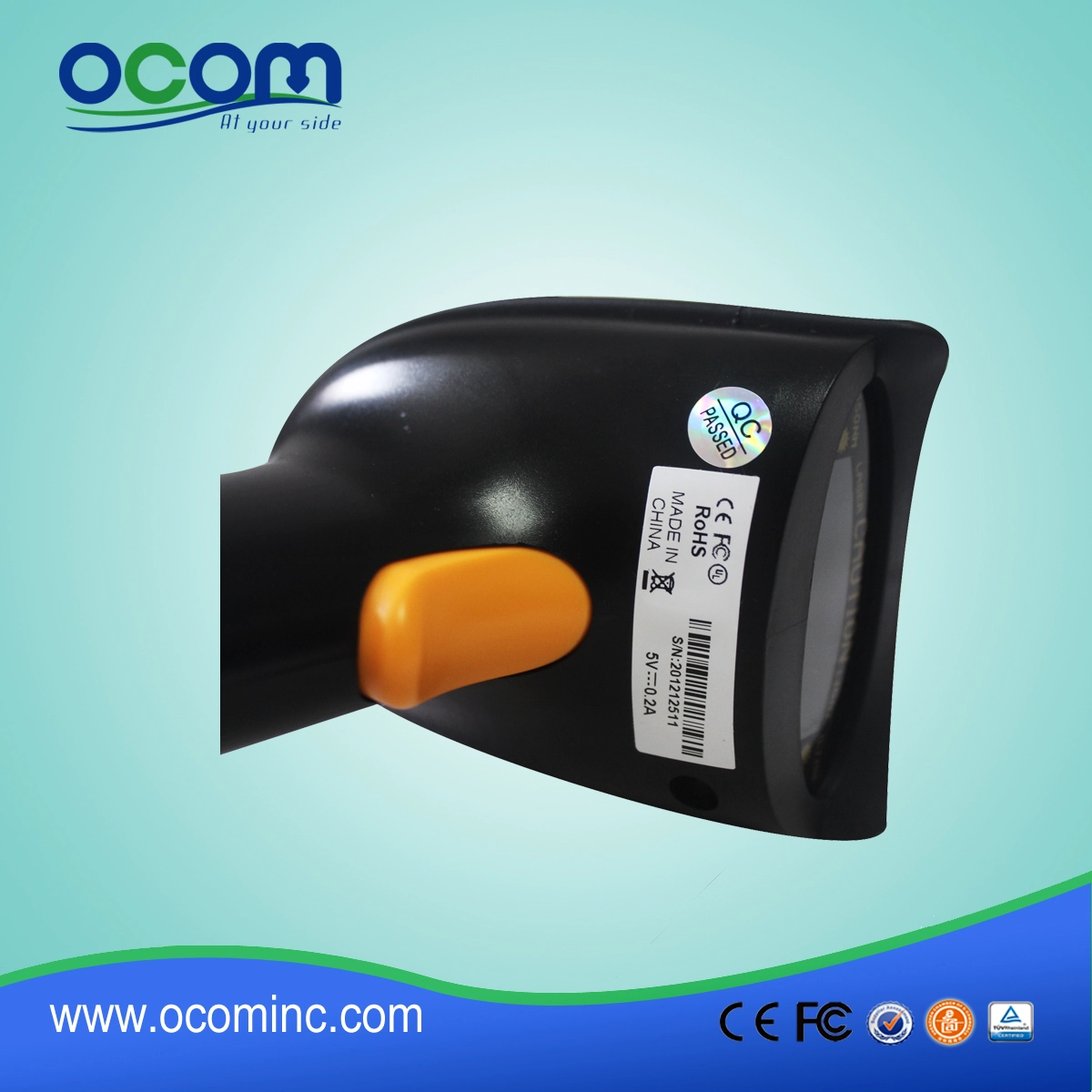

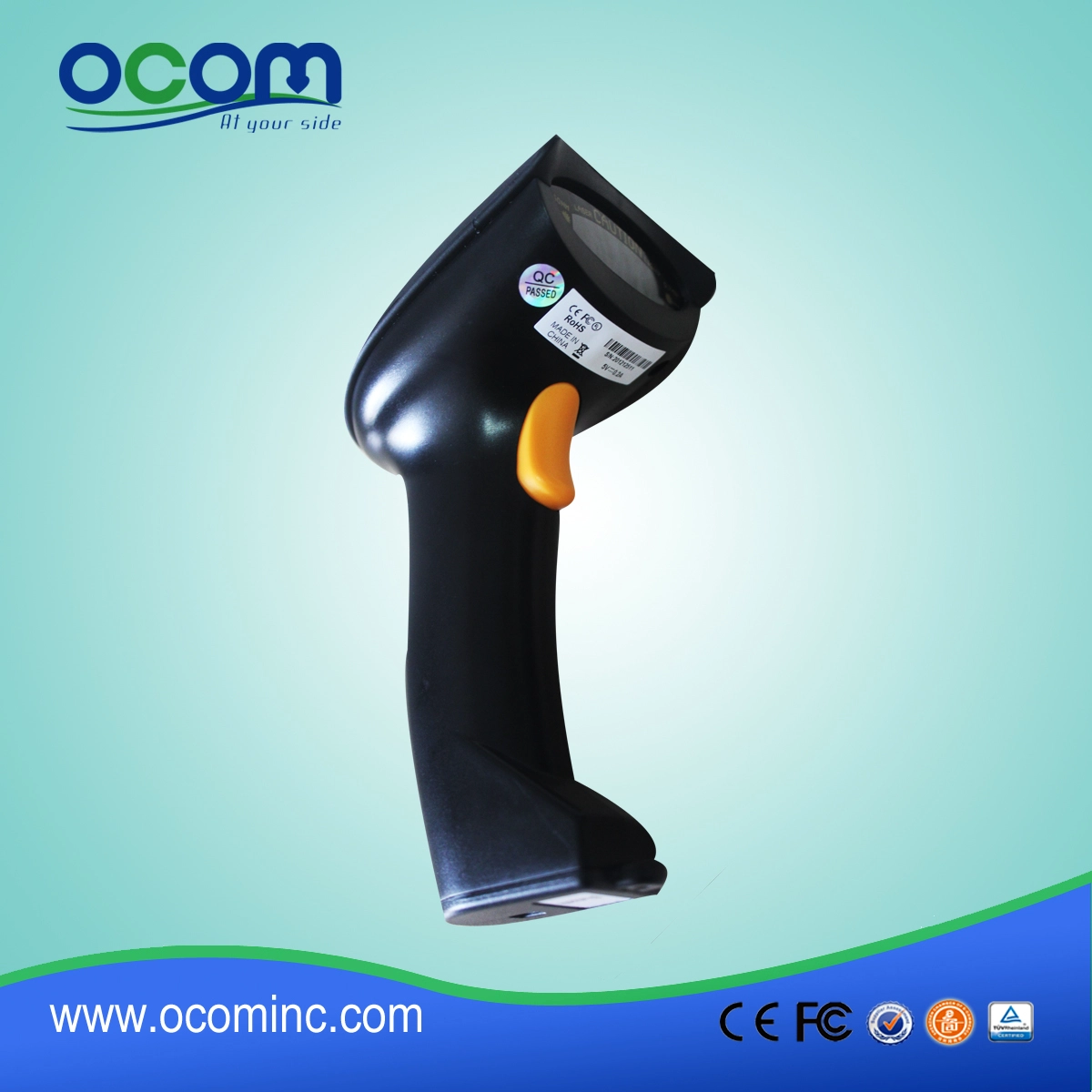

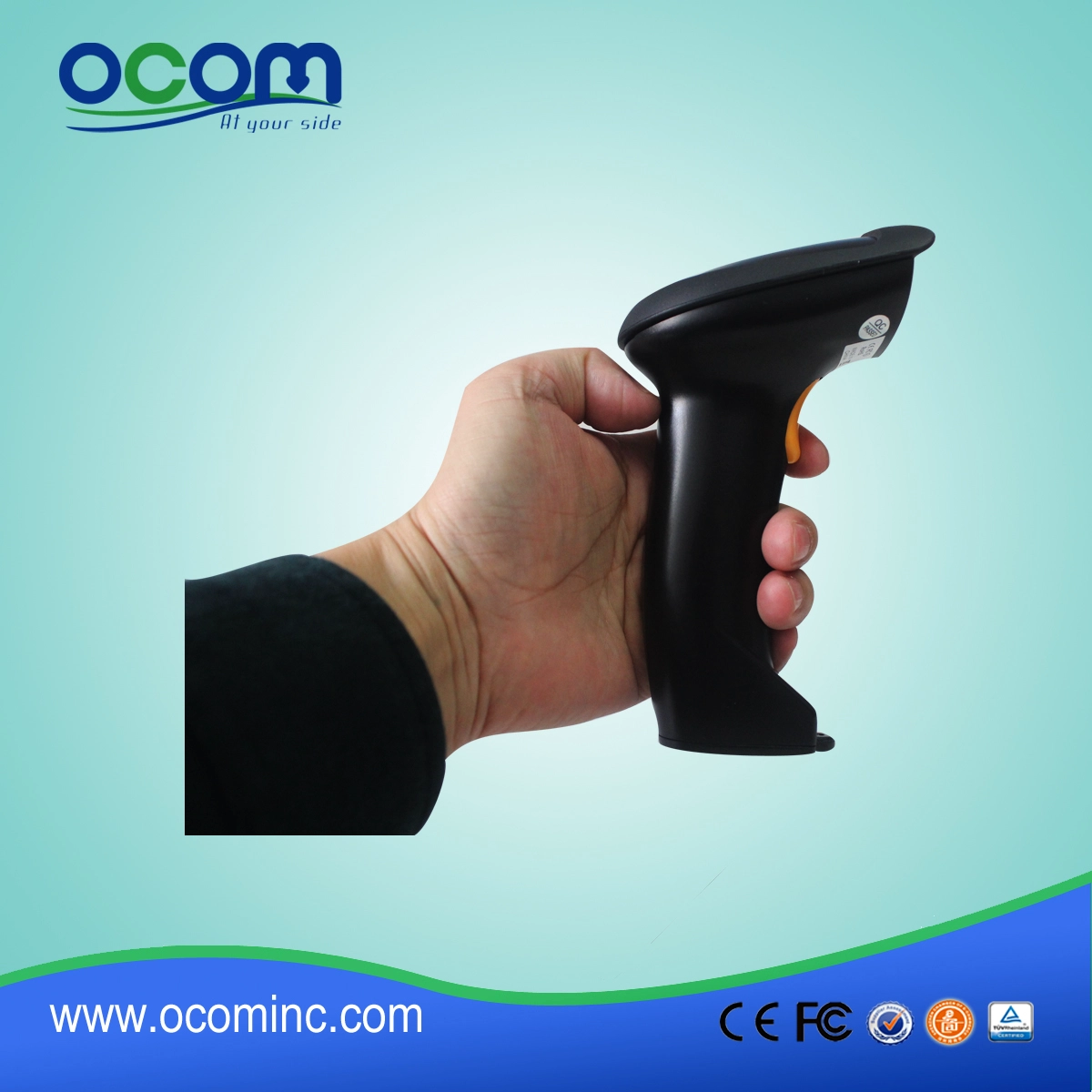

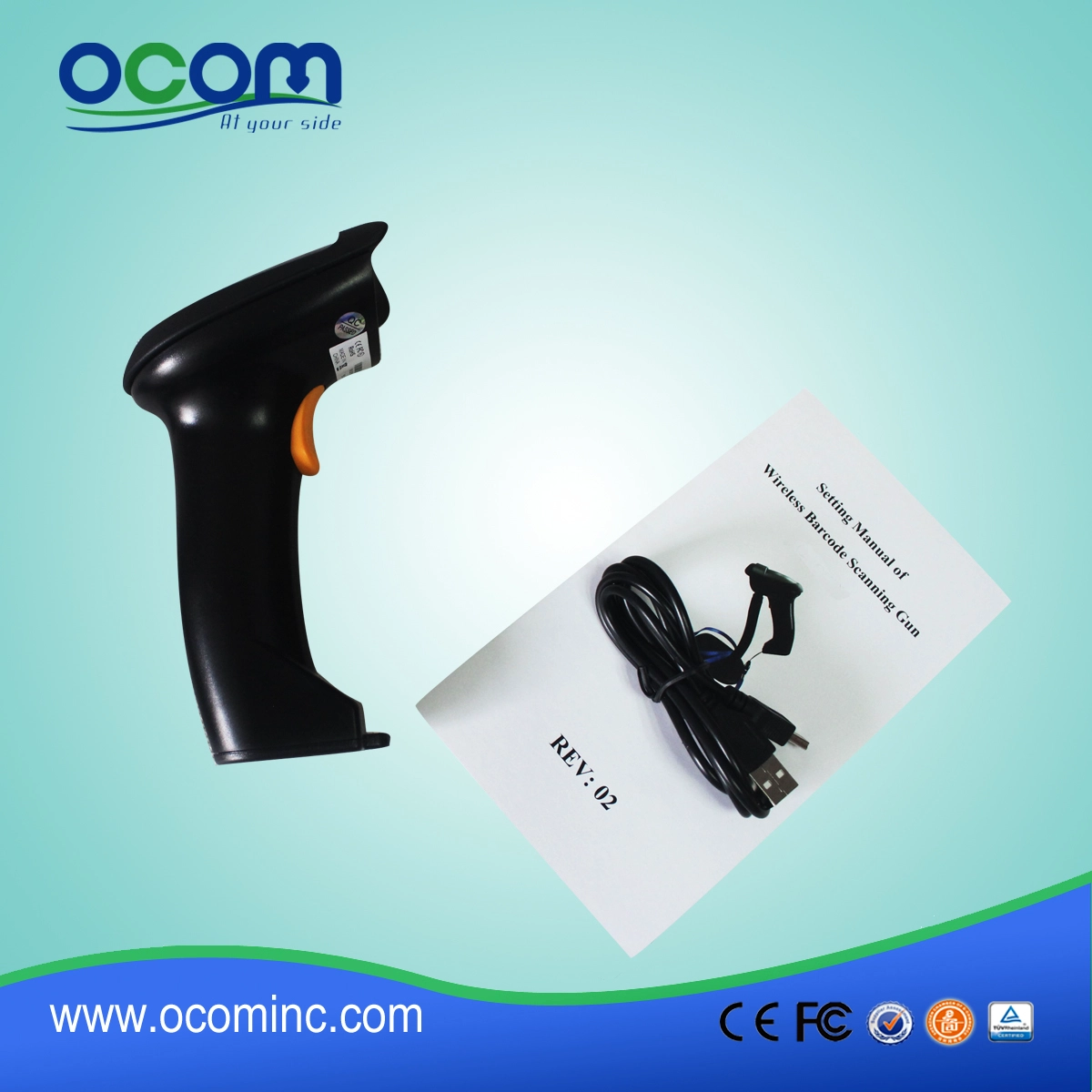

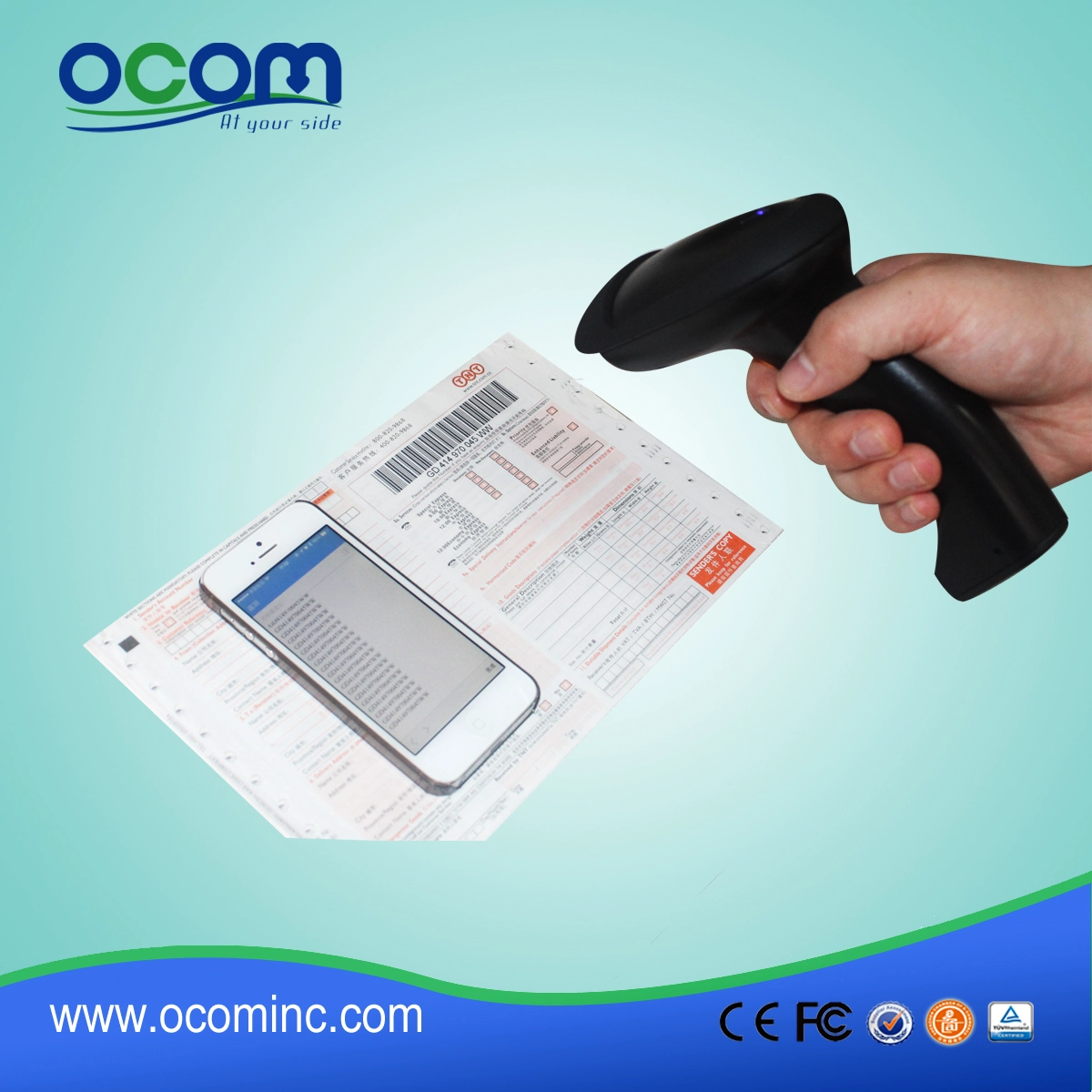

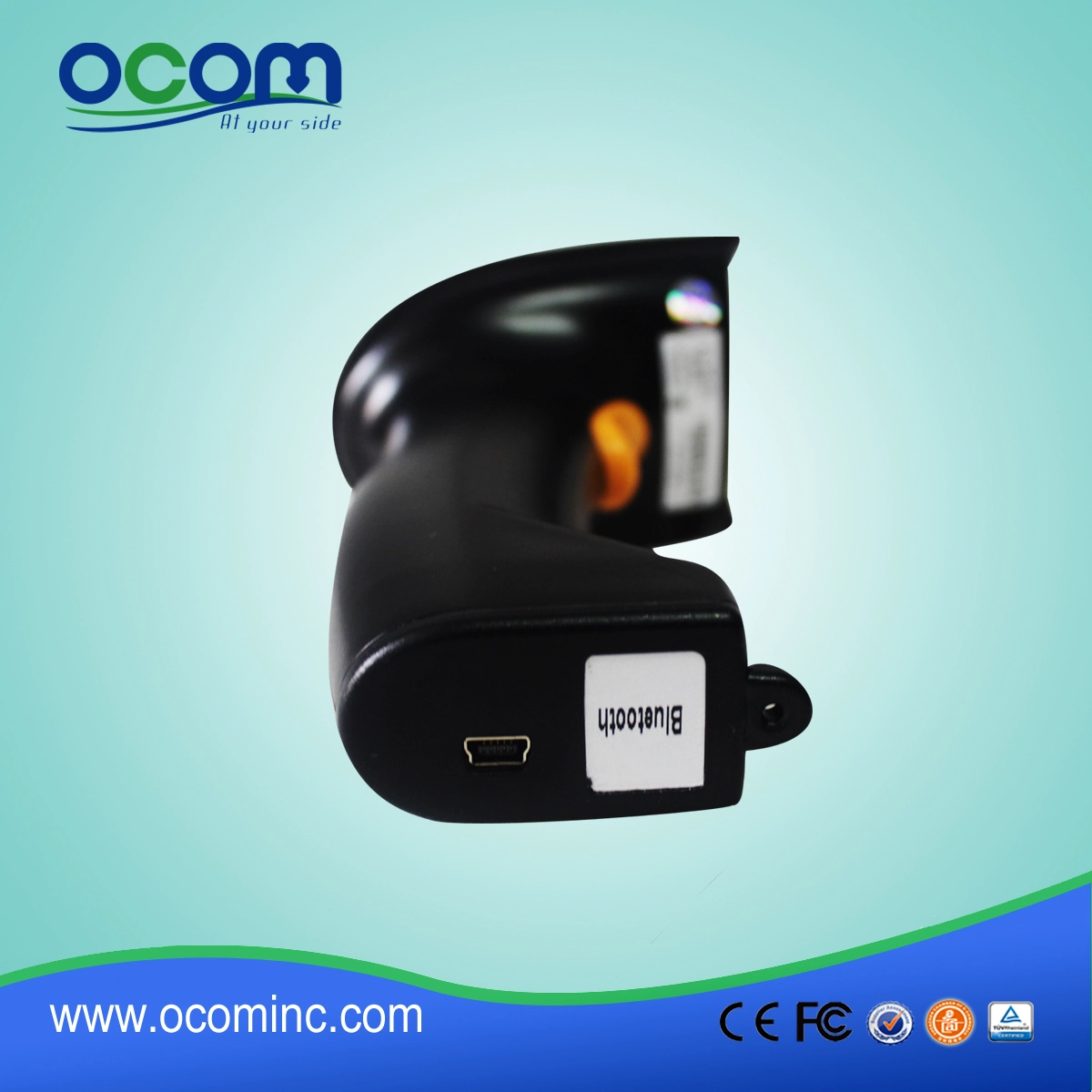

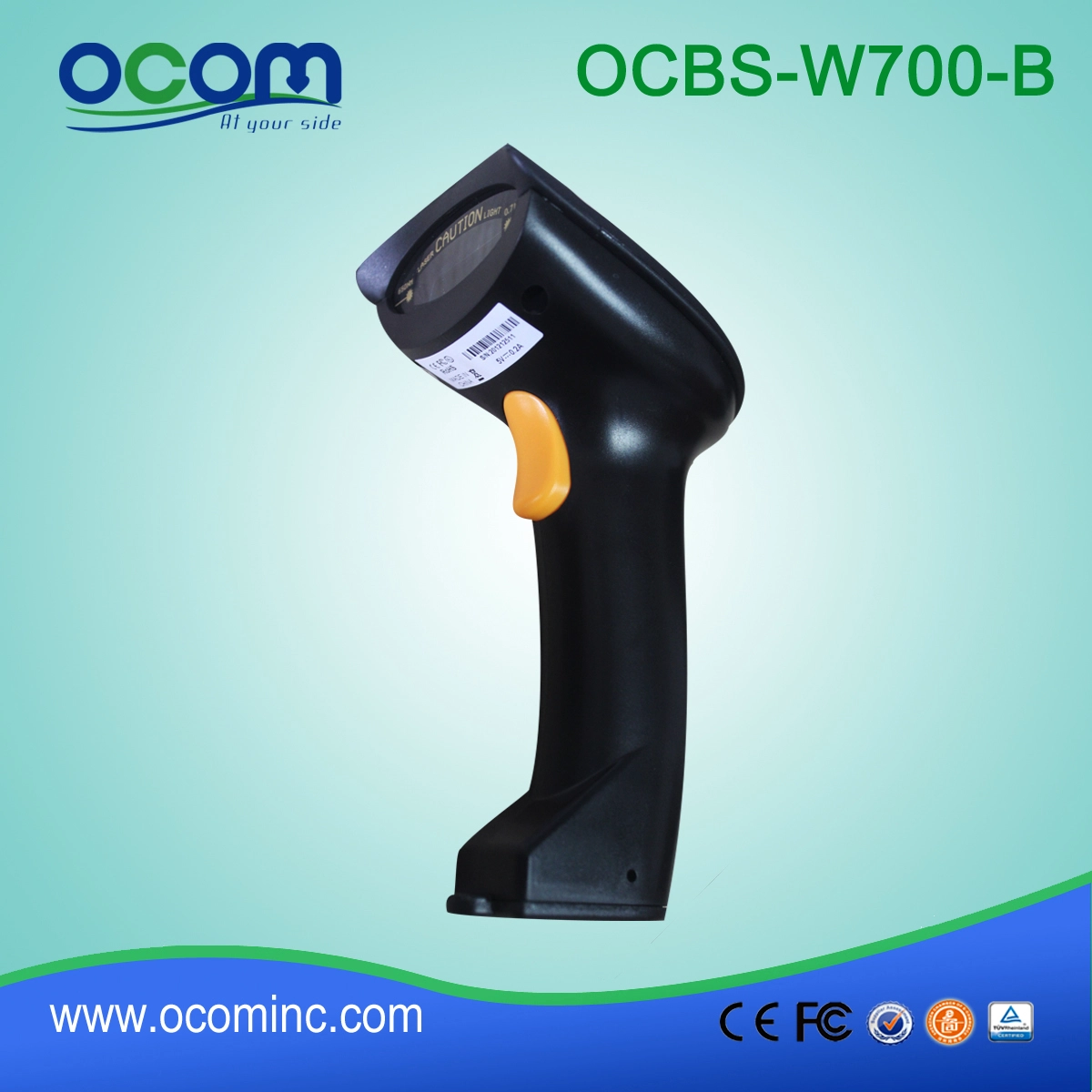

Handheld Bluetooth Barcode Scanner(OCBS-W700-B)

  • Integrated non-volatile memory (can store about 500 barcodes);
  • Communication distance: 30m (max);
  • Support Bluetooth V2.0 and above;
  • Frequency: 2.4~2.483GHz;
  • Plug and play;
  • 800mA big capacity Li-battery.

Handheld Bluetooth Barcode Scanner
(Model: OCBS-W700-B )

Specification:

PHYSICAL CHARACTERSTICS

Light Source

Visible Red Laser 650 nm

Scanner Dimensions(W * H * D)

160mm * 70mm * 40mm

Weight

300G

Material

ABS + PC

Scanning Mode

One line scanning; Manual / Automatic

Indicator Way

Buzzer and Indicator Light

PERFORMANCE CHARACTERSTICS

Width of Scan Field

20mm@scanner window

260mm@260mm

Depth of Scan Field

4mil (0.1mm)/5-60mm

5mil (0.12mm)/10-100mm

10mil (0.25mm)/15-250mm

35mil (0.89mm)/140-600mm

43mil (1.1mm)/150-800mm

Scan Speed

120 scans/sec

Scan Precision

0.10mm (pcs0.9)

Printing Contrast

Minimum 30% reflection difference

Error Rate

1/(6million)

Decode Capability

International general 1D barcodes

Current

60mA (working); 5uA(standby)

Scanning Corner

32°

Scanning Elevation

68°

Scanning Angle of Avertence

52°

Working Frequency

2.4~2.483GHz

Communication Distance

30m max

Communication

Bluetooth

USER ENVIRONMENT CHARACTERSTICS

Drop Specification

2m free fall

Laser Level

Level-1 laser safety standard

Charge Power

5VDC


Product Details:
