Handheld Laser Barcode Scanner In China

  • Handheld laser barcode scanner with automatic detection;
  • 360 degree rotation of the metal stent flexible operation;
  • Scanning Speed ​​(100 times / sec) and long reading distance;
  • Excellent decoding capabilities;
  • KBW, RS232 and USB interface options;
  • Gray and black Optional;

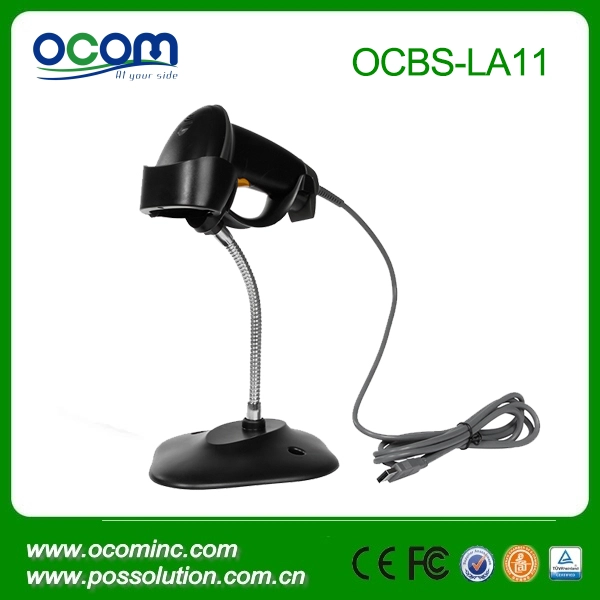

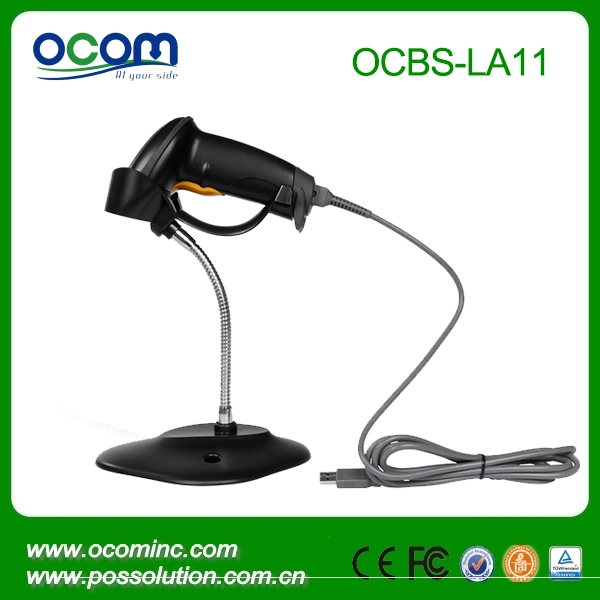

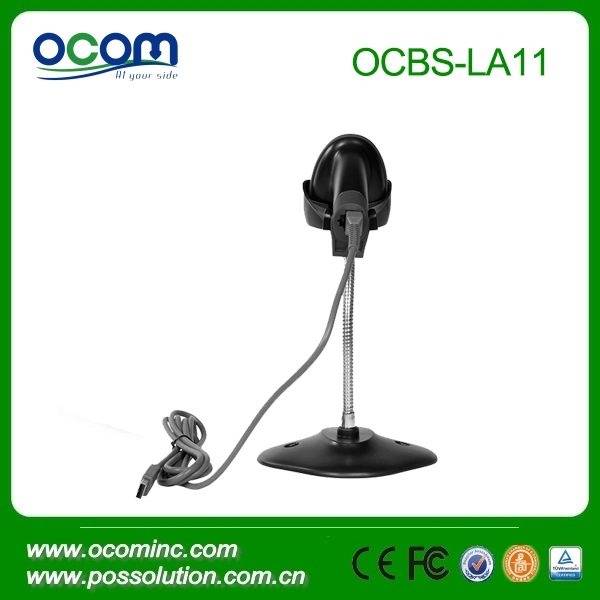

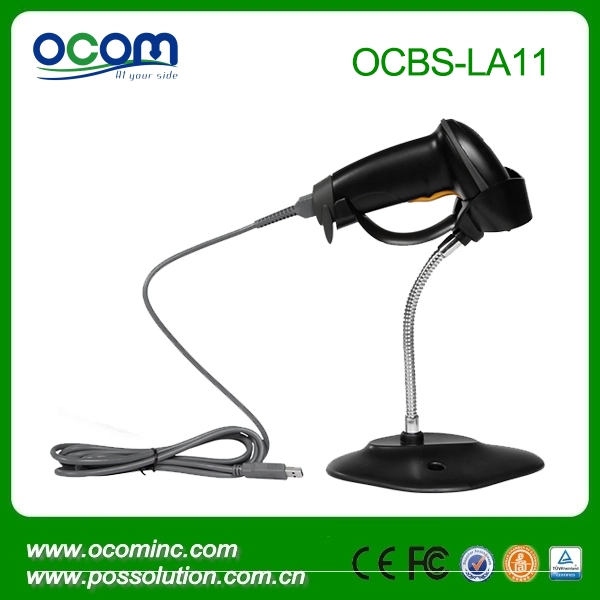

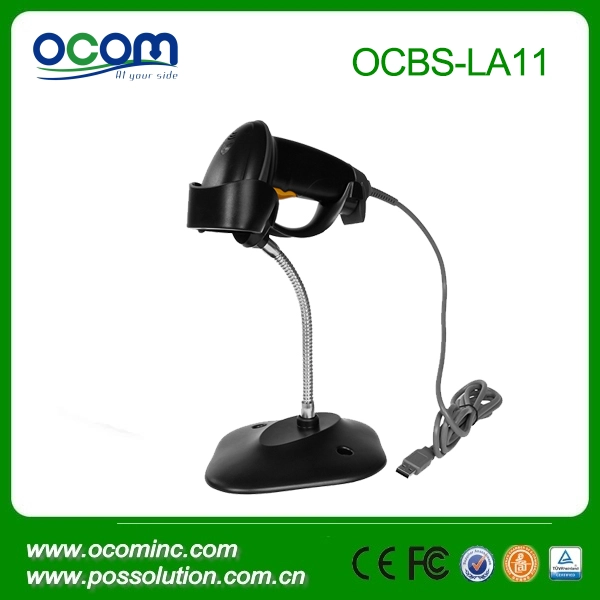

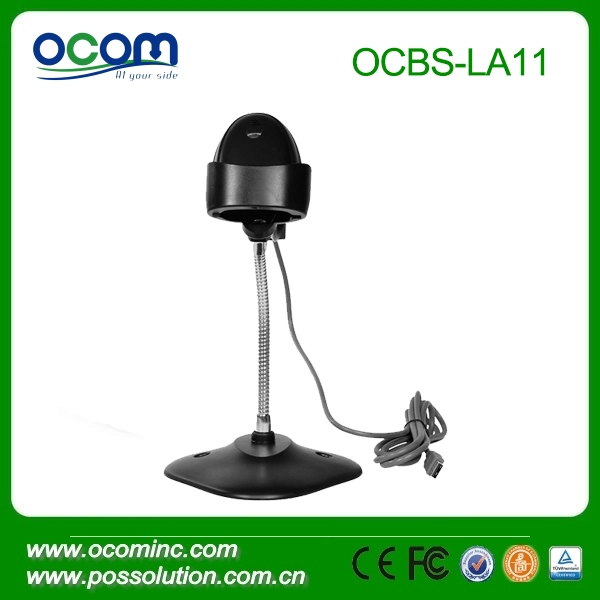

Handheld Laser Barcode Scanner In China
 (Model: OCBS-LA11)

  Technical Parameters:


light source:

Visible laser (650-670nm)

Scanning speed:

100 scans per second

Reading distance

2.5~600 mm (100% UPC / EAN)

Scanner Type:



0.10 mm (4MIL) in PCS 0.9

Print Contrast Minimum:

30% minimum reflectance difference (@ 650 nm)

Error rate:


Decoding capability:

UPC / EAN codes, UPC / EAN with supplements, UCC / EAN128 yards, 39 yards, 39 yards full ASCII code, 39 yards trioptic, 128 yards, 128 yards full ASCII code, Codabar, Interleaved 2 of 5, 25 consecutive Code 93, MSI, Code 11, ATA, RSS variants, Chinese 25 ...

Physical Characteristics

Support Interface:

PS2, RS232, USB


DC + 5V ± 5%


One hundred mA

Standby current:

& Lt; 40 毫安

Power source:

Host power or external (RS232) power supply

Scan angle

45 ° elevation angle 60 °


L165mm X W63mm X H87mm


129 g (without base)




Grey and black

User Environment

Operating temperature:

0 ℃ ~40 ℃

Storage temperature:

-40 ℃ ~60 ℃


5~95% relative humidity, non-condensing

Electrostatic discharge:

Recognized as +/- 15kV contact discharge air discharge and +/- 8KV

Drop specifications:

Can withstand multiple 1.5 m drops to concrete




FCC A class and CE

Laser Safety:

CDRH Class 2 laser products

Product Details:
