Handheld Rugged Logistic Data Collection Device PDA With Pistol gripHandheld Rugged Logistic Data Collection Device PDA With Pistol gripHandheld Rugged Logistic Data Collection Device PDA With Pistol gripHandheld Rugged Logistic Data Collection Device PDA With Pistol gripHandheld Rugged Logistic Data Collection Device PDA With Pistol gripHandheld Rugged Logistic Data Collection Device PDA With Pistol grip

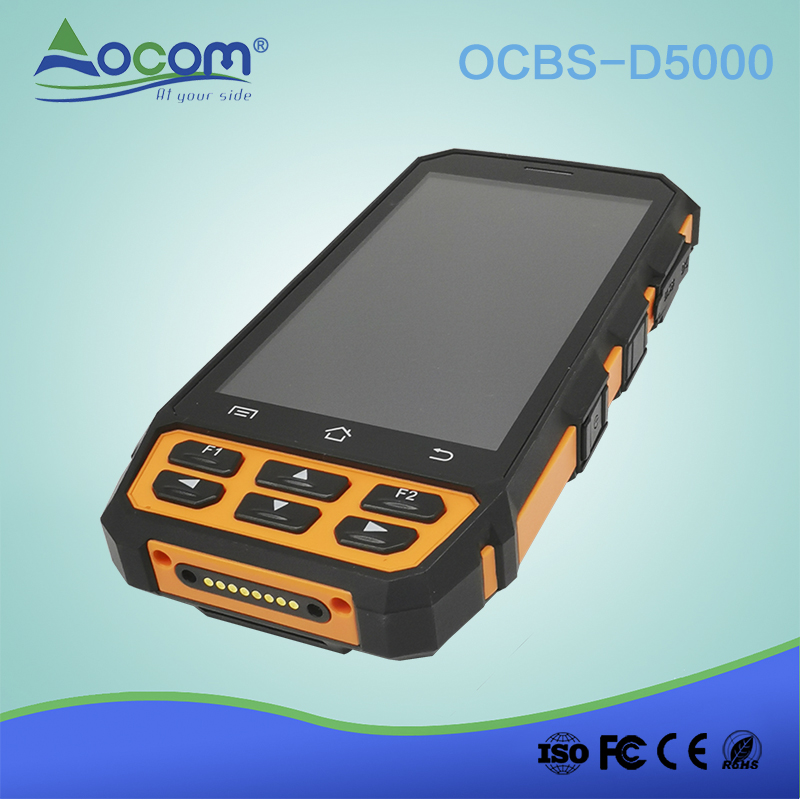

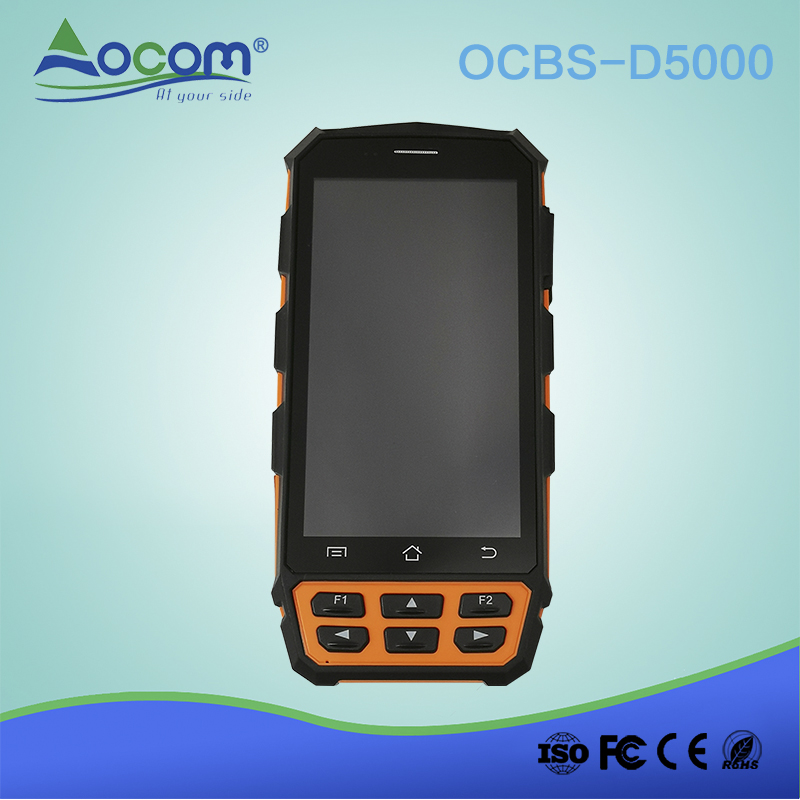

Handheld Rugged Logistic Data Collection Device PDA With Pistol grip

  • 5" Handheld Android 7.0 Industrial Data Terminal
  • Cortex A53 quad core 1.3GHz cpu;
  • 2GB RAM, 16GB ROM;TF card can up to 32GB;
  • Gorilla 5.0 inch 720*1280 Gorilla HD Screen;
  • Rechargeable li-ion polymer, 3.7V, 4500mAh or 8000mAh Battery;
  • Rear Camera 8 MP, auto-focus with LED flash;
  • Support 4G/Wifi/GPS/Bluetooth;
  • HHW Software Development Kit;
  • Rugged IP65/1.5m Drop Tolerance;
  • Default: WIFI+BT+4G+GPS+Camera;
  • 1D/2D Barcode Scanner  for options;
  • RFID LF/HF/UHF/NFC  for options;
  • TCS1SM Capacitive Fingerprint Sensor for option;
  • Handle ,  cradle, PSAM for option.

Handheld Rugged Logistic Data Collection Device PDA With Pistol grip

(OCBS-D5000)

Feature:

- Android 7.0
- 1GB RAM, 16GB ROM
- Gorilla 5.0 in. 720*1280 Gorilla HD Screen
- Rugged IP65/1.5m Drop Tolerance
- Rechargeableli-ion polymer, 3.7V, 8000mAh Battery
- Rear Camera 8 MP,auto-focus with LED flash
- Support 4G/Wifi/GPS/Bluetooth
- HHW SoftwareDevelopment Kit
- 1D/2D BarcodeScanner(optional)
- RFIDLF/HF/UHF/NFC (optional)
- TCS1SMCapacitive Fingerprint Sensor(optional)



SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

170mm(H)x85mm(W)x23mm(D)±2 mm

Weight

Net Weight :380g (including battery&wrist strap)

Display

Gorilla 5.0 in. TFT-LCD(720x1280)touch screen with backlight

Backlight

LED backlight

Keypads

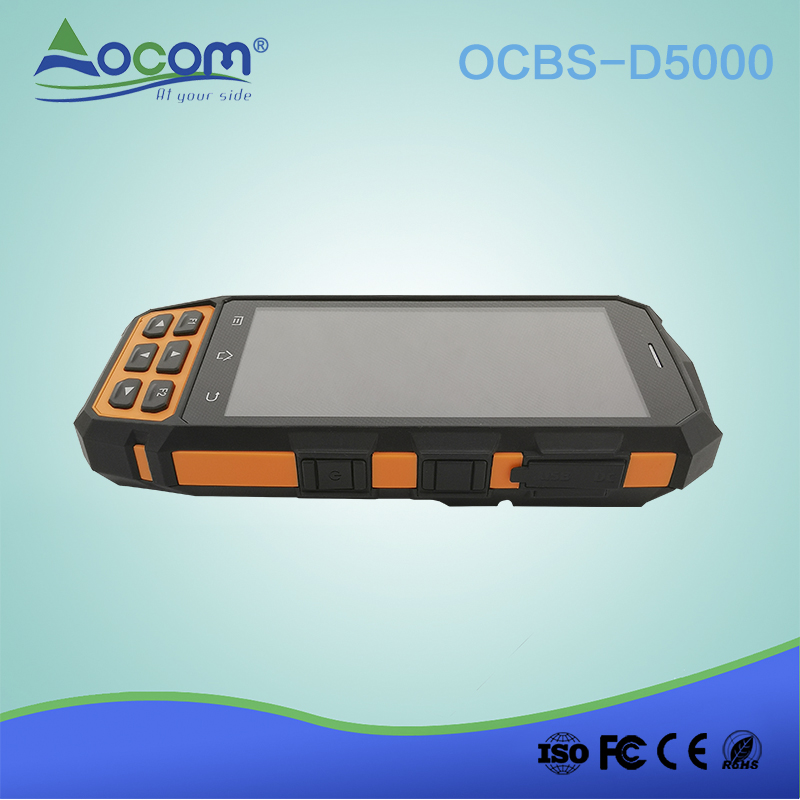

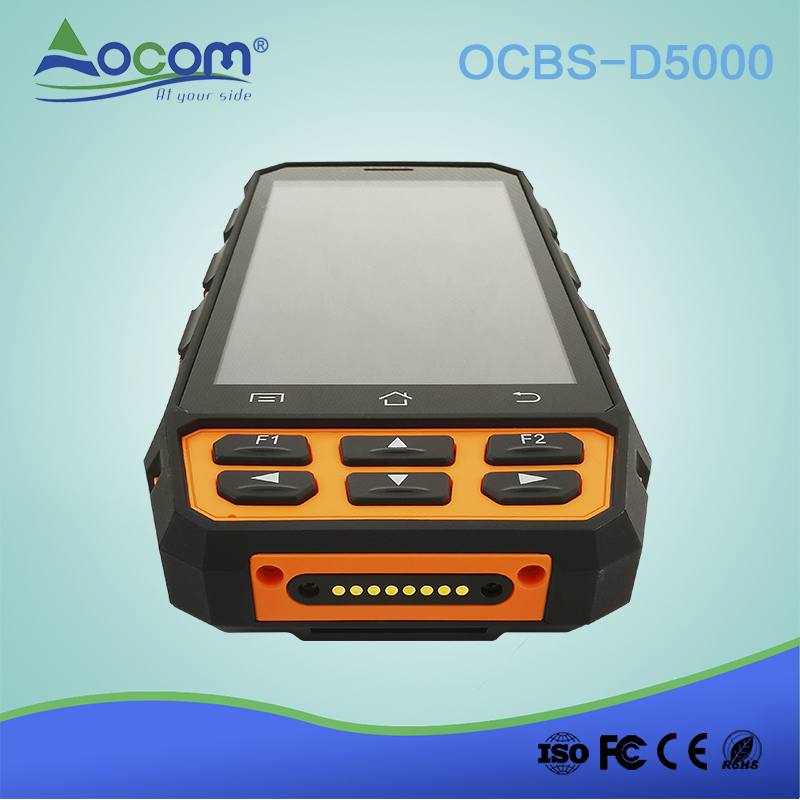

3 TP keys, 6 function keys, 4 side buttons

Expansions

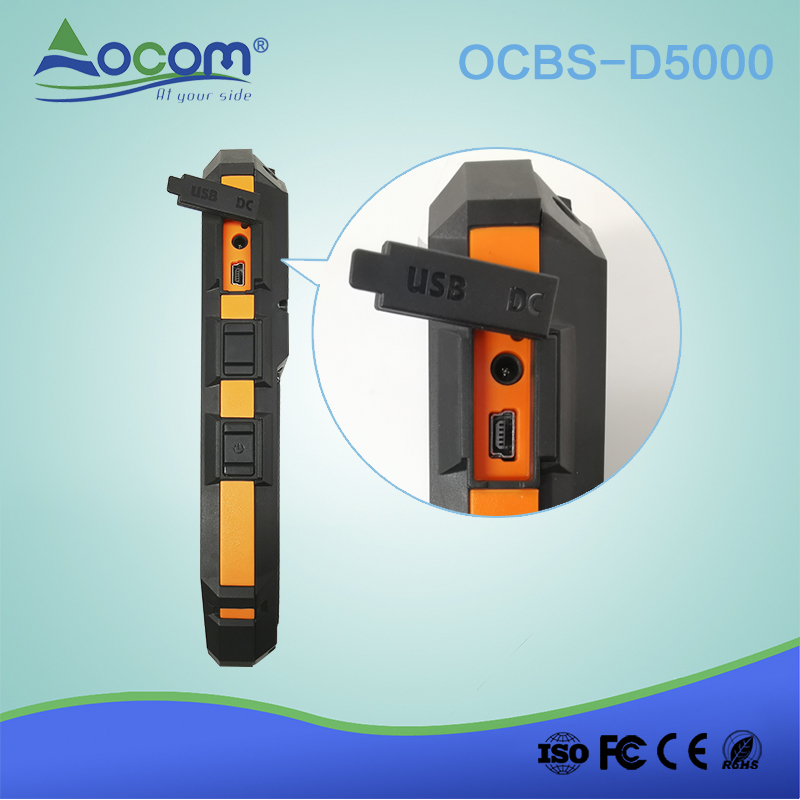

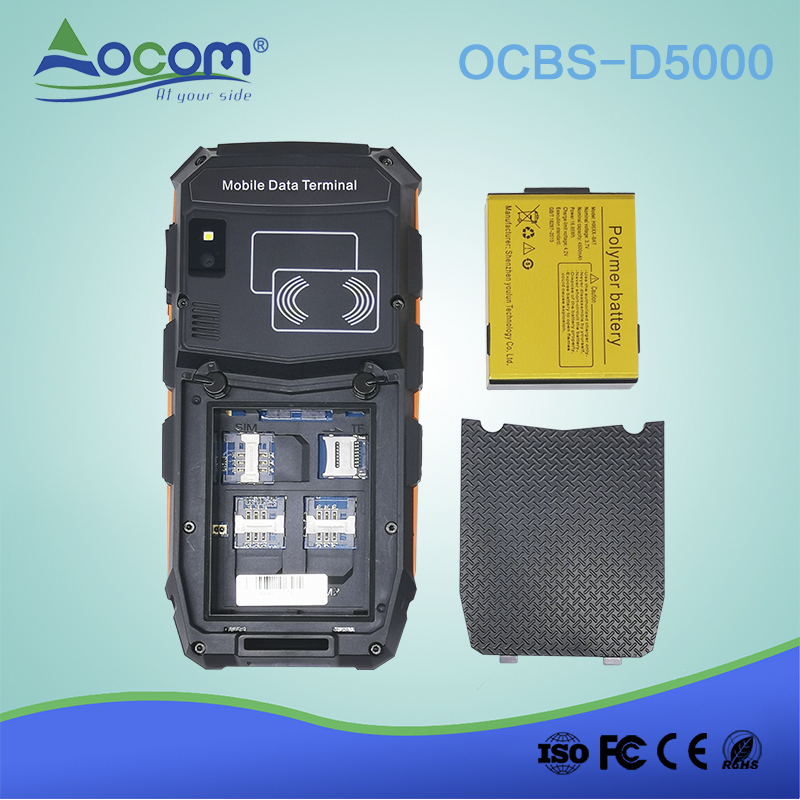

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V,4500mAh,If configuration handle and UHF can be configured 8000mAh

PERFORMANCE CHARACTERSTICS

CPU

Quad A53 1.5GHz quad-core

Operating System

Android 7.0

Storage

2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE Band 38, 39, 40, FDD-LTE Band 1,2,3, 4,7;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge 850/900/1800/1900MHz);

WLAN

2.4G/5G Dual Frequency, IEEE 802.11 a/b/g/n/ac

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Honeywell N431x

Symbologies

All major 1D barcodes

2D barcode

2D CMOS Imager

Honeywell N6603

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

8.0 megapixel

Lens

Auto-focus with LED flash

RFID READER(OPTIONAL)

RFID LF

Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

RFID UHF

Frequency

865~868MHz or 920~925MHz

Protocol

EPC C1 GEN2/ISO 18000-6C

Antenna Gain

Circular antenna(2dBi)

R/W Range

1 m to 1.5 m(tags and environment dependant)

Active 2.45GHz

Read range more than 200 m (customization)

433MHz

Read range more than 200 m (customization)

ZigBee READER(OPTIONAL)

Protocol

IEEE 802.15.4 (customization)

Reading Range

100 m to 200 m(customization)

FINGERPRINT READER(OPTIONAL)

Sensor

TCS1SM

Sensor type

Capacitive, area sensor

Resolution

508 DPI

Performance

FRR<0.008%, FAR<0.005%

Capacity

1000

PSAM SECURITY(OPTIONAL)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)

ACCESSORIES

Standard

1xPower Supply

1xLithium Polymer Battery

1xDC charging cable

1xUSB data cable

Optional

Cradle,Handle, UHF gain board
