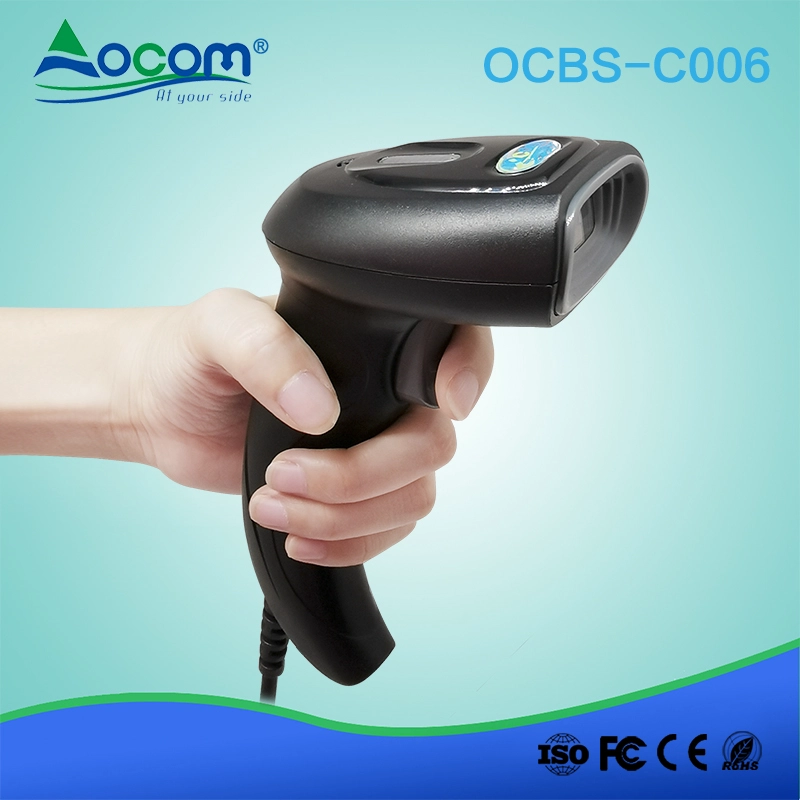

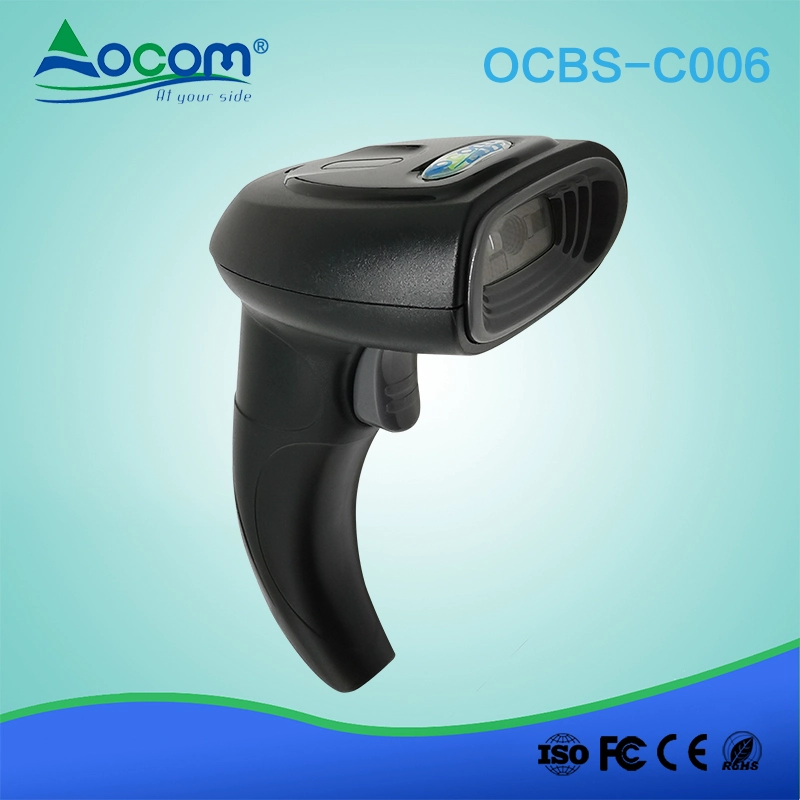

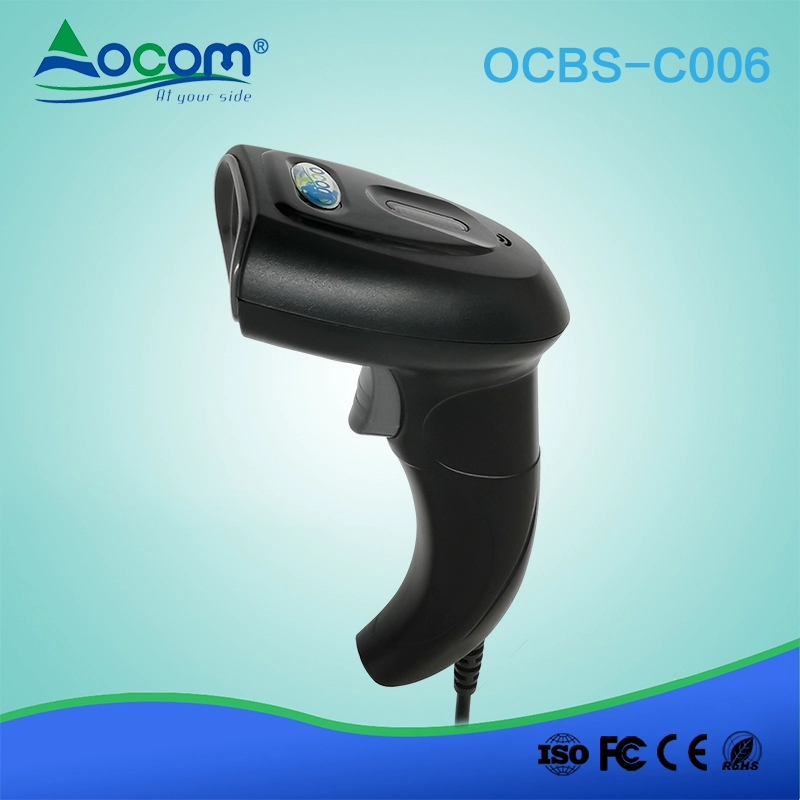

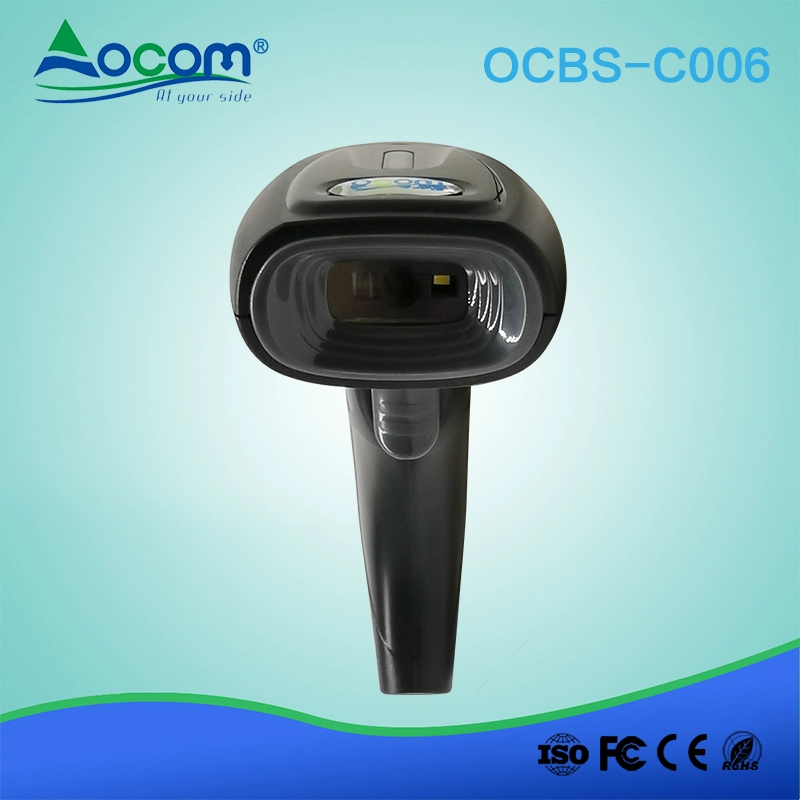

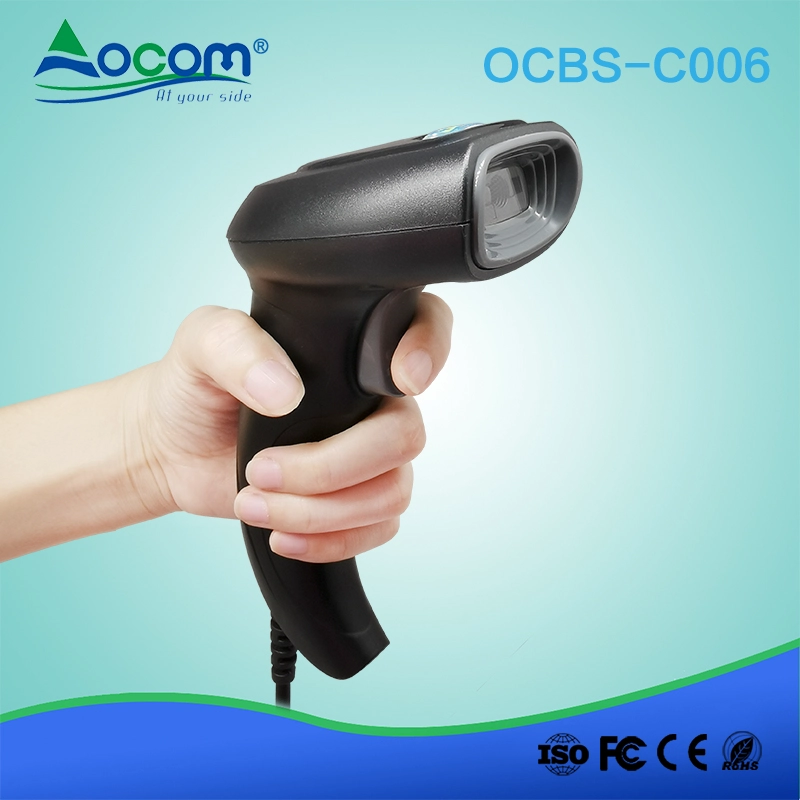

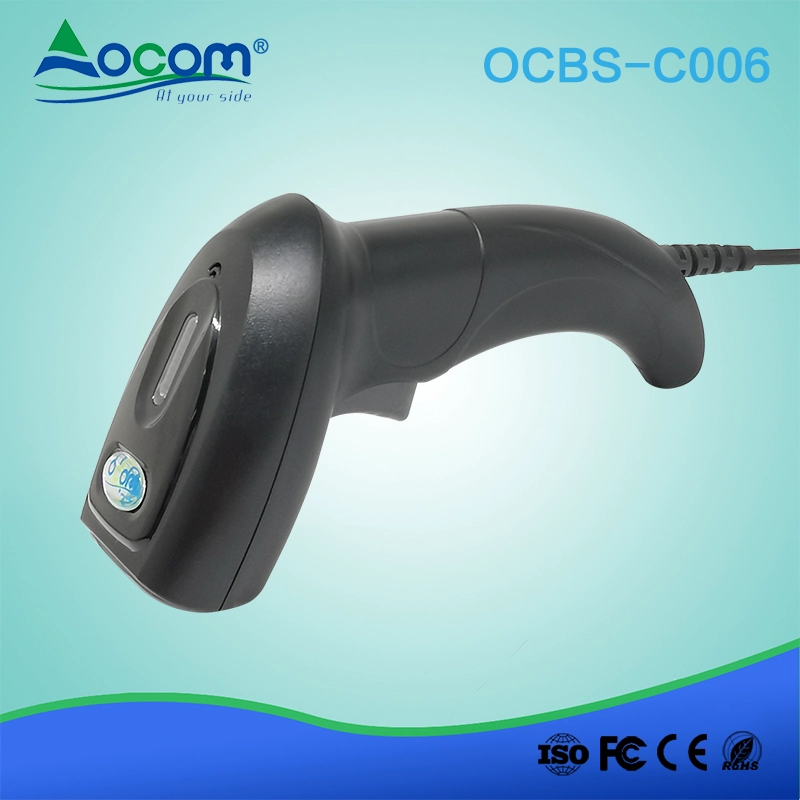

High Performance CCD Long Distance Barcode scanner
- 2500 pixel CCD sensor
- 280 scans per second
- No needdriver, plug and play.
- Ability to scan 3mil density barcodes
- Support reading bar codes from screen.
- Support Manual/Auto/Continue scanning mode
- Efficient decoding rate and ultra-low error rate.
- Many kinds of one-dimensional bar code can be identified.
Feature
2500 pixel CCD sensor
280 scans per second
No needdriver, plug and play.
Ability to scan 3mil density barcodes
Support reading bar codes from screen.
Support Manual/Auto/Continue scanning mode
Efficient decoding rate and ultra-low error rate.
Many kinds of one-dimensional bar code can be identified.
Specification
Performance Parameters |
Processor |
32-bit ARM processor |
|
Electrical Parameters |
Image Sensor |
2500 pixel CCD sensor |
|
Light Source |
LED (wavelength 660nm ± 10nm) |
||
Scan Speed |
280 scans per second |
||
Scan Angle |
Skew ±55° roll ±25° pitch ±75° |
||
Scanning Distance |
(60%Contrast) (25mil)40cm,(15mil)32cm,(10mil)22cm,(5mil)11cm,(3mil)3cm |
||
Scanning Width |
≤ 110mm |
||
Resolution |
≥0.1mm(4mil) |
||
Minimum Contrast |
15% |
||
Decoding Capability |
Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, |
||
All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, , WPC code |
|||
matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412 . UPC-A, UPC-E, Code 128, Code 93, Coda bar, IATA, MSl/PLESSY, Code 32, STD |
|||
Electrical Parameters |
Voltage |
4.5 ~ 5.5V DC V1 ± 5% |
|
Current |
Operating |
100 ~ 110mA |
|
Standby |
30 ~ 40mA |
||
Mechanical Parameters |
Dimensions |
170mm(L)×60mm(W)×95mm(H) |
|
Weight |
185g |
||
Case Material |
ABS |
||
Interfaces |
USB |
||
Environmental Parameters |
Operating Temperature |
-200 ℃ ~ 50 ℃ |
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
||
Humidity |
0% ~ 98%(non-condensing) |
||
Illumination |
0 ~ 70,000 lux |
||
Typical Scanning Distance |
5mil UPC |
40mm - 160mm |
|
10mil Code93 |
20mm - 240mm |
||
15mil EAN13 |
40mm - 250mm |
||
20mil code128 |
40mm - 380mm |
||
40mil code128 |
80mm -520mm |
