High Quality POS Omnidirectional Barcode Scanner Barcode ReaderHigh Quality POS Omnidirectional Barcode Scanner Barcode ReaderHigh Quality POS Omnidirectional Barcode Scanner Barcode ReaderHigh Quality POS Omnidirectional Barcode Scanner Barcode Reader

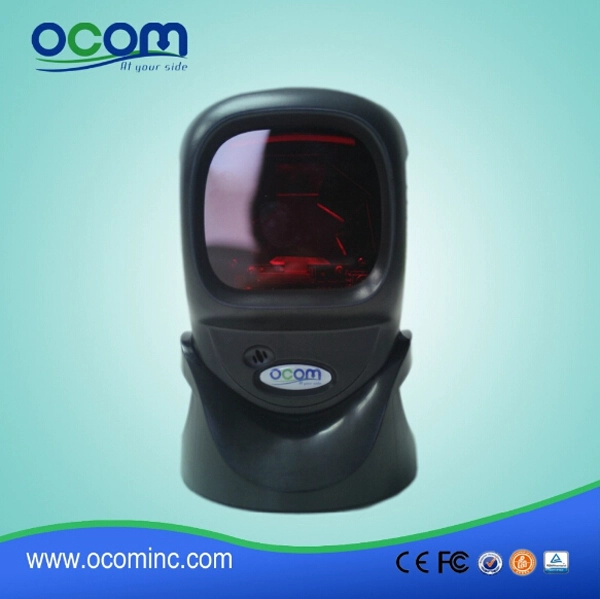

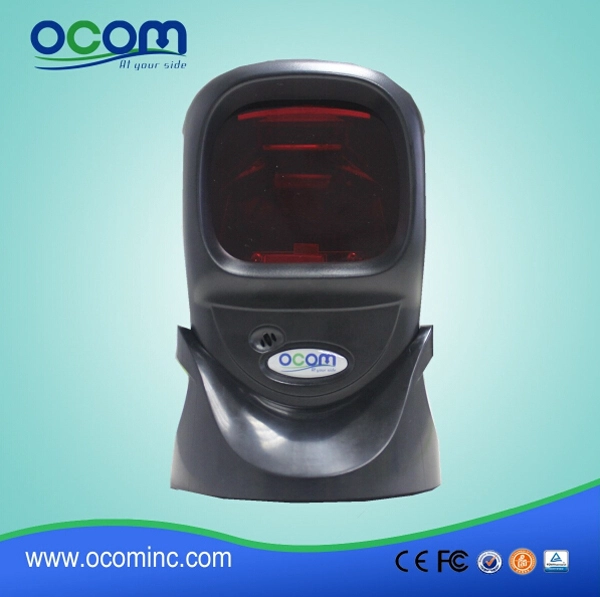

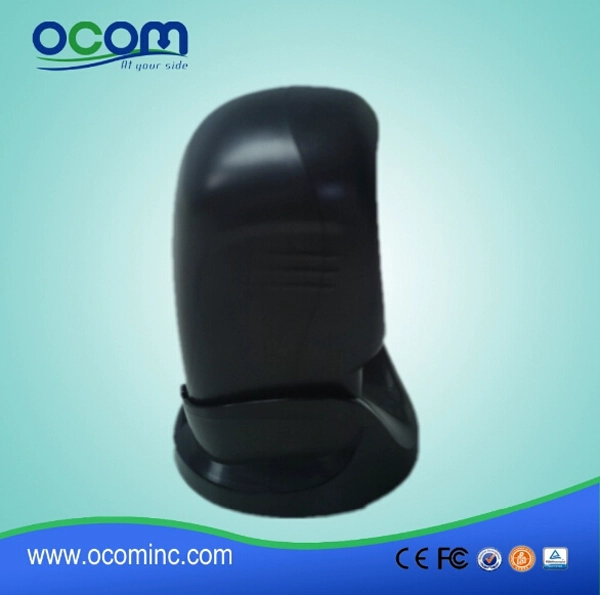

High Quality POS Omnidirectional Barcode Scanner Barcode Reader

  • High Quality POS Omnidirectional Barcode Scanner Barcode Reader
  • Desktop omni-directional barcode scanner;
  • Number of Scan Lines:20;
  • Scan Pattern: 5 directions of scan field;
  • Multiple/Single line scanning capability, meet different requirement;

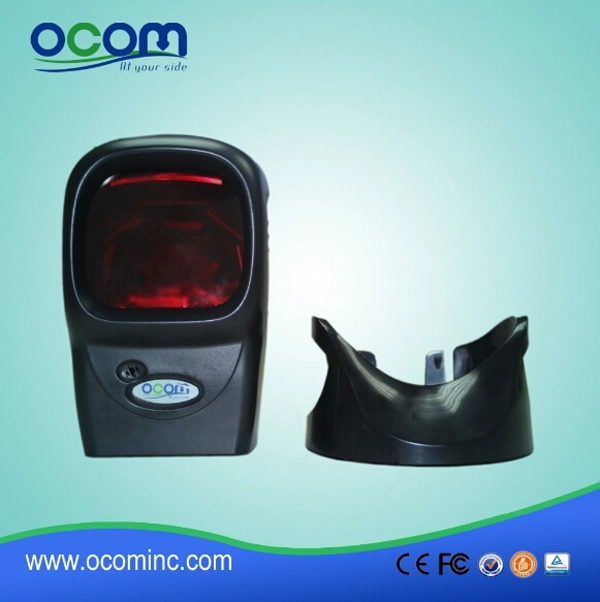

  • The base can be removed;
  • 650nm visible laser diodes (VLD) Source;
  • Scan Rate: 1500 scans per second (omni-directional);
  • Multiple interfaces: KBW, RS232 or USB optional.

High Quality POS Omnidirectional Barcode Scanner Barcode Reader


Features:

High Quality POS Omnidirectional Barcode Scanner Barcode Reader
Desktop omni-directional barcode scanner;
Number of Scan Lines:20;
Scan Pattern: 5 directions of scan field;
Multiple/Single line scanning capability, meet different requirement;
The base can be removed;
650nm visible laser diodes (VLD) Source;
Scan Rate: 1500 scans per second (omni-directional);
Multiple interfaces: KBW, RS232 or USB optional.

Product Details:

Performance parameters

Light source

650 nm visible laser diode laser

System interface

KBW,RS232,USB

Physical parameters

Volume(Lx W x H)

Without stand: 140mm * 83mm * 75 mm
With stand:157 mm * 98.3 mm * 100 mm

Weight

Net Weight(282g);With stand(379g)

Stand

Fixed install stand

Color

Black

Electrical parameters

Input voltage

5.0 VDC+/-10%

Rated current

275mA

Power

2W

Laser Class

CDRH Class IIa; IEC 60825-1: Class I

Environmental parameter

operating temperature

0° C - 40° C

Storage Temperature

-40°C -70°C

Humidity

5% to 95% relative humidity (no condensation)

Antiknock characteristic

To withstand from 1.2 meters high drop.

Light resistance

indoor lighting, Sunlight, fluorescence,  incandescent light,  mercury vapor light,  sodium vapor light: 450 Ft Candles(4844 Lux)
daylight: 8000Ft Candles(86111 Lux)

Scanning parameters

Scanning mode

Omni directional 20 line, 5 directions,20 scan lines

Scanning speed

1500 times per second

Scanning Angle

0~360 degree(Omni-directional)

Scanning deviation

+/-50 degree

Printing contrast

Minimum 25% reflection difference

Scanning depth of filed

0~216mm@ 13mil(100%UPC/EAN)

Rated operating range

5 mil: (38%) 10~64mm

7.8 mil: (60%) 0~152mm

10.4mil: (80%) 0~190mm

13mil: (100%) 0~216mm

Lowest resolution

5mil

Decoding ability

UPC/EAN/JAN, UCC/EAN 128, Code128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code bar, MSI etc.
