OCBS -W233 1D / 2D wireless handheld barcode scannerOCBS -W233 1D / 2D wireless handheld barcode scannerOCBS -W233 1D / 2D wireless handheld barcode scannerOCBS -W233 1D / 2D wireless handheld barcode scannerOCBS -W233 1D / 2D wireless handheld barcode scannerOCBS -W233 1D / 2D wireless handheld barcode scanner

OCBS -W233 1D / 2D wireless handheld barcode scanner

  • Wireless Bluetooth or 2.4G 1 / 2d barcode scanner
  • Standard communication 2.4 g + usb or Bluetooth + 2.4G + USB
  • High-precision 1 million pixel scanning engine
  • The low power 250 mAh design can acquire 30,000 times
  • The pulsating life reaches up to 8 million times.
  • Supports pre-targeting function
  • Long barcode scanning has high performance
  • The large wireless buffer can transfer 600 characters

1D / 2D wireless handheld barcode scanner

(M / N: OCBS -W233)

specification



Light resource

CMOS  (5600K white LED)

processor

32 bit

Image resolution

1MP (1280 * 800)

Wireless function

2.4G + USB or 2.4G + Bluetooth + USB for optional

Supported symboligies

2D: PDF417,Micro PDF 417, QR Code (QR1 / 2, Micro), Data Matrix, Aztec, Chinese sensitive code

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code 93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 on 5, IATA 2 on 5, Matrix 2 on 5, Straight 2 of 5, Pharmacode, RSS-14, RSS-14 Expanded, RSS-14 Limited, Com pos ite Code-A, Com pos ite Code-B, Com pos ite Code-C.

Precision

1D≥ 4 mil (0.10 mm)

2D≥ 7 mil (0.10 mm)

Depth of scan field

Code 39-5mil: 60mm-120mm

UPCA-13mil (100%): 35 mm 310 mm

Decode the error rate

Less than 1/8 million

Print contrast signal

 30th

scanning angle

Yaw (Skew)55th and & Pitch55 °

Battery

2000 mAh (scanning and transmission 30000 times)

Working voltage

5 VDC ± 10%

current

work 250mA ± 5%

Operating temperature

0° C ~ + 50 ° C

Storage temperature

-40 ° C ~ + 70 ° C

Humidity

5% -95%

certifications

CE, IP54,ROHS, FCC ,CEM, RED, LVD

Weight

275g

Box dimensions

190 mm * 115 mm * 85 mm;

Box weight

50 sets / ctn; 16 kg / ctn;

Carton size

600 mm × 450 mm × 420 mm

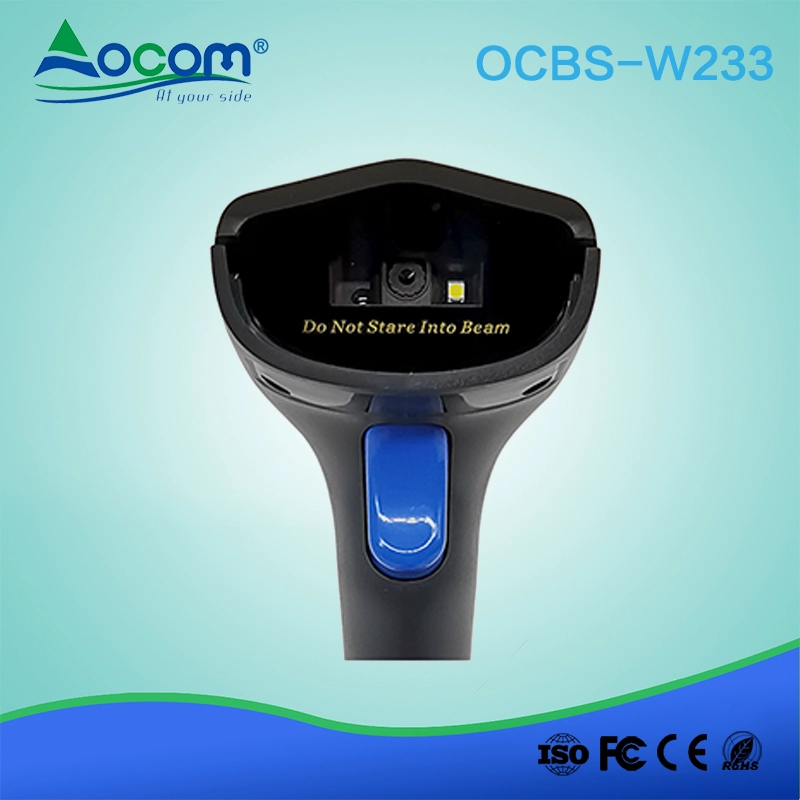

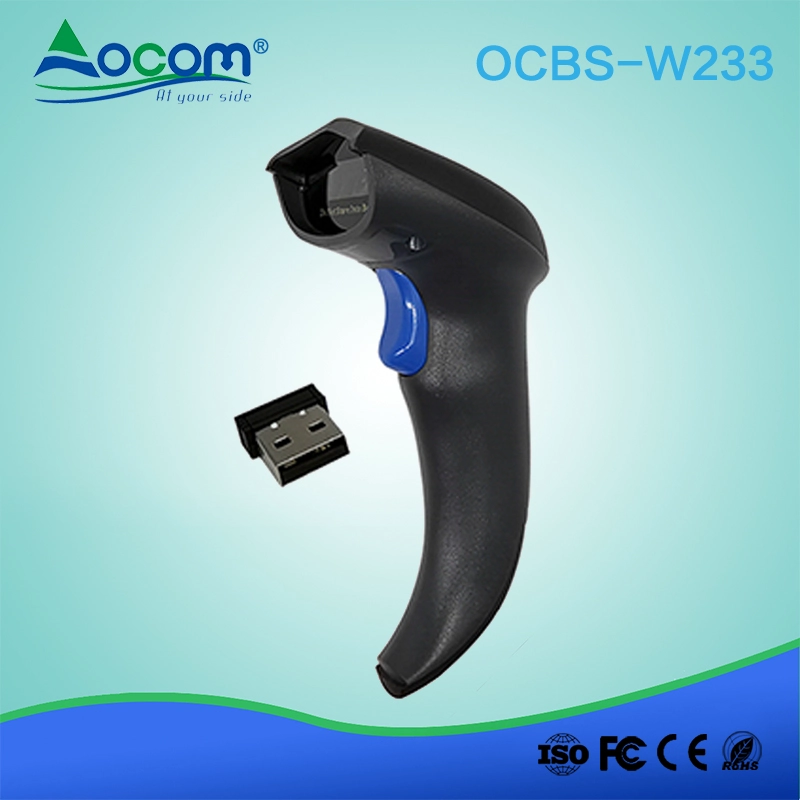

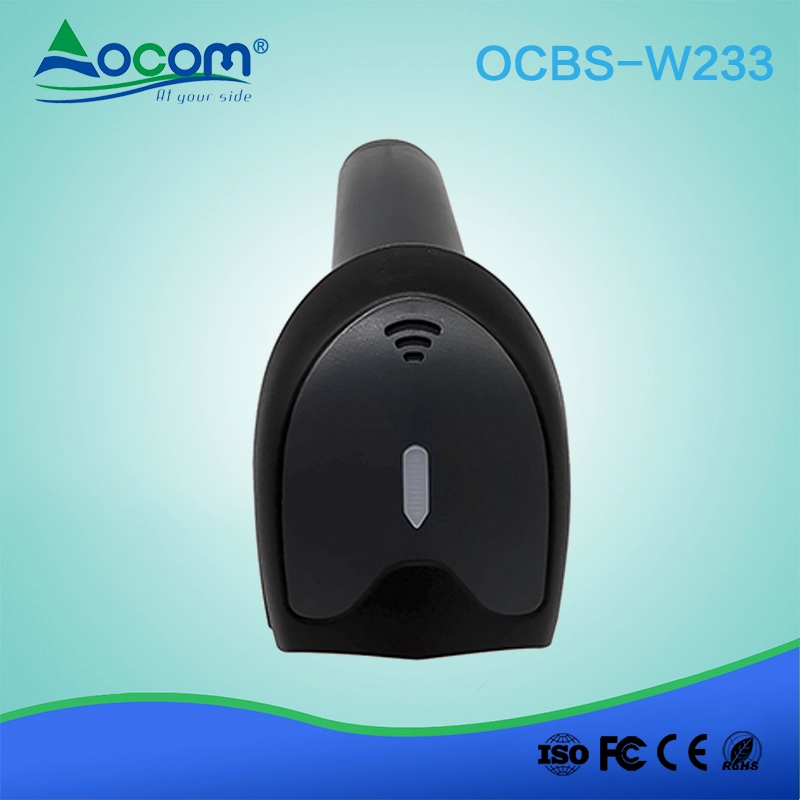

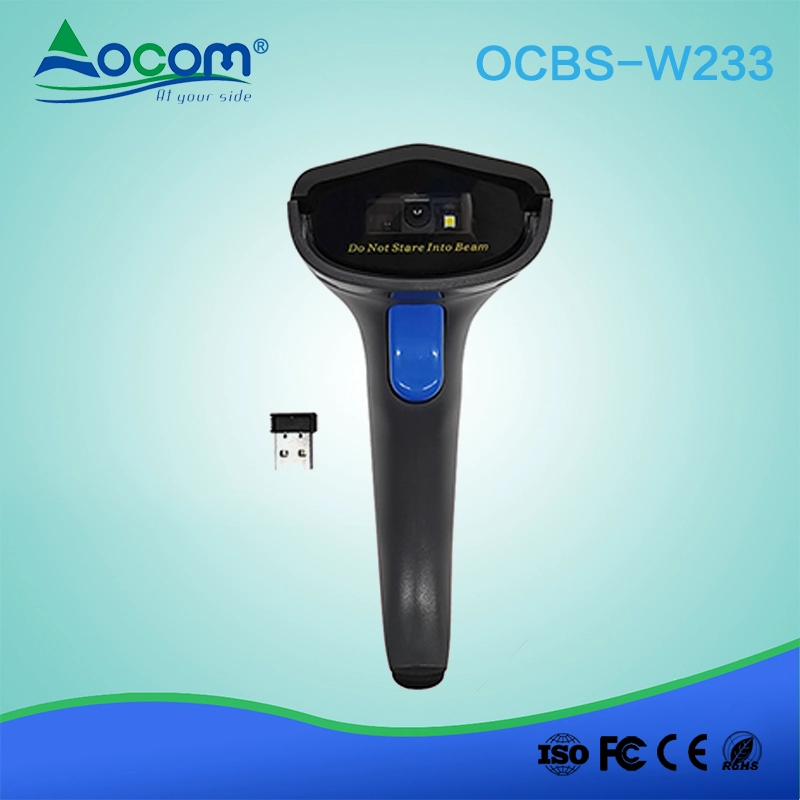

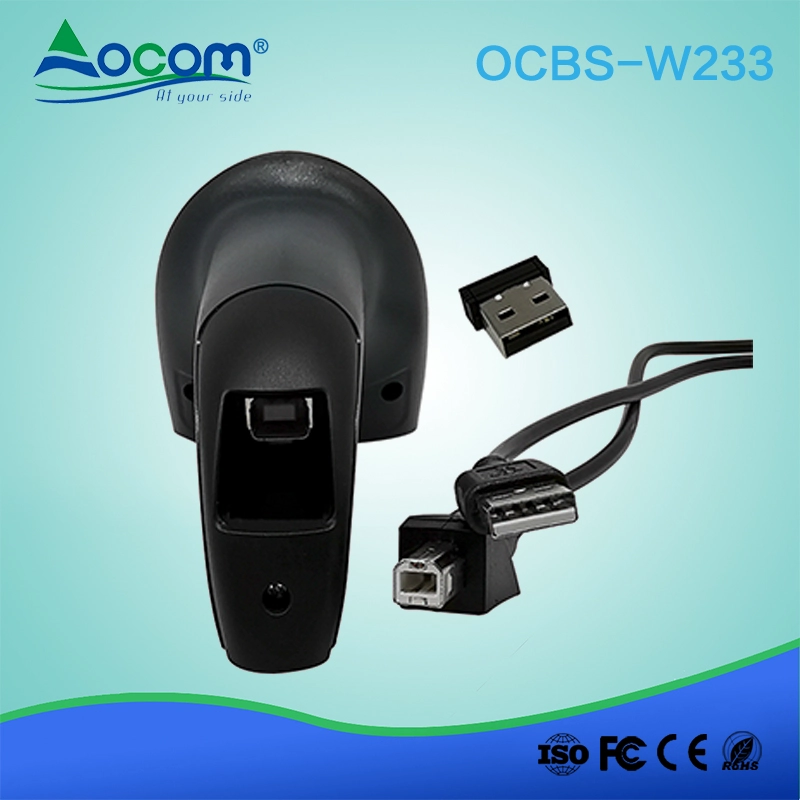

Product images detail

6OCBS-W233 (11).jpg424513OCBS-W233 (10).jpg

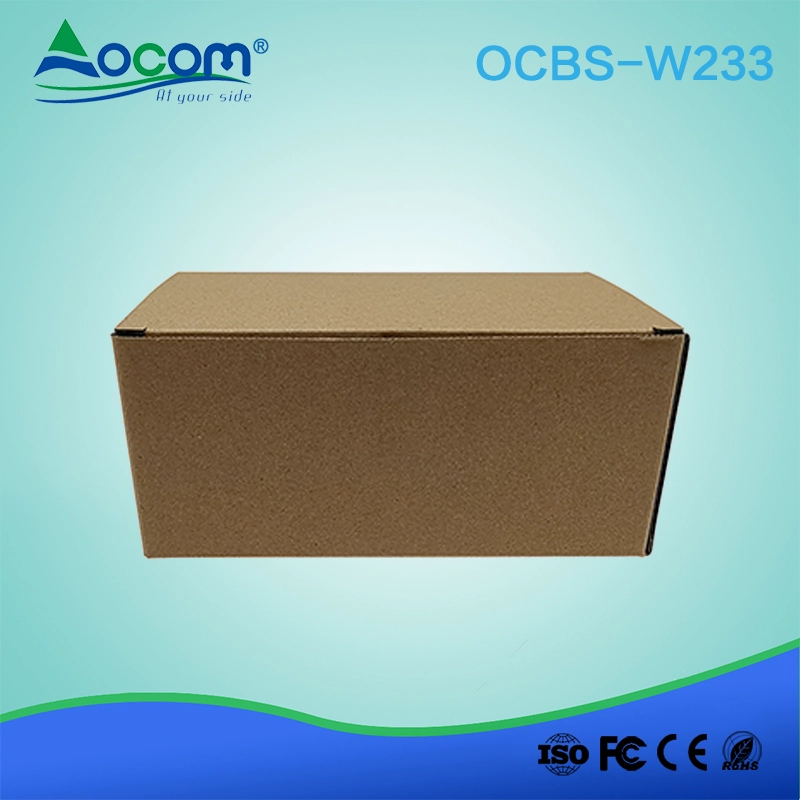

Packaging & shipment

 OCBS-W233 (50).jpgOCBS-W233 (51).jpg
