Large Capacity High Quality Android  POS Printer FactoryLarge Capacity High Quality Android  POS Printer FactoryLarge Capacity High Quality Android  POS Printer FactoryLarge Capacity High Quality Android  POS Printer FactoryLarge Capacity High Quality Android  POS Printer FactoryLarge Capacity High Quality Android  POS Printer Factory

Large Capacity High Quality Android POS Printer Factory

  • 1. Unique appearance with reliable mold;
  • 2. High-speed printing at speeds up to 250 mm / sec;
  • 3. Optional automatic cutter;
  • 4. Line and options Cordless Telecommunications
  • 5. Provide a variety of interfaces: USB,
  • 6. audible alarm application support is available for the kitchen;

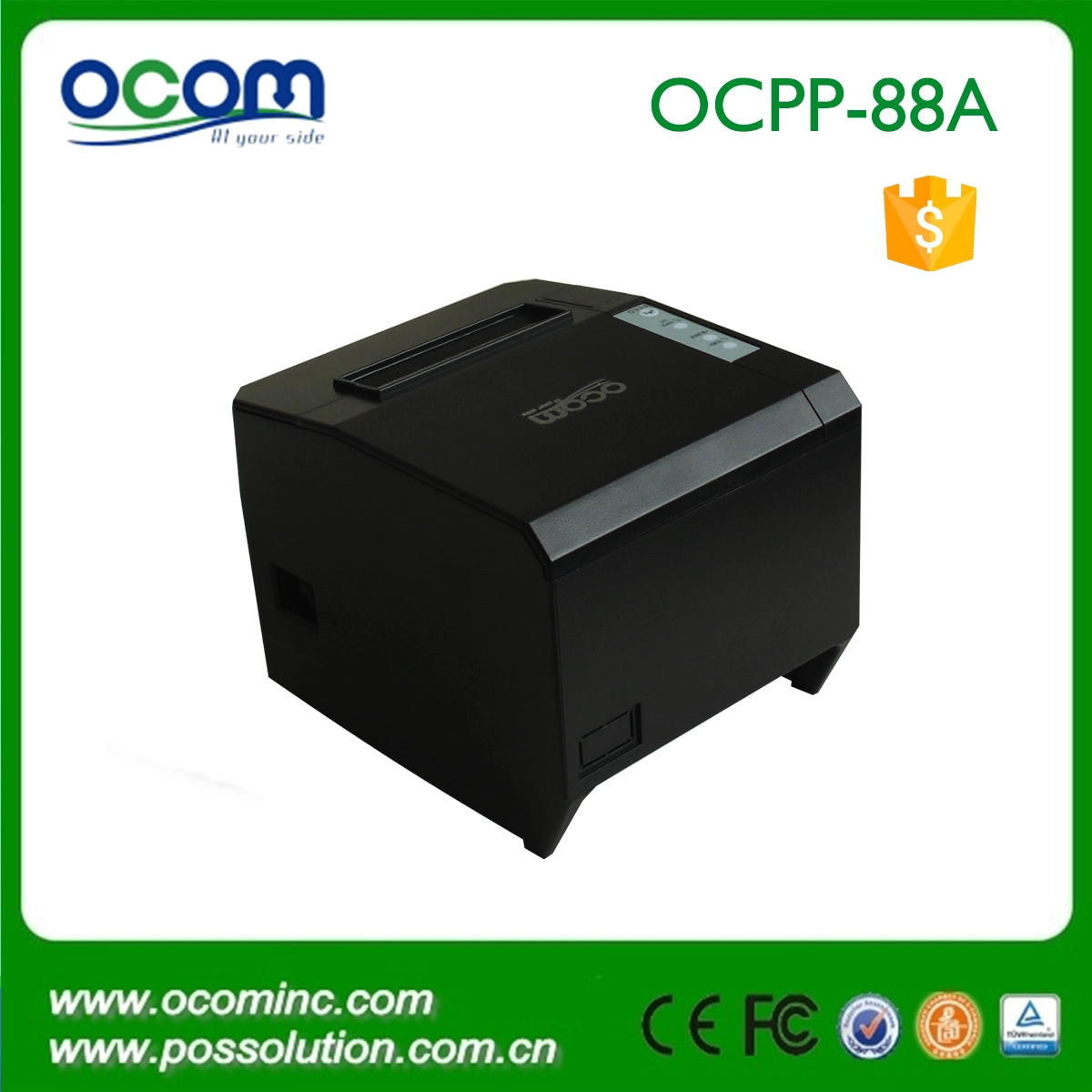

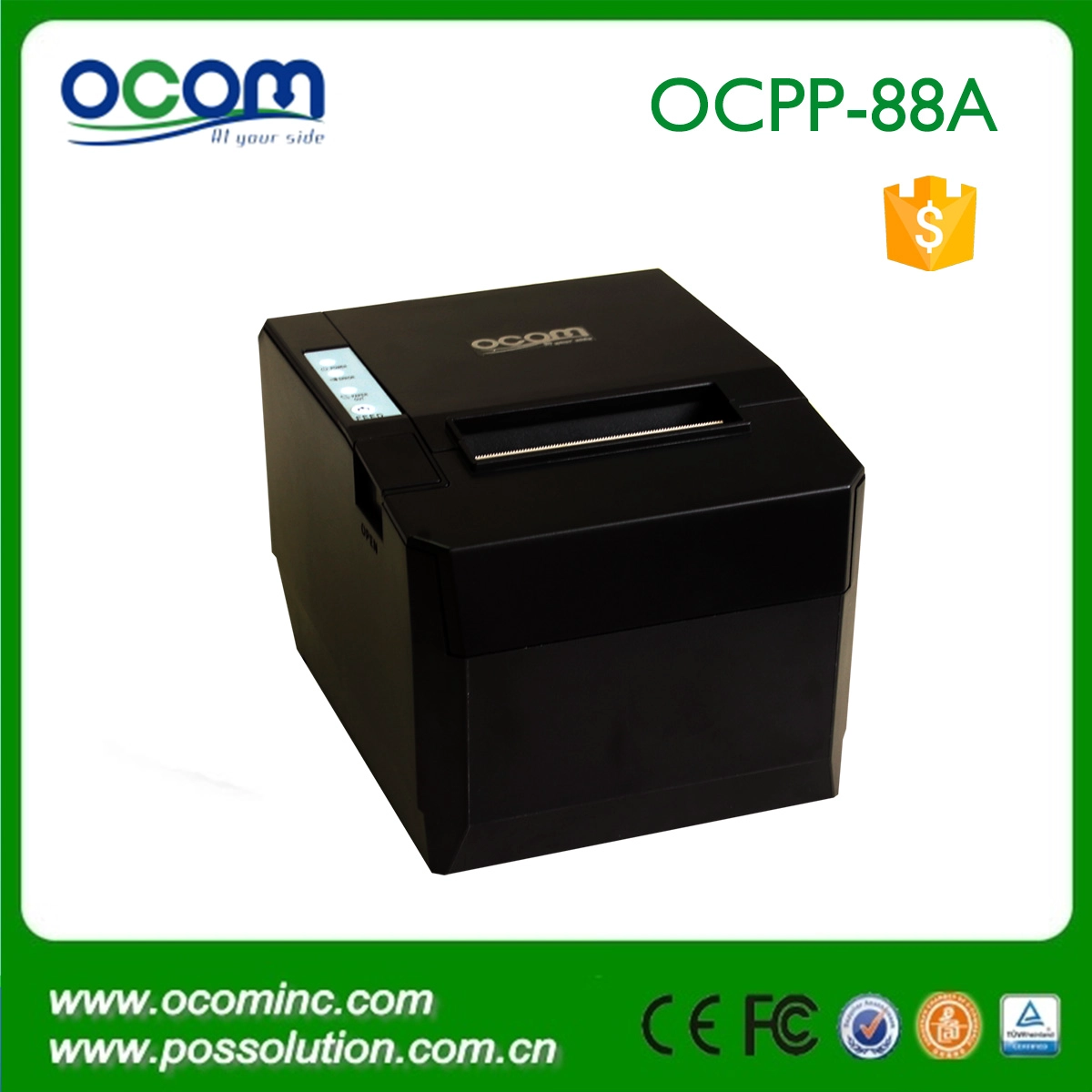

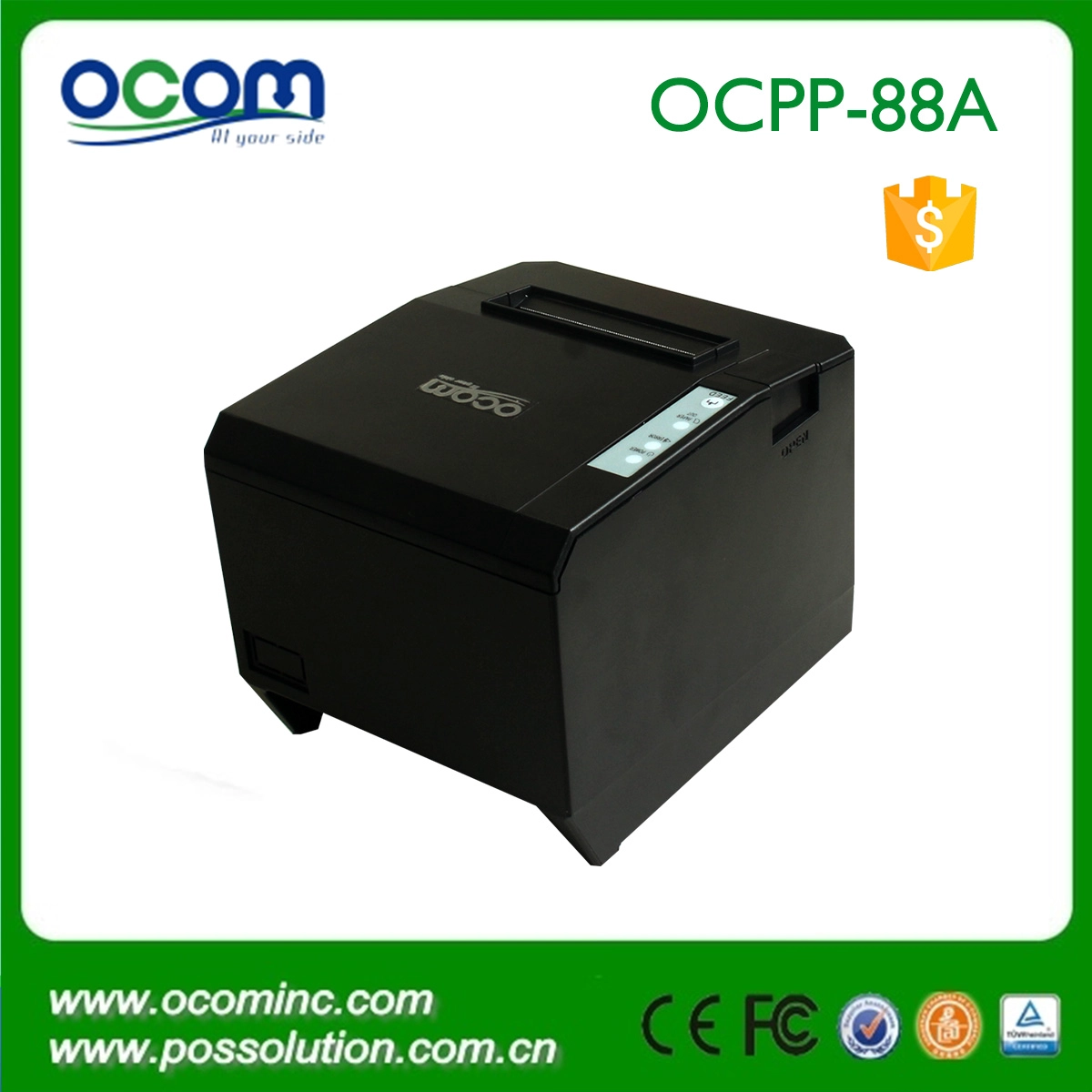

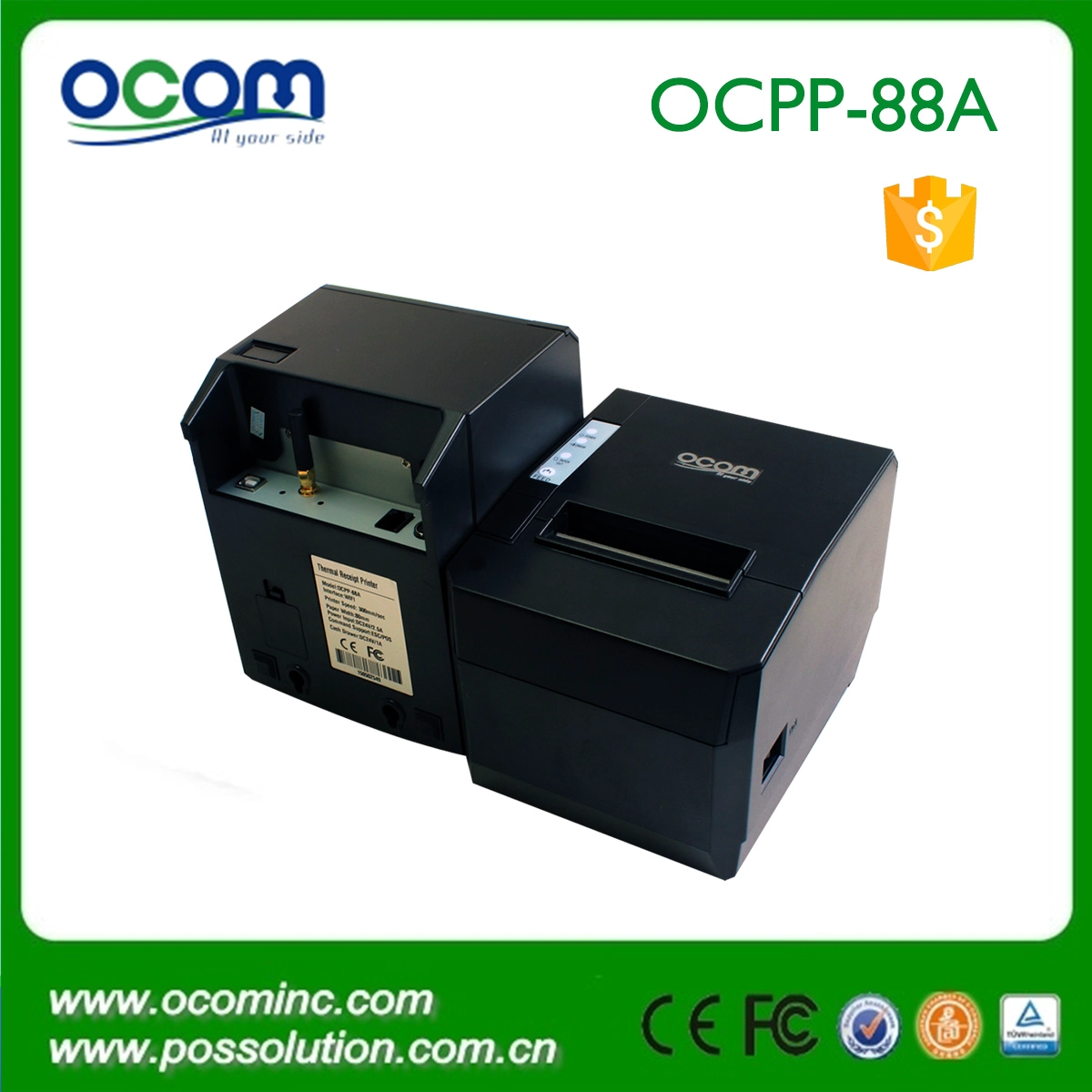

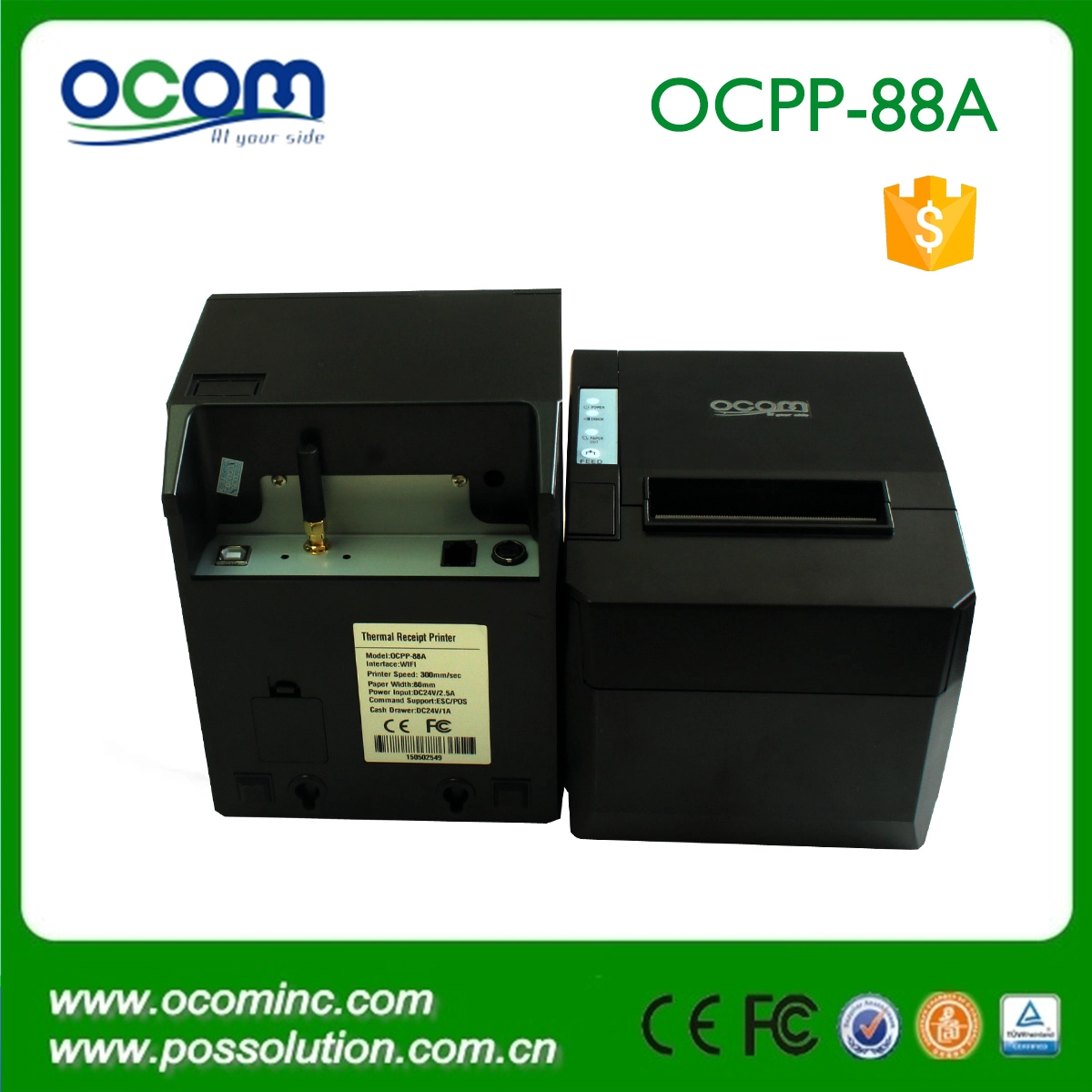

80mm USB Thermal Receipt Printer

(Model: OCPP-88A)

Features:

1. Unique appearance with reliable mold;
2. High-speed printing at speeds up to 300 mm / sec;
3. Optional automatic cutter;
4. Line and options Cordless Telecommunications
5. Provide a variety of interfaces: USB
6. audible alarm application support is available for the kitchen;
7. Support various types of one-dimensional and two-dimensional bar code printing;
8. Supports a variety of international languages;
9. SDK for Android provides;
10. Reliable print head life and one hundred kilometers;
11. Compatible EP SON ESC / POS command.


Parameters:

Printing Methods

Thermal line printing

Printed characters

576dots / line (default), 512dots / line;

Characters: Simplified Chinese point of 24x24, 18030 font support, support for Taiwan and Hong Kong, traditional (complex Font), ANK character;

Font

A: 12 * 24dots, 1.5 (W) * 3.0 (H) mm;

B: 9 * 17dots, 1.1 (width) * 2.1 (H) mm

Simplified / Traditional: 24 * 24dots, 3.0 (W) * 3.0 (H) mm

Barcode types

JUPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODABAR / ITF / CODE39 / CODE93 / CODE128, QR code

Print speed

250 mm / sec as a single interface, to 300mm / sec Dual interface and triple interface

Interface

USB, USB + serial, USB + LAN, USB + Serial + LAN, Wireless + USB, Bluetooth + USB + LAN

Print command

Compatible with EPSON ESC / POS command

Driver

In Win9X / Window XP / Win VISTA / WIN2000 / Win2003's / Win / Win 7 8 / win8.1 / Linux is, and ESPON, SDK provides compatibility with Android.

Print width

79.5 ± 0.5 mm (printing width 72)

Paper diameter

83 mm

Paper Thickness

0.06-0.08mm

Knife

Automatic cutter (optional)

Print Reliability

One hundred kilometers

Power

DC24V / 2.5A

Temperature

0-45 degrees Celsius

In contrast humidity

10-80%

Dimensions

190 * 145 * 145 (MM)

Weight

1.60 kg

Ordering Information

P / N

Description

OCPP-88A-U

USB ports support automatic cutter

OCPP-88A-UR

USB + serial ports, supporting automatic cutter

OCPP-88A-UL

USB + LAN ports support auto-cutter

OCPP-88A-URL

USB + serial + LAN ports with automatic cutter

OCPP-88A-W

Wireless + USB port, automatic cutter

OCPP-88A-BUL

Bluetooth + USB + LAN, support automatic cutter

OCPP-88A-U0

USB port, no automatic cutter

OCPP-88A-UR0

USB + serial, no automatic cutter

OCPP-88A-UL0

USB + LAN port, no automatic cutter

OCPP-88A-URL0

USB + serial + Lan port, without automatic cutter

OCPP-88A-W0

Wireless + USB port, no automatic cutter

OCPP-88A-BUL0

Bluetooth + USB + LAN, no automatic cutter


Relevant documents:



*Procedures Manual

*Instructions

*Driver WinXP Win2000 WinVista Win8-32bit of

*Driver Win8-64bit

*Linux Driver

*Printer parameter setting tool

*USB Printdemo(Application software demo)

*SDK For Android

*CD Files
