Low Cost 1D Laser Scanner Barcode ReaderLow Cost 1D Laser Scanner Barcode ReaderLow Cost 1D Laser Scanner Barcode Reader

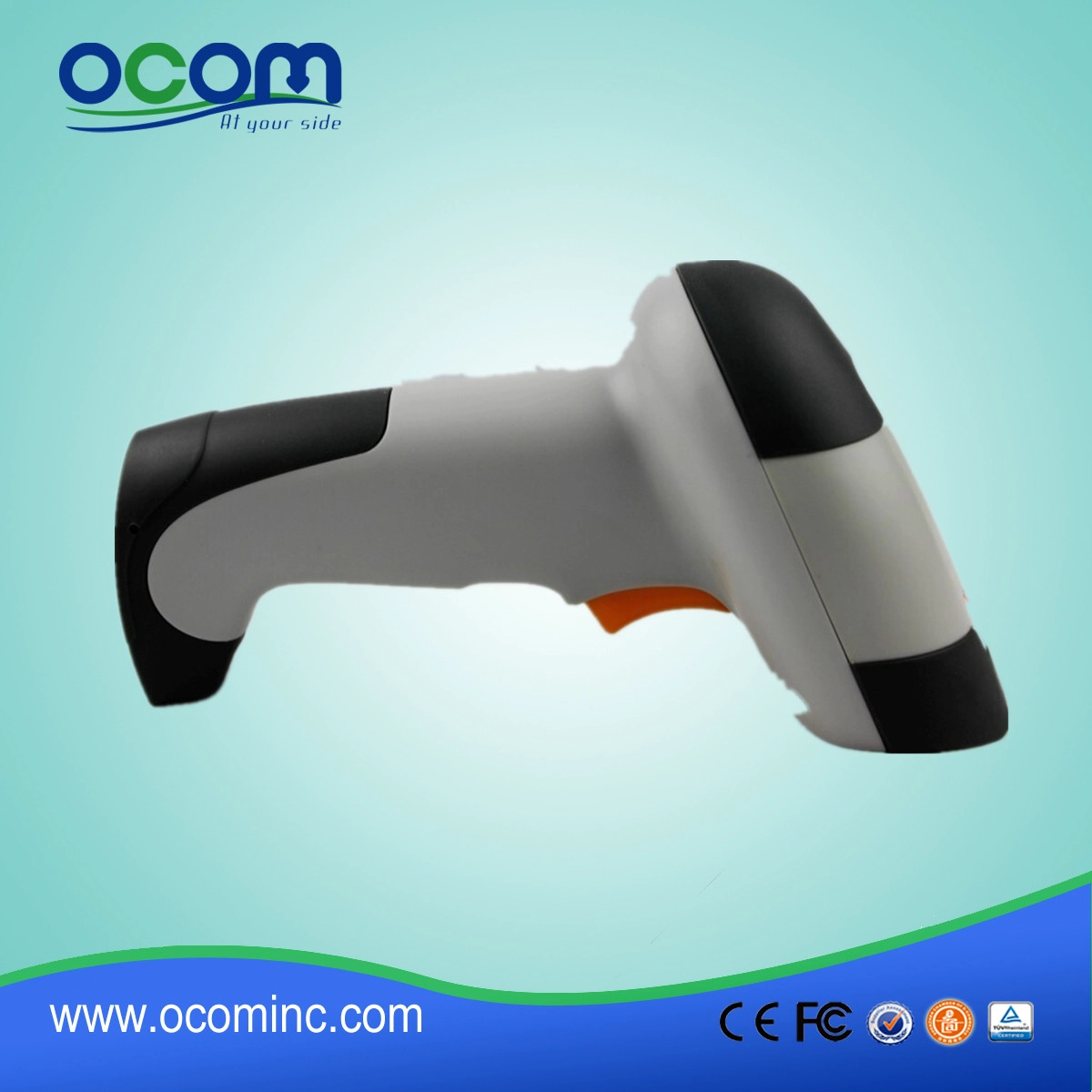

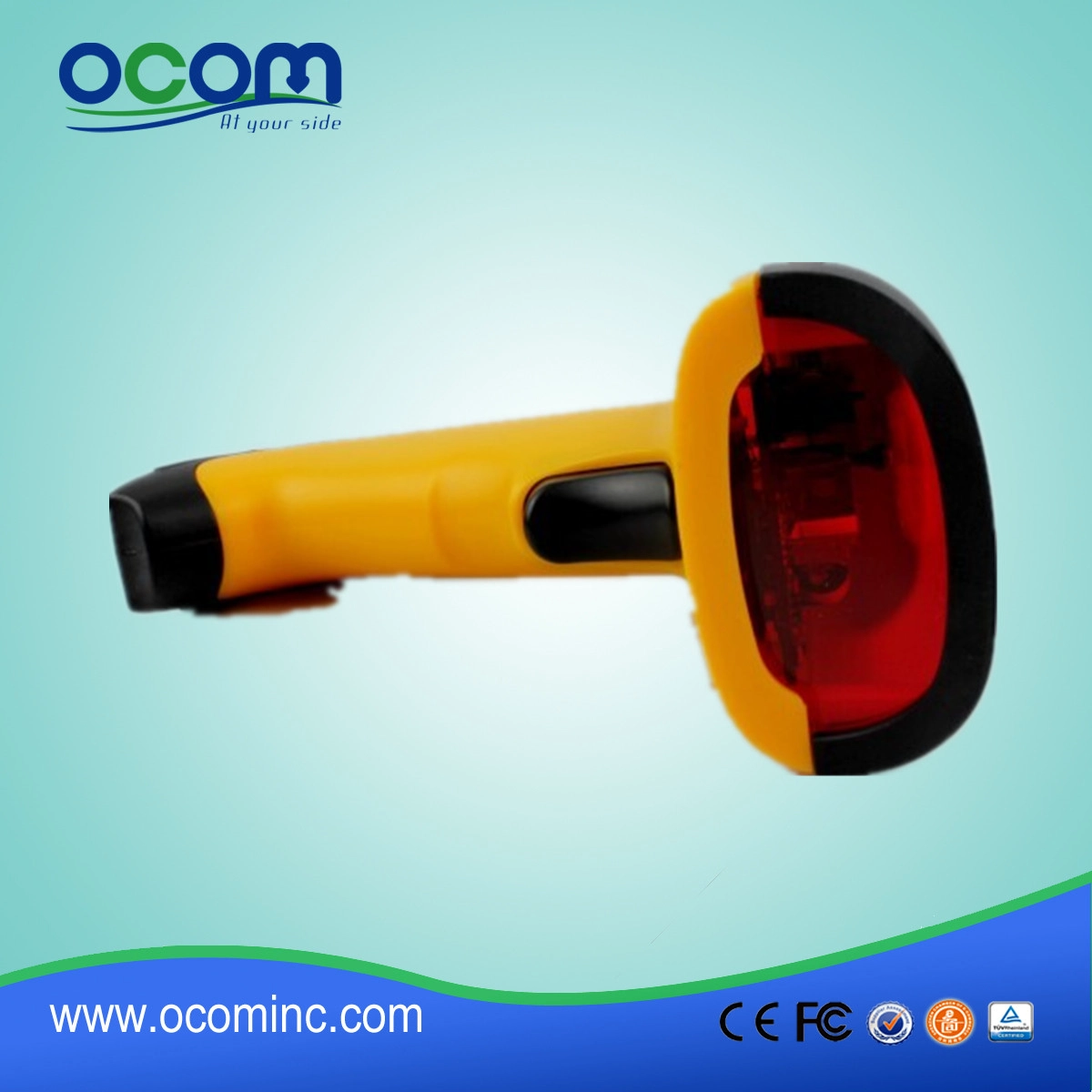

Low Cost 1D Laser Scanner Barcode Reader

  • Handheld laser barcode scanner;
  • High scan rate (100 scans/sec) and 10-520mm distance;
  • Excellent decode capability;
  • KBW, RS232 and USB supported;
  • Durable construction combined with future-proofing;

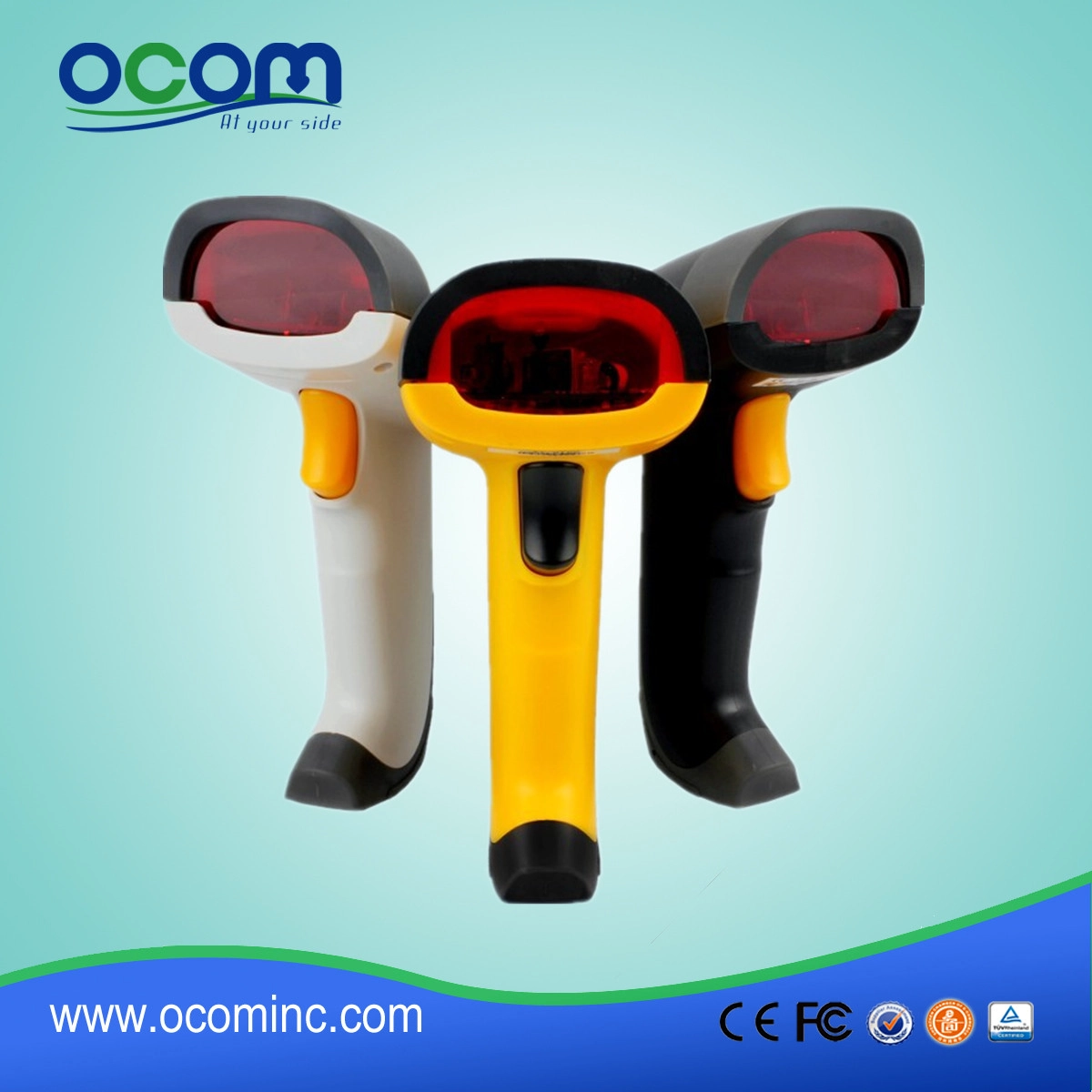

  • Grey yellow and Black Color available.
Low Cost 1D Laser Scanner Barcode Reader
(Model No. : OCBS-L013)

Features:

Performance Characteristics

Light Source:

Visible laser (650nm)

Scan Rate:

100 scans per second

Reading Distance

10 ~520mm (100% UPC/EAN)

Scanner Type:

Bi-directional

Resolution:

0.10mm (4mil)

Print Contrast Minimum:

30%, minimum reflective difference (@650nm)

Error Rate:

1/3000000

Decode Capability:

UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, EAN8, EAN 13, Code 128, EAN 128, Code39, Code 93, Codabar 125, MSI/Plessey etc.

Physical Characteristics

Interfaces Supported:

PS2, RS232, USB

Voltage:

5V

Current:

120 mA

Idle Current:

<30 mA

Power Source:

Host power or external (RS232) power supply

Scanning Angle

Inclination 45° Elevation 60°

Dimensions:

L175mm X W70mm X H100mm

Weight:

150g (without stand)

Stand

Optional

Color:

Grey, black and yellow

User Environment

Operating Temperature:

-20 - 45 degree centigrade

Storage Temperature:

-20 - 45 degree centigrade

Humidity:

5~85% relative humidity, non-condensing

Electrostatic Discharge:

Confirm to +/-15KV air discharge and +/-8KV of contact discharge

Drop Specifications:

Withstands multiple 1.5m drops to concrete

Safe:

EMI/RFI:

Compliant with EN50081.parl standard

Laser Safety:

IEC 60825-1 Standard class 2 for laser products


Shipping way:

1. Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)

2. EXPRESS: around 3-7 working days to arrive

3. INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port

4. By sea: depend on which destination port


Payment:

1. T/T in advance

2. Western Union

3. PayPal

4. Escrow

5. L/C


Certification:



After Sale Service:


Warranty:

12 months of shipment normally. Some designated models can have as long as 24 months warranty.


RMA Procedure:

If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the OCOM product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.


Dead-on-Arrival (DOA):

Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
