Low price support barcode label printer with ribbonLow price support barcode label printer with ribbonLow price support barcode label printer with ribbonLow price support barcode label printer with ribbonLow price support barcode label printer with ribbon

Low price support barcode label printer with ribbon

  • 1.Two printing methods available: Thermal Transfer with ribbon and Direct Thermal;
  • 2.Label paper auto position;
  • 3.Labels peel off, tear off automatically;
  • 4.Compatible with plenty of label software;
  • 5.BMP, PCX images download store;
  • 6.Support Parallel and USB together;
  • 7.Support PDF417, QR CODE, DOTMATRIX;
  • 8.Suit for thermal paper rolls or self-adhesive labels;

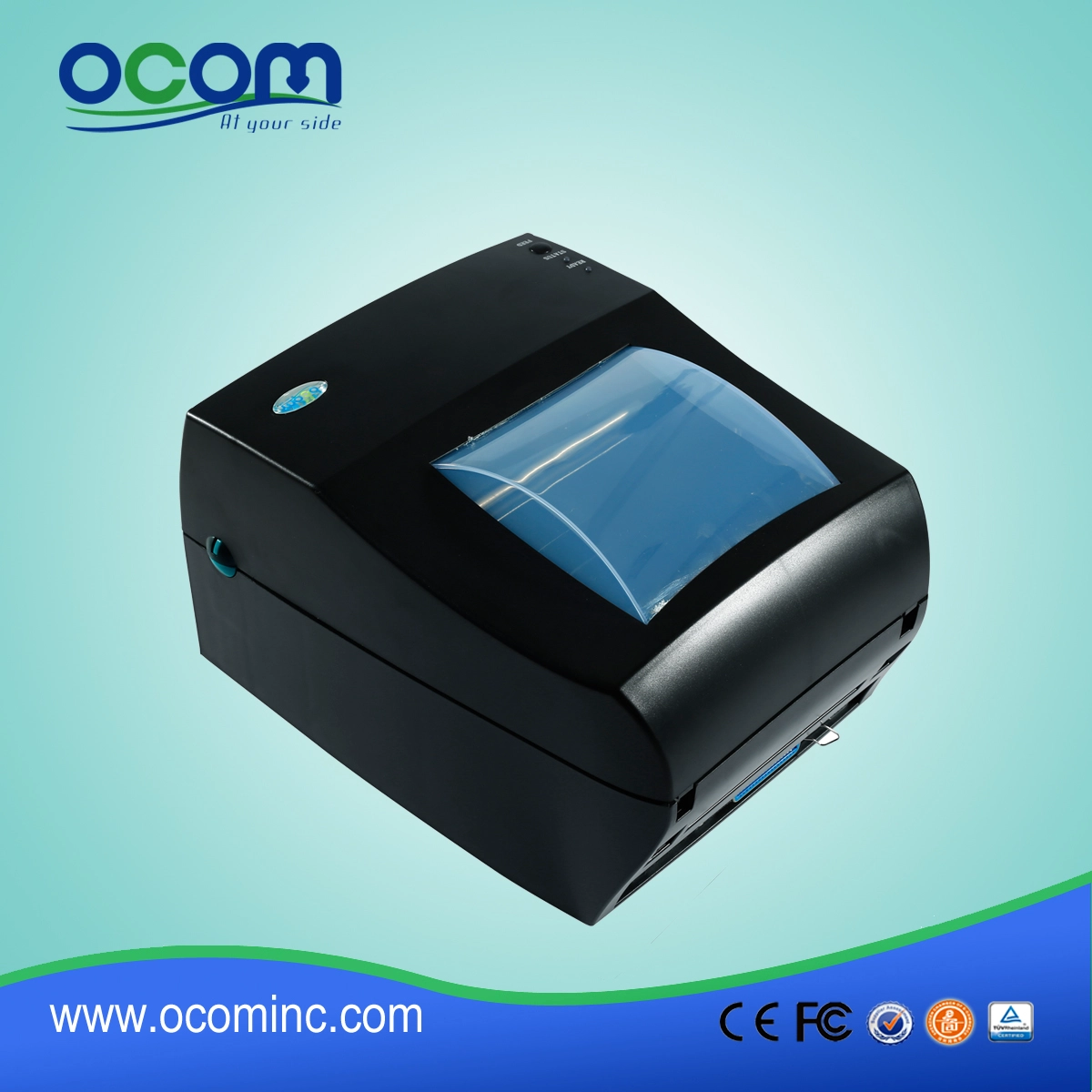

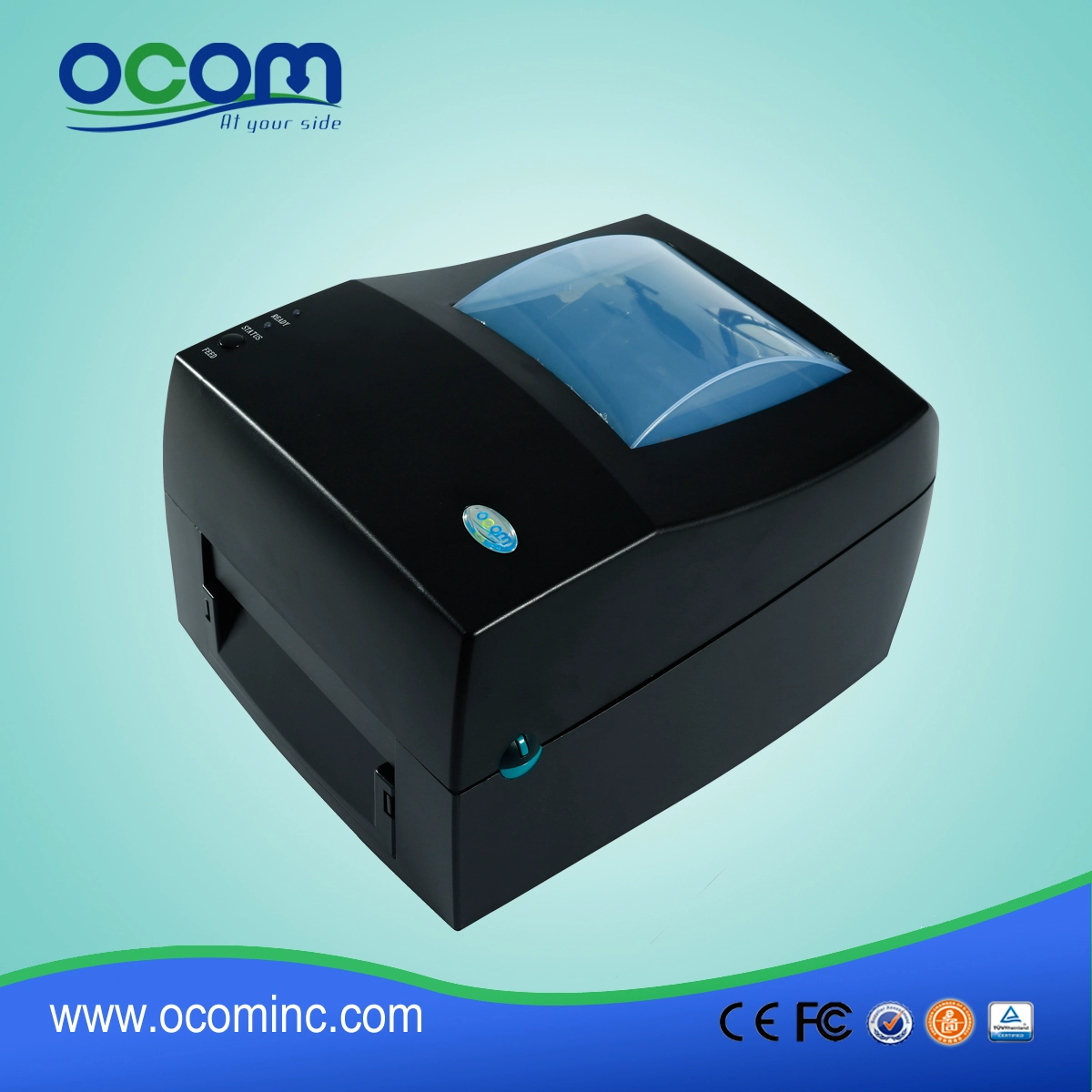

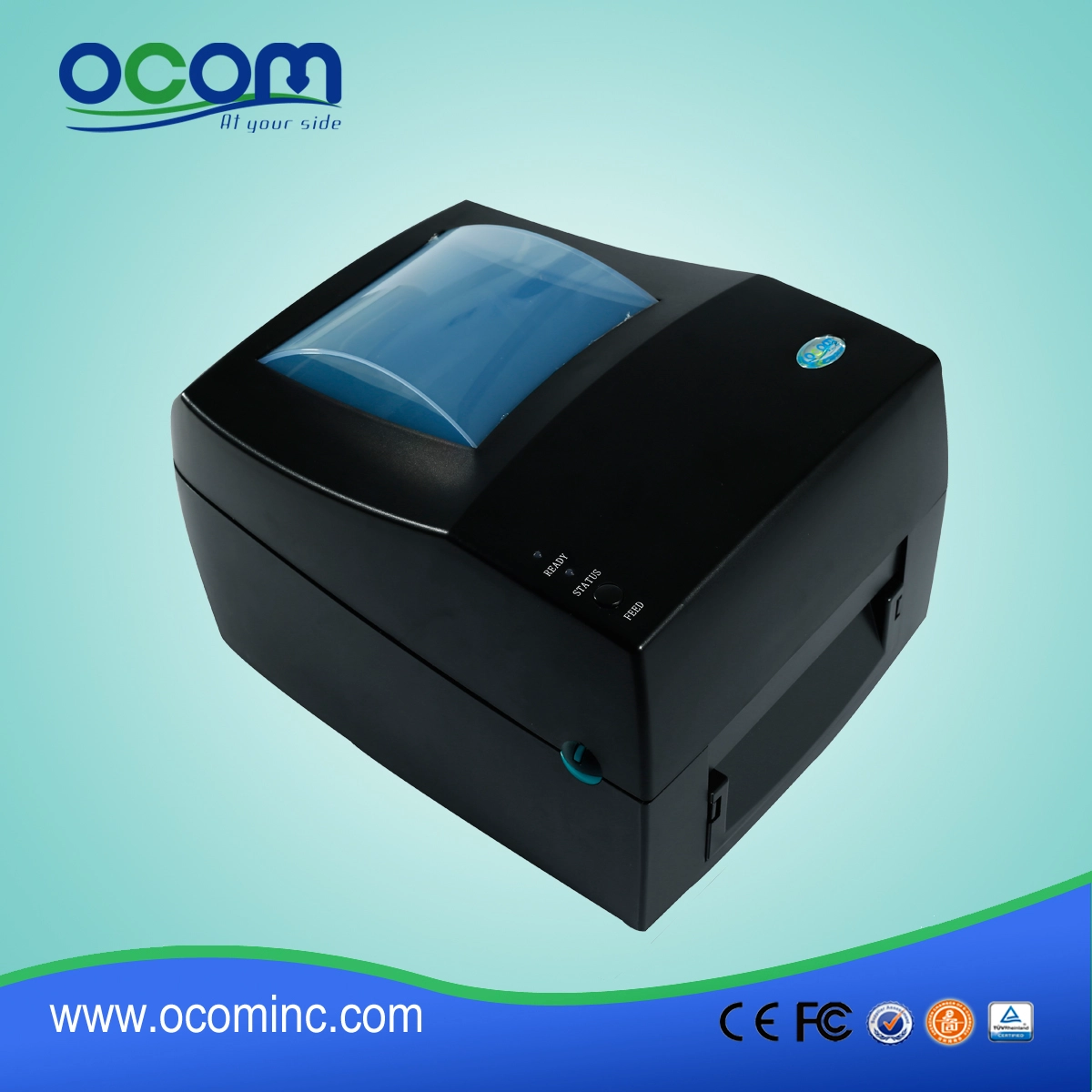

Low price support barcode label printer with ribbon

(Model:OCBP-002)

Features:

1.Two printing methods available: Thermal Transfer with ribbon and Direct Thermal;
2.Label paper auto position;
3.Labels peel off, tear off automatically;
4.Compatible with plenty of label software;
5.BMP, PCX images download store;
6.Support Parallel and USB together;
7.Support PDF417, QR CODE, DOTMATRIX;
8.Suit for thermal paper rolls or self-adhesive labels;

Specifications:

Printer Model

OCBP-002

Resolution

203 DPI (8 dot/mm)

Printing Method

Direct Thermal / Thermal Transfer

CPU

32 BIT

Sensor

Type: Label gap and black mark sensing

Detection: label length auto sensing or program command setting

Printing Speed

50.8 mm -101.6 mm / Sec

Printing Length

1727 mm

Printing Width

25 mm ~ 104 mm

Media

Paper Roll External Diameter: Maximum Diameter 105 mm

Paper Roll Axis: 26 mm

Paper Width: 25 mm ~ 110 mm

Paper Thickness: 0.06 mm ~ 0.3 mm

Media Type: Label gap, Back mark, Continuous

Ribbon

Types: Outward Roll

External Diameter: 64mm (Max)

Length 300M

Width: 30 mm ~ 110 mm

Core Inner Diameter: 25.4mm (1inch)

Material: General Wax Type, Wax/Resin Mixed Type, Resin Type

Memory

2MB Flash Rom, 2MB DRAM


Monochrome PCX, BMP (support after the software control: ICOWMFJPGEMF Picture, can control the picture amplification, reduced, rotation, mirror image and highlight

Bar Code

Code39, Code93, Code128 (subset A, B, C), UPC A/E (add on 2 & 5), Interleaved 2 of 5, EAN 8/13 (add on 2 & 5), Code bar, China Postal Code, Industrial 2 of 5, Matrix 2 of 5, PDF417 and Data matrix Code, (QR Code Available), Data Matrix

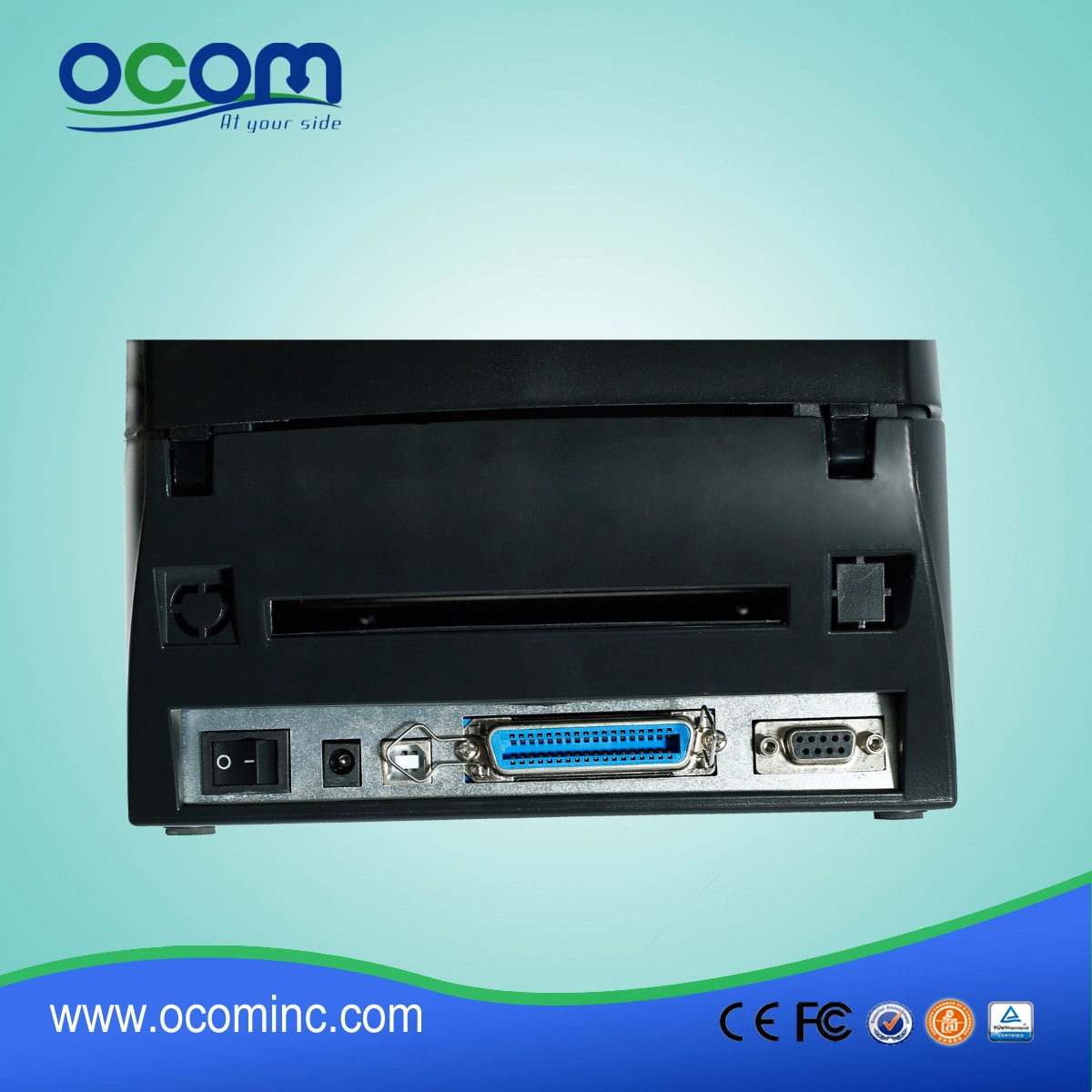

Interface

Parallel Port+ USB

Transmission Setting

Baud Rate 9600, XON/XOFF, RTS/CTS

Control panel

LED*2: Ready, Status

Function Key*1: Feed

Power

AC 18V, 4000mA

Environment

Operating Temperature: 40 Degree F to 104 Degree F (5 Degree C to 40 Degree C)

Storage Temperature: -40 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

Operating Humidity: 30% ~ 85%, non-condensing, Free air

Storage Humidity: 10% ~ 90%, non-condensing, Free air

Physical Dimension

Size: L286mm * H176mm *W233mm

Weight: 2.43KG (net)
