Mini Compact 2inch bluetooth thermal label printerMini Compact 2inch bluetooth thermal label printerMini Compact 2inch bluetooth thermal label printerMini Compact 2inch bluetooth thermal label printerMini Compact 2inch bluetooth thermal label printer

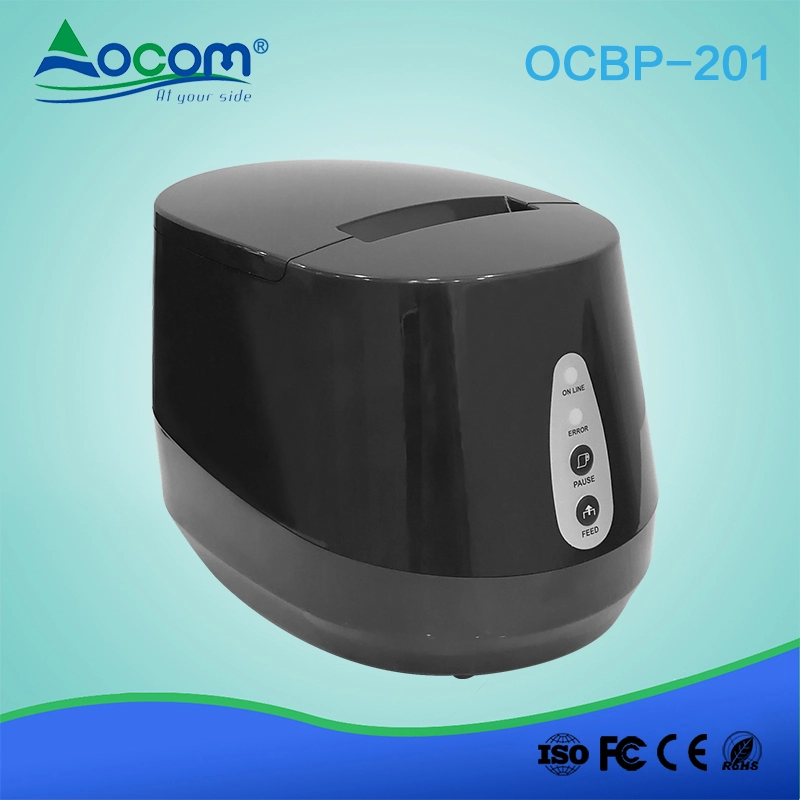

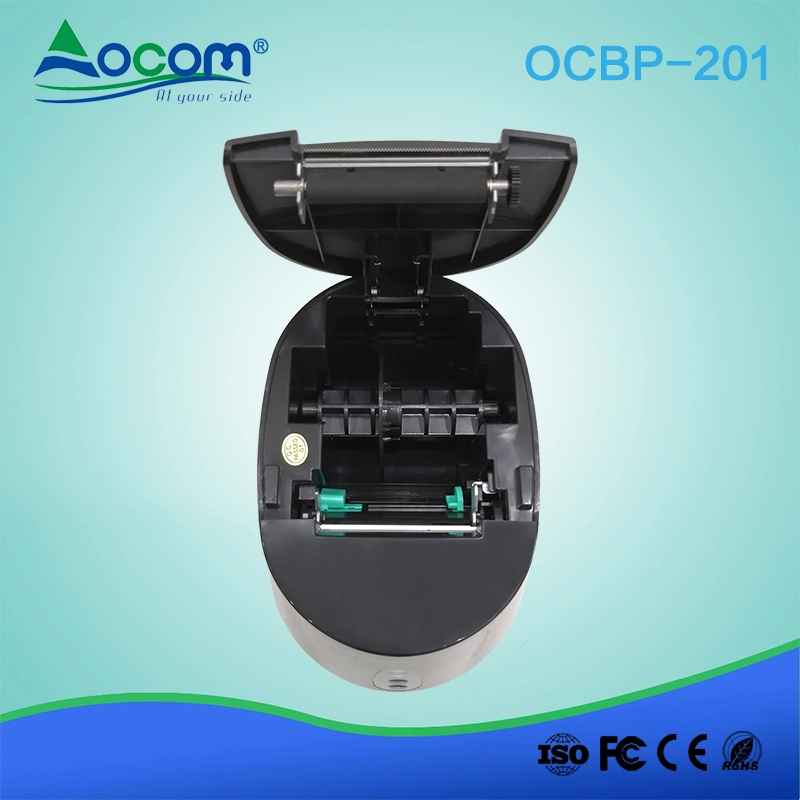

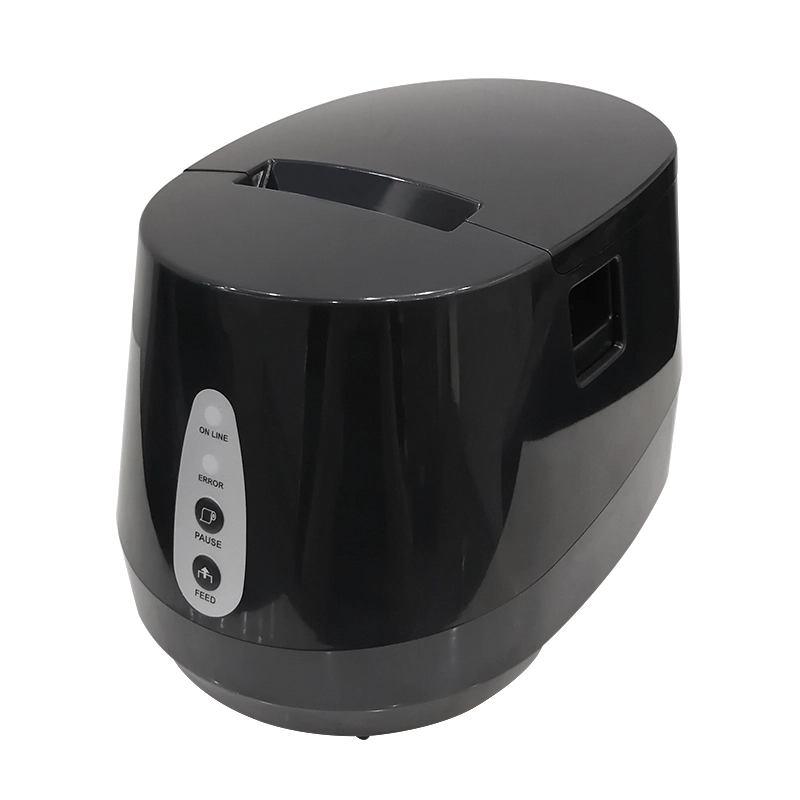

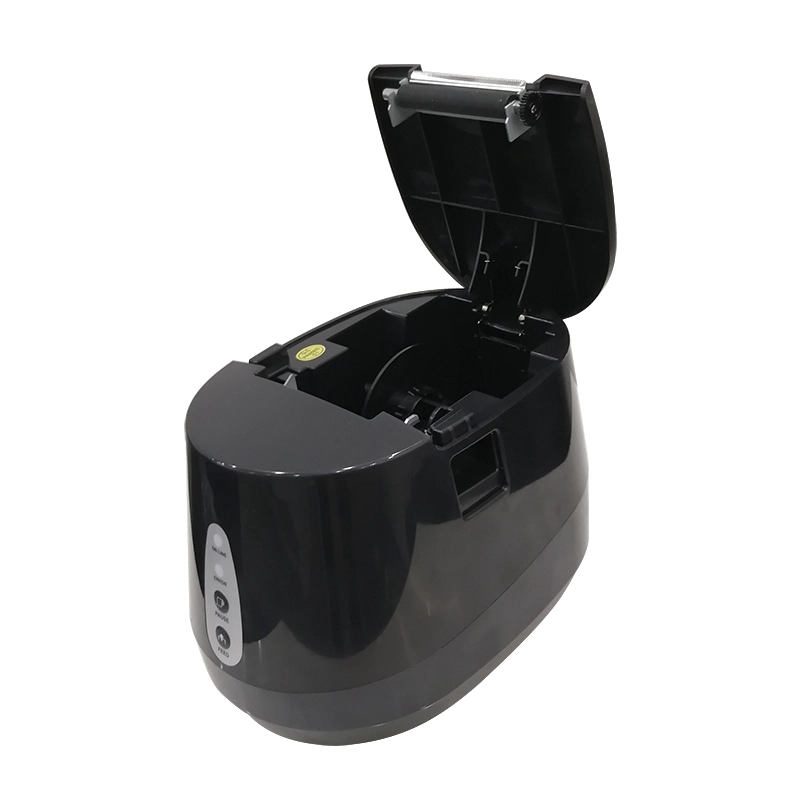

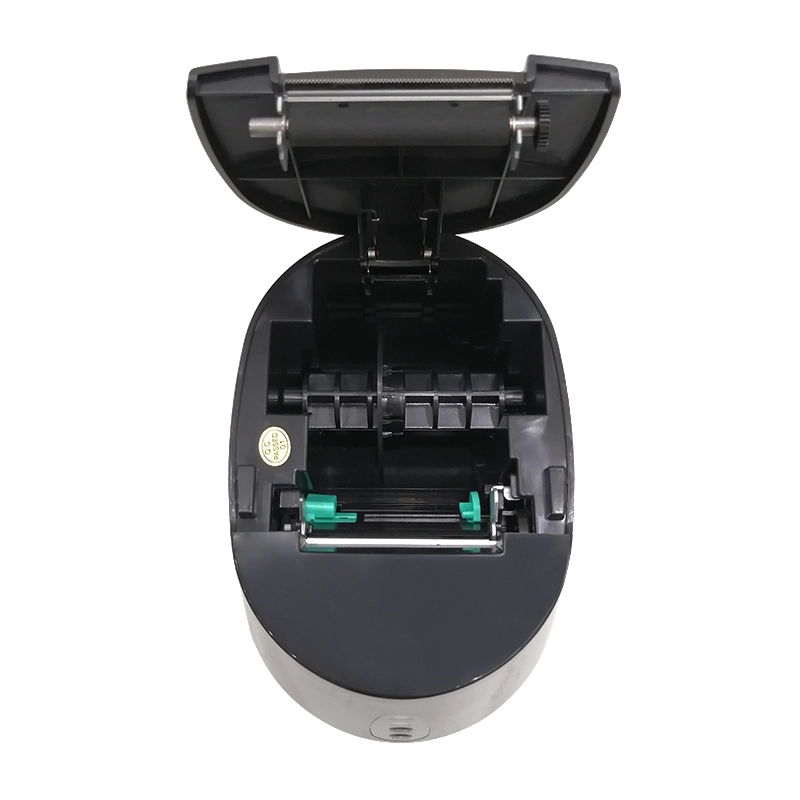

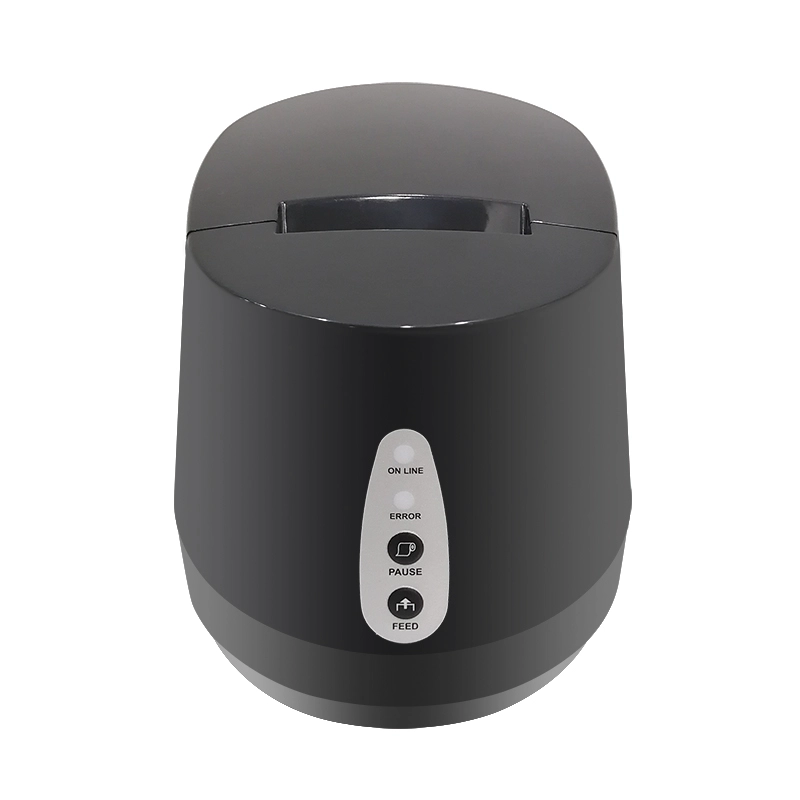

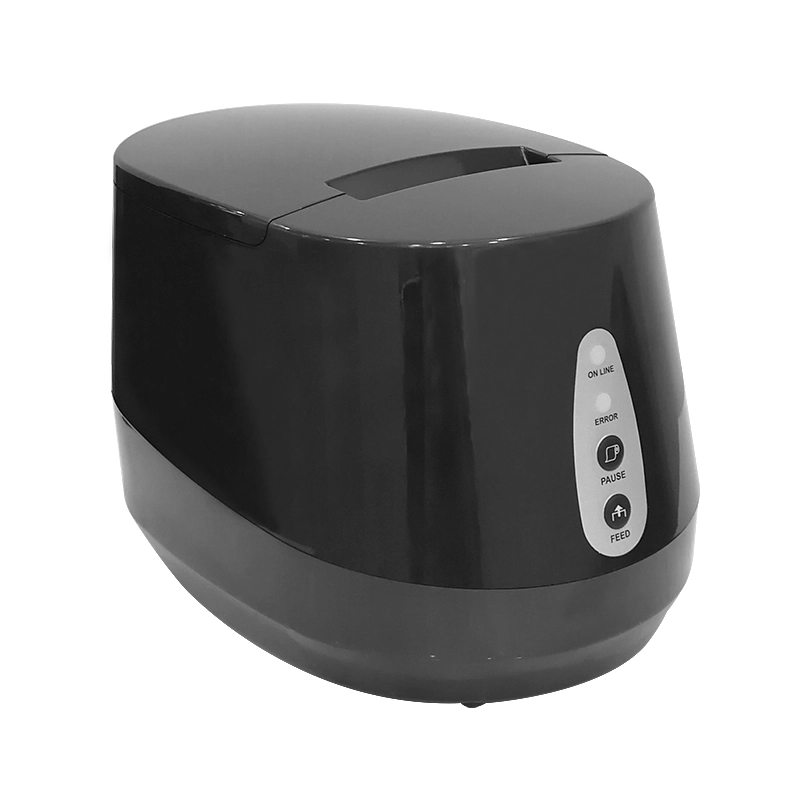

Mini Compact 2inch bluetooth thermal label printer

  • USB or USB+Bluetooth Interface for optional;
  • Automatic paper checking function;
  • Temperature adaptive control;
  • Support receipt mode and label mode switching;
  • Compatible with TSPL and ESC/POS command;
  • Compact and sleek design for stylish counters.

Mini Compact 2inch bluetooth thermal label printer


(M / N: OCBP - 201)

Features:

 USB or USB+Bluetooth Interface for optional;

 Automatic paper checking function;

 Temperature adaptive control;

 Support receipt mode and label mode switching;

 Compatible with TSPL and ESC/POS command;

 Compact and sleek design for stylish counters.


Specification:

Printing method

Direct thermal

Resolution

203DPI

Command

TSPL and ESC/POS

Mode switching

Support receipt mode and label mode switching

(Command:HEX:1F 1B 1F 02 20 n 0D 0A,n=31/30.default n=30)

Print width

20-60mm

Printing speed

MAX:101mm/s;MIN:50.8mm/s

Memory

DRAM: 256kb FLASH: 576kb

Printhead temperature

Thermistor

Paper exists detection

Micro switch

Interface

USB orUSB+Bluetooth

Paper presence detection

Paper presence detection

Barcode

CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14 Qrcode、 DM Code、 PDF417

Enlargement & rotation

(0°、90°270°、 360°) 1 to 10 times enlargement in both direction; 0°、90°、270°、 360° rotation


Monochromatic PCX, BMP image files can be load to FLASH

Paper type

Paper roll, sticker, adhesive sticker, etc

Paper width

20mm~60mm

Roll external

MAX 80mm

Roll inner diameter

MIN 25mm

Paper off type

Tear off

Power supply input

DC12V, 3A

Work environment

5~45℃, 20-80%RH(no condensation)

Storage

-40~55℃,≤93%RH(40℃)

environment
