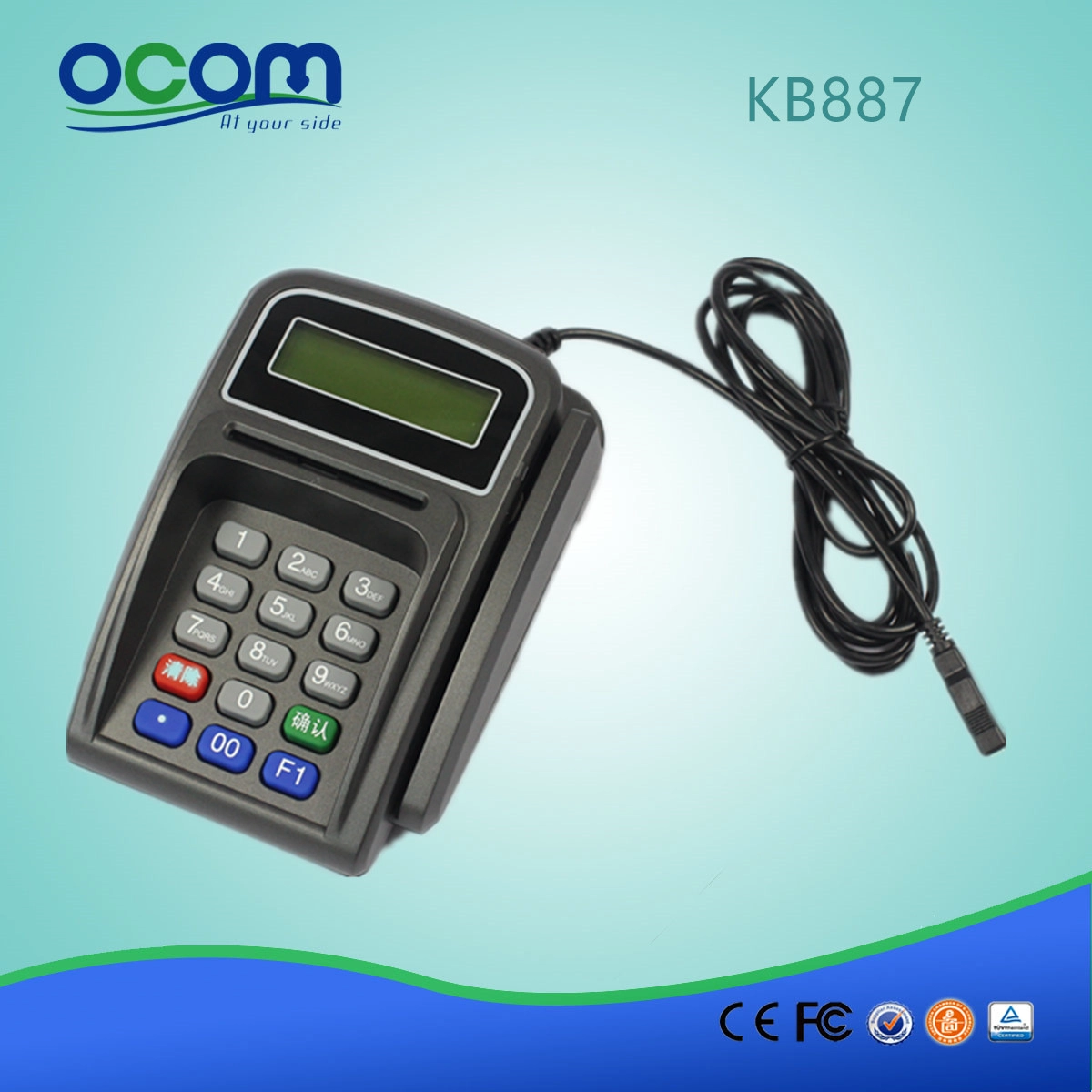

Mini Keypad with Smart Card Reader and Magnetic Card Reader KB887
- KB887 merges magnetic stripe card technology, contacted smart card technology and contactless smart card technology together. It mainly meets the coexistence of magnetic stripe card system, contact IC card and contactless IC card. It supports the ports RS232 or USB. Contact style main card uses downward deck. Power uses the keyboard port or USB port to supply power. USB is with hassel technology. One is external, the other is half-buried. It supports a small SAM deck at the same time. The main deck is for general use conventional way. Auxiliary deck can be easily inserted into the administrator card. Its effect is certification and management. It solves the problem which must use built-in SAM card. Taking compatibility and multi-party certification into consideration, it add one more built-in SAM deck.
Card Reader Writer Mini Keypad
(Model No. KB887)
Parameters:
|
Name |
Mini Keypad with Smart Card Reader and Magnetic Card Reader |
|
Weight |
400g |
|
Size |
150mm*110mm*62mm |
|
Temperature Scope |
-20 to +60ºC |
|
Card contact frequency |
200,000 times |
|
Card type |
Supports an ISO7816 standard card size, can add SIM card size SAM deck which is suitable for GSM 11.11. |
|
Working current |
70mA |
|
Port |
USB (HID hassle interface) or RS232 |
|
Protocol |
Support T=0、T=1 CPU card, Supports common memory cards. Communication speed can reach 115.200 bps at the same card. Synchronization support contactless smart card which is correspond for ISO14443 Type A, Type B. Such as Mifare S50, Mifare S70, MF1ICL10, Mifare Pro, Mifare desfire, Mifare series, AT88RF020, Huahong 1102 etc. |
|
Communication rate |
T=0：9600-38400bps |
|
Color |
As the pictures attached. Customized color is available. |
|
Cable Length |
2M |
|
Status Indicator |
Bi-color LED indicator, indicate power or communication status |
|
Display |
LCD, 122 * 32,2 rows 8 character display, support for backlight. |
|
Keyboard |
Support keyboard input, keyboard is with 15 keys. There are numeric keys of 0～9, Enter and Clear. Support 3DES encryption, pronunciation is available. |
|
Storage |
It provides 4K writable space and corresponding interface function. Device can set ID, it uses storage data for user. |
|
Magnetic stripe card |
Support 1 \ 2 \ 3-track magnetic stripe card reader |
|
Operating system |
Windows XP, 2003, Win 7, Win 8, Win 10, Unix and Linux |
|
Other Features |
Provide a common interface library. Can support multiple operating systems and language development platform. Support online upgrade feature. |
