Mini Wireless Laser Barcode Scanner With Screen And MemoryMini Wireless Laser Barcode Scanner With Screen And MemoryMini Wireless Laser Barcode Scanner With Screen And MemoryMini Wireless Laser Barcode Scanner With Screen And MemoryMini Wireless Laser Barcode Scanner With Screen And MemoryMini Wireless Laser Barcode Scanner With Screen And Memory

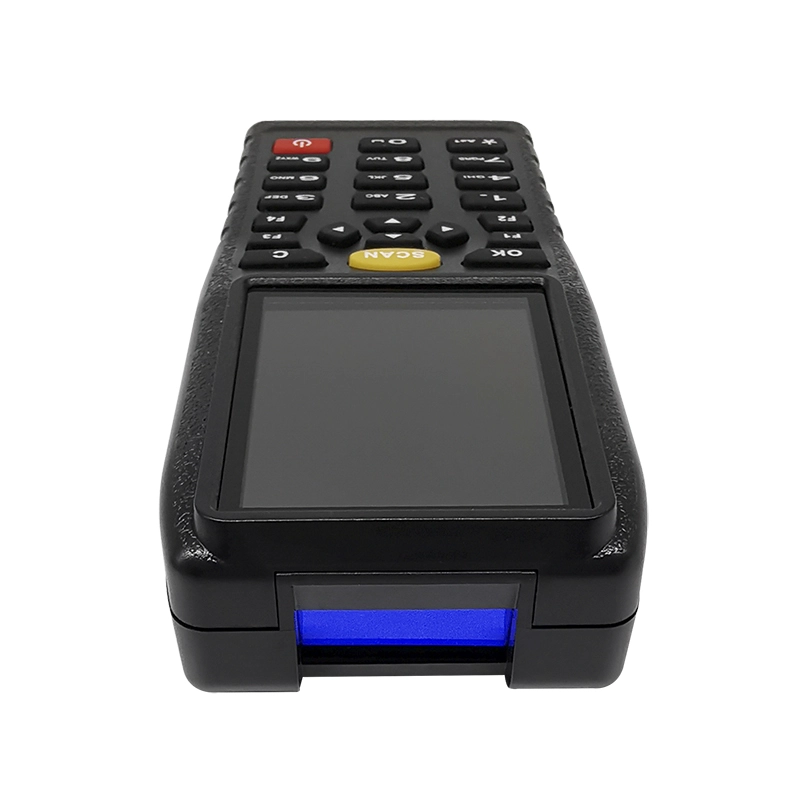

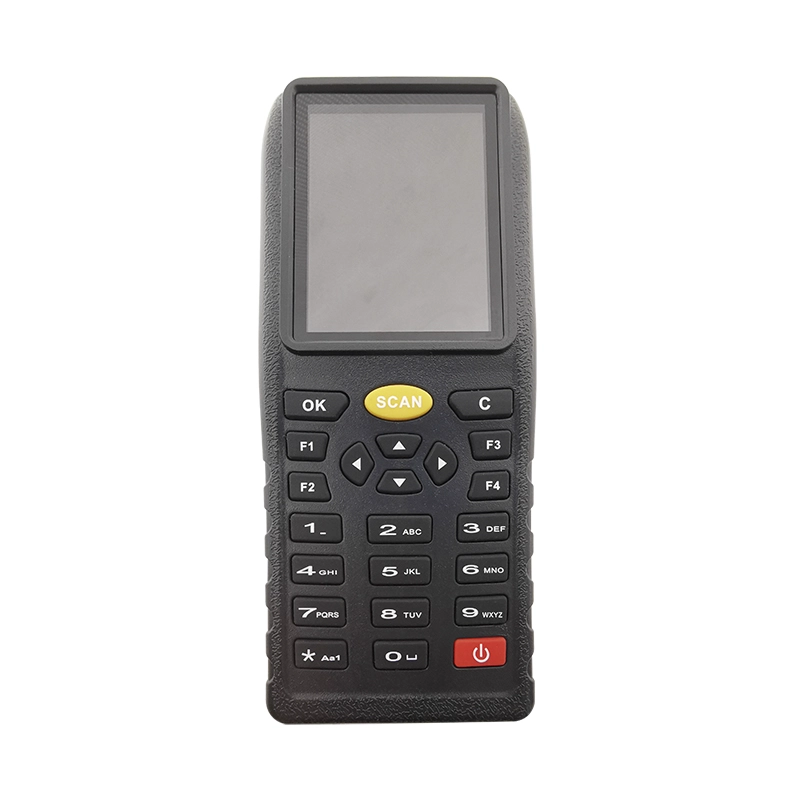

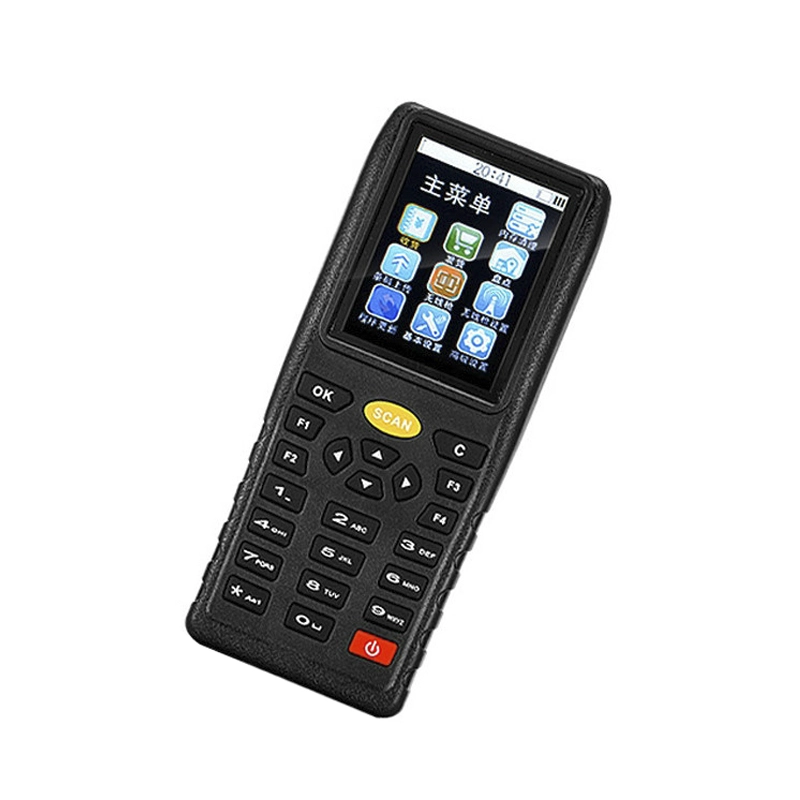

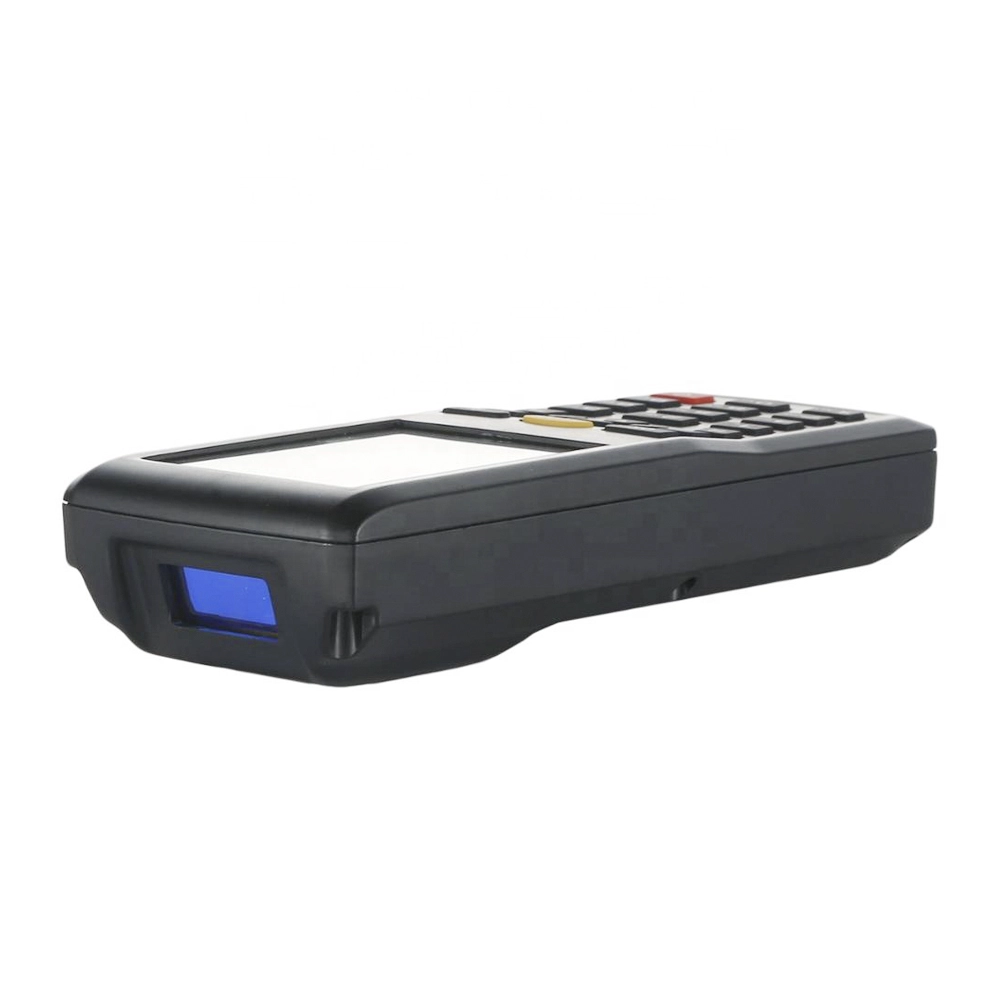

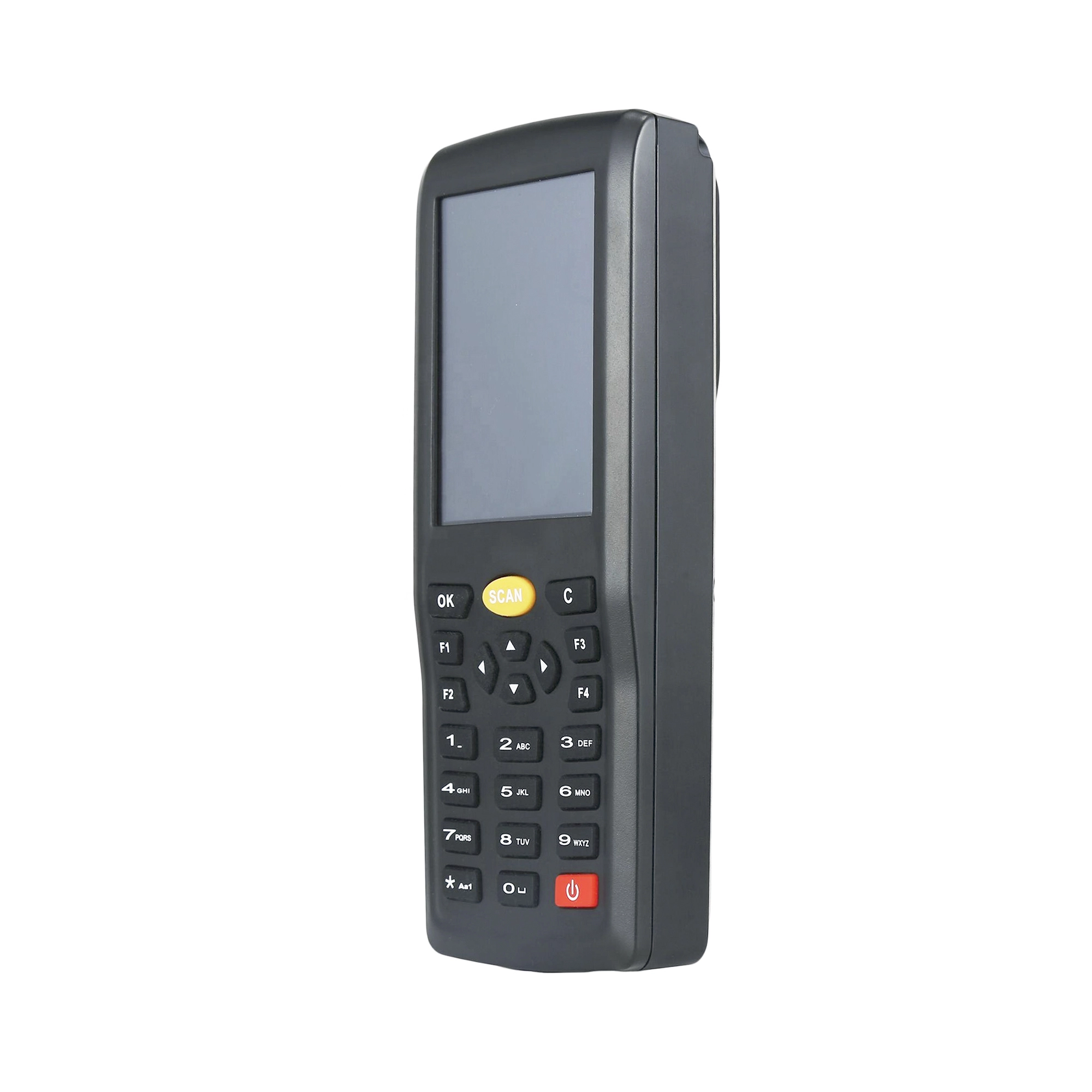

Mini Wireless Laser Barcode Scanner With Screen And Memory

  • 2.4inch 16bit true color screen
  • 16MB Oversized Storage
  • 433MHz Long distance wireless communication
  • 16 hours working times
  • Visualized setup menu, multiple working modes
  • ABS + Silicone Drop-proof design

Mini Wireless Laser Barcode Scanner With Screen And Memory

(M/N:OCBS-E7)

Features:

2.4inch 16bit true color screen

16MB Oversized Storage

433MHz Long distance wireless communication

16 hours working times

Visualized setup menu, multiple working modes

ABS + Silicone Drop-proof design


Specifications:

Model

OCBS-E7

Color

Black

CPU speed

72MHz

Keyboard

T9

RAM

16KB

ROM

16MB

Screen Size

2.4’’

Screen Color

16bit true color(65536 colors)

Resolution

240*320

Battery

Rechargeable Lithium-ion (3.7V,1900mAh)

Working time

16 hours

Standby

15 days

Dimension

138mm×60mm×30mm



Material

ABS + silicone



Charging indicator

LCD



Working current

160mA



Standby current

8mA



Safety standard

national laser safety standard Class II



EMC

CE & FCC DOC compliance



Light Source

650nm



Scan Pattern

Single line



Decode Rate

100±2 scans / second



Resolution

3mil



Scan width

20mm@window,220mm@200mm



Depth of Field

0~250mm(0.33mm,PCS 90%)



Roll

30°



Pitch

65°



Skew

55°



Print contrast

Not less than 30%



Operating Mode

Continuous  / itemized scanning



Error Rate

1/5million



indicator

beeper,LCD



Barcode supported

EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI

Cable

USB 2.0

Wireless

433MHz(Max.300m)



Storing Temperature

-20℃~60℃



Working Temperature

0℃~45℃



Humidity

5%~95%



Lumination

Max.5,000 Lux(Fluorescence)
