Mobile Bluetooth Large Paper Warehouse Thermal PrinterMobile Bluetooth Large Paper Warehouse Thermal PrinterMobile Bluetooth Large Paper Warehouse Thermal PrinterMobile Bluetooth Large Paper Warehouse Thermal PrinterMobile Bluetooth Large Paper Warehouse Thermal PrinterMobile Bluetooth Large Paper Warehouse Thermal Printer

Mobile Bluetooth Large Paper Warehouse Thermal Printer

  • Mini size suitable for portable application;
  • Windows, Java, Linux, Android ,IOS operation system supported;
  • Bluetooth, USB and RS232 communication supported;
  • SDK for Android,IOS and WIN CE available;
  • 1D, 2D barcode (QR code), and image printing supported;
  • Can change the printer name, password, baud rate online;
  • 57*50 paper warehouse
  • One printer can connected with up to 8 smart devices (7 Android, one Apple device) visa blue tooth;
  • Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby;
  • Powered by rechargeable battery, power adapter, or car charger (specified models)
  • Higher print speed 90mm/sec;
  • 100km thermal printer head life;
  • Multiple languages supported;
  • ESC/POS command set compatible;

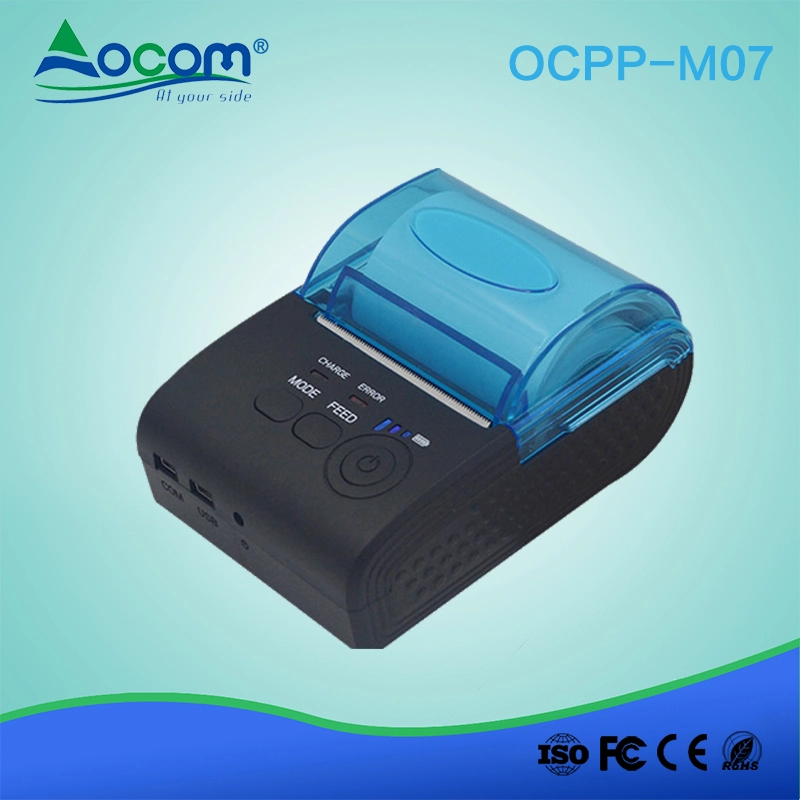

Mobile Bluetooth Large Paper Warehouse Thermal Printer

(Model Number: OCPP- M07)

Features:
Mini size suitable for portable application;
Windows, Java, Linux, Android ,IOS operation system supported;
Bluetooth, USB and RS232 communication supported;SDK for Android,IOS and WIN CE available;
1D, 2D barcode (QR code), and image printing supported;
Can change the printer name, password, baud rate online;57*50 paper warehouse
One printer can connected with up to 8 smart devices (7 Android,one Apple device) visa blue tooth;
Low powerconsumption and large capacity Lithium battery (1500mAh), 4~5 daysstandby;
Powered by rechargeablebattery, power adapter, or carcharger (specified models)
Higher print speed 90mm/sec;
100km thermal printer head life;
Multiple languages supported;
ESC/POS command set compatible;



Specification:

Overall Dimension (W×D×H)

105×75×45mm

Weight

134g

Color

Black

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Effective print width

48mm

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, RS-232Bluetooth (optional)

Flash

256KB

Power Adapter

9V DC/2A

Battery Power

7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

Other features

Paper detection, manual shut down

Working conditions

Temperature:-10~50 degC, Humidity:10%90%

Storage conditions

Temperature:-20~70 degC, Humidity:5%95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized or change by customer itself.  At max 6 digitals.

Power plug dimension

3.5*1.1mm

Ordering information

OCPP-M07-BB

Android, USB+COM+Bluetooth, Battery.

OCPP-M07-BB-AI

Android+IOS, USB+COM+Bluetooth, Battery.

OCPP-M07-B

Android, USB+COM+Bluetooth, without Battery;

OCPP-M07-U

Mini printer, Android, USB+COM, without Battery.

OCPP-M07-BB-AA

Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported
