Mobile Data Terminal Android Rugged PDA Handheld TerminalMobile Data Terminal Android Rugged PDA Handheld TerminalMobile Data Terminal Android Rugged PDA Handheld TerminalMobile Data Terminal Android Rugged PDA Handheld Terminal

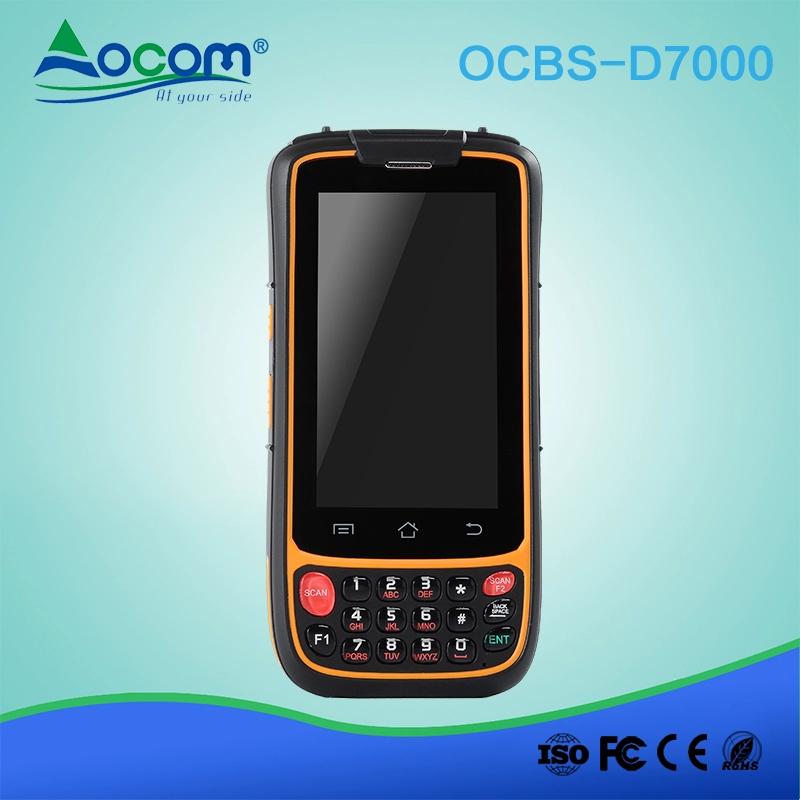

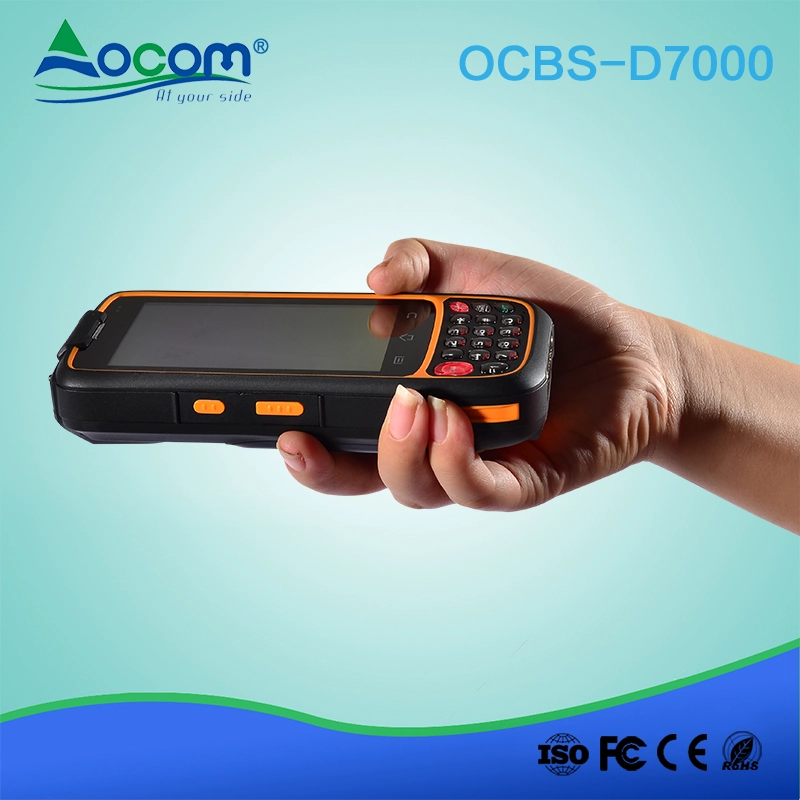

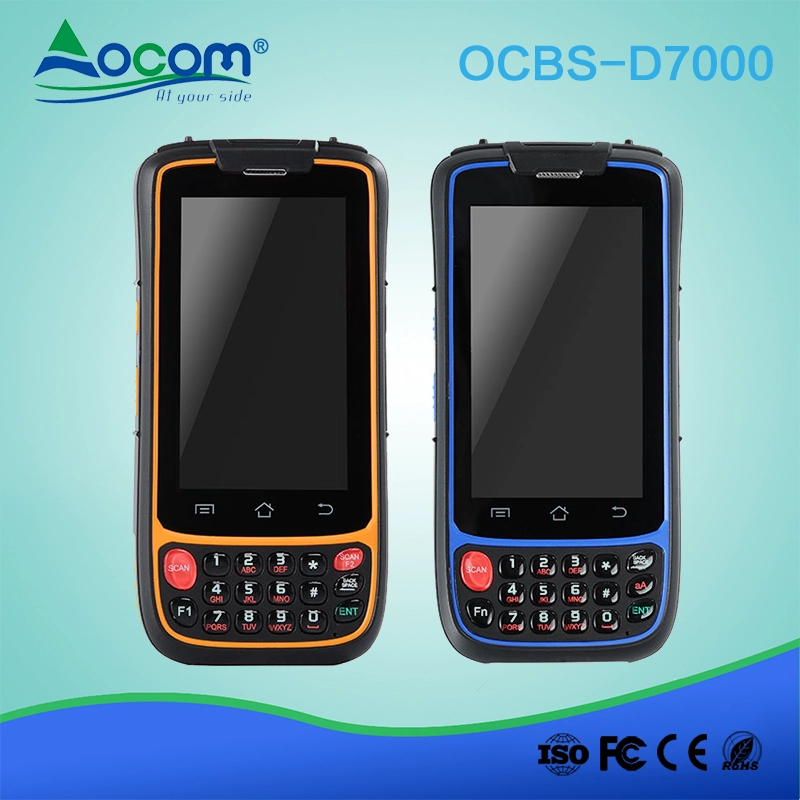

Mobile Data Terminal Android Rugged PDA Handheld Terminal

  • Android 7.0 4.0 portable data terminal
  • Quad core 1.3 GHz Cortex A53 CPU
  • 4.0 inch IPS screen 480 * 800 WVGA;
  • 2 GB of RAM, 16 GB of ROM, TF card can up to 32 GB;
  • Numerical and functional keyboards;
  • Support 3G / 4G / Wifi / GPS / Bluetooth;
  • pos rear camera 5 MP, auto focus with LED flash;
  • SIM card, PSAM card, Micro SD card (TF) Expand the port;
  • Rechargeable lithium ion polymer, 3.7 V, 5200 mAh;
  • Sturdy drop tolerance IP65 / 1.5 m;
  • Default: WIFI + BT + 4G + GPS + camera;
  • 1D / 2D barcode scanner, Figerprinter, RFID LF / HF / UH / NFC for options,
  • Bag and cradle for options.

Mobile Data Terminal Android Rugged PDA Handheld Terminal

(M / N: OCBS -D7000)



Features

 Android 7.0

 2 GB of RAM, 16 GB of ROM

 4.0 inch IPS WVGA screen at 480 * 800

 Optional 1D / 2D barcode scanner

 RFID LF / HF / UHF / for optional

 Numerical and functional keyboards

 Support 4G / Wifi / GPS / Bluetooth

 pos rear camera 5 MP, auto focus with LED flash

 Rechargeable lithium ion battery, 3.7 V, 5100 mAh

 Sturdy drop tolerance IP65 / 1.5 m



SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

158mm (H) x75mm (W) x28mm (D) ± 2 mm

Weight

Net weight: 300 g (including battery and wrist strap)

Display

4.0-inch TFT-LCD (WVGA 480x800) touch screen with backlight

Backlit

LED backlight

keyboards

3 TP keys, 17 function keys, 4 side buttons

expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable lithium ion polymer, 3.7 V, 5100 mAh

PERFORMANCE CHARACTERISTICS

processor

Quad-core 1.3 GHz Cortex A53 processor

Operating system

Android 7.0

storage

2 GB of RAM, 16 GB of ROM, MicroSD (maximum expansion of 32 GB)

USER ENVIRONMENT

Operational Temp

-20 ℃ to 50 ℃

Storage Temp

-20 ℃ to 70 ℃

Humidity

5% from RH to 95% RH (without condensation)

Drop specifications

5ft./1.5 m fall into the concrete through the operating temperature range

sealing

IP65, IEC conformity

ESD

Air discharge ± 15kv, ± 8kv direct discharge, ± 8kv indirect discharge

DEVELOPMENT OF THE ENVIRONMENT

SDK

HHW software development kit

language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

WCDMA (850/1900/2100) TDD-LTE band 38.39,40, FDD-LTEBand 1.2.3.4.7.20.

WLAN

IEEE 802.11 b / g / n

WPAN

Bluetooth v2.1 + EDR class, Bluetooth v3.0 + HS, Bluetooth v4.0

GPS

GPS (built-in A-GPS), 5 m accuracy

DATA CAPTUER

BAR CODE READER (OPTIONAL)

1D bar code

1D laser motor

Honeywell N431x

symbologies

All major 1D bar codes

2D barcode

CMOS 2D imaging

Honeywell N6603

symbologies

PDF417, MicroPDF417, Com pos ite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Pos such Code, USA Pos Net, US Planet, UK Pos tal, Australia Pos tal, Japan Pos tal, Pos such Dutch. etc.

COLOR CAMERA

Resolution

5.0 megapixels

lens

Auto-focus with LED flash

RFID READER (OPTIONAL)

RFID LF

Frequency

125KHz / 134.2kHz (FDX-B / HDX)

Protocol

ISO 11784 and 11785

R / W range

From 2 cm to 10 cm

RFID HF

Frequency

13.56

Protocol

ISO 14443A and 15693

R / W range

From 2 cm to 8 cm

PSAM SECURITY (OPTIONAL)

Protocol

ISO 7816

Transmission speed

9600, 19200, 38400.43000, 56000, 57600, 115200

Slot

2 slots (maximum)

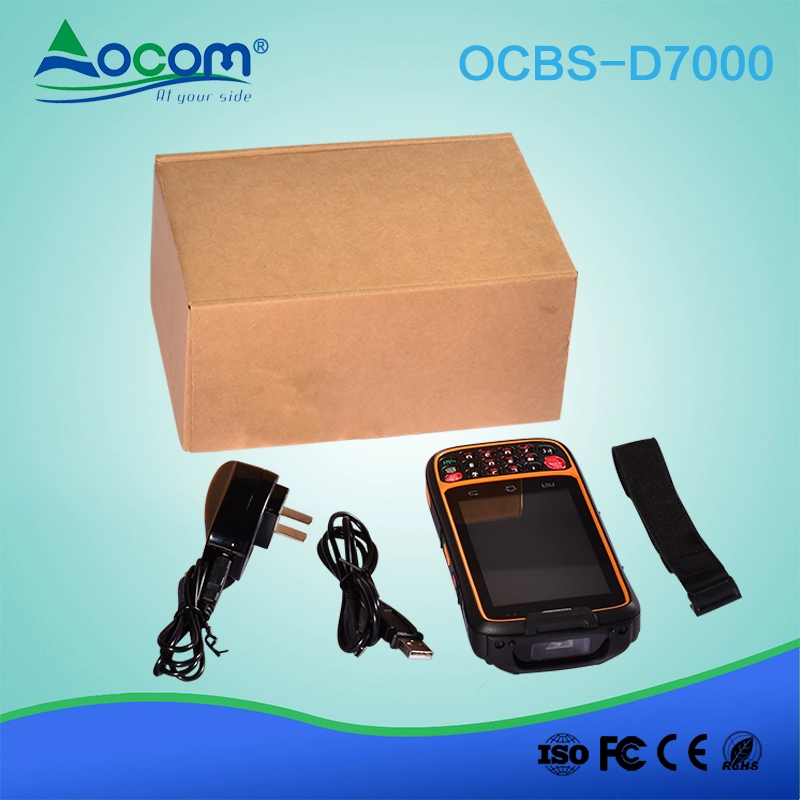

ACCESSORIES

Standard

1x Power supply

1x lithium polymer battery

1xDC charging cable

1xUSB data cable

Optional

Carrying case, cot
