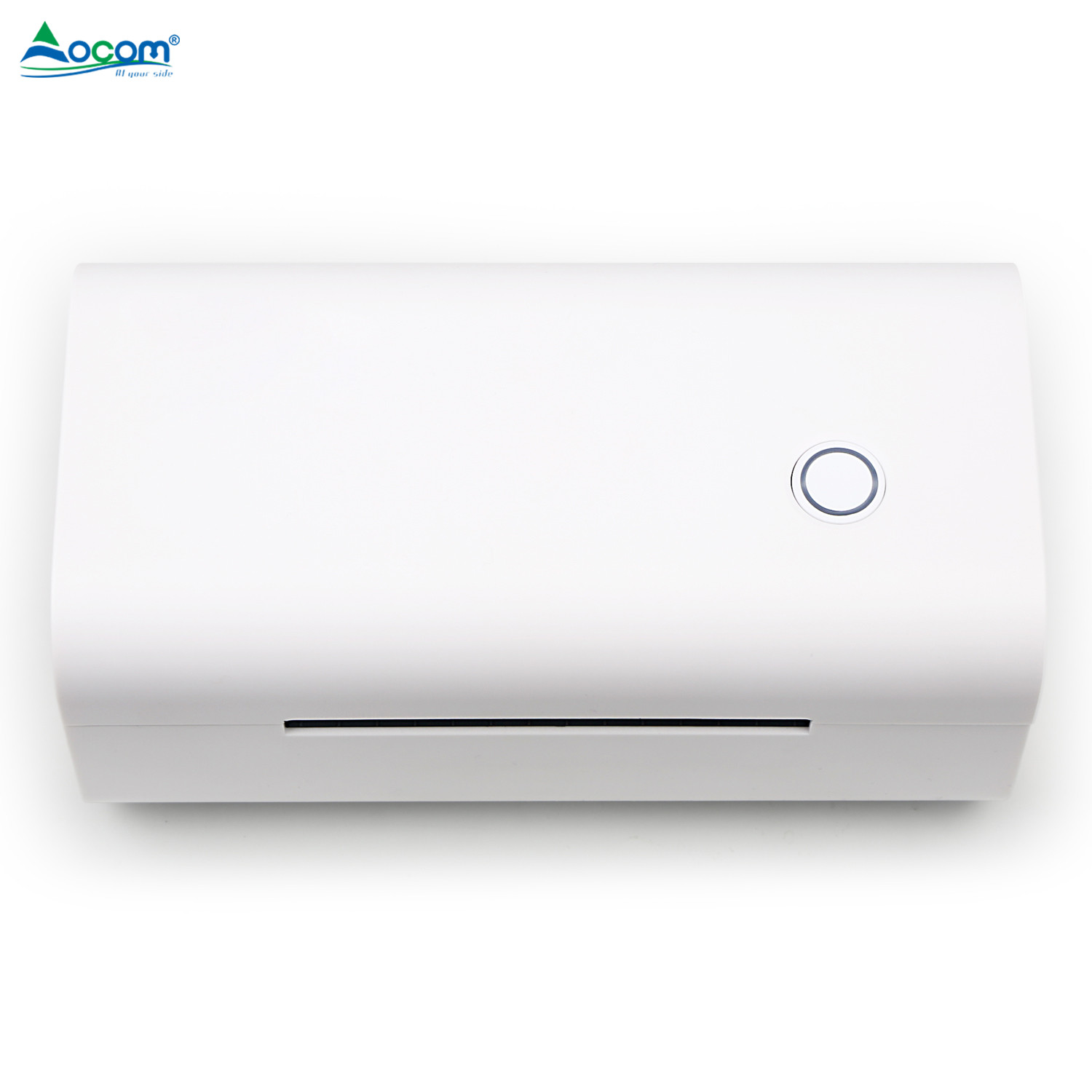

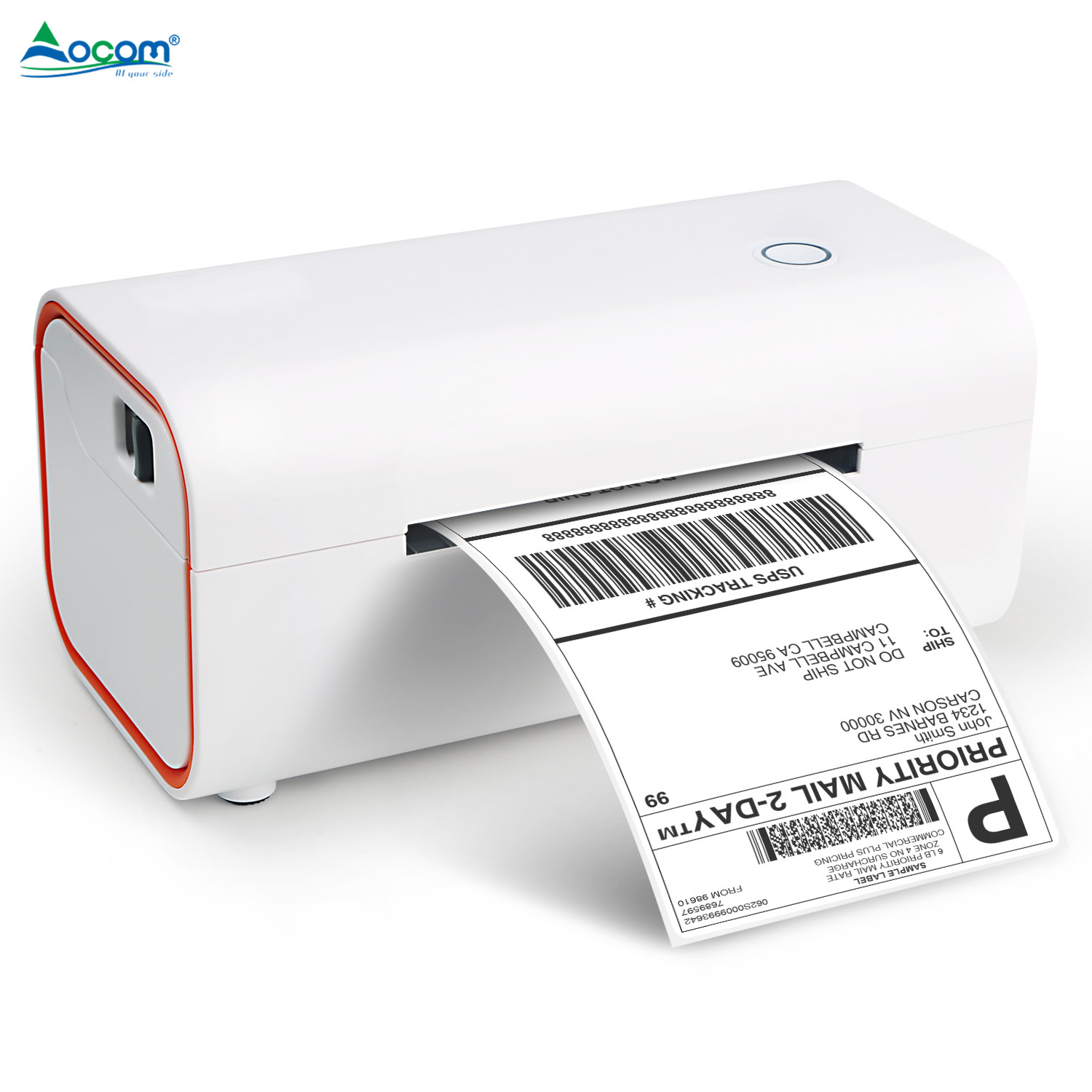

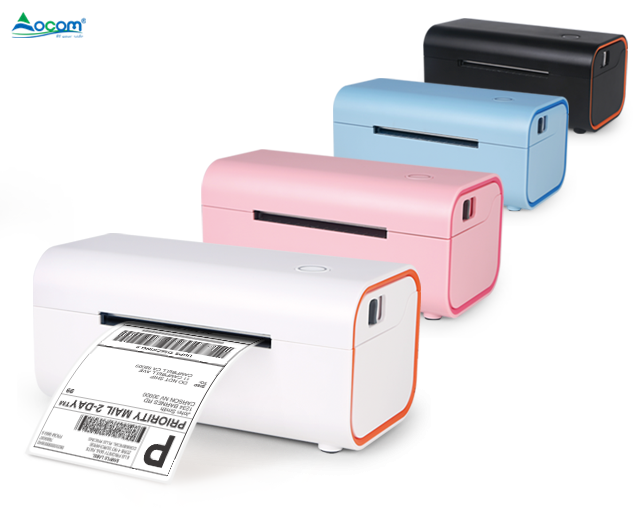

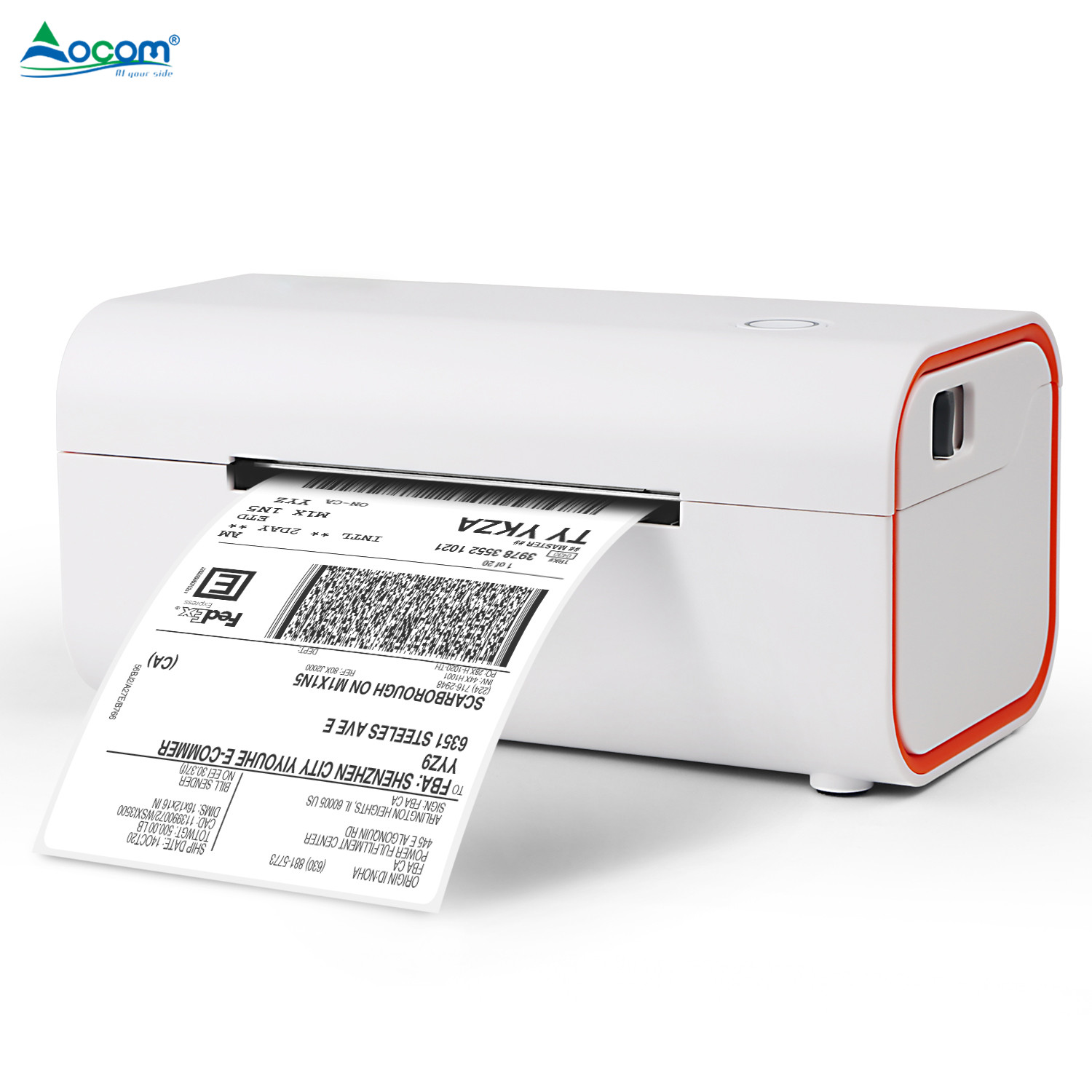

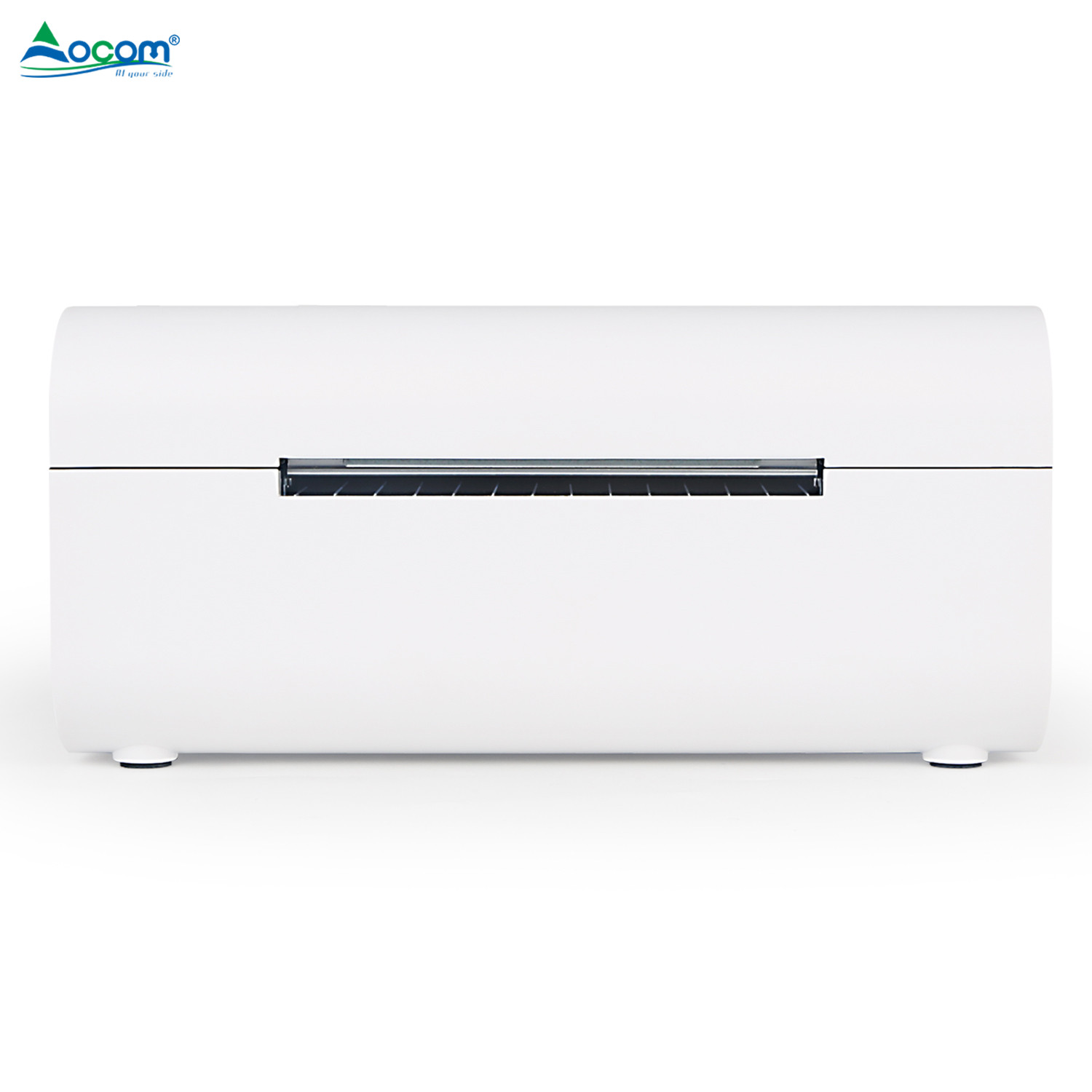

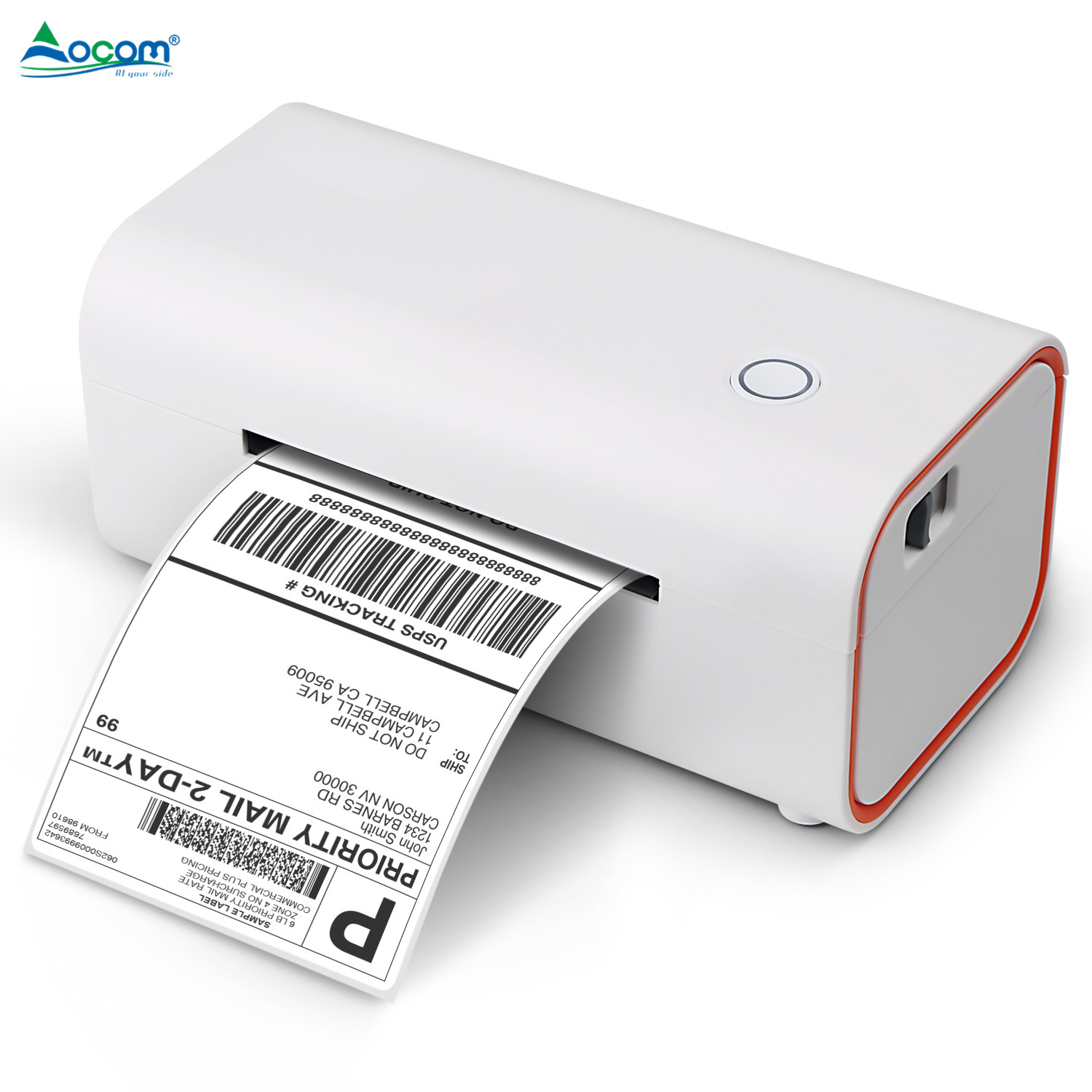

Multifuncional Application Serial Port Qr Code Small Mini Labels Stickers Printer Business Package Barcode Thermal Label Printer Machine Impresora
- Features:
- More economics：
- Built-in dual sensors ensure no paper waste when loading paper.
- Easy to operate：
- DHCP function make the printer plug-and-play,No more complicated IP address settings.
- More durable:
- 10W big motor and big gear, make the service life longer .
- High-end materials:
- Japanese ROHM Printer head, the printing life is up to 50km
- Smarter editing software：
- IOS+Android+Harmony OS +Windows+MAC,five-terminal interoperable free editing software
|
General |
|
|
Model |
OCBP-402DT |
|
Material |
Plastic housing |
|
Interface |
USB,USB+Bluetooth,USB+Bluetooth +WIFI, USB+LAN |
|
Processor |
32 bit CPU |
|
Memory |
4MB Flash Memory,320KB RAM |
|
Printer Head life |
50Km |
|
Power supply |
Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A |
|
Accessories |
Power adapter,Power cable,USB cable,Manual, outside bracket for option |
|
Sensors |
Label edge detection, Out of paper detection, Gap detection, Black mark detection,Cover-open detection |
|
Gap height |
2mm Min |
|
Black-mark height |
2mm Min |
|
Font and bar-code rotation |
0°,90°,180°,270° |
|
Compatible command |
TSPL |
|
Printing capability |
|
|
Printing method |
Direct Thermal |
|
Resolution |
203 DPI |
|
Printing speed |
152mm /s Max |
|
Printing width |
30-108mm |
|
Printing length |
10-250mm |
|
Bar-code and character |
|
|
Bar-code |
1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Coda bar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code:PDF417, Maxi code, Data Matrix, QR code |
|
Font |
8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software |
|
Media |
|
|
Paper type |
Folded paper or roll paper, die-cut label, black mark paper |
|
Paper width |
30-118mm |
|
Media thickness |
0.06 ~ 0.22mm |
|
Physical |
|
|
Dimension |
220*112*102mm |
|
Weight |
Net: 1.02kg |
|
Package box |
248*140*170mm/1.87Kg |
|
8 in 1 carton |
516*300*360mm /12.4kg |
|
|
|
|
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
|
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
