OCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer labelOCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer labelOCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer labelOCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer label

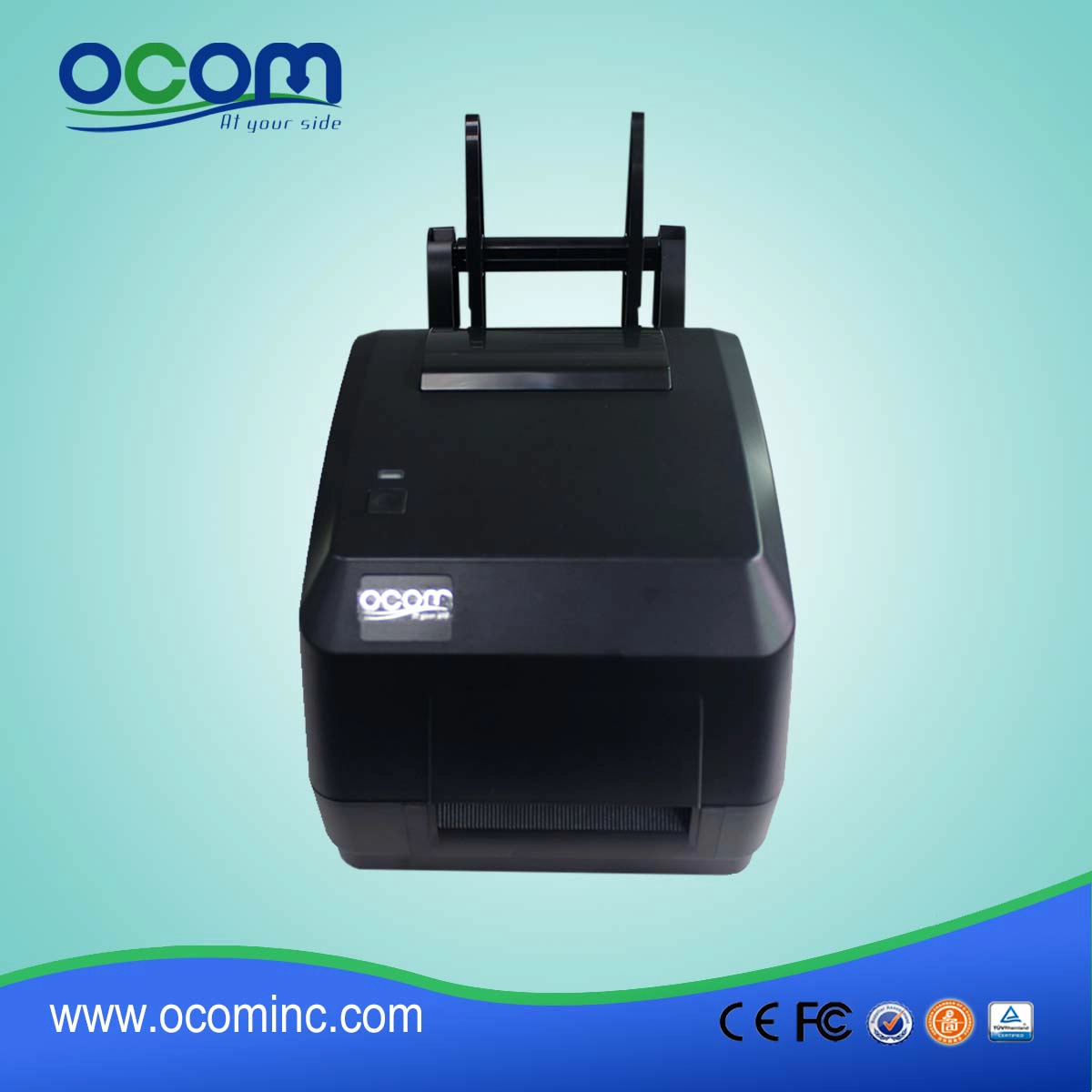

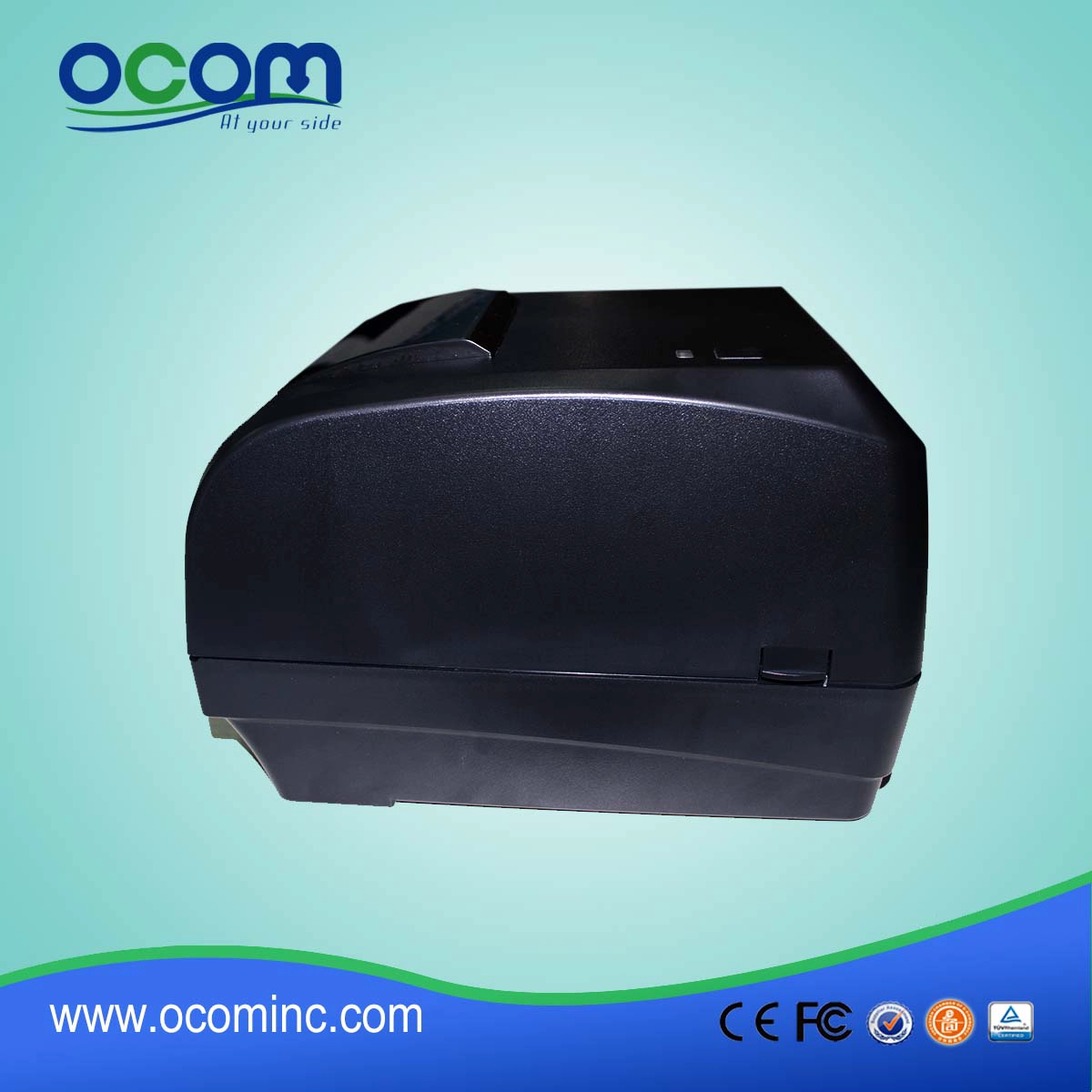

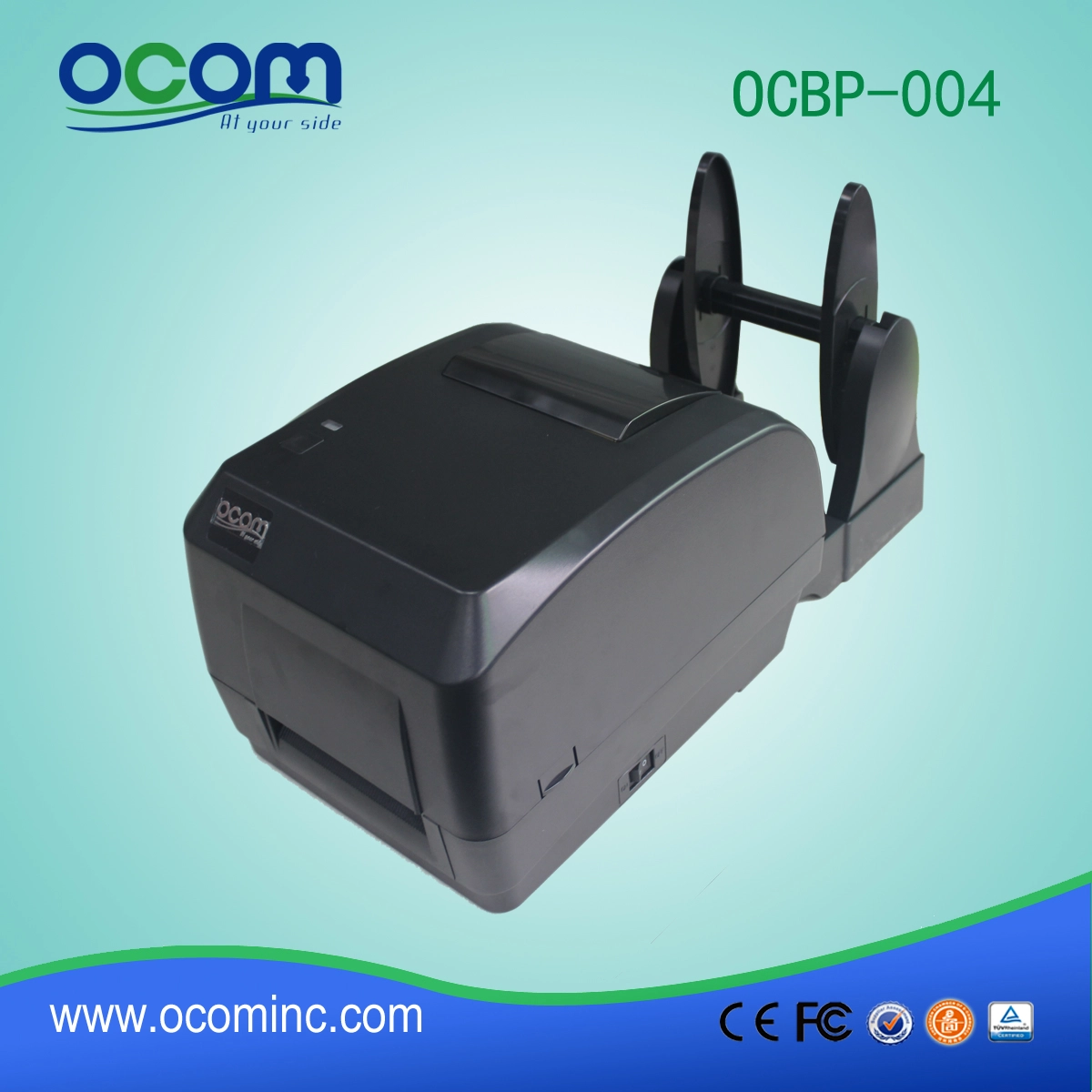

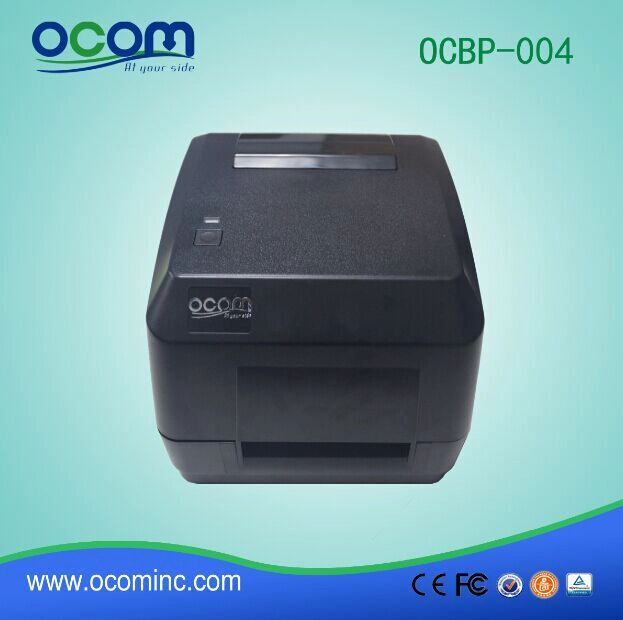

OCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer label

  • 200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,
  • 4 MB Flash Memory
  • Dual-Motor Gear Driven Design
  • 127 Mm (5”) Inches Per Second Print Speed
  • 300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core
  • Print Mechanism For Kiosk Application
  • TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support

OCBP-004--2016 OCOM new design high quality zebra label printer,zebra printer label

                                                                        (M/N:OCBP-004A/B)

Features

l 200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,

4 MB Flash Memory

l Dual-Motor Gear Driven Design

l 127 Mm (5”) Inches Per Second Print Speed

l 300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core

l Print Mechanism For Kiosk Application

l TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support

PRINTER MODEL

OCBP-004A

OCBP-004B

Resolution

8 dots/mm(203 DPI)

12 dots/mm(300 DPI)

Printing method

Thermal Transfer & Direct Thermal

Max. print speed

127 mm (5”) / s

101.6 mm (4”) / s

Max. print width

108 mm (4.25”)

104 mm (4.09”)

Max. print length

2794 mm (110”)

1016 mm (40”)

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20-112mm (0.78”-4.4”)

Media thickness

0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Label length

10 ~ 2,794 mm (0.39” ~ 110“)

10 ~ 1,016 mm (0.39” ~ 40“)

Label roll capacity

127 mm (5“) OD (outside wound)

Ribbon&Ribbon width

300 m long, max. OD 67 mm, 1“ core (ink coated outside) ,40 mm ~ 110 mm (1.6” ~ 4.3”)

Enclosure

Double-walled plastic

Physical dimension

234 mm(W)x194.8 mm(H)×302.5 mm (D)

Weight

3.1 kg(6.83 lbs)

Processor

32-bit RISC CPU

Memory



4MB Flash Menmory

8MB SDRAM

SD card reader for Flash memory expansion, up to 4 GB

Interface

• USB2.0• RS-232 (factory option)• Centronics (factory option)• Internal Ethernet, 10/100 Mbps (factory option)

• Bluethooth (factory option)• External 802.11 b/g/n wireless (factory option)

Power



External universal switching power supply

Input: AC 100-240V, 1A, 50-60Hz

Output: DC 24V, 2.5A, 60W

Operation switch,button,LED

1 power switch, 1 feed button & 1 LED (3 colors: red, purple & bule)

Sensors

Black mark reflective sensor (position adjustable)

Head open sensor

Transmissive gap sensor

Ribbon end sensor

Real Time Clock

Standard

Internal fonts

8 alpha-numeric bitmap fonts

Support TTF Font.

Bar code

1D barcode:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,

 EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits  add-on, MSI, PLESSEY, POSTNET, China POST

2D bar code:PDF-417, Maxicode, DataMatrix, QR code

Graphic

BIMAP,BMP,PCX(Max. 256 colors)

Font and barcode rotation

0°、90°、180°、270°

Printer language

TSPL (EPL、ZPL、DPL)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing

Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC、CE、 CCC、CB

Environmental concern

Comply with RoHS

Accessories

①Windows labeling software CD disk;②Quick start guide;③USB cable;④Power cord;

⑤External universal switching power supply;⑥Label spindle, fixing tab x 2, 1.5“ core adapter x 2;

⑦Ribbon spindle x 2;⑧Ribbon paper core;⑨Media

Factory options

Internal Ethernet, 10/100 Mbps, RS-232  ,Centronics parallel interface

Dealer options

Peel-off module, Guillotine cutter (full cut or partial cut) Media thickness 0.06 ~ 0.19mm,

500000 cuts;0.20 ~ 0.25mm,200000 cuts

User options

External roll mount, media OD. 214 mm (8.4”) with 25.4 mm (1”) core , External roll mount board,

Bluetooth module (serial interface), 802.11 b/g/n wireless module (serial interface), RFIDmodule.
