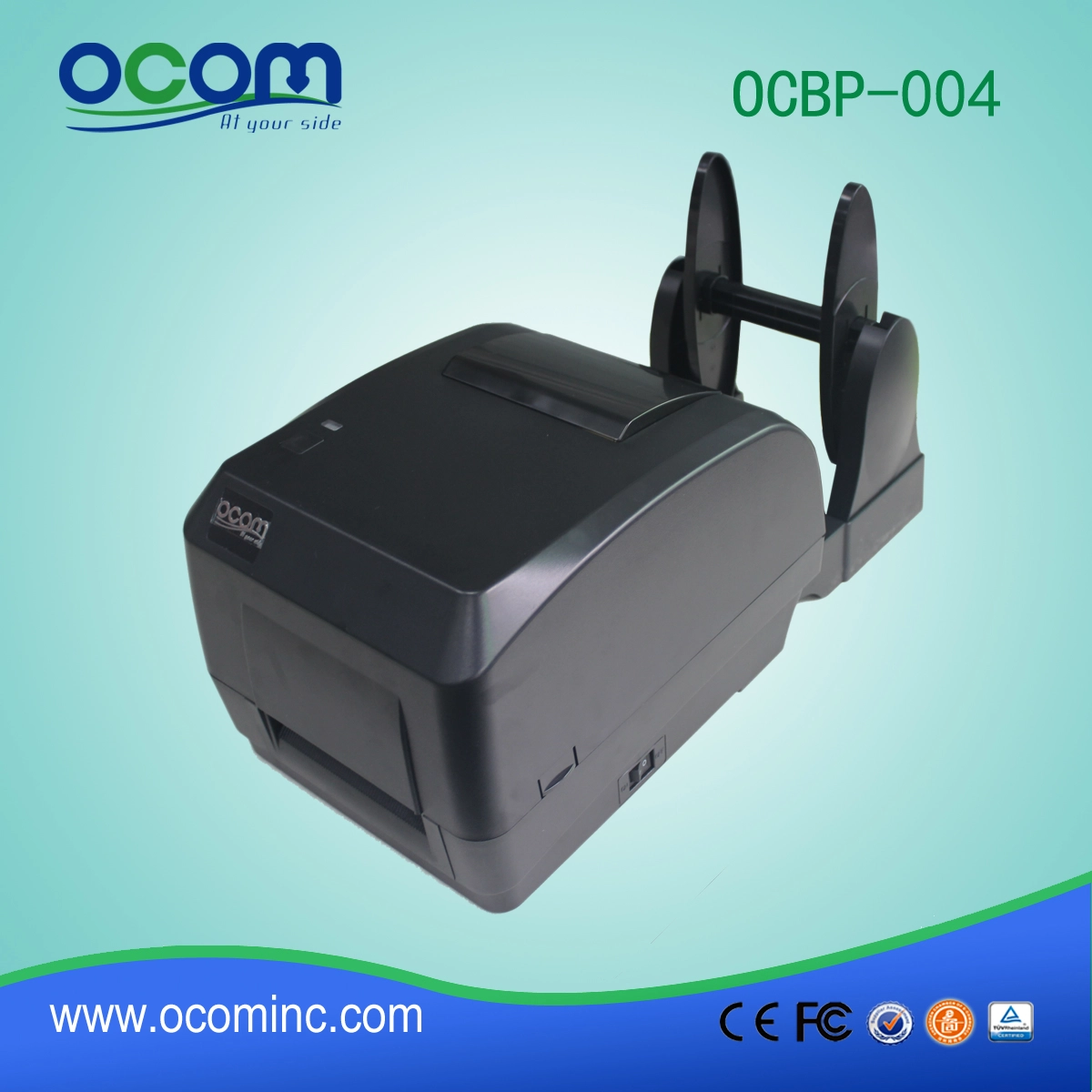

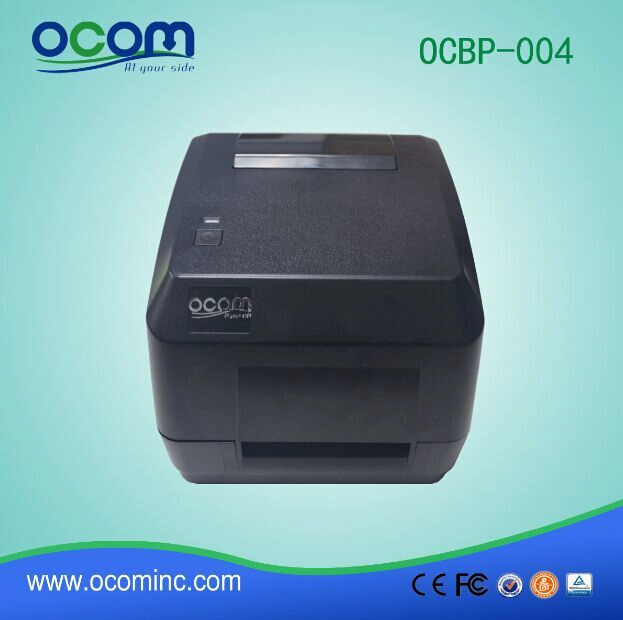

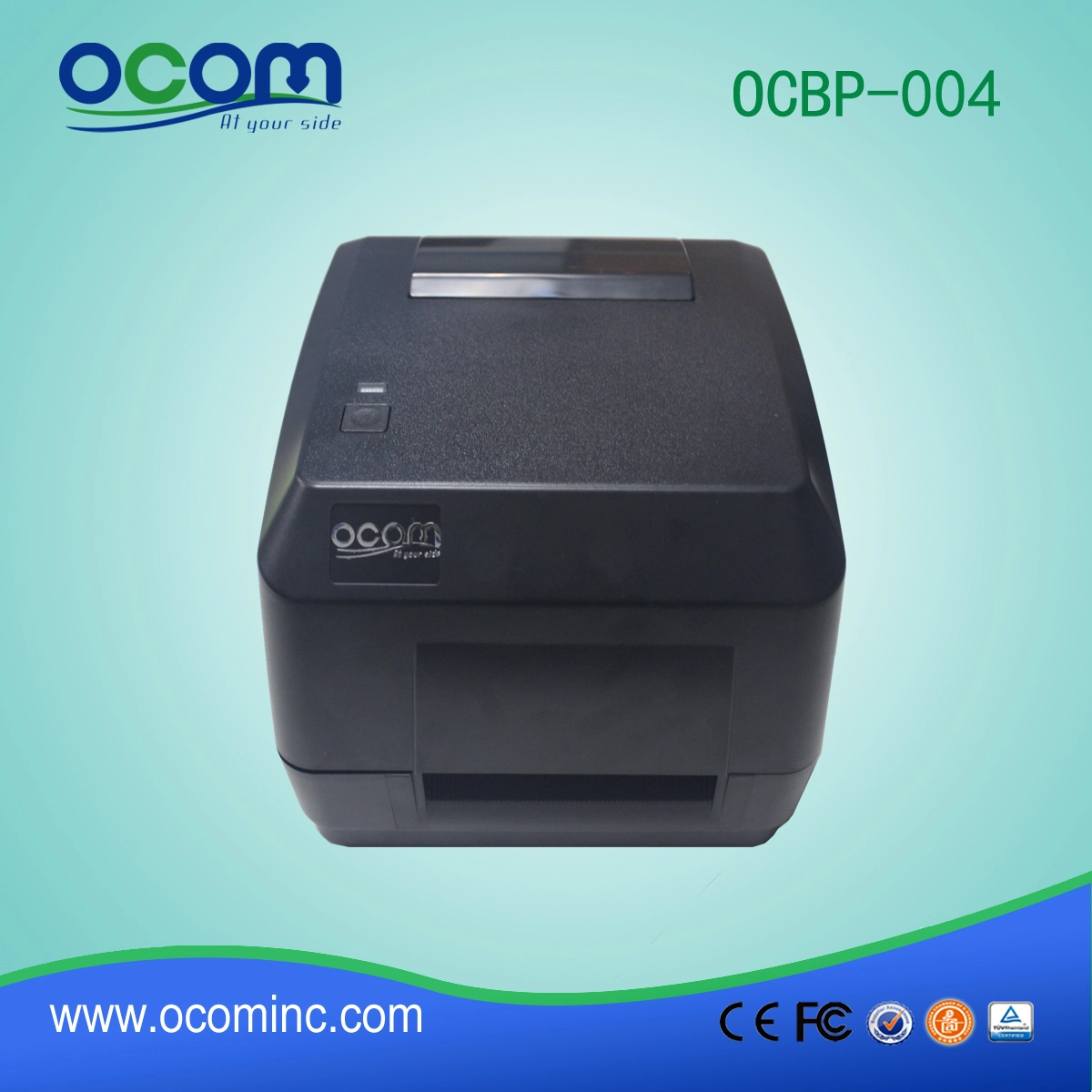

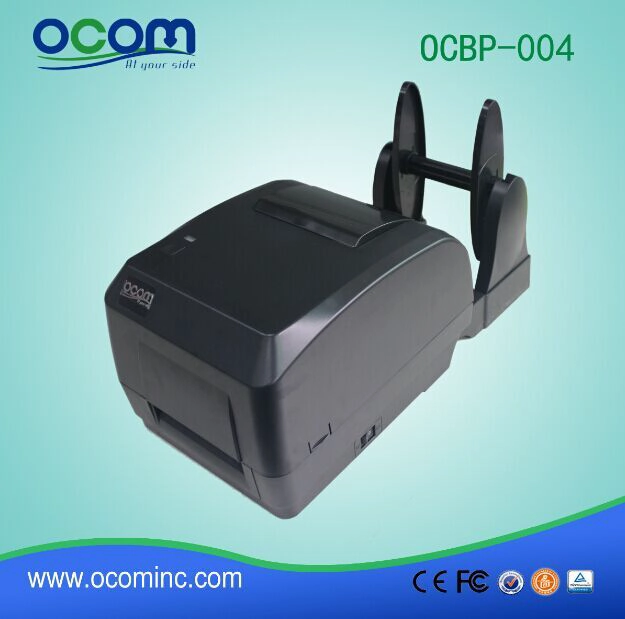

(OCBP-004) China factory made printer thermal transfer price
- 200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,
- 4 MB Flash Memory
- Dual-Motor Gear Driven Design
- 127 Mm (5”) Inches Per Second Print Speed
- 300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core
- Print Mechanism For Kiosk Application
- TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support
Direct Thermal / Thermal TransferBarCode Label Printer
(M/N:OCBP-004A/B)
Features
l 200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,
4 MB Flash Memory
l Dual-Motor Gear Driven Design
l 127 Mm (5”) Inches Per Second Print Speed
l 300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core
l Print Mechanism For Kiosk Application
l TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support
|
PRINTER MODEL |
OCBP-004A |
OCBP-004B |
|
Resolution |
8 dots/mm(203 DPI) |
12 dots/mm(300 DPI) |
|
Printing method |
Thermal Transfer & Direct Thermal |
|
|
Max. print speed |
127 mm (5”) / s |
101.6 mm (4”) / s |
|
Max. print width |
108 mm (4.25”) |
104 mm (4.09”) |
|
Max. print length |
2794 mm (110”) |
1016 mm (40”) |
|
Media type |
Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
|
|
Media width |
20-112mm (0.78”-4.4”) |
|
|
Media thickness |
0.06 ~ 0.254 mm (2.36 ~ 10 mil) |
|
|
Label length |
10 ~ 2,794 mm (0.39” ~ 110“) |
10 ~ 1,016 mm (0.39” ~ 40“) |
|
Label roll capacity |
127 mm (5“) OD (outside wound) |
|
|
Ribbon&Ribbon width |
300 m long, max. OD 67 mm, 1“ core (ink coated outside) ,40 mm ~ 110 mm (1.6” ~ 4.3”) |
|
|
Enclosure |
Double-walled plastic |
|
|
Physical dimension |
234 mm（W）x194.8 mm（H）×302.5 mm （D） |
|
|
Weight |
3.1 kg（6.83 lbs） |
|
|
Processor |
32-bit RISC CPU |
|
|
Memory
|
4MB Flash Menmory |
|
|
8MB SDRAM |
||
|
SD card reader for Flash memory expansion, up to 4 GB |
||
|
Interface |
• USB2.0• RS-232 (factory option)• Centronics (factory option)• Internal Ethernet, 10/100 Mbps (factory option) • Bluethooth (factory option)• External 802.11 b/g/n wireless (factory option) |
|
|
Power
|
External universal switching power supply |
|
|
Input: AC 100-240V, 1A, 50-60Hz |
||
|
Output: DC 24V, 2.5A, 60W |
||
|
Operation switch,button,LED |
1 power switch, 1 feed button & 1 LED (3 colors: red, purple & bule) |
|
|
Sensors |
Black mark reflective sensor (position adjustable) |
|
|
Head open sensor |
||
|
Transmissive gap sensor |
||
|
Ribbon end sensor |
||
|
Real Time Clock |
Standard |
|
|
Internal fonts |
8 alpha-numeric bitmap fonts |
|
|
Support TTF Font. |
||
|
Bar code |
1D barcode：Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
|
|
2D bar code：PDF-417, Maxicode, DataMatrix, QR code |
||
|
Graphic |
BIMAP,BMP,PCX(Max. 256 colors) |
|
|
Font and barcode rotation |
0°、90°、180°、270° |
|
|
Printer language |
TSPL (EPL、ZPL、DPL) |
|
|
Environment condition |
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing |
|
|
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
||
|
Safety regulation |
FCC、CE、 CCC、CB |
|
|
Environmental concern |
Comply with RoHS |
|
|
Accessories |
①Windows labeling software CD disk；②Quick start guide；③USB cable；④Power cord； ⑤External universal switching power supply；⑥Label spindle, fixing tab x 2, 1.5“ core adapter x 2； ⑦Ribbon spindle x 2；⑧Ribbon paper core；⑨Media |
|
|
Factory options |
Internal Ethernet, 10/100 Mbps, RS-232 ,Centronics parallel interface |
|
|
Dealer options |
Peel-off module, Guillotine cutter (full cut or partial cut) Media thickness 0.06 ~ 0.19mm, 500000 cuts;0.20 ~ 0.25mm,200000 cuts |
|
|
User options |
External roll mount, media OD. 214 mm (8.4”) with 25.4 mm (1”) core , External roll mount board, Bluetooth module (serial interface), 802.11 b/g/n wireless module (serial interface), RFIDmodule. |
|
