OCBP-005 3 Inch USB Digital Shipping Label Machine Direct Thermal Barcode Printer
- 3 Inch Direct Thermal Barcode Label Printer support thermal roll paper and adhesive paper
- Interface: USB+Serial+LAN, USB for options;
- Memory: 4MB flash memory, 4MB DRAM;
- Resolution: 203dpi(8dots/s);
- MCBF(life): 100km;
- Printing speed: MAX=127mm/s;
- Paper width: 16mm~82mm;
- Paper roll diameter: MAX=100mm;
- Paper roll axis: 25.4mm;
- Label peel off automatically;
- BMP, PCX, BAC images download store.
- Automatic label paper position checking;
- The print head with adjustable pressure
- Temperature adaptive control
- Modular design, to meet different application requirements
Printers for direct barcode labels
(Model: OCBP-005)
Features:
Label paper auto position;
Labels peel off automatically;
Adjust the printer head pressure;
Compatible with plenty of label software;
BMP, PCX, BAC images download store;
Support Serial, USB, LAN together;
Support PDF417, QR CODE, DOTMATRIX;
Technical specifications:
Printer model |
OCBP -005 |
Resolution |
203 DPI (8 points / mm) |
Printing method |
Direct thermal |
Head temperature sensor |
Thermal varistor |
Head sensor pos |
microswitch |
Card detection |
Photoelectric sensors |
Print speed |
127 Mm / sec (maximum); 50.8 mm / sec (minutes) |
Print width |
16 mm to 82 mm |
Average |
Media type: roll, stickers, folding labels and so on. Diameter of the support: inner diameter: 25 mm; diameter: 80 mm |
Internal font |
Typeface 0 FONT 8; commonly used in single-byte characters |
Enlarge & Rotating |
Amplification 1-10 times in multiple directions; 0 degrees, 90 degrees, 180 degrees, 270 degrees, 360 degrees rotation |
Out of the type of paper |
Lacrima and & peeling |
Memory cards |
2 MB FLASH ROM, 2 MB of DRAM |
Image |
Monochrome PCX, BMP pos image files are loaded in FLASH, DRAM |
Barcode |
CODE128, EAN128, ITF, Code39, Code93, EAN13, EAN13 +2, EAN13 +5, EAN8, EAN8 +2, EAN8 +5, CODABAR, POS TNET, UPC-A, UPCA +2, UPCA +5, UPC-E , UPCE +2, UPCE +5, C POS T, MSI, MSIC, PLESSEY, ITF14, EAN14, PDF417, QR CODE, DATMATRIX |
Interface |
USB + RS232 + LAN or USB |
Power |
Input: 24 VDC, 2.5 A |
Environment |
Operating temperature: from 5 ° C to 45 ° C Storage temperature: from -40 ° C to 55 ° C Operating humidity: 20% ~ 80%, without condensation, free air Storage humidity: & lt; = 93% (40 ℃), without condensation, free air |
Dimension |
Dimensions: D220mm * H148mm * W150mm |

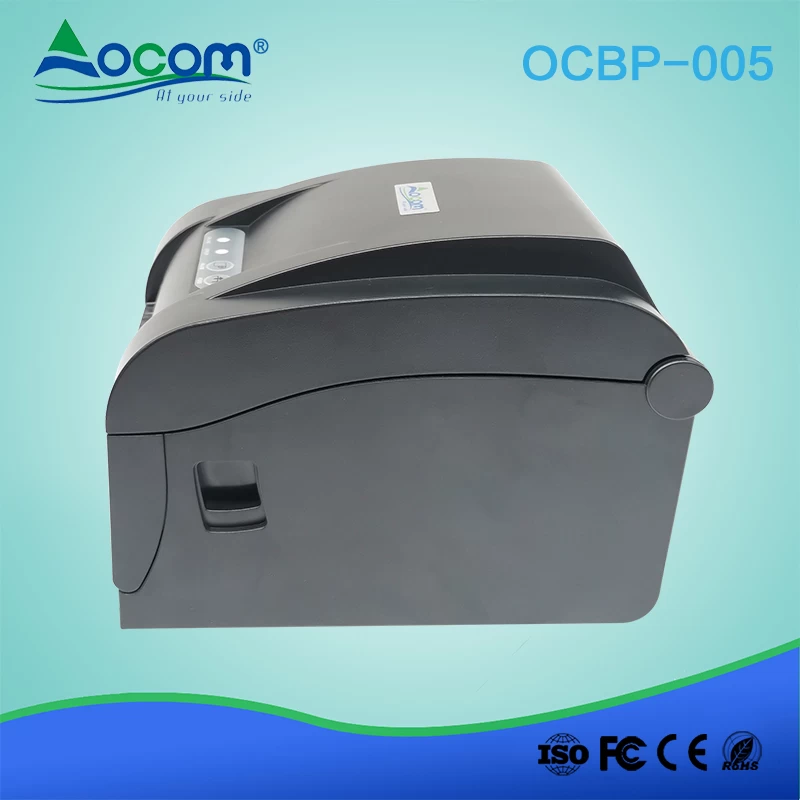

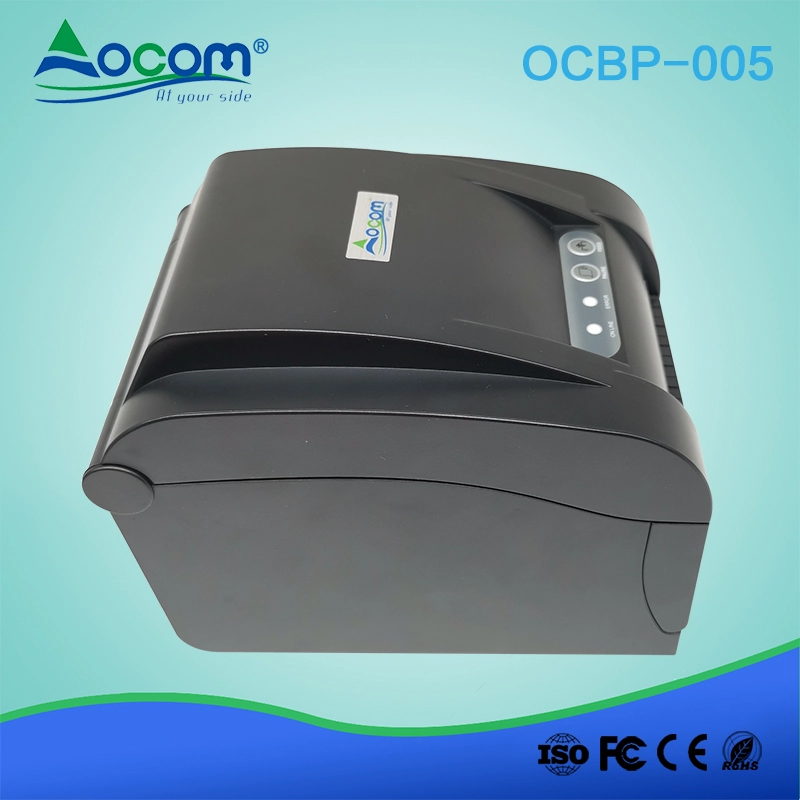

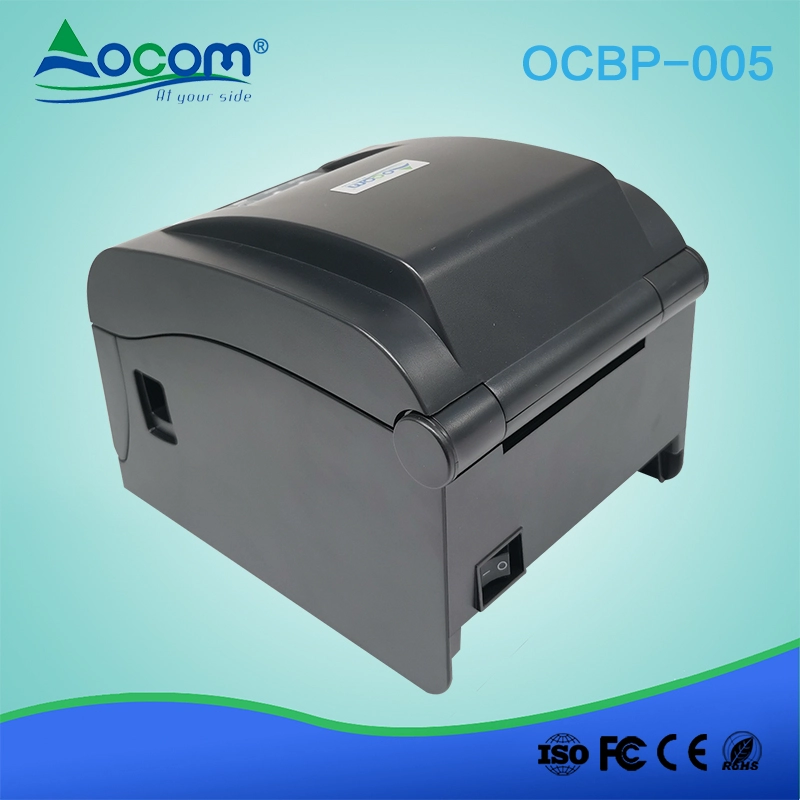

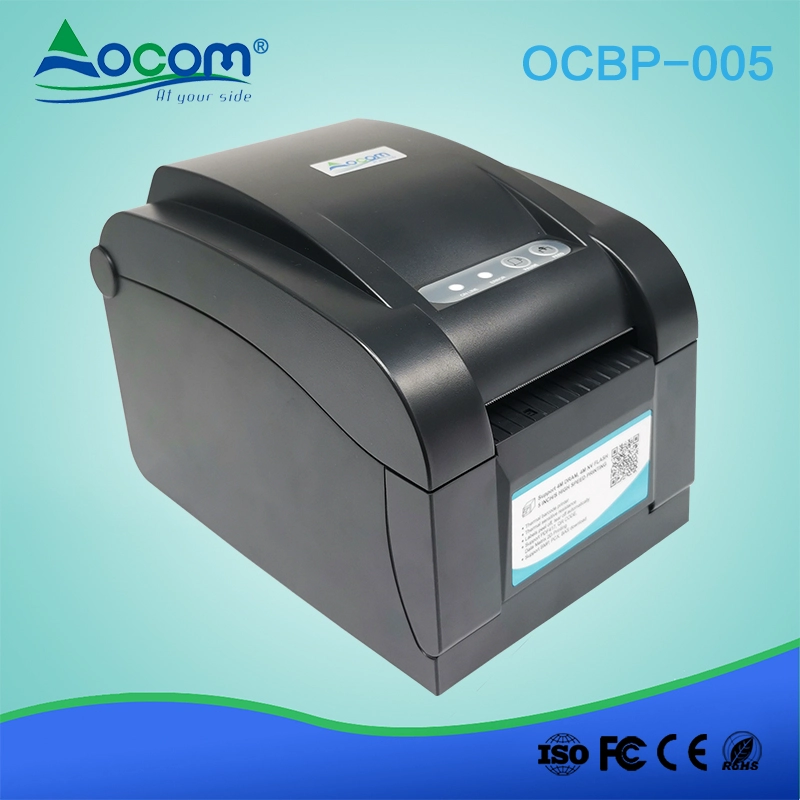

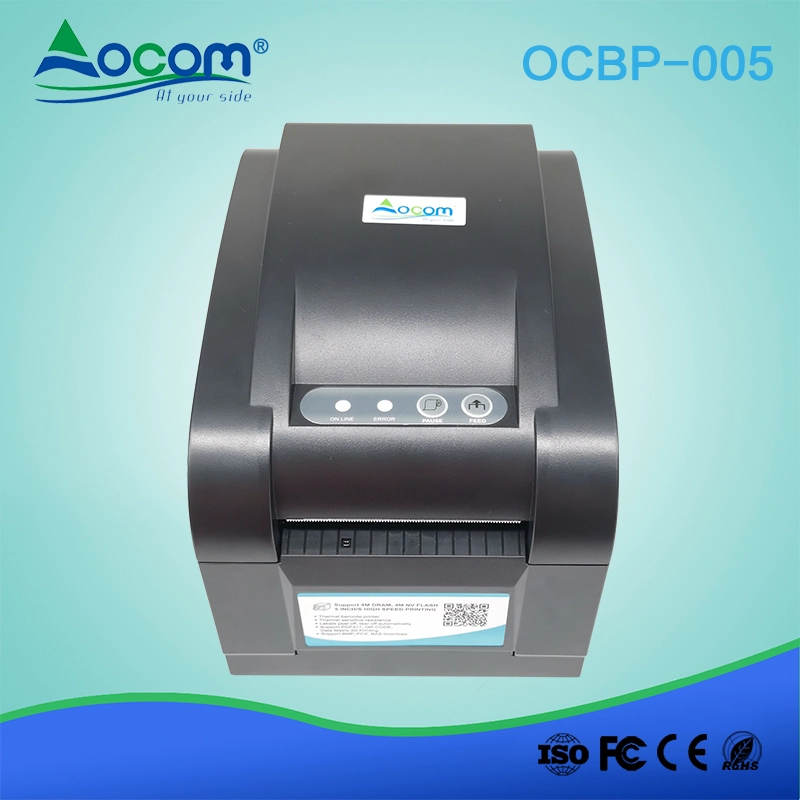

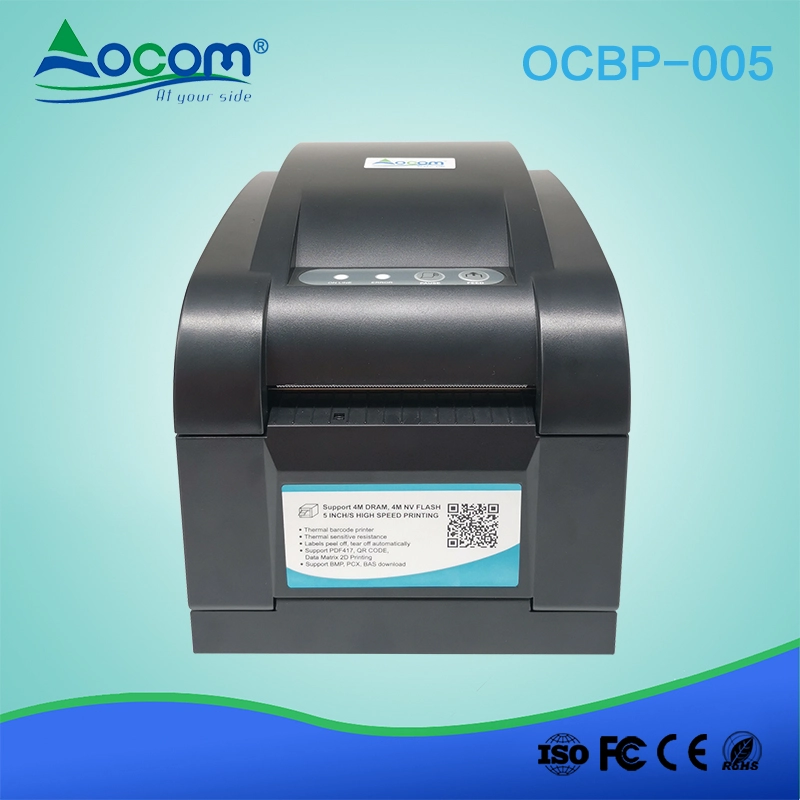

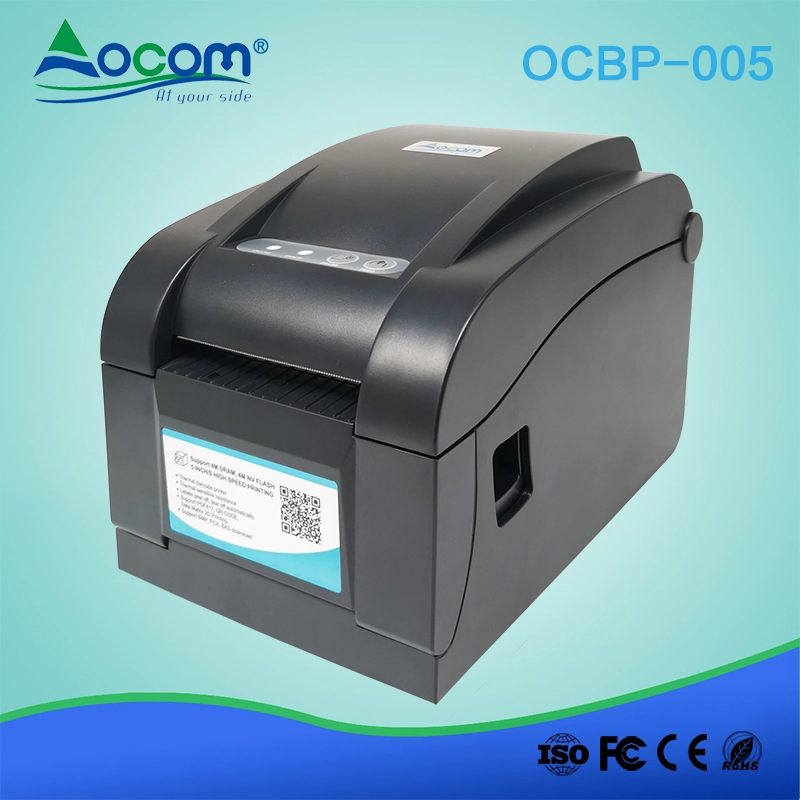

Different Angle:
Production Pictures Show
