Built-in dual sensors ensure no paper waste when loading paper.
DHCP function make the printer plug-and-play,No more complicated IP address settings.
42mm 10W high torque motor, more powerful and longer service life.
Japanese ROHM Printer head, the printing life is up to 50km.
IOS+Android+HarmonyOS+Windows+MAC five-terminal interoperable free editing software.

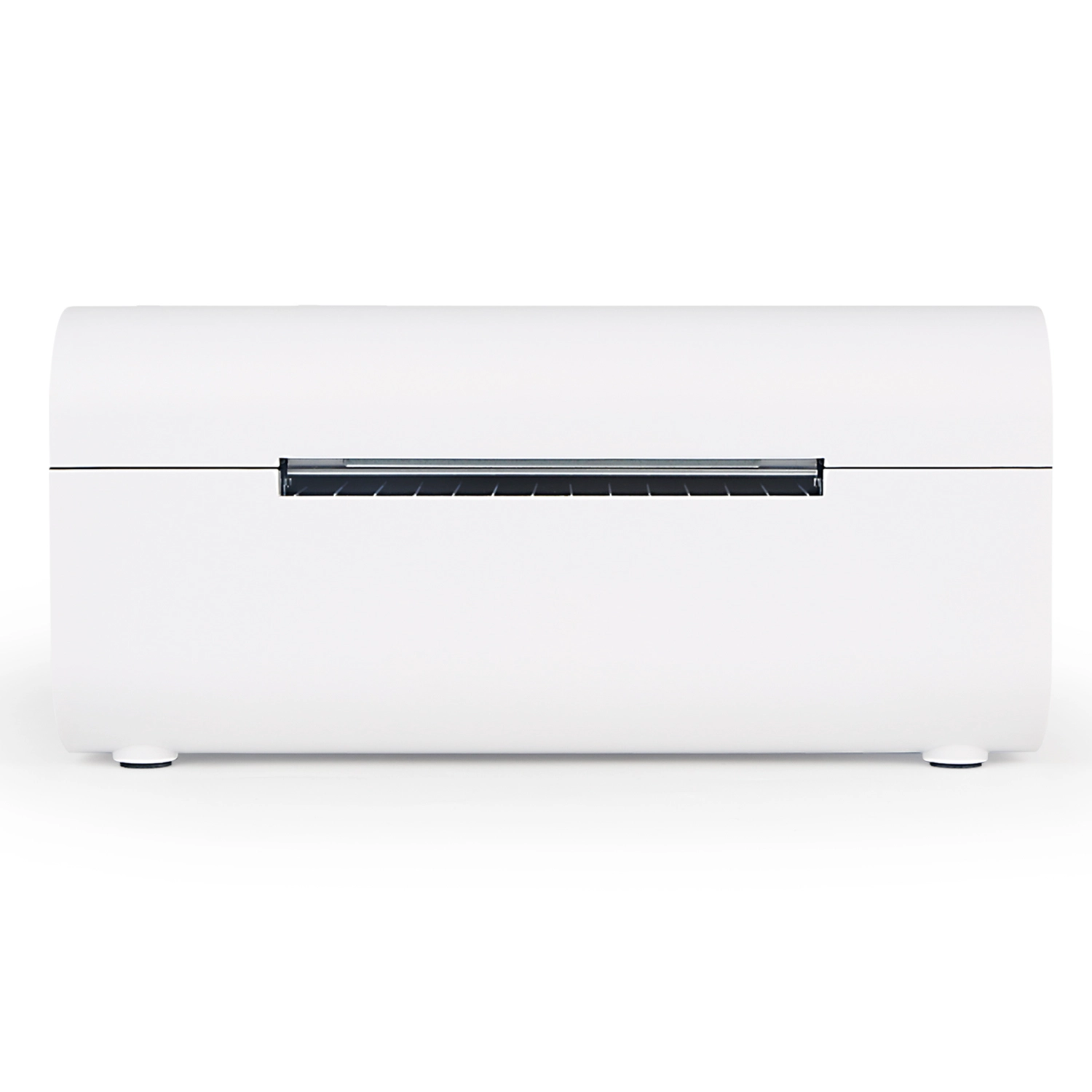

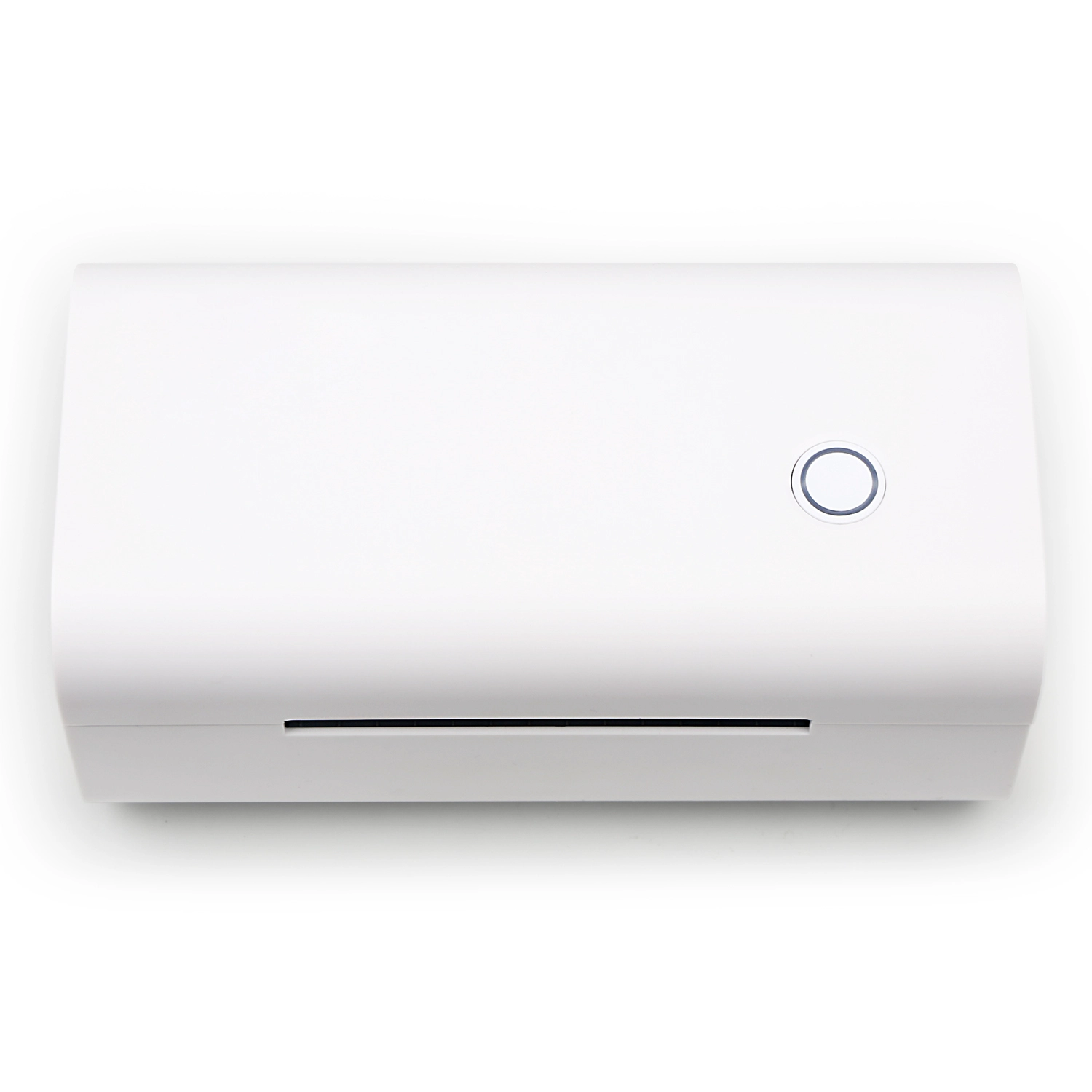

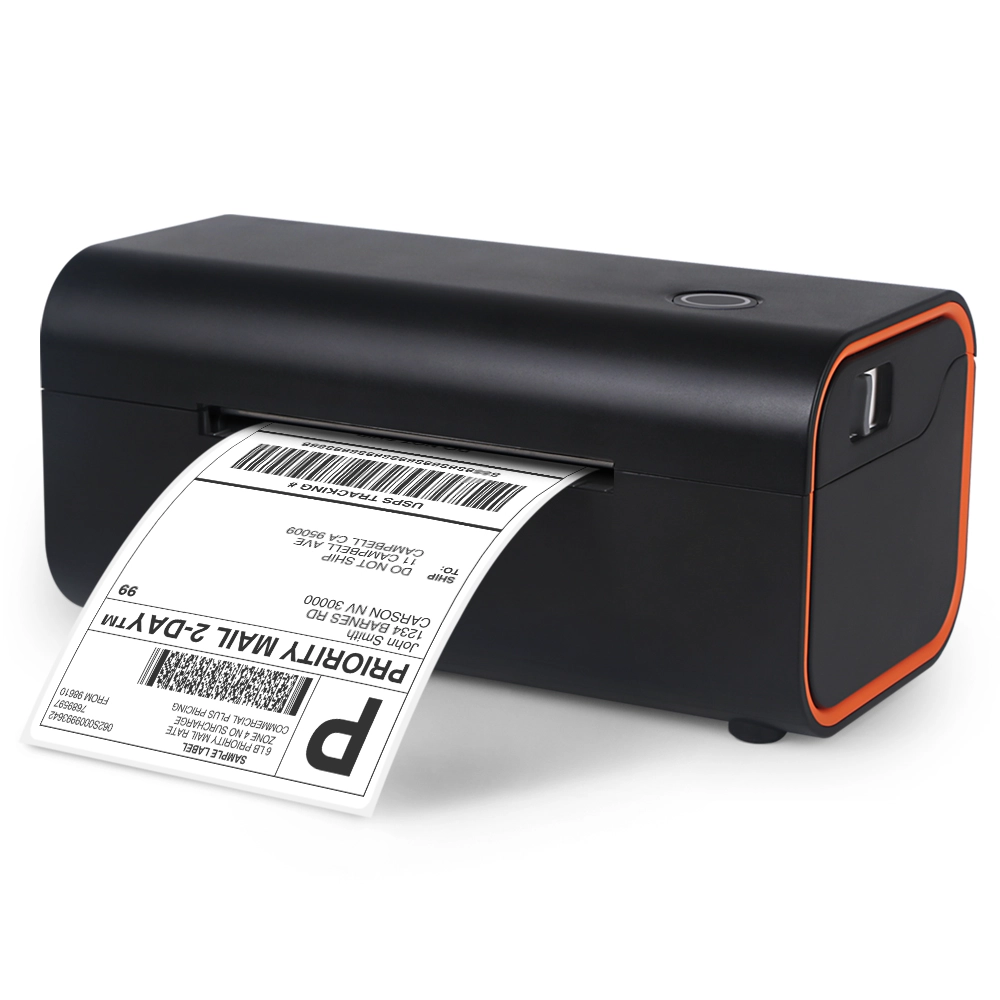

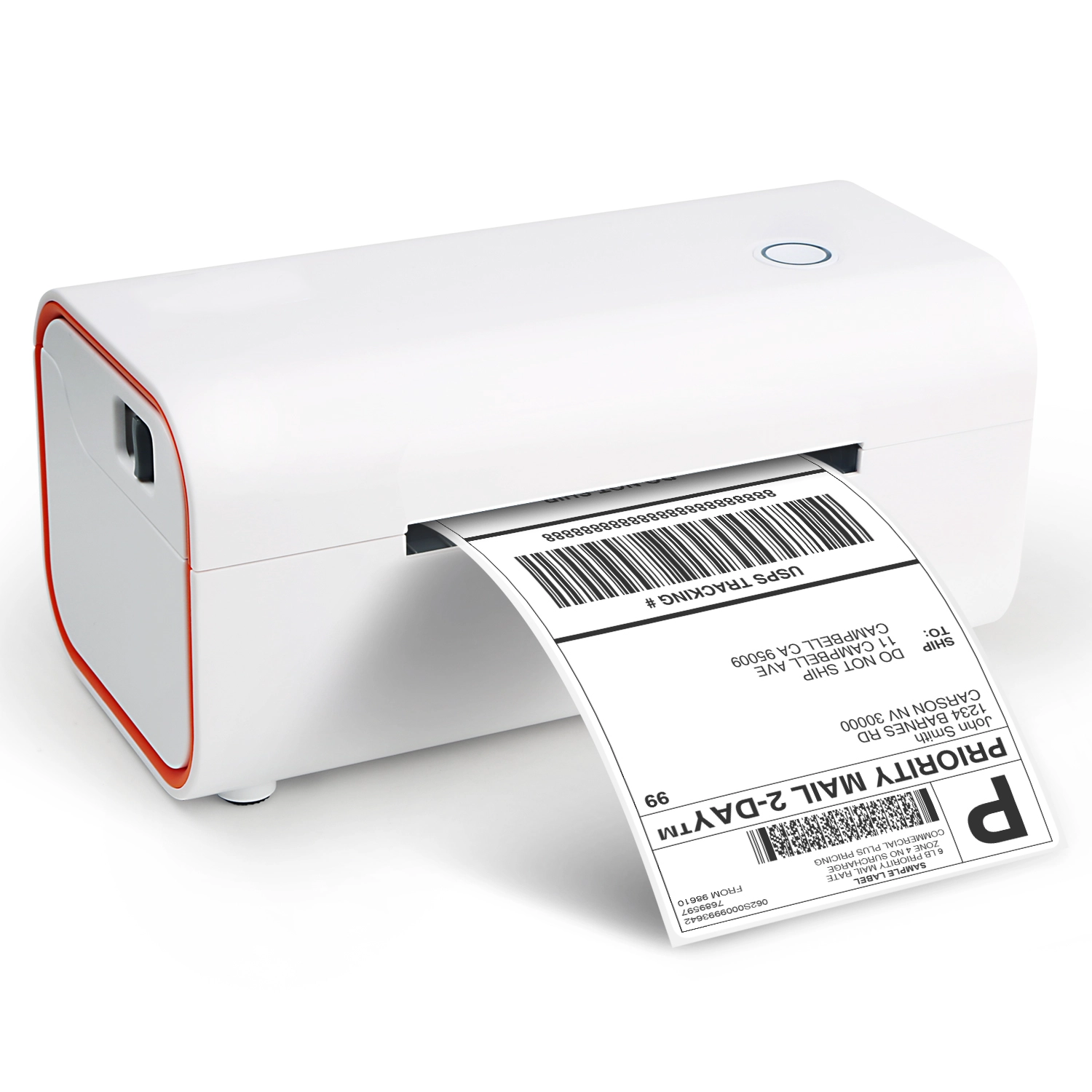

4 Inches Direct Thermal Barcode Label Printer

（Model: OCBP-402DT)

Features:

More economics：

Built-in dual sensors ensure no paper waste when loading paper.

Easy to operate：

DHCP function make the printer plug-and-play, No more complicated IP address settings.

More durable:

42mm 10W high torque motor, more powerful and longer service life.

High-end materials:

Japanese ROHM Printer head, the printing life is up to 50km.

Smarter editing software：

IOS+Android+HarmonyOS+Windows+MAC five-terminal interoperable free editing software.

Specification

General
Model	OCBP-402DT
Material	Plastic housing
Interface	USB, USB+Bluetooth, USB+Bluetooth+WIFI, USB+LAN
Processor	32 bit CPU
Memory	4MB Flash Memory, 320KB RAM
Printer Head life	50Km
Power supply	Input: AC 100V-240V, 50-60Hz, Output: DC 24V/2.5A
Accessories	Power adapter, Power cable, USB cable, Manual, outside bracket for option
Sensors	Label edge detection, Out of paper detection, Gap detection, Black mark detection, Cover-open detection
Gap height	2mm Min
Black-mark height	2mm Min
Font and bar-code rotation	0°, 90°, 180°, 270°
Compatible command	TSPL
Printing capability
Printing method	Direct Thermal
Resolution	203 DPI
Printing speed	152mm /s Max
Printing width	30-108mm
Printing length	10-250mm
Bar-code and character
Bar-code	1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Coda bar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code: PDF417, Maxi code, Data Matrix, QR code
Font	8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
Media

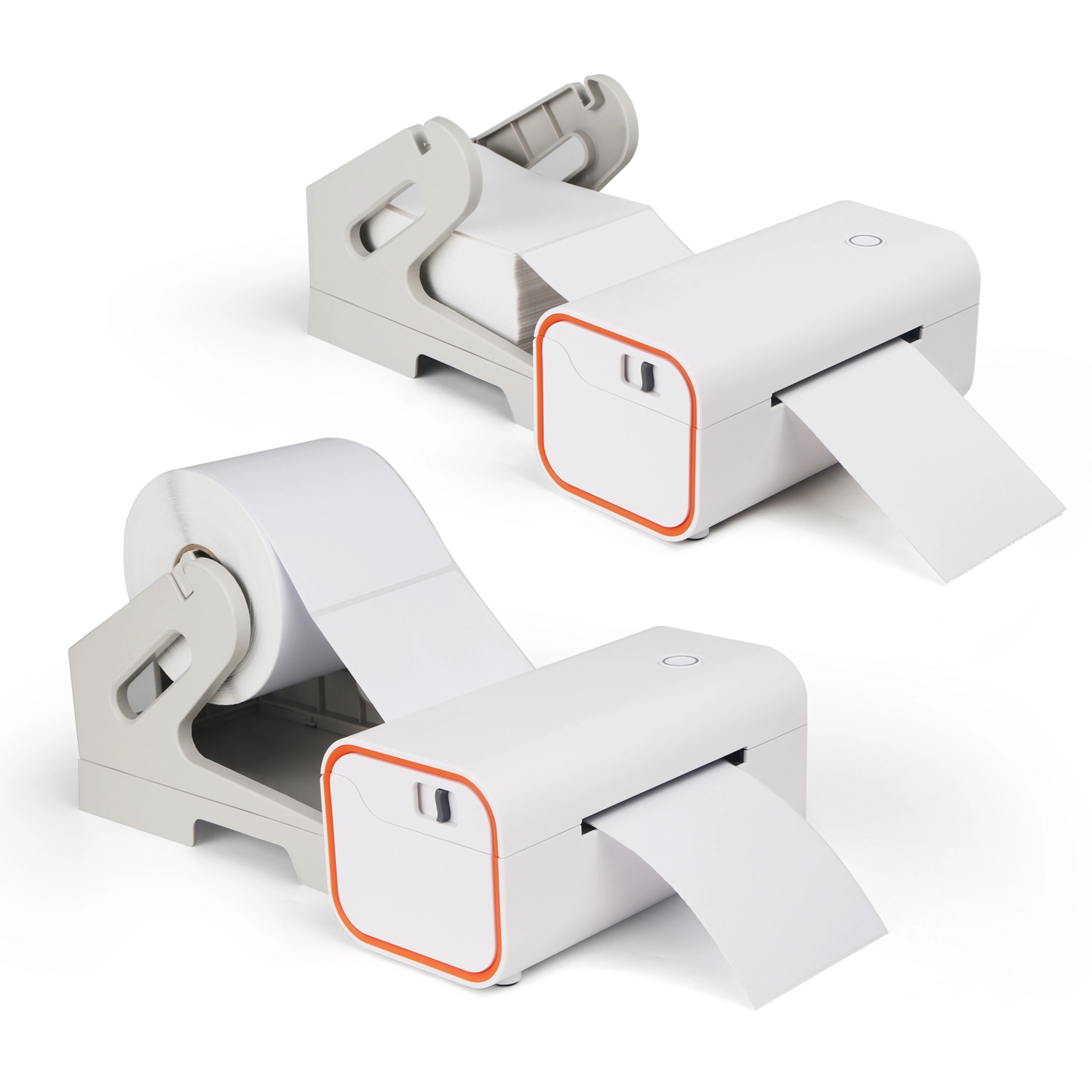

Paper type	Folded paper or roll paper, die-cut label, black mark paper
Paper width	30-118mm
Media thickness	0.06 ~ 0.22mm
Physical
Dimension	220112102mm
Weight	Net: 1.02kg
Package box	248140170mm/1.87Kg
8 in 1 carton	516300360mm /12.4kg
Environment
Working temperature & humidity	0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature & humidity	-20 to 60 degrees centigrade , 10%~90% No condensation
