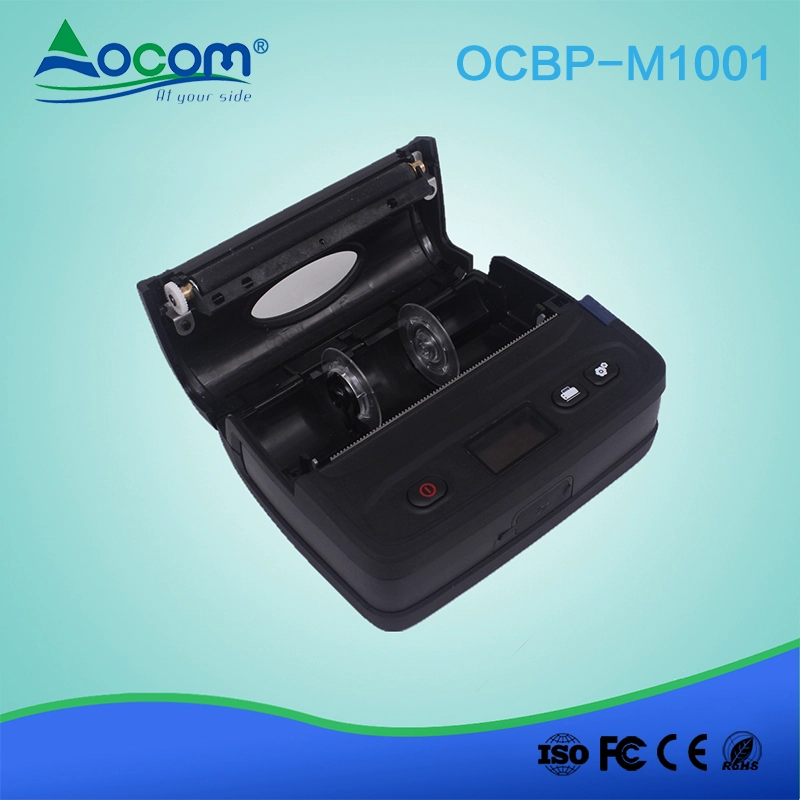

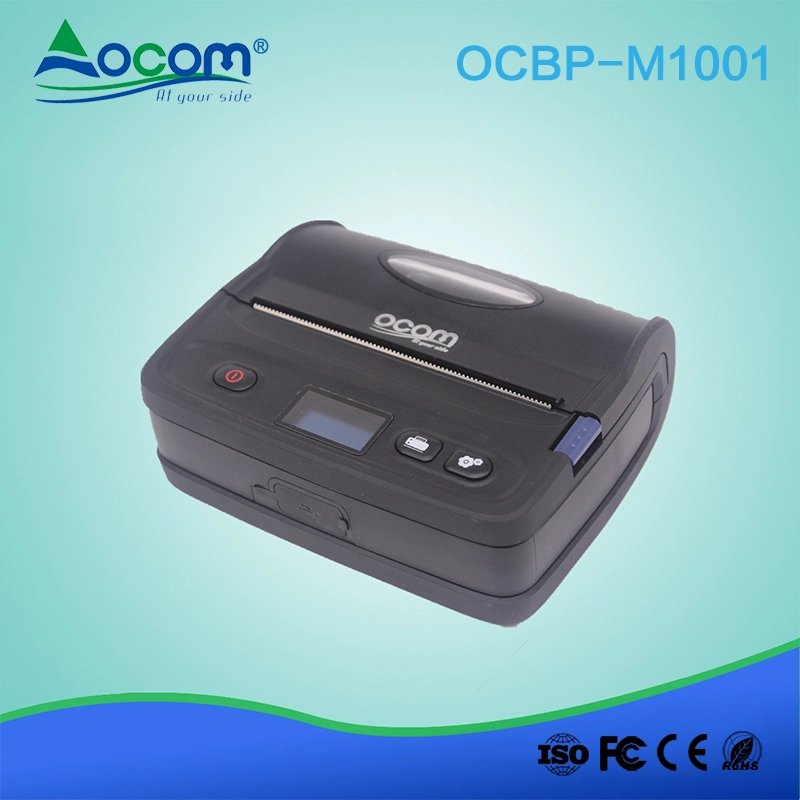

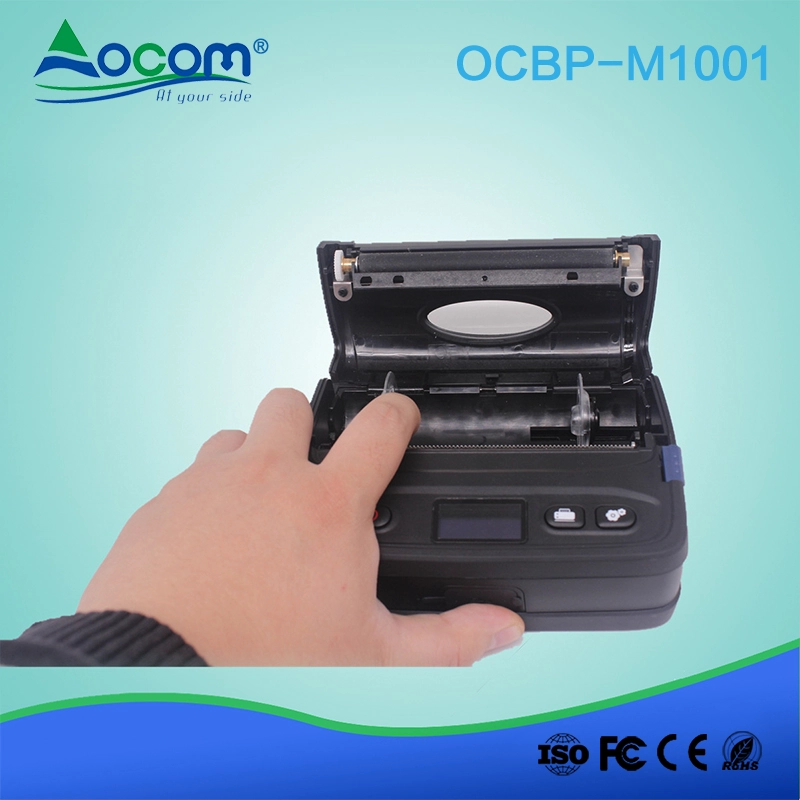

OCBP -M1001 4-inch mini Bluetooth portable printer for mobile

4-inch mini Bluetooth thermal barcode label printer
Interface: USB + Bluetooth;
Print speed: MAX = 80mm / s;
Paper roll diameter: MAX = 40mm;
Battery: 7.4 V, 2300 mAh;
The LCD display can indicate the im parameters of the printer parameters;
Fast printing of images, barcodes and forms;
Support for black mark, label interval and paper end sensor;
Support for adhesive labels and receipt paper;
Supports Windows, Android and Java OS with free SDK; and the apk demo available;
Supports a variety of languages;
Supports printing of 1D and QR codes.
Supports the CPCL / ESC- POS command

OCBP -M1001 4-inch mini Bluetooth portable printer for mobile

(M / N: OCBP -M1001)

feature:

1. Can print the adhesive label and receipt

2. Easy to im pos tare the print density and Langue

3. Different multi-interface and paper format support

4. The LCD display can show the im settings of the printer parameters

5. Can quickly print barcodes and image modules.

6. Black sign supported by multiple sensors, label range and paper end detection

specification

Printing method	Thermal line
Print speed	80mm / s (thermal paper)
Print speed	70mm / s (adhesive label)
Resolution	8 points / mm
Effective print width	100mm / 72mm / 48mm / 37.5mm
Character set	ASCII, GB18030 (Chinese), BIG5, Codepage
Print font	Font A: 12 * 24; Character B: 8 * 16
Automatically defined character	Yup
Kind of paper	Thermal paper / Label paper
Paper roll diameter	40mm (maximum)
Internal diameter of the roll core	13 millimeters (min.)
Paper thickness	0.06 ~ 0.16 mm
Paper feeding method	Easy to load paper loading
TPH	50 km
Barcode	1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25
Barcode	2D: PDF417, QRCODE, DATA matrix
Emulation	CPCL / ESC- POS
driver	Windows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win 8 / Win10
Sensor	Paper end sensor, black mark, label range
Interface	USB / Bluetooth
Button	Power supply, power supply, mode
Indicator	Power supply, power supply, mode
Memory	Flash: 512 kb; RAM: 128kb
Receive buffer size	32K
SDK	Windows CE; Windows Mobile 5.0 / 6.0; Symbian; Blackberry and Android
Multi-lingual	46 codes
Power supply (adapter)	DC9V / 2A
Charger	Rechargeable lithium-ion battery 7.4 V, 2300 mAg
Battery charger	100 m of continuous printing
Recharge time	less than 3 hours
Battery life	360 hours
Gross weight	500g (battery included)
Printer size (L x W x H)	140 mm x115 mm x 51 mm
Color	Black
Operational Temp	-10-50 ° C
Operating humidity	10% -80%
Application	Restaurants, Department Stores, Kitchen, Minimarket, Retail Stores, Supermarket
Accessories	Battery, charger USB cable, CD driver and paper roll
Accessories	Option: vehicle charger, leather case
