(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen

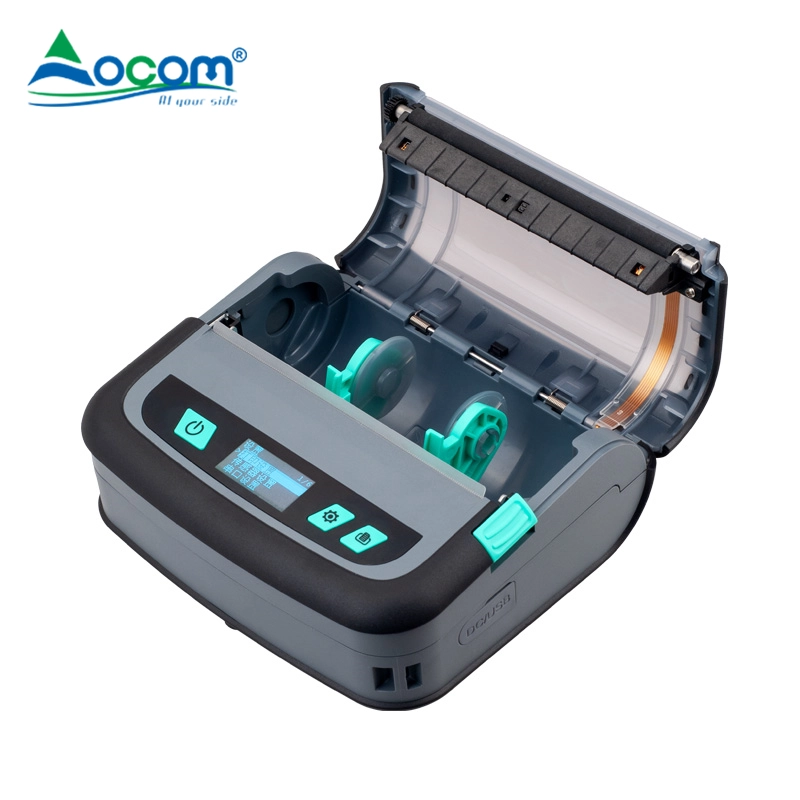

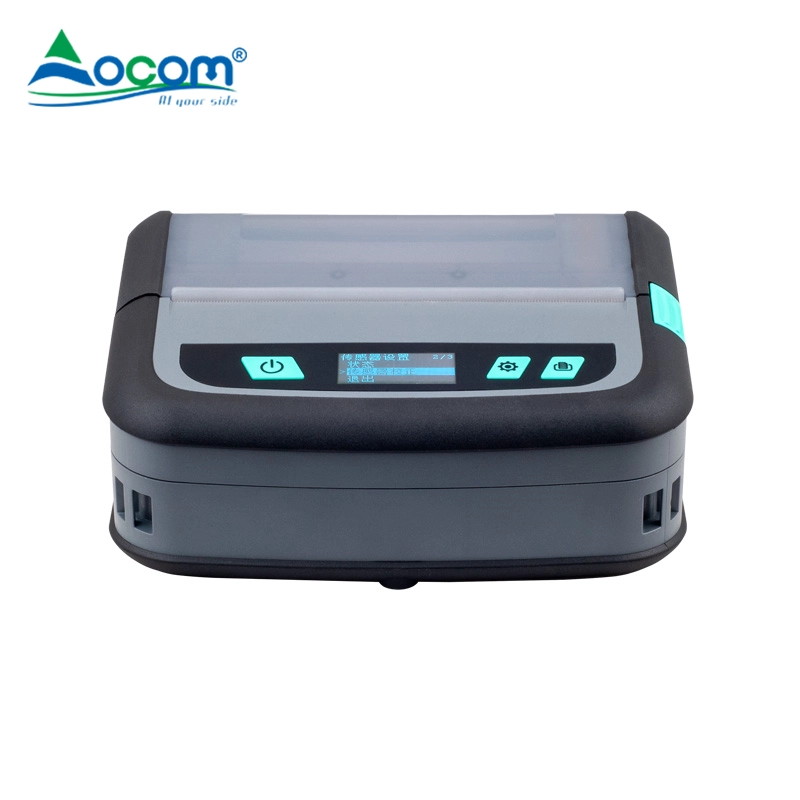

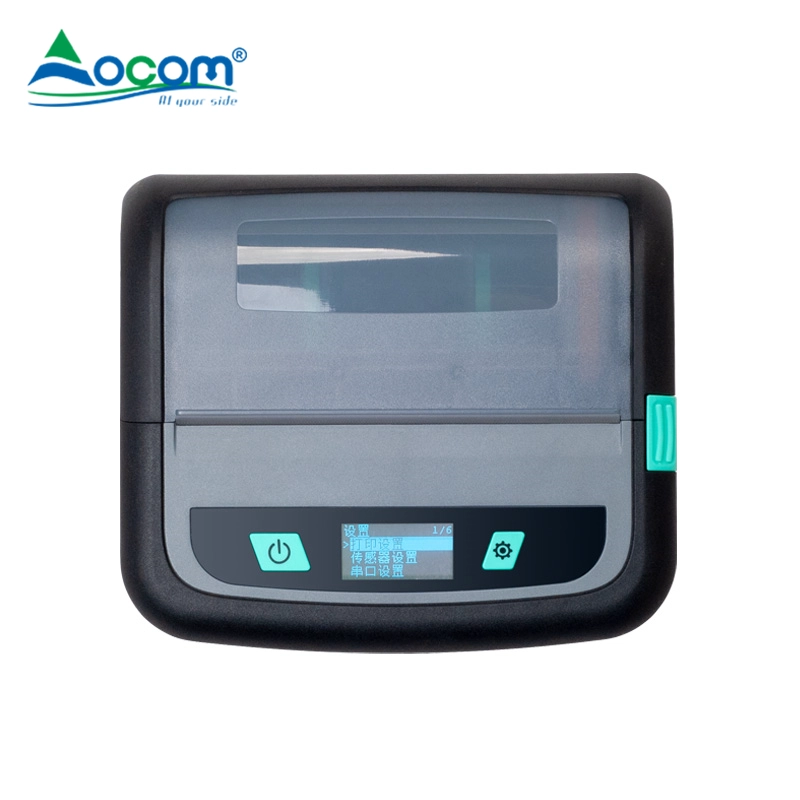

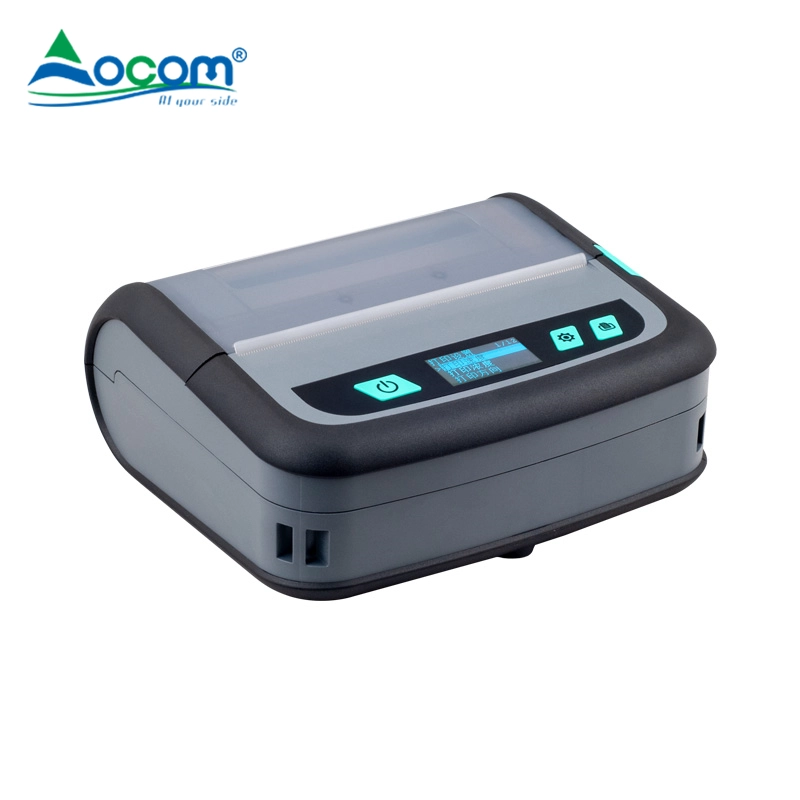

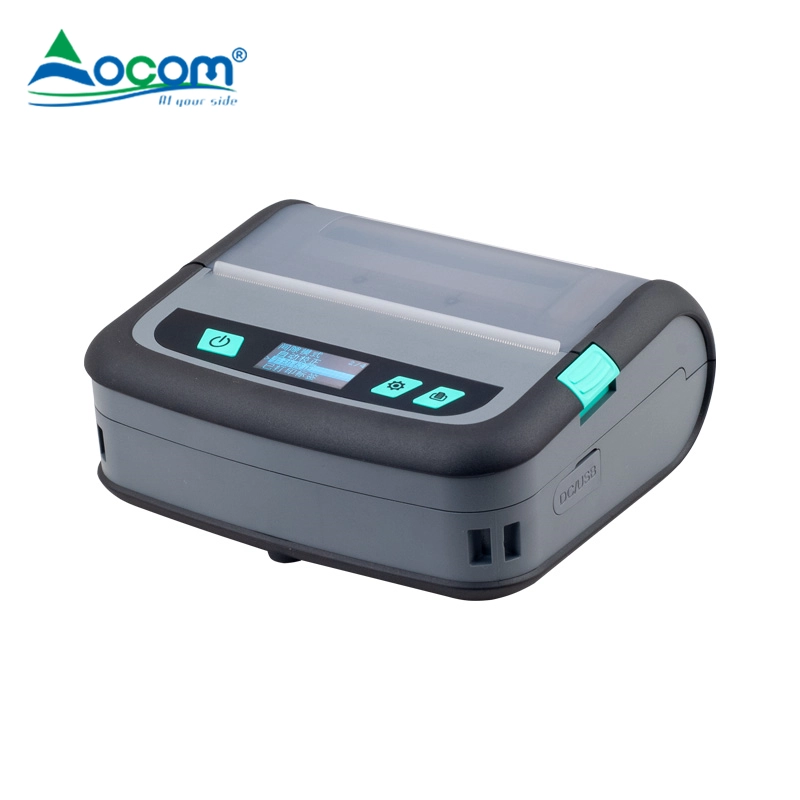

(OCBP-M1003)4 inch Industrial Grade Mini Portable Thermal Barcode Sticker Label Printer Machine with LCD Screen

  • Front paper structure make the printer more cost effective
  • Support label interval sensor
  • The width of the paper bin can be adjusted
  • 45 diameter paper roller can be installed

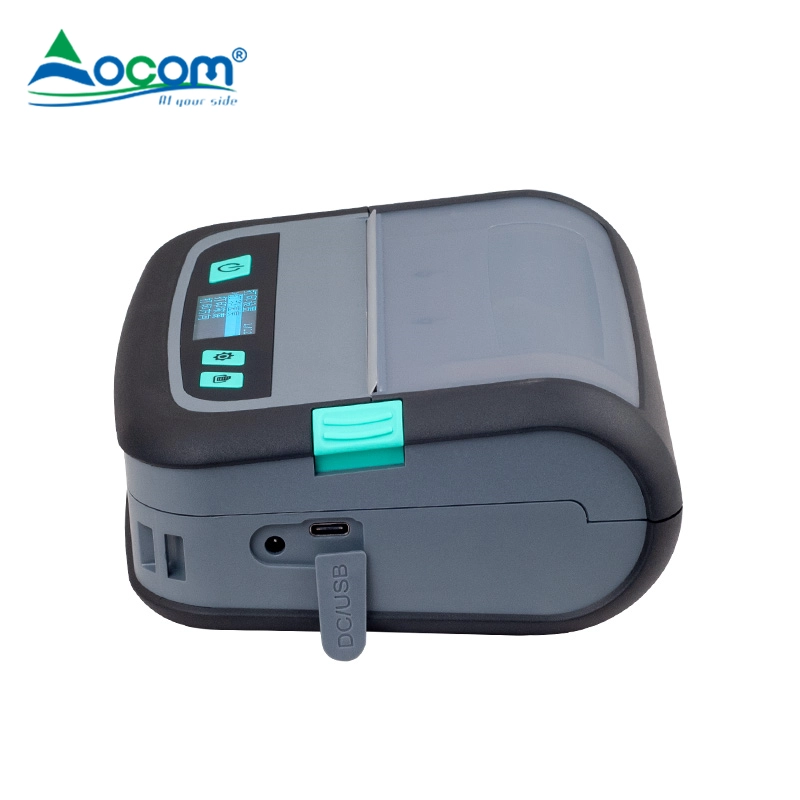

  • The USB Type-C interface can be both charge and communication
  • The LCD screen can directly observe the printer status
  • Support the physical button to set the printer
  • Free label editing software,convenient for end users to use directly

4 Inch Bluetooth Thermal Label Printer

 (M/N:OCBP-M1003)

Features:

  • Front paper structure make the printer more cost effective
  • Support label interval sensor
  • The width of the paper bin can be adjusted
  • 45 diameter paper roller can be installed
  • The USB Type-C interface can be both charge and communication
  • The LCD screen can directly observe the printer status
  • Support the physical button to set the printer
  • Free label editing software,convenient for end users to use directly

Specification

General



Model

OCBP-M1003

Color

Gray match black

Processor

32 bit CPU

Interface

USB type-C and Bluetooth

Printer head life

30Km

Battery

7.2V/2500mAh Li-ion

Charging time

4-5 hours

screen

1.3 inch OLED

Sensors

Gap sensor,Cover opening sensor,Black mark sensor

Working time

5 hours continuous, 7 days standby time

Power supply

Input: AC 100-240V,0.5A 50-60Hz  OutputDC 9V/1A

Other features

Paper detection, manual shut down

Memory

8MB DRAM and 8MB Flash memory

software

Driver:Windows/Linux/Mac SDK:Windows/Android/IOS

Safety standards

CE ,FCC,Rohs,CCC etc

Printing capability



Printing method

Direct Thermal

Resoluiton

8 dots/mm(203 DPI)

Print speed

100mm/s

Print width

105mm Max

Print length

1778mm Max

Print command

ESC/POS, TSPL CPCL ZPL command

Barcode and character



Barcode

1D barcode:

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST

2D barcode: PDF-417, Maxicode, DataMatrix, QR code,Aztec

Character size

Font 0 to Font8

Character set

Alphanumeric/ Chinese

Media



Media type

Continuous,Gap, Black mark

Media width

40-112mm

Media thickness

0.06-0.254mm

Media roll diameter

50mm Max

Physical



Dimension

150 mm*131mm *64mm

Weight

Net:550g,Gross:800g

Package box

230*160*80mm

20 in 1 carton

483*338*425mm/16.57kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade ,  10%~90%  No condensation
