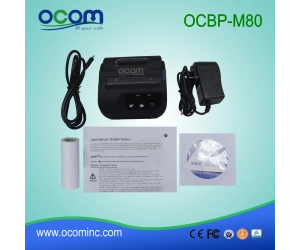

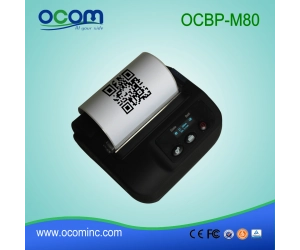

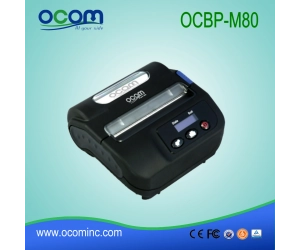

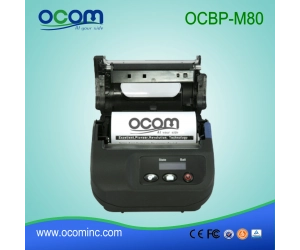

OCBP-M80: low price bluetooth thermal barcode printer mini supplier

  • 1.Can print Label sticker and Receipt Paper
  • 2.Easy to set the print density and Langue
  • 3.Multi-interface and different paper size support
  • 4.LCD display can show the printer parameter settings
  • 5 Can quickly print imge barcodes and forms.
  • 6.Multiple Sensor Supported Black mark,Label interval
  • and Paper end detection

low price bluetooth thermal barcode printer mini supplier

                                            (M/N:OCBP-M80)

Feature:

1.Can print Label sticker and Receipt Paper

2.Easy to set the print density and Langue

3.Multi-interface and different paper size support

4.LCD display can show the printer parameter settings

5 Can quickly print imge barcodes and forms.

6.Multiple Sensor Supported Black mark,Label interval

 and Paper end detection


3 inch portable printer,bluetooth label printer,mini barcode printer



Printing Method

Thermal Line

Printing Speed

80mm/s ( Thermal Paper )

70mm/s ( Label Sticker )

Resolution

8 dots/mm

576 dots/line

Effective Printing Width

72mm/48mm/37.5mm

Character Set

ASCII, GB18030 (Chinese), BIG5, Codepage

Print Font

Font A: 12*24; Font B: 8*16

Self-defined Character

Yes

Paper Type

Thermal paper/Label Paper

Paper Width

80mm/58mm/44mm for thermal paper

Paper Roll Diameter

40mm(max.)

Roll Core Inner Diameter

13mm(min.)

Paper Thickness

0.06~0.16mm

Paper Supply Method

Drop-in easy paper loading

TPH

50km

Barcode

1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25

2D: PDF417、QRCODE、DATA Matrix

Emulation

CPCL/ESC-POS

Driver

Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win 8

Sensor

Paper End Sensor,Black Mark, Label Interval

Interface

USB/Bluetooth

Button

Power, Feed, Mode

Indicator

Power, Feed, Mode

Memory

Flash: 512kb; RAM: 128kb

Receive Buffer Size

32K

SDK

Windows CE; Windows Mobile 5.0/6.0; Symbian; Blackberry and Android

Multi-languages

46 codepages

Power Supply (Adapter)

DC9V/2A

Battery Power

7.4V, 1.65A rechargeable Li-ion battery

Battery Charge

100m continuous printing

Charge Time

less than 3 hours

Battery Duration

360 hours

Net Weight

196g

Gross Weight

360g (Including battery & roll paper)

Printer Dimension(WxLxH)

104mm x109mm x 48mm

Color

Black

Operating Temp

-10-50°C

Operating Humidity

10%-80%

Application

Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket

Accessories

Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll

Option: vehicle charger

PackageSize

210mm x 155mm x 90mm(1.5kg)
