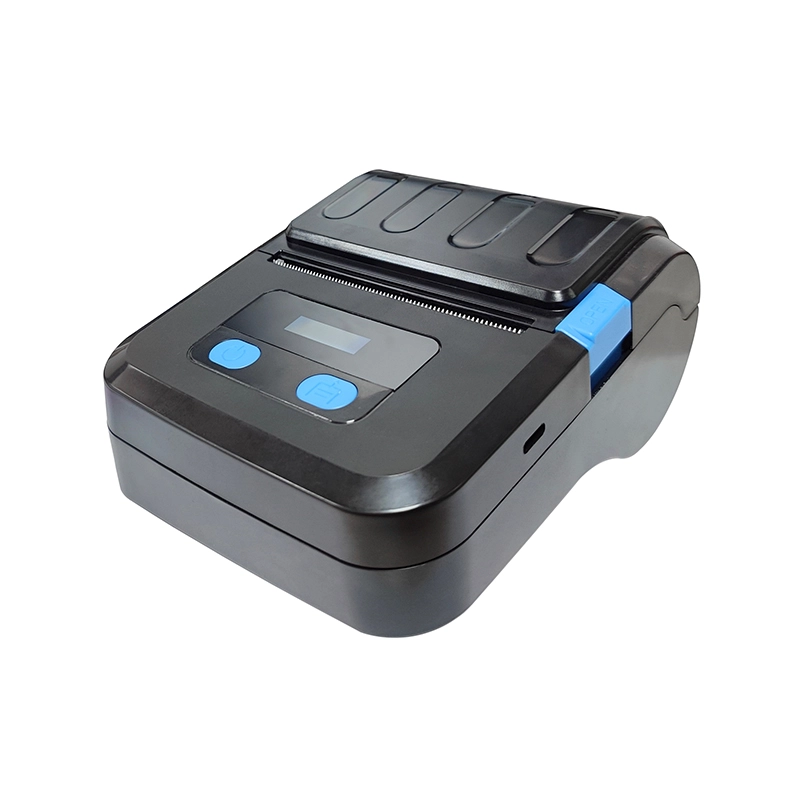

(OCBP-M89) 3-Inch Bluetooth Thermal Label Printer

(OCBP-M89) 3-Inch Bluetooth Thermal Label Printer

  • Front paper structure make the printer more cost effective;
  • Support label interval sensor;
  • The width of the paper bin can be adjusted;
  • 50mm diameter paper roller can be installed;
  • The USB Type-C interface can be both charge and communication;
  • The LCD screen can directly observe the printer status;
  • Support the physical button to set the printer;
  • Free label editing software,convenient for end users to use directly;



3 Inch Bluetooth Thermal Label Printer

 (M/N:OCBP-M89)



Features:



Support label interval sensor;

The width of the paper bin can be adjusted;

50mm diameter paper roller can be installed;

The USB Type-C interface can be both charge and communication;

The LED screen can directly observe the printer status;

Support the physical button to set the printer;

Free label editing software,convenient for end users to use directly.





Specification

General



Model

OCBP-M89

Color

Black

Processor

32 bit CPU

Interface

USB type-C and Bluetooth

Printer head life

30km(printing density under 12.5%)/100 million pulses

Battery

2600mAh 7.4V removable battery

Charging time

4-5 hours

screen

0.91inch OLED

Sensors

Gap sensor,Cover opening sensor,Black mark sensor

Working time

2hours continuous, 7 days standby time

Power supply

5VDC/1A

Other features

Paper detection, manual shut down

Memory

96KDRAM and 700K Flash

software

Driver:Windows  SDK:/Android/IOS

Printing capability



Printing method

Direct Thermal

Resoluiton

8 dots/mm(203 DPI)

Print speed

50mm-80mm/s

Print width

72mm Max

Print length

300mmMAX

Print command

ESC/POS, TSPL CPCL command

Barcode and character



Barcode

1D barcode:

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST

2D barcode: PDF-417, Maxicode, DataMatrix, QR code,Aztec

Character size

Font 0 to Font8

Character set

Alphanumeric/ Chinese

Media



Media type

Continuous,Gap, Black mark

Media width

20-80mm

Media thickness

0.06-0.254mm

Media roll diameter

50mm Max

Physical



Dimension

134.6*110.6*59.2mm(W*D*H)

Weight

Net:372g  Gross:520g

Package box

164*138*85mm

20 in 1 carton

345*276*450mm(W*D*H) 11Kg

Environment



Working temperature& humidity

0 to 40 degrees centigrade,

10%~80%  No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade

10%~90%  No condensation,



Relevant documents:



               OCBP-M89 Secondary development document
