OCBP-T31 3 Inch Direct Thermal Barcode Label Printer with Built-in Power Adapter
- 3 Inch Direct Thermal Barcode Label Printer with built-in power adapter
- Interface: USB+Bluetooth, USB for options;
- Memory: 4MB flash memory and 4MB DRAM;
- Resolution: 203dpi(8dots/s);
- MCBF(life): 100km;
- Printing speed: MAX=127mm/s;
- Paper width: 16mm~76mm;
- Paper roll diameter: Inner dia: 25mm, Outer dia: 80mm;
- Label peel off automatically;
- BMP, PCX, BAC images download store.
- Support PDF417, QR CODE, DOTMATRIX, 1D barcodes.
- Support Paper out sensor and cover openning sensor;
- Support label interval sensor;
- Can set the ip configuration by web
Thermal Barcode Label Printer
(Model No.: OCBP-T31)
Features:
Label paper auto position;
Support Paper out sensor;
Support open cover sensor；
Support label interval sensor;
Built-in power supply saves office space
4MB DRAM and 4MB FLASH
Compatible with plenty of label software;
Support BMP, PCX, BAC images download;
Support USB or USB+Bluetooth;
Support PDF417, QR CODE, DOTMATRIX;
Specifications:
|
Printer Model |
OCBP-T31 |
|
Resolution |
203 DPI (8 dot/mm) |
|
Printing Method |
Direct Thermal |
|
Printing head temperature sensor |
Thermal sensitive resistance |
|
Printing head position sensor |
Micro switch |
|
Paper exists detection |
Photoelectric sensor |
|
Printing Speed |
127 mm / sec (max); 50.8mm/sec (min) |
|
Printing Width |
16 mm ~ 76 mm |
|
Media |
Media Type: Paper roll, sticker, label fold, etc. Media diameter: Inner dia:25mm; Outer dia: 80mm |
|
Internal font |
FONT 0 to FONT 8; Commonly used in single-byte fonts |
|
Enlargement & rotation |
1 to 10 times enlargement in both directions; 0 Degree , 90 Degree, 180 Degree, 270 Degree, 360 Degree rotation |
|
Paper off type |
Tear off |
|
Memory |
4MB Flash Rom, 4MB DRAM |
|
Image |
Monochromatic PCX, BMP image files can be load to FLASH, DRAM |
|
Barcode |
CODE128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, PDF417, QR CODE, DATMATRIX |
|
Interface |
USB or USB+Bluetooth |
|
Power |
Built-in power supply input AC110V-240V |
|
Environment |
Operating Temperature: 5 Degree C to 45 Degree C Storage Temperature: -40 Degree C to 55 Degree C Operating Humidity: 20% ~ 80%, non-condensing, Free air Storage Humidity: <=93%(40 Degree C), non-condensing, Free air |
|
Dimension |
Size: D230mm * H163mm *W152mm |
|
Net Weight |
1.48kg |

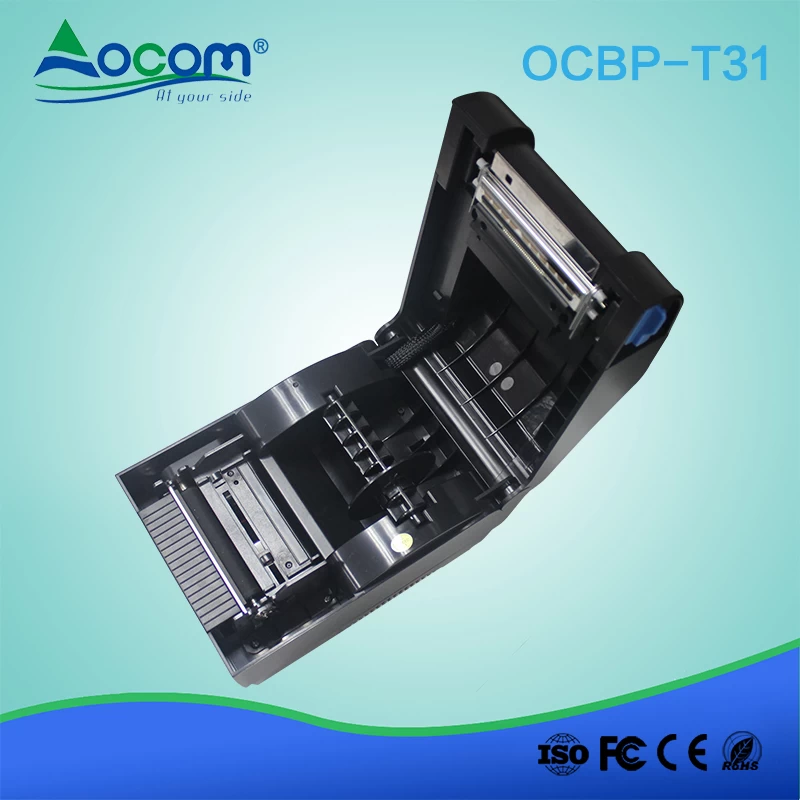

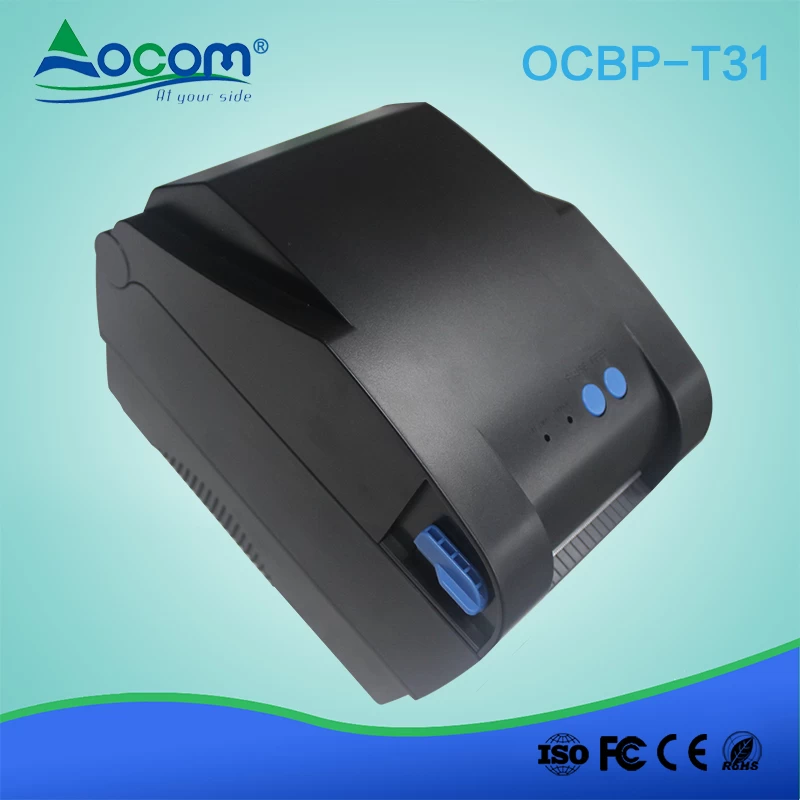

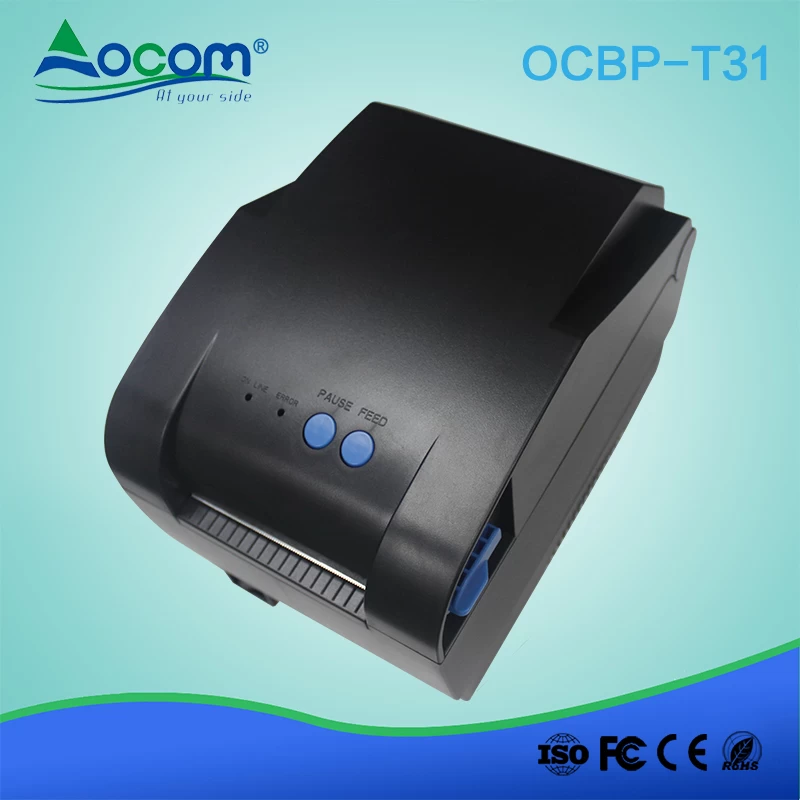

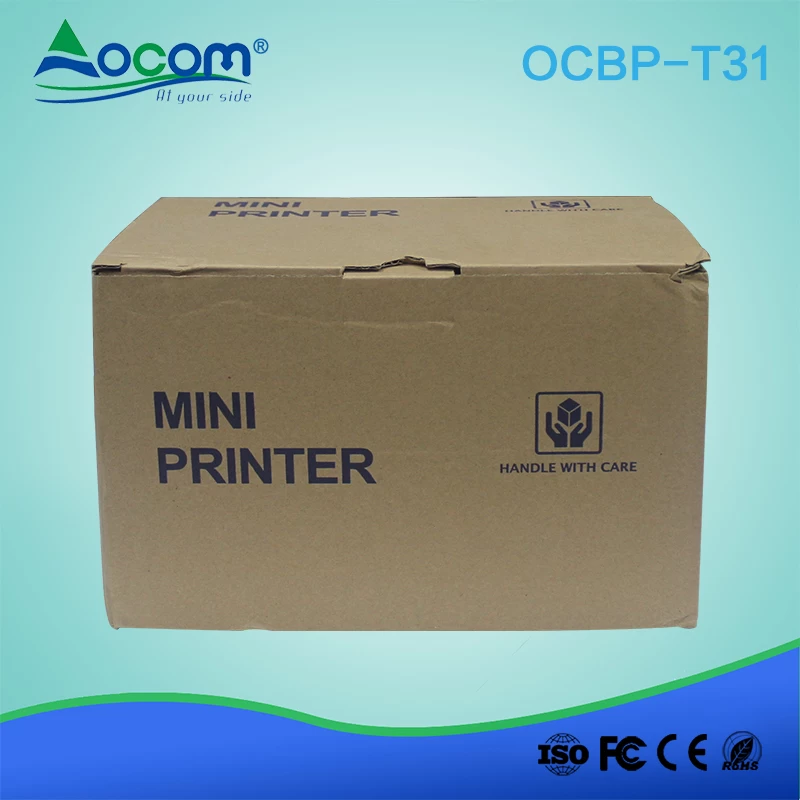

Picture Show:
