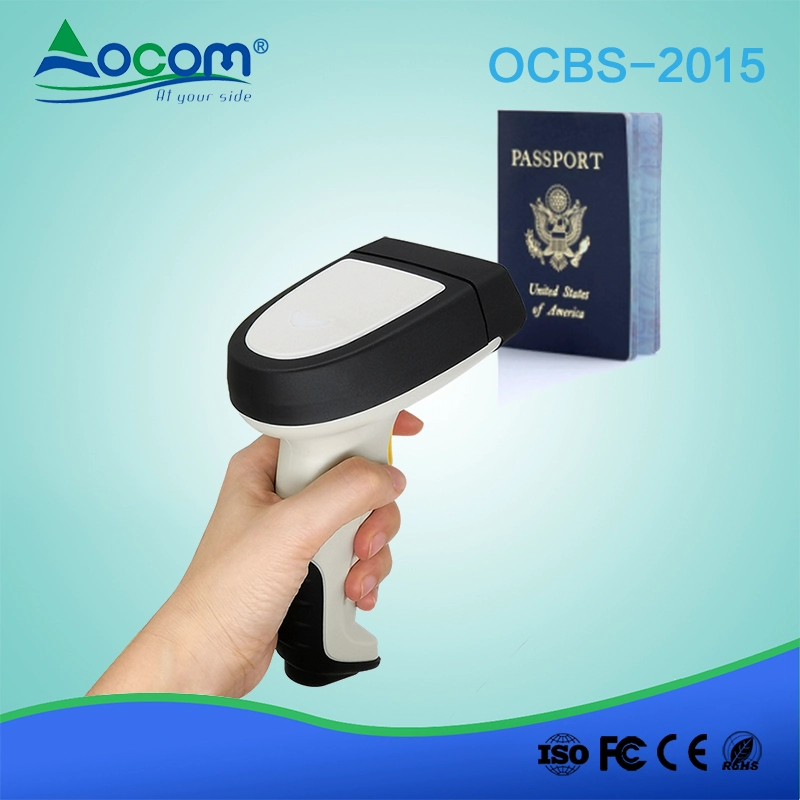

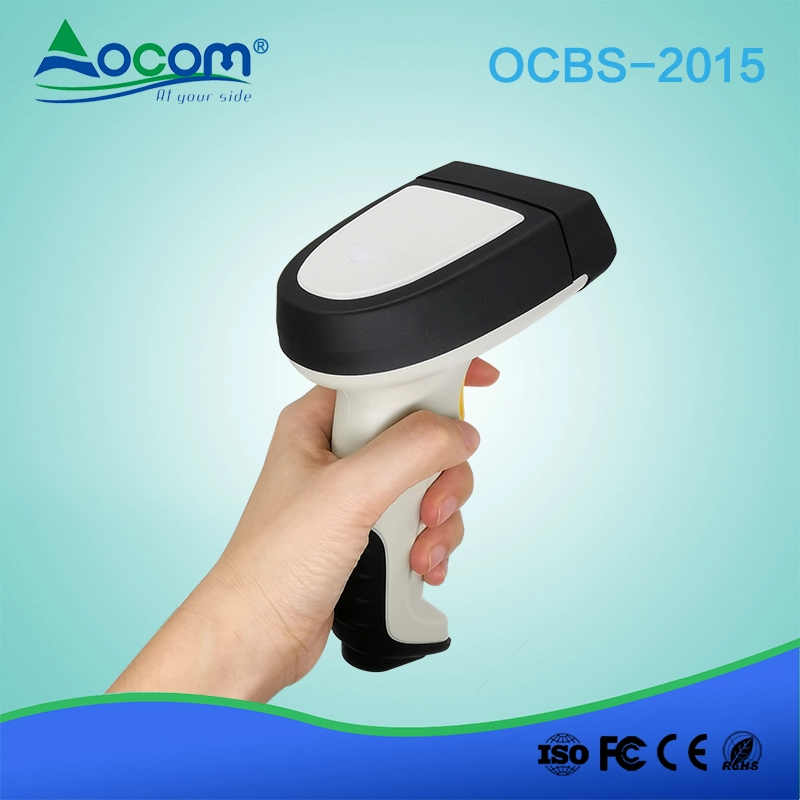

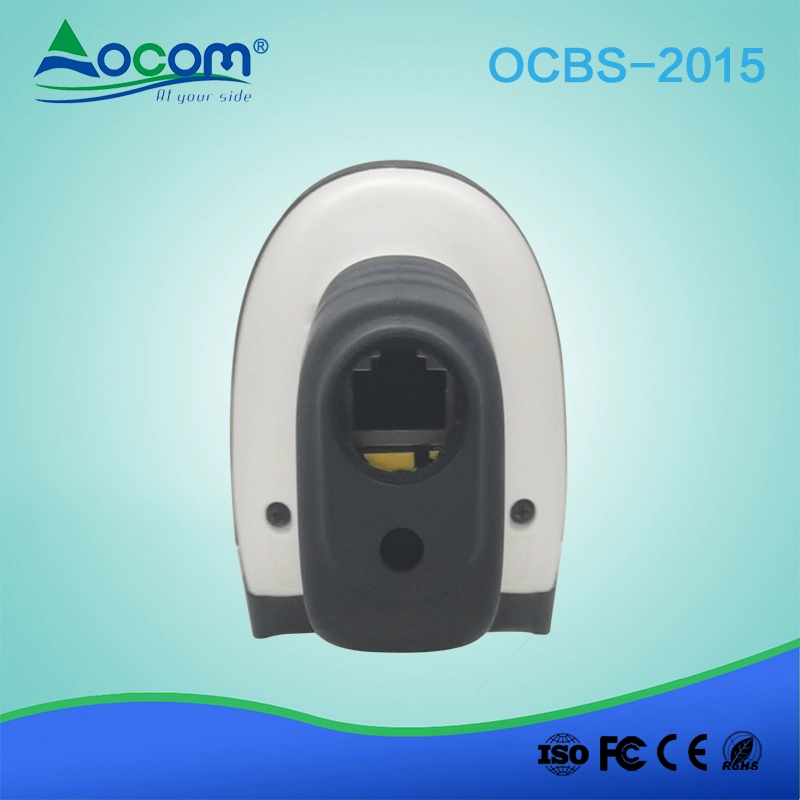

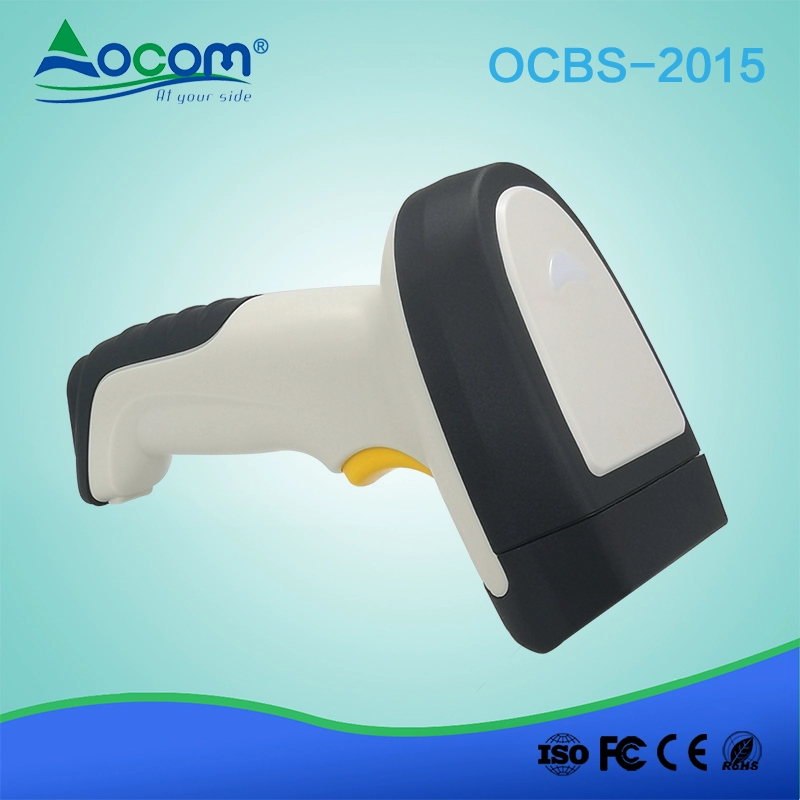

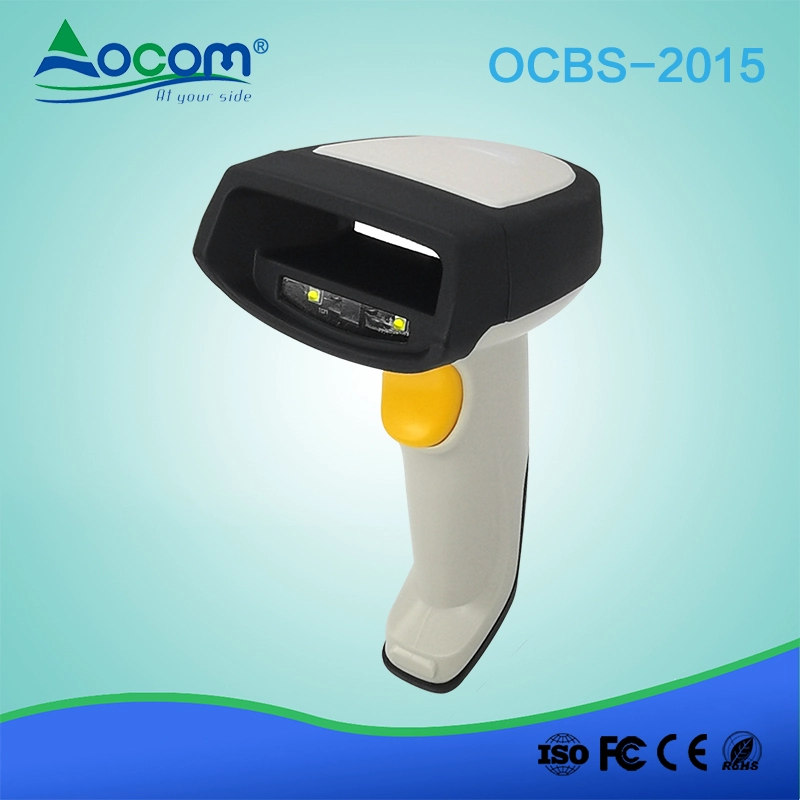

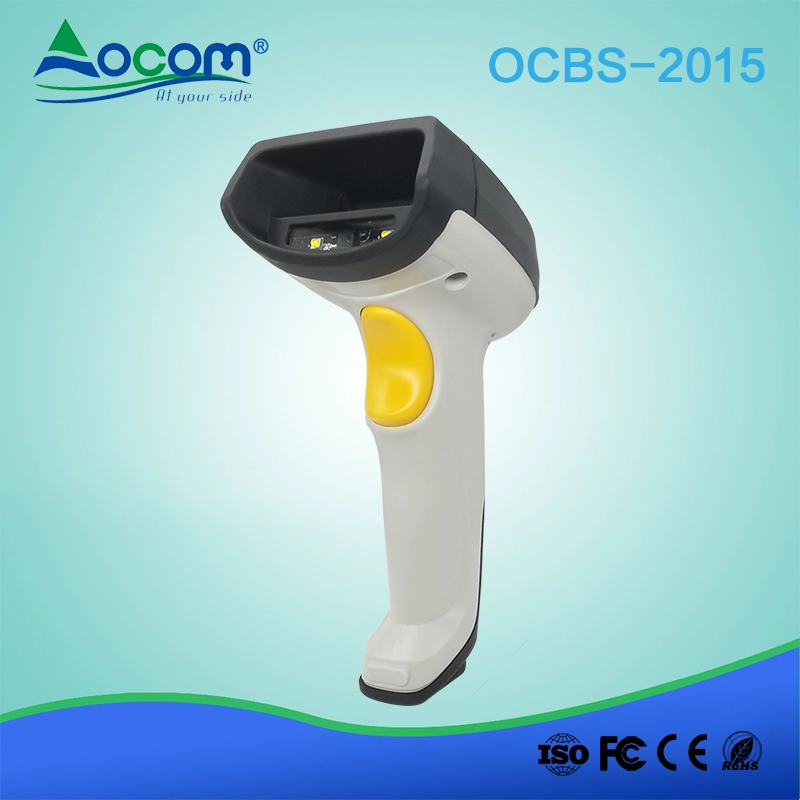

(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner

(OCBS-2015) IR Sensor Detect Moving 2D Handheld Barcode Scanner

  • High Performance Decoding
  • Strong Data Editing Function
  • With IR Sensor to Detect Moving Barcode
  • Reliable and Durable Structural Design
  • Humanized Lighting & Focus Design
  • Low Power Design Compatible with All Types of Devices

Handheld Industrial 1D/2D Barcode Scanner

(Model No.: OCBS-2015)

Feature:

  • High Performance Decoding

Can read up to 3mil barcodes, DPM barcodes on spare parts, OCR barcodes and can take picture.

  • Strong Data Editing Function

Some functions can be set on scanners before sending data to host machine. It help to input data as a requested way to achieve the goal of editing data flexible.

  • With IR Sensor to Detect Moving Barcode

IR function can detect upto 40cm moving barcode, and decoding within 100ms.

  • Reliable and Durable Structural Design

Can withstand repeated drops from a height of 1.8 meters, IP42 protection level.

  • Humanized Lighting & Focus Design

The soft illumination without flash frequency and a clear/accurate cross laser focusing system not only produce visual fatigue in continuous high-strength operating conditions, but also greatly improve the efficiency of operation.

  • Low Power Design Compatible with All Types of Devices

Low power design can help to solve the connection problems which caused by insufficient USB drive capacity on the host computer or excessive voltage requirements for the access device etc. It help to maximize the compatibility of the device.


Application:

Retrospective management of production in electronic industry,retrospective management of light industry production, warehouse management of online shop, logistics, and normal barcode scanner application etc.



Specification:

Scan

Sensor

CMOS

Accuracy*

≥3mil

Resolution

1280*960

Movement Tolerance*

2 m/s

Light

White LED /Red LED

Field of view angle

Horizontal40.5°, Vertical30.4°

Focus

Laser 650nm

Symbolic contrast*

≥25%







Barcodes

2D

PDF417, QR Code, Data Matrix, Chinese Sensible Code(汉信码),etc.

1D

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6,

ITF-14,Interleaved2of 5,Industrial 2of 5,Standard 2of5,Matrix2of 5, GS1 Databar, Code

39, Code 11, MSI-Plessey, Plessey,etc.





Reading Depth*

Barcode Type

2015-1

2015-2

EAN-13(13mil)

25mm~155mm

40mm~410mm

Code 39(5mil)

50mm~100mm

110mm~250mm

PDF 417(6.7mil)

40mm~105mm

115mm~190mm

Data Matrix(10mil)

40mm~110mm

100mm~250mm

QR Code(15mil)

35mm~155mm

70mm~280mm

Barcode Sensitivity*

Pitch

±50°



Tilt

360°



Skew

±50°



Electrical

Interface

RS-232,USB,PS/2

Prompt method

Buzzer, LED indication, vibrator

Dimension

166(W)*107(D)*71(H)mm

Voltage

5 VDC±5%

Weight

208g

Rated power

consumption

1251 mW(Typical values)

Current@5 VDC

Operating current 266 mA (Typical Values)

Standby current

109 mA

Environmental

Working Temperature

-20℃~50℃

Electrostatic

±16 kV (Air discharge), ±8 kV (direct discharge)

Storage Temperature

-40℃~+70℃

Anti Drop

1.8m

Humidity

5%~95%(Non-condensing)

IP Grade

IP42

Certificates

FCC Part15 Class B, CE EMC Class B

Accessories

cable

USB

USB cable, for connection and transmission

RS-232

RS-232 cable(optional), for connection and transmission

PS/2

PS/2 cable(optional), for connection and transmission

adapter

5V adapter(optional), forRS232 power supply.

Out put: DC 5V, 1.5A. Input: AC100~240V, 50~60Hz

Others

Intelligent Induction Stand

Optional

Data Editing

Supported
