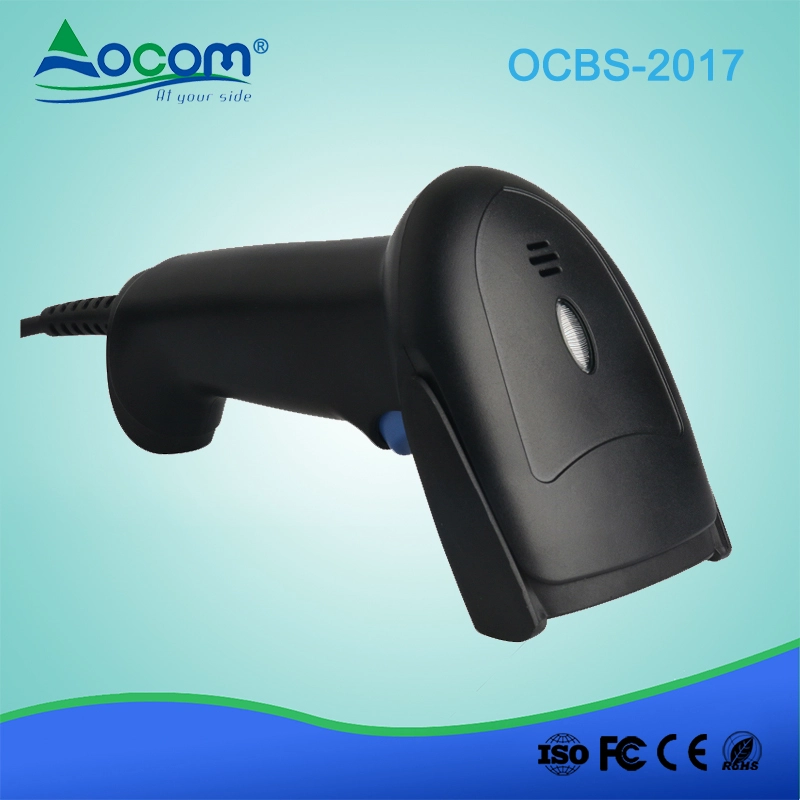

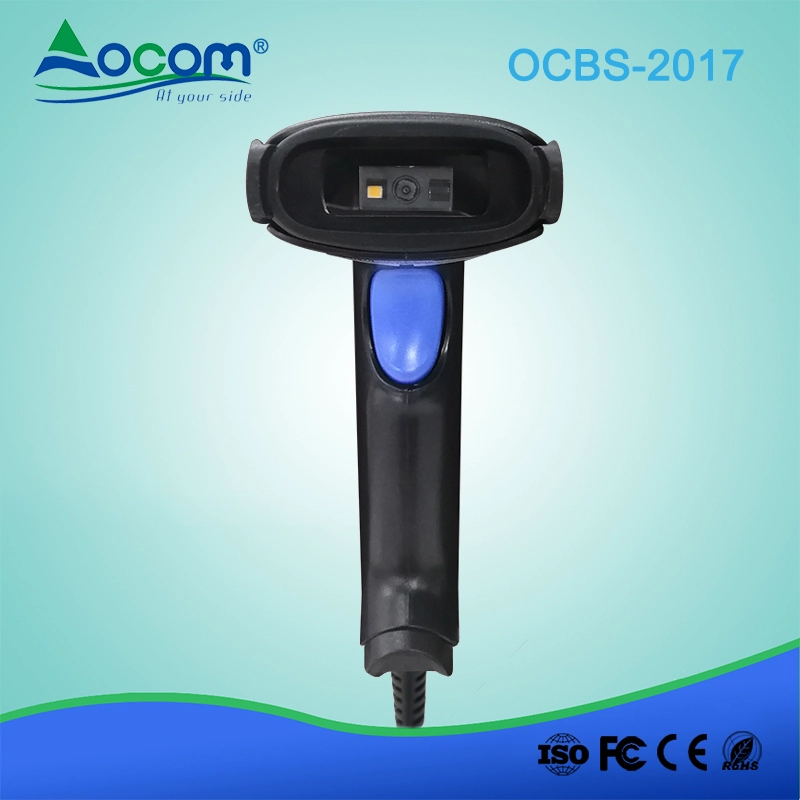

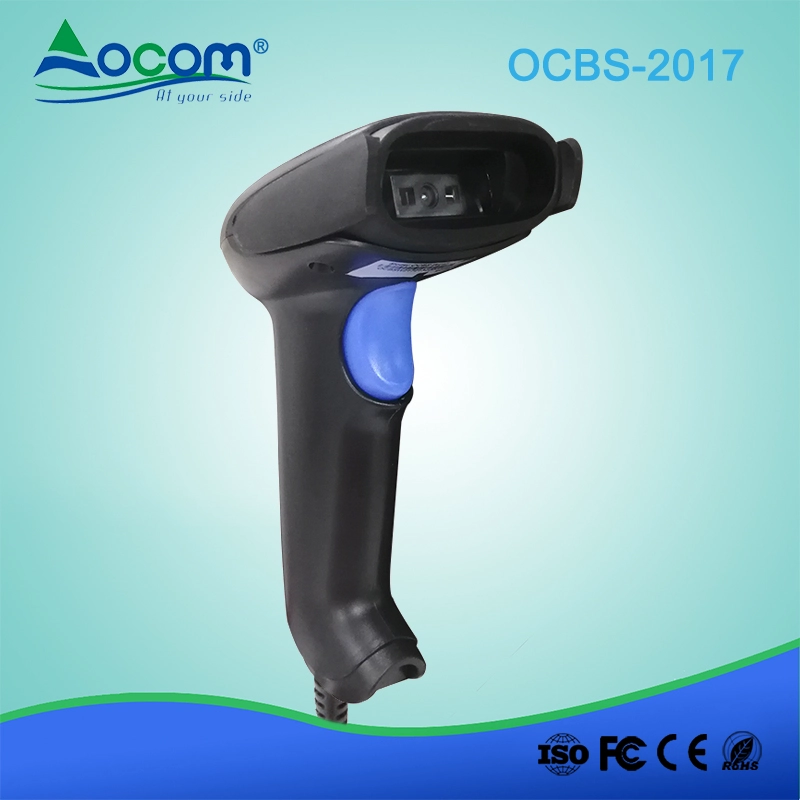

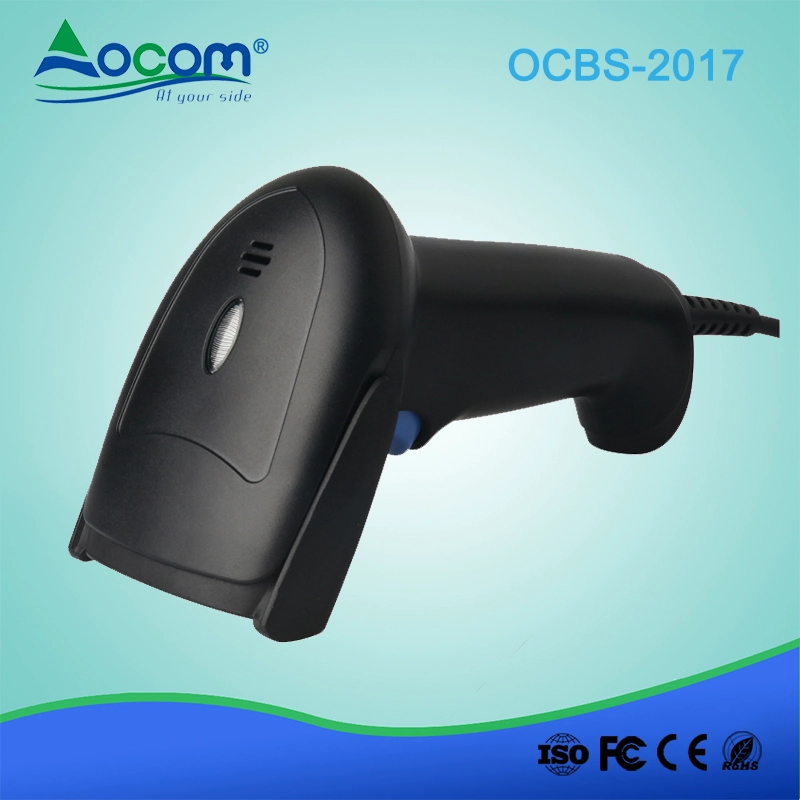

(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner

(OCBS-2017) High Cost-effective 1D/2D Barcode Scanner

  • High performance imaging technology;
  • Omni-directional scanning;
  • 4 mil excellent scanning accuracy;
  • Multi special function setting supported;
  • High compatibility for all major 1D and 2D symbols;
  • Can read the barcode on the screen and color barcode.

High Cost-effective 1D/2D Barcode Scanner

(Model No.: OCBS-2017)


Feature:

High performance imaging technology;

Omni-directional scanning;

4 mil excellent scanning accuracy;

Multi special function setting supported;

High compatibility for all major 1D and 2D symbols;

Can read the barcode on the screen and color barcode.


Specification:

Interface

USB; USB virtual COM; RS232

System support

Linux,Android,Windows XP、7、8、10,MAC

Sensor

CMOS sensor

Light source

Red LED(Aiming)+White LED(Lighting)

Processor

32-bit ARM MCU + DSP

Resolution

≥4mil(PCS90%,CODE 39)

Error rate

1/5 million

Movement tolerance

25cm/s

Reading Mode


Trigger mode

Manual,Continuous scanning,Auto-sensing

Prompt mode

Buzzer, indicator(LED)

Print contrast

≥25%

Material

ABS+PC

Power supply

DC 5V ±5%

Power consumption

375mW(Working);226mW(standy);750mW(Max)

【Average Power consumption】

Weight

289g±5g

Inner Box Size

L*W*H: 180 * 115 * 85 (unit:mm)

Package info.

60*45*38.5 cm  50 pcs/carton,  NW.=14.45kg , GW.=16.15kg

Color

Black

Decoding Capability

1D

●Code25-Interleaved    ●Code25-Standard        ●Code25-Matri

●Code39-Regular        ●Code39-FullASCII       ●Code32

●Code93-Regular        ●Code93-FullASCII       ●Code128

●EAN/GSL/UCC-128Auto   ●Codabar                ●MSI

●EAN/JAN-13            ●UPC-A        ●JAN-8    ●UPCE

2D

● QR            ●Data Matrix            ●PDF417

Scanning Angel

Roll360°,Pitch30°,Yaw45°

Scanning Depth

            Code39 4.17mil(15 bytes): 4cm  -  8cm

             Code128 4.17mil(16 bytes):7cm  -  15cm

            Data Matrix 10.83mil(8 bytes):3cm  -  9cm

             Code QR 20mil (8 bytes):1cm  -  19cm

Environmental parameter

IP grade

IP42

Operating temperature

0 to 50℃ / 32 to 122℉

Storage temperature

0 to 50℃ / 32 to 122℉

Operation humidity

20% to 85%(No condensation)

Storage humidity

20% to 85%(No condensation)

ESD Protection

15KV air discharge

Shock resistance

1.5m free fall on concrete surface
