OCBS-2021 POS system Data collector handheld Cashier barcode scanners 1d 2d
- Subvert traditional design, with simple assembly stand
- 0.3 million overall situation exposure, 60fps fast speed
- 3mil resolution bar code reading ability
- Support reading many kinds of 1D&2D bar code
- Support reading difficult bar codes (blurred, wrinkled, fuzzy, low contrast, high density
- Widely used in different host systems, such as windows 7/8/10, iOS, Android and Linux system, etc

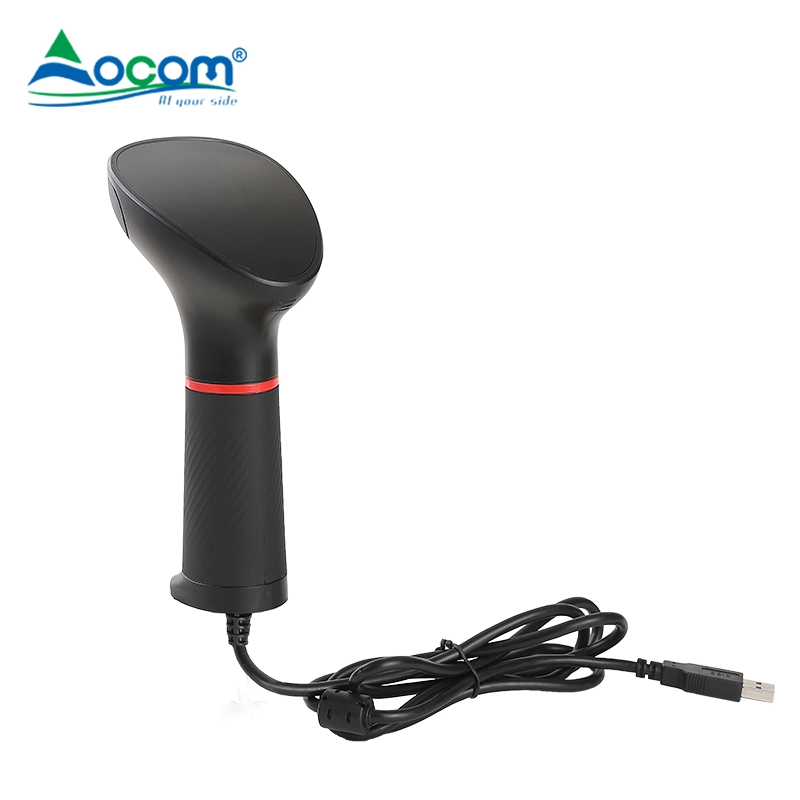

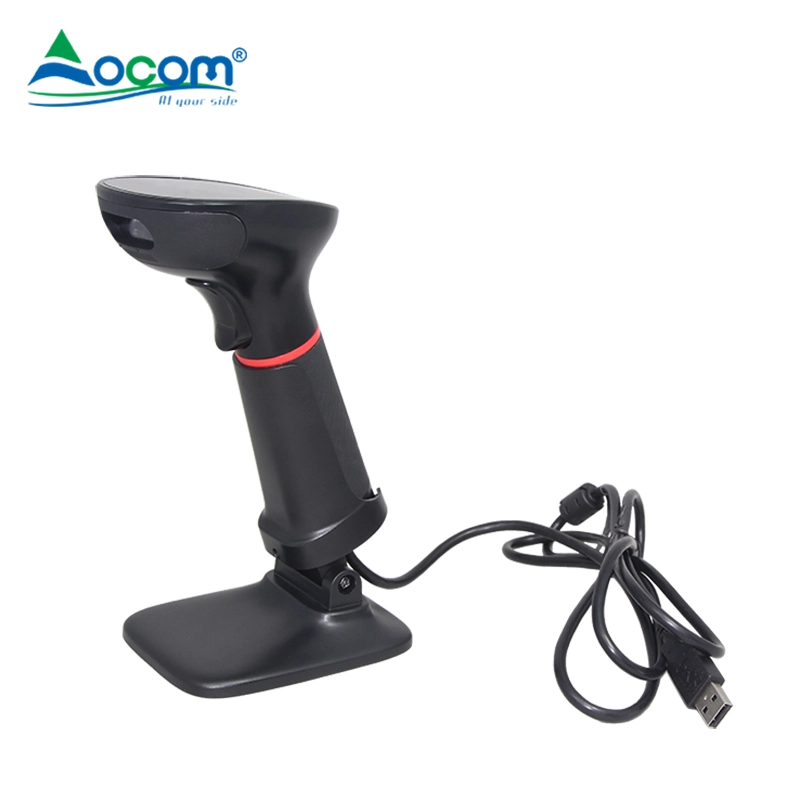

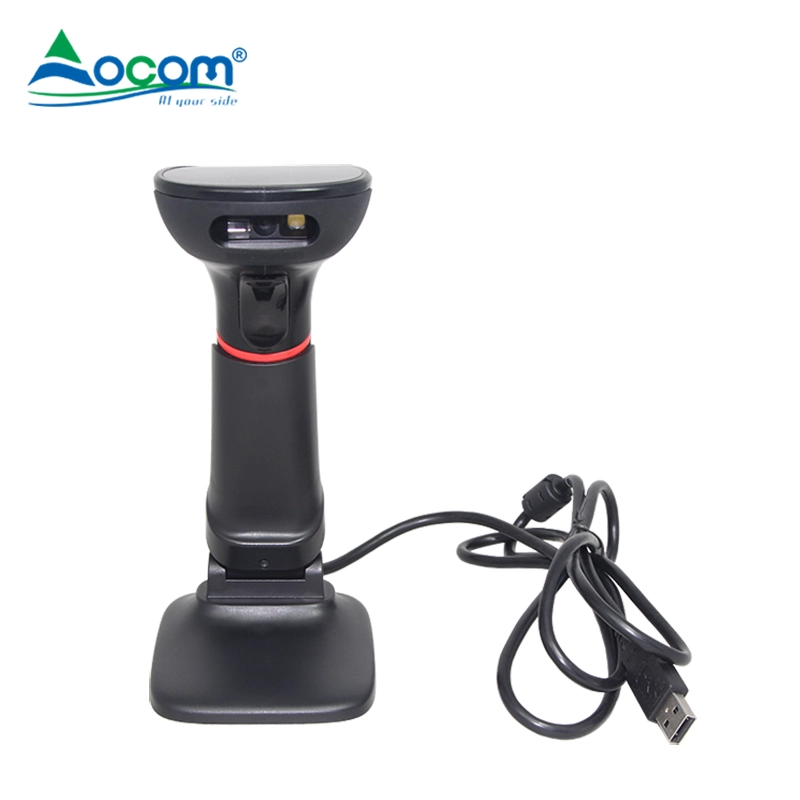

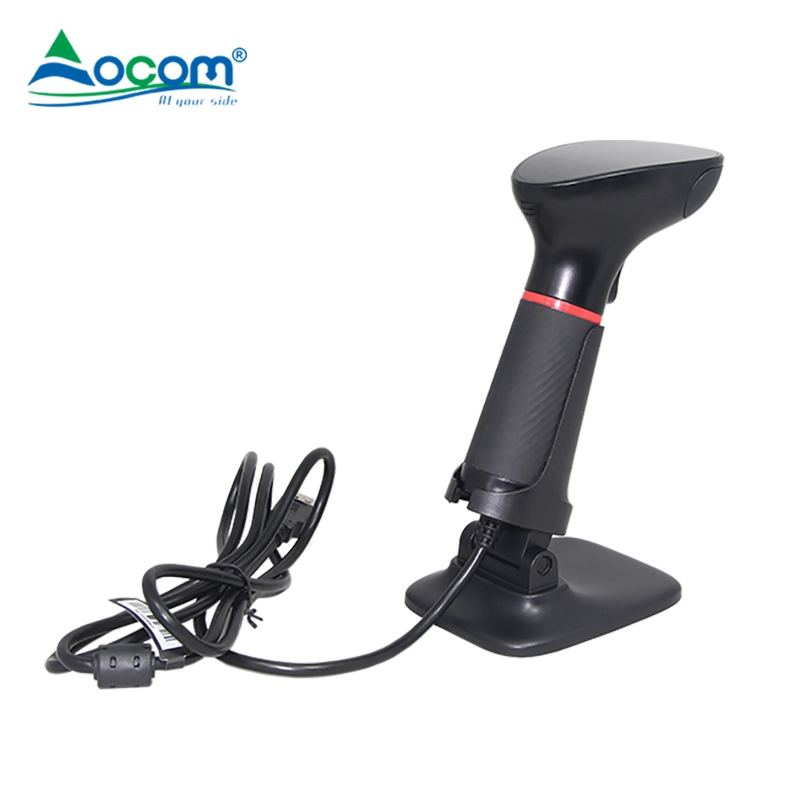

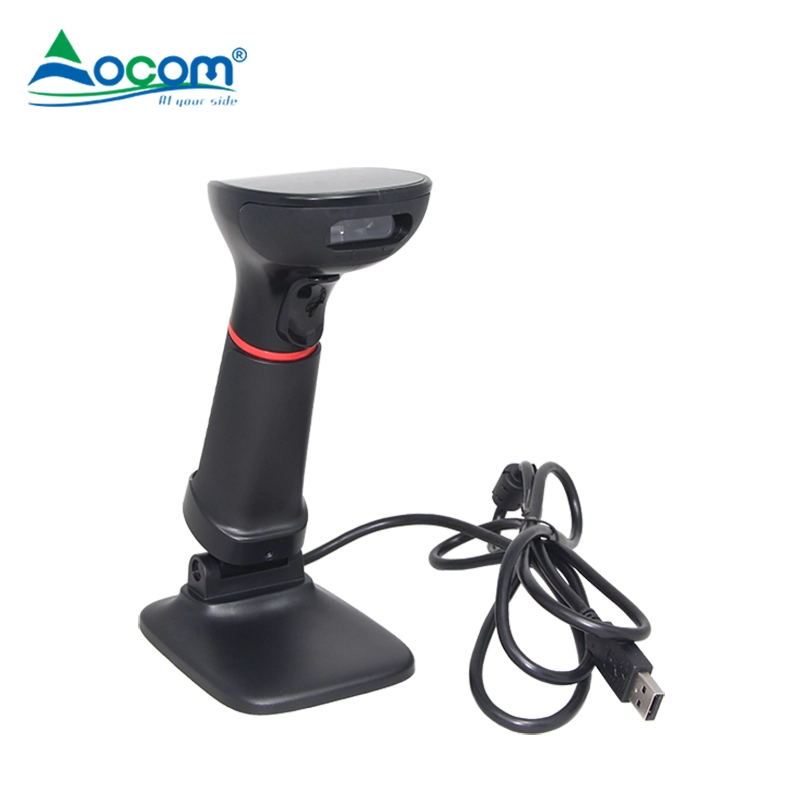

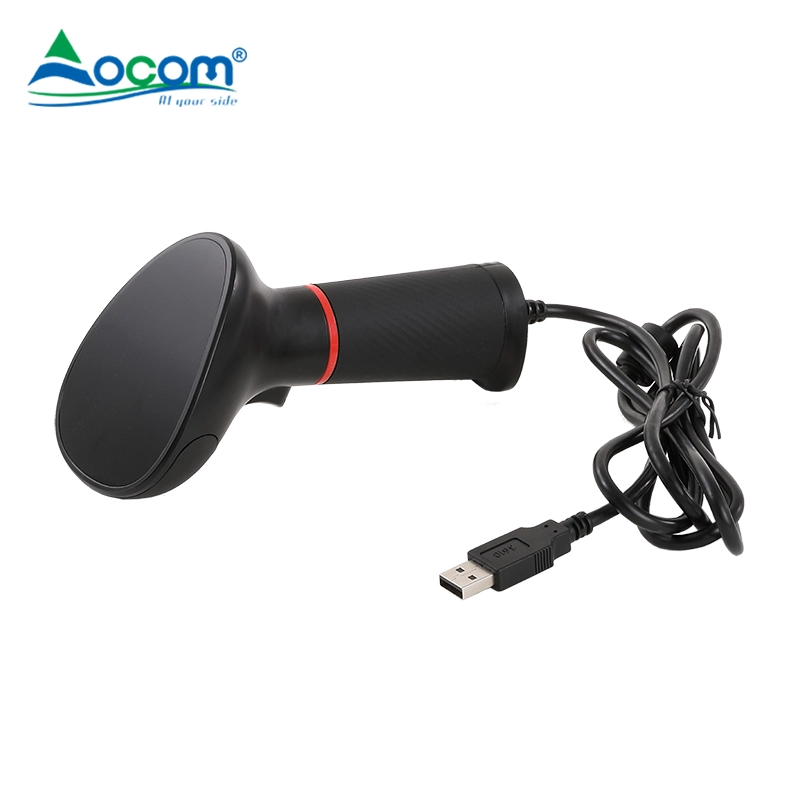

High Performance 2D Barcode Scanner With Stand
(M/N:OCBS-2021)
Features:
Subvert traditional design, with simple assembly stand
0.3 million overall situation exposure, 60fps fast speed
3mil resolution bar code reading ability
Support reading many kinds of 1D&2D bar code
Support reading difficult bar codes (blurred, wrinkled, fuzzy, low contrast, high density
Widely used in different host systems, such as windows 7/8/10, iOS, Android and Linux system, etc
Specification
|
General |
|
|
Model |
OCBS-2021 |
|
Material |
ABS+TPU |
|
CPU |
32bit ARM |
|
Prompt |
Beep&LED |
|
Scanning mode |
Manual trigger/automatic induction |
|
Interface |
USB-HID,USB-VCP |
|
Input Voltage |
3.6v~5.6v DC |
|
current |
Working current 142mAh,Standby current 42mAH |
|
cable |
1.6M |
|
Performance |
|
|
Sensor |
CMOS |
|
Light Source |
White LED(lighting) red LED aiming |
|
Scanning speed |
60fps |
|
Resolution |
≥3mil |
|
Decoding Depth |
60-360mm |
|
Exposure |
Global Exposure |
|
COMS Image Size |
640x480 |
|
Anti-ambient light interference |
0－5000Lux(fluorescent)，0－100,000Lux(Sunlight) |
|
Barcodes |
1D:Codabar、Code11、Code39、Code32、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code93、Code128、GS1-128、UPC-A、UPC-E、EAN 8、EAN 13、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded、etc 2D: PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec Code |
|
Scan Angle |
Rotate 360°, inclination 65°, elevation 60° |
|
Physical |
|
|
Weight |
Gross:185g |
|
Dimension |
163*68*80mm |
|
Environment |
|
|
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
|
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
