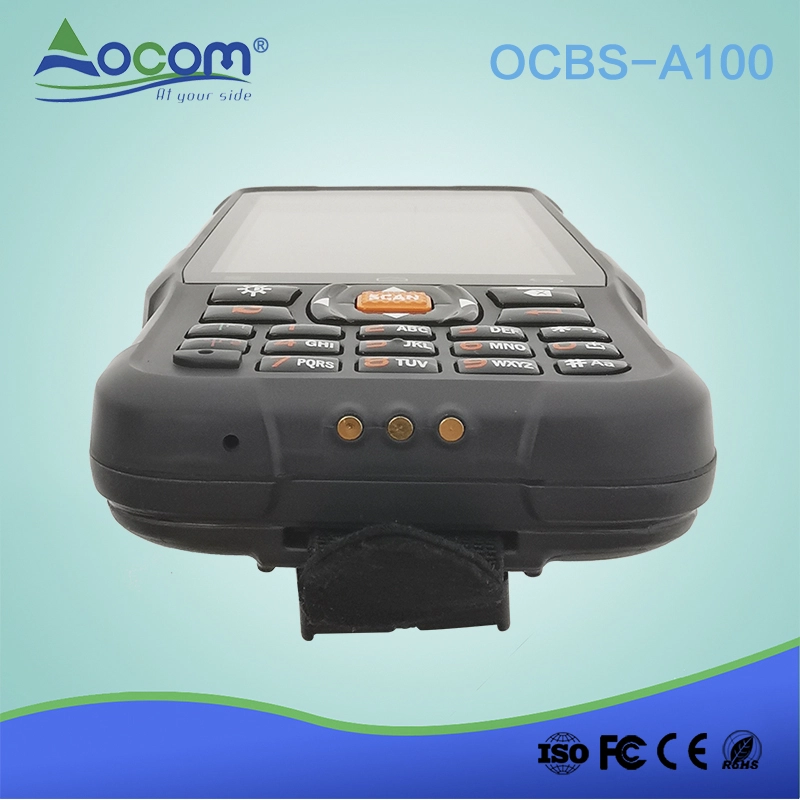

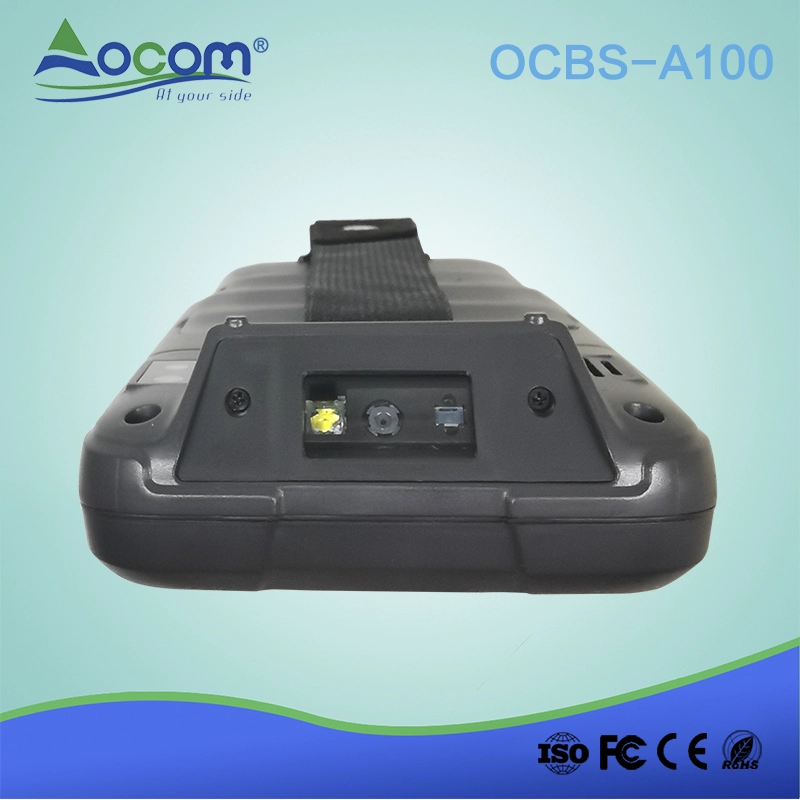

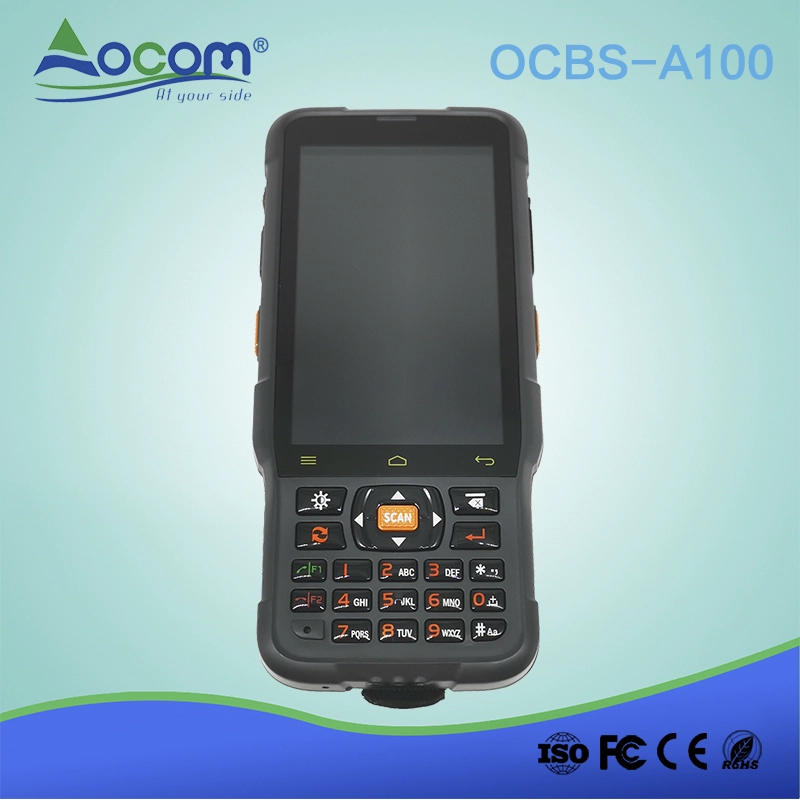

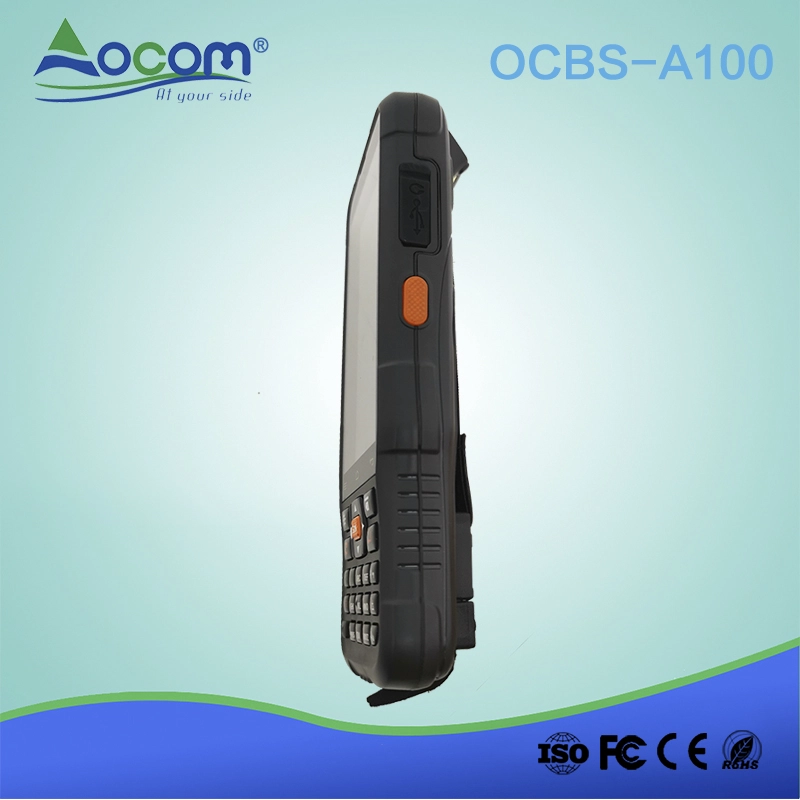

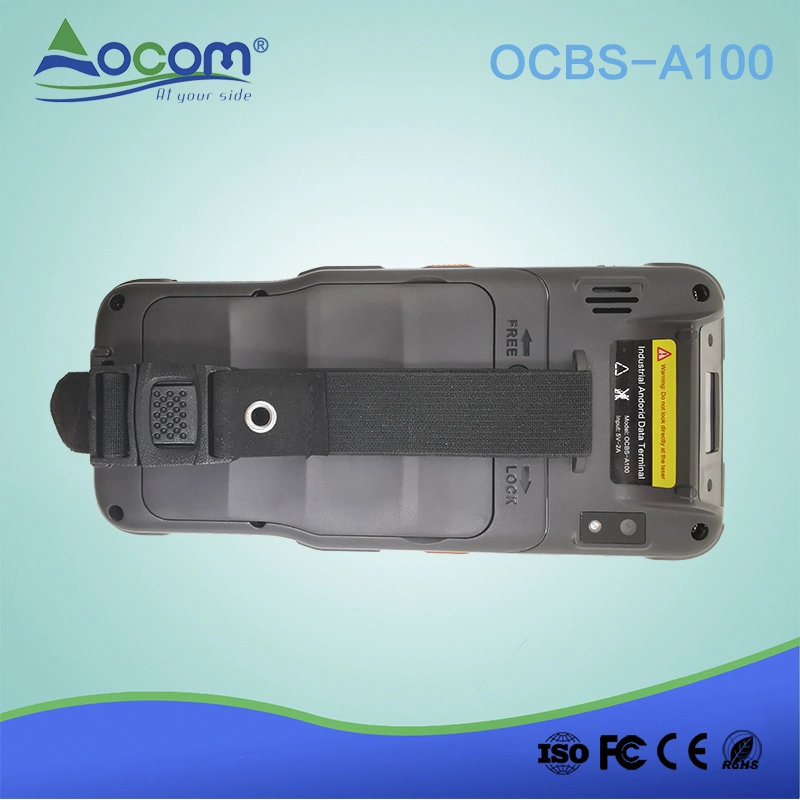

OCBS-A100 1d qr code barcode scanner android pda
- Qualcomm Quad core Android 7.1
- 2G RAM+16G ROM
- 4.0 in. 480*800 WVGA IPS Screen
- Numeric&Functional Keypads
- Support 4G Communication
- 2.4G+5G Dual mode wifi and Bluetooth
- Rechargeable li-ion polymer, 3.7V, 3200Ah Battery
- Rugged IP54 /1.5 m Drop Tolerance
- 8 megapixel camera auto-focus with LED flash of optional
- 1D/2D Barcode Scanner for optional
OCBS-A100 1d qr code barcode scanner android pda
(M/N: OCBS-A100)
Features:
Qualcomm Quad core Android 7.1;
2G RAM+16G ROM;
4.0 in. 480*800 WVGA IPS Screen;
Numeric&Functional Keypads;
Support 4G Communication;
2.4G+5G Dual mode wifi and Bluetooth;
Rechargeable li-ion polymer, 3.7V, 3200Ah Battery;
Rugged IP54 /1.5 m Drop Tolerance;
8 megapixel camera auto-focus with LED flash of optional;
1D/2D Barcode Scanner for optional.
|
SPECIFICATIONS |
||||
|
PHYSICAL CHARACTERISTICS |
||||
|
Dimension |
162mm(H)x73mm(W)x20mm(D)±2 mm |
|||
|
Weight |
Net Weight :266g (including battery&wrist strap) |
|||
|
Display |
4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight |
|||
|
Backlight |
LED backlight |
|||
|
Keypads |
3 TP keys, 23 function keys, 4 side buttons |
|||
|
Expansions |
2 SIM, 1 TF |
|||
|
Battery |
Rechargeable li-ion polymer, 3.7V, 3200mAh |
|||
|
PERFORMANCE CHARACTERSTICS |
||||
|
CPU |
Qualcomm Quad core |
|||
|
Operating System |
Android 7.1 |
|||
|
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
|||
|
USER ENVIRONMENT |
||||
|
Operating Temp. |
-20℃ to 50℃ |
|||
|
Storage Temp. |
-20℃ to 70℃ |
|||
|
Humidity |
5%RH to 95%RH(non-condensing) |
|||
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
|||
|
Sealing |
IP54, IEC compliance |
|||
|
DEVELOPMENT ENVIRONMENT |
||||
|
SDK |
HHW Software Development Kit |
|||
|
Language |
Java |
|||
|
Environment |
Android Studio or Eclipse |
|||
|
DATA COMMUNICATION |
||||
|
WWAN |
TDD-LTE,FDD-LTE |
|||
|
WLAN |
IEEE 802.11 a/b/g/n 2.4G+5G |
|||
|
WPAN |
Bluetooth v4.1+BR/EDR+BLE |
|||
|
DATA CAPTUER |
||||
|
BARCODE READER(OPTIONAL) |
||||
|
1D barcode |
1D laser engine |
Mingde uE966 (Honeywell 4313 for Optional) |
||
|
Symbologies |
All major 1D barcodes |
|||
|
2D barcode |
2D CMOS Imager |
Mingde ME54800 (Honeywell 3680 for Optional) |
||
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
|||
|
RFID READER(OPTIONAL) |
||||
|
RFID HF |
Frequency |
13.56MHz |
||
|
Protocol |
ISO 14443A&15693 |
|||
|
R/W Range |
2cm to 8cm |
|||
|
ACCESSORIES |
||||
|
Standard |
1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable |
|||
|
Optional |
Cradle |
|||
