    (OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal(OCBS-A100) Handheld Android Industrial Data Terminal

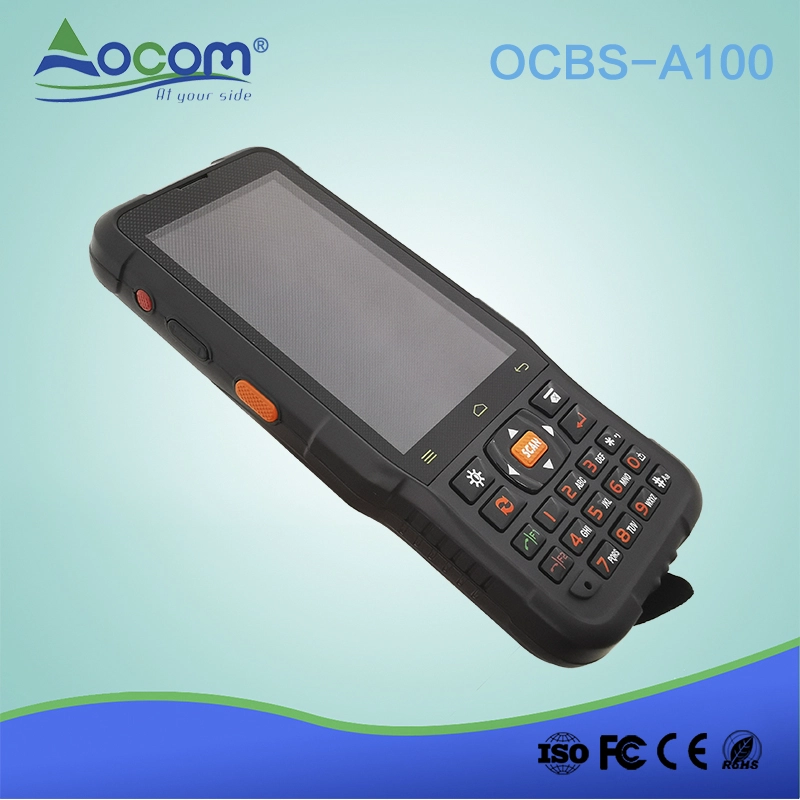

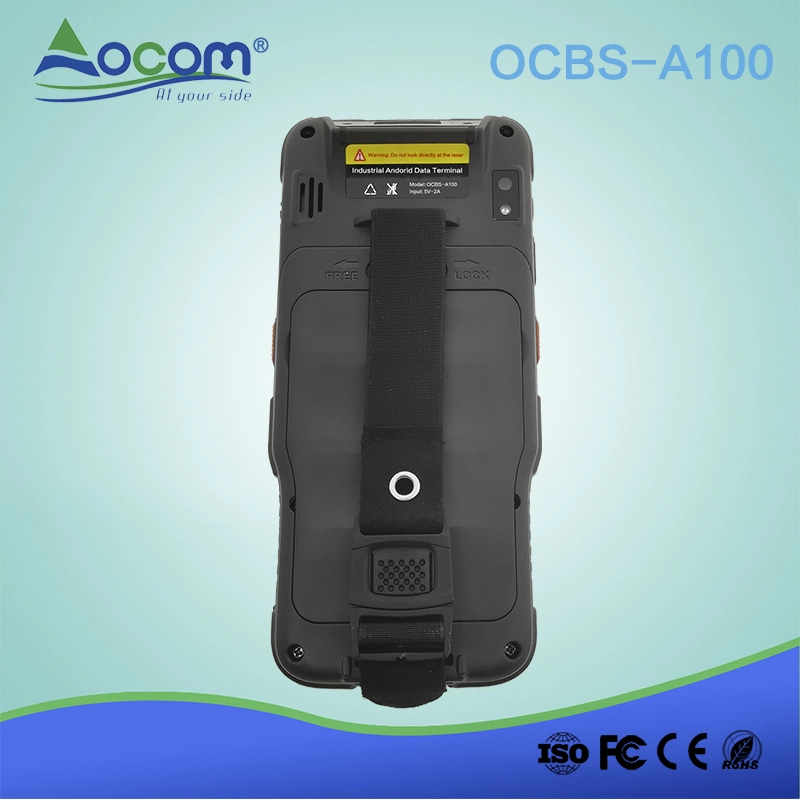

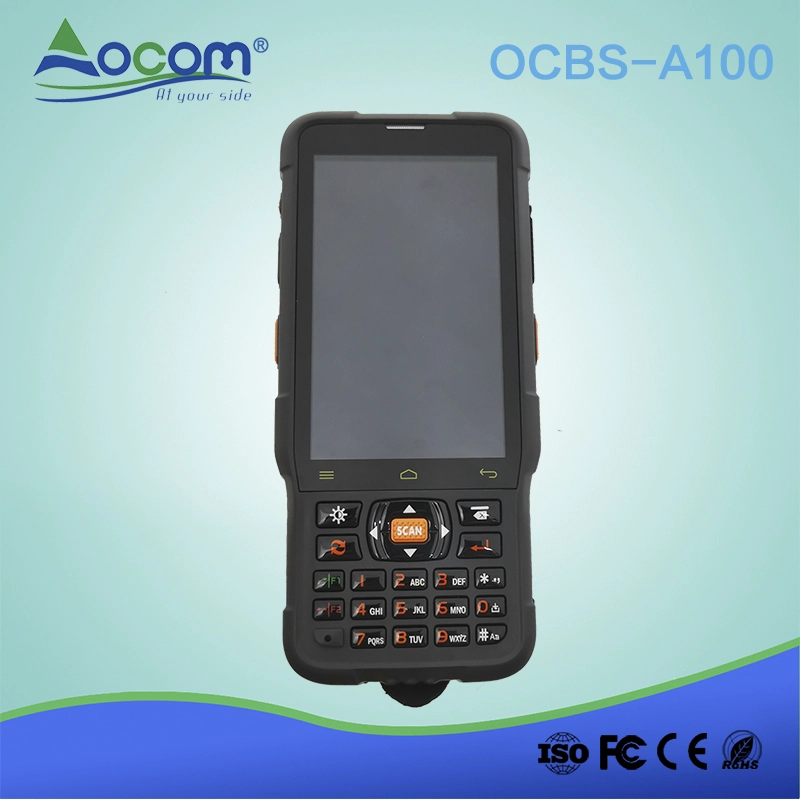

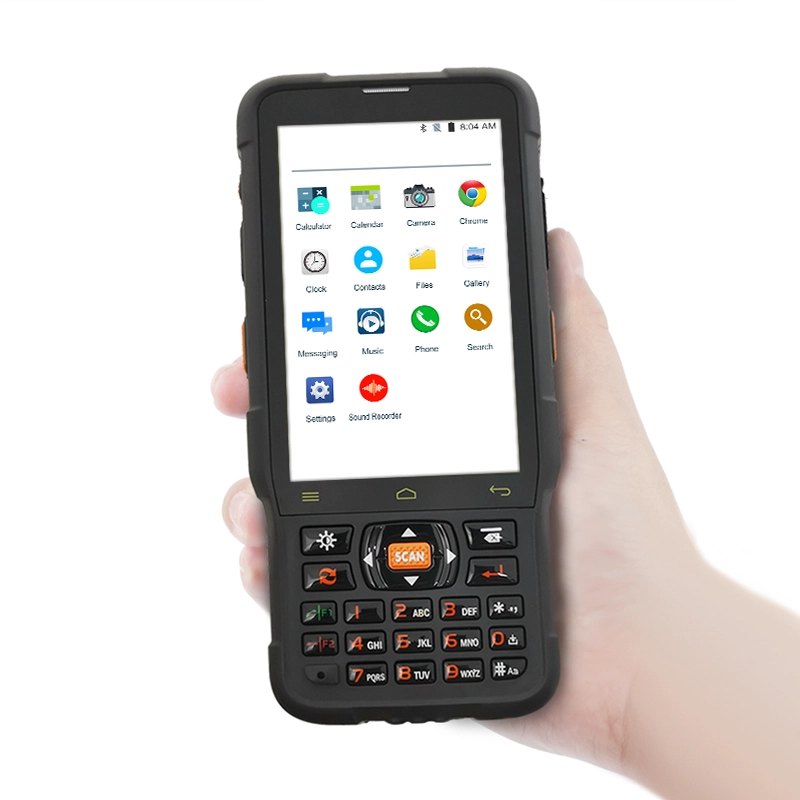

    (OCBS-A100) Handheld Android Industrial Data Terminal

    • Qualcomm Quad core Android 7.1;
    • 1G RAM+8G ROM or 2G RAM+16G ROM for options;
    • 4.0 in. 480*800 WVGA IPS Screen;
    • Numeric&Functional Keypads;
    • Support 4G Communication;
    • 2.4G+5G Dual mode wifi and Bluetooth;
    • Rechargeable li-ion polymer, 3.7V, 3200Ah Battery;
    • Rugged IP54 /1.5 m Drop Tolerance;
    • 8 megapixel camera auto-focus with LED flash of optional;
    • 1D/2D Barcode Scanner for optional;
    • POGO PIN charging port support optional cradle;
    • GPS and NFC for options;
    • Do the screen shot with pressing the "switch on" and "volumn-" buttons at same time.

    Handheld Android Industrial Data Terminal

    (M/N: OCBS-A100)



    Features:

    1.  Qualcomm Quad core Android 7.1

    2.  1G RAM+8G ROM or 2G RAM+16G ROM for options

    3.  4.0 in. 480*800 WVGA IPS Screen

    4.  Numeric&Functional Keypads

    5.  Support 4G Communication

    6.  2.4G+5G Dual mode wifi and Bluetooth

    7.  Rechargeable li-ion polymer, 3.7V, 3200Ah Battery

    8.  Rugged IP54 /1.5 m Drop Tolerance

    9.  8 megapixel camera auto-focus with LED flash of optional

    10. 1D/2D Barcode Scanner for optional

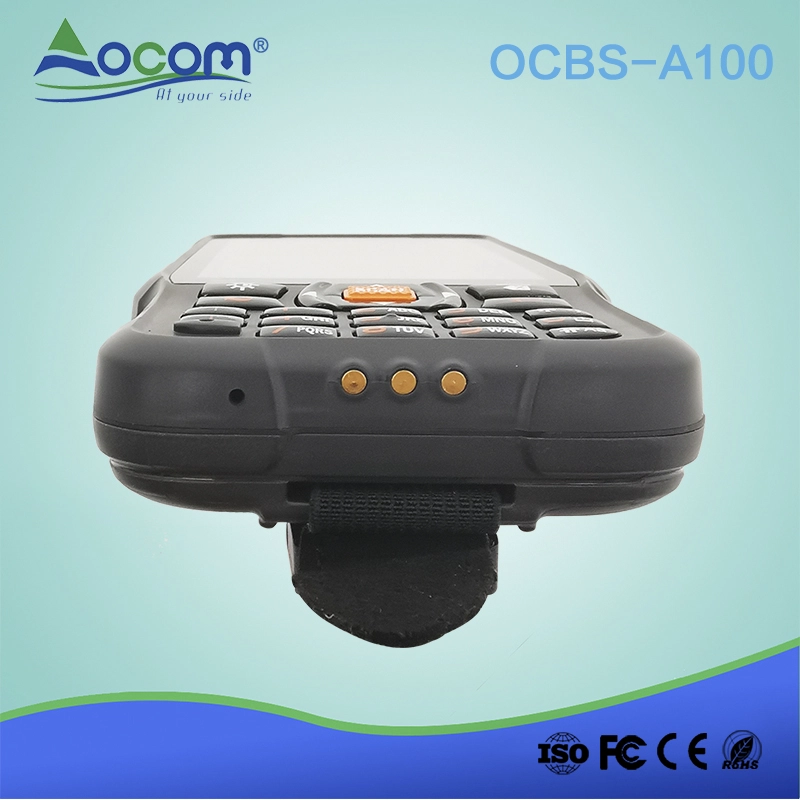

    11. POGO PIN charging port support optional cradle

    12. GPS and NFC for options

    13. Do the screen shot with pressing the "switch on" and "volumn-" buttons at same time



    SPECIFICATIONS

    PHYSICAL CHARACTERISTICS

    Dimension

    162mm(H)x73mm(W)x20mm(D)±2 mm

    Weight

    Net Weight :266g (including battery&wrist strap)

    Display

    4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight

    Backlight

    LED backlight

    Keypads

    3 TP keys, 23 function keys, 4 side buttons

    Expansions

    2 SIM, 1 TF

    Battery

    Rechargeable li-ion polymer, 3.7V, 3200mAh

    PERFORMANCE CHARACTERSTICS

    CPU

    Qualcomm Quad core

    Operating System

    Android 7.1

    Storage

    1GB RAM+8GB ROM or 2GB RAM+16GB ROM, MicroSD(max 32GB expansion)

    USER ENVIRONMENT

    Operating Temp.

    -20℃ to 50℃

    Storage Temp.

    -20℃ to 70℃

    Humidity

    5%RH to 95%RH(non-condensing)

    Drop Specifications

    5ft./1.5 m drop to concrete across the operating temperature range

    Sealing

    IP54, IEC compliance

    DEVELOPMENT ENVIRONMENT

    SDK

    HHW Software Development Kit

    Language

    Java

    Environment

    Android Studio or Eclipse

    DATA COMMUNICATION

    WWAN

    TDD-LTE,FDD-LTE,

    B1/B2/B3/B5/B7/B8/B20/B38/B39/B40/B41

    WLAN

    IEEE 802.11 a/b/g/n 2.4G+5G

    WPAN

    Bluetooth v4.1+BR/EDR+BLE

    DATA CAPTUER

    BARCODE READER(OPTIONAL)

    1D barcode

    1D laser engine

    Mingde uE966 (Honeywell 4313 for Optional)

    Symbologies

    All major 1D barcodes

    2D barcode

    2D CMOS Imager

    Mingde ME54800 (Honeywell 3680 for Optional)

    Symbologies

    PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

    RFID READER(OPTIONAL)

    RFID HF

    Frequency

    13.56MHz

    Protocol

    ISO 14443A&15693

    R/W Range

    2cm to 8cm

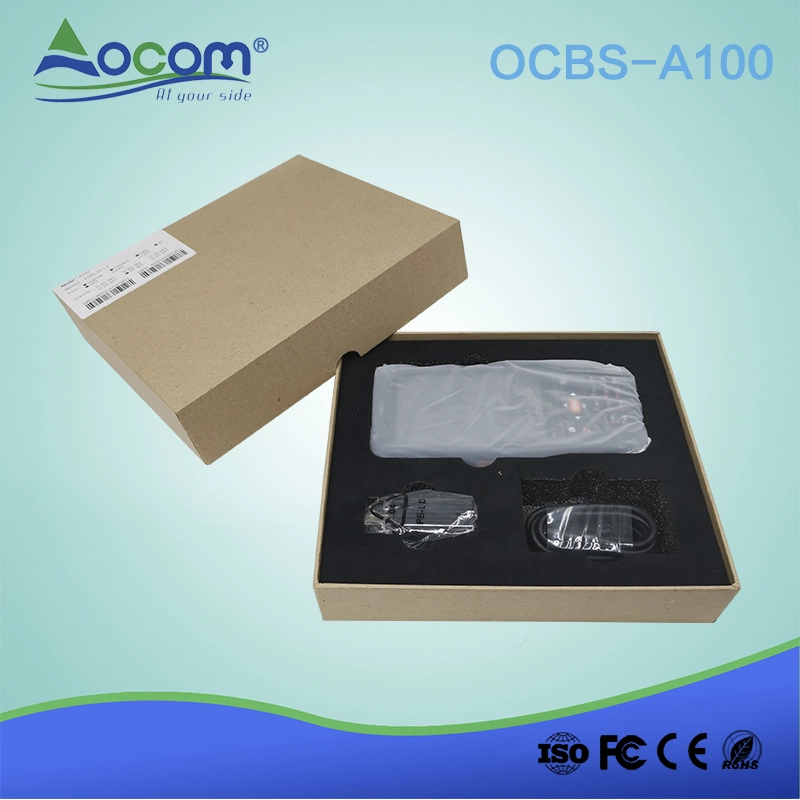

    ACCESSORIES

    Standard

    1xPower Supply

    1xLithium Polymer Battery

    1xDC charging cable

    1xUSB data cable

    Optional

    Cradle, GPS and NFC
