(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads

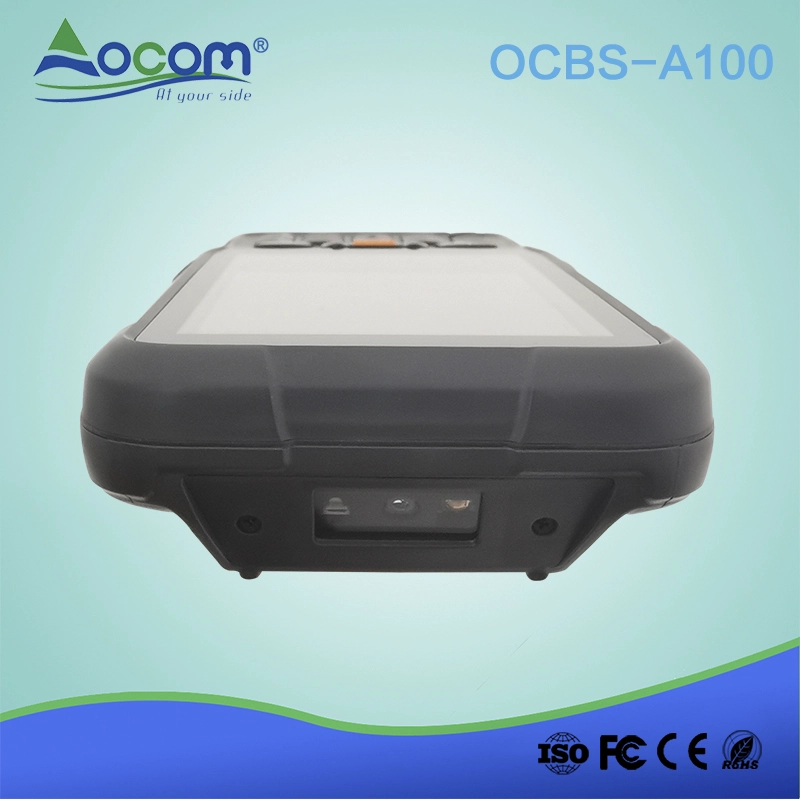

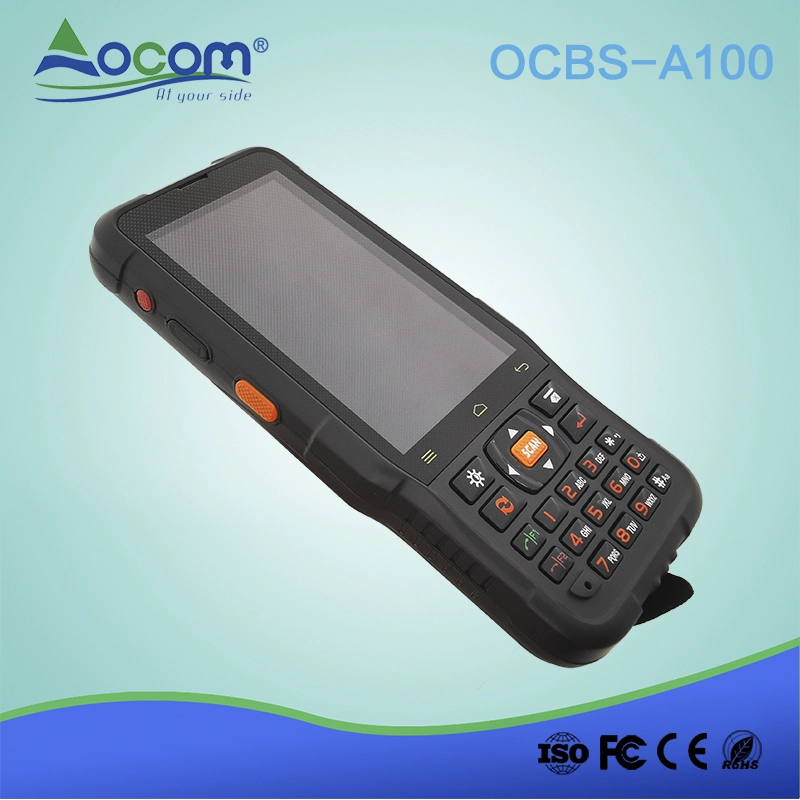

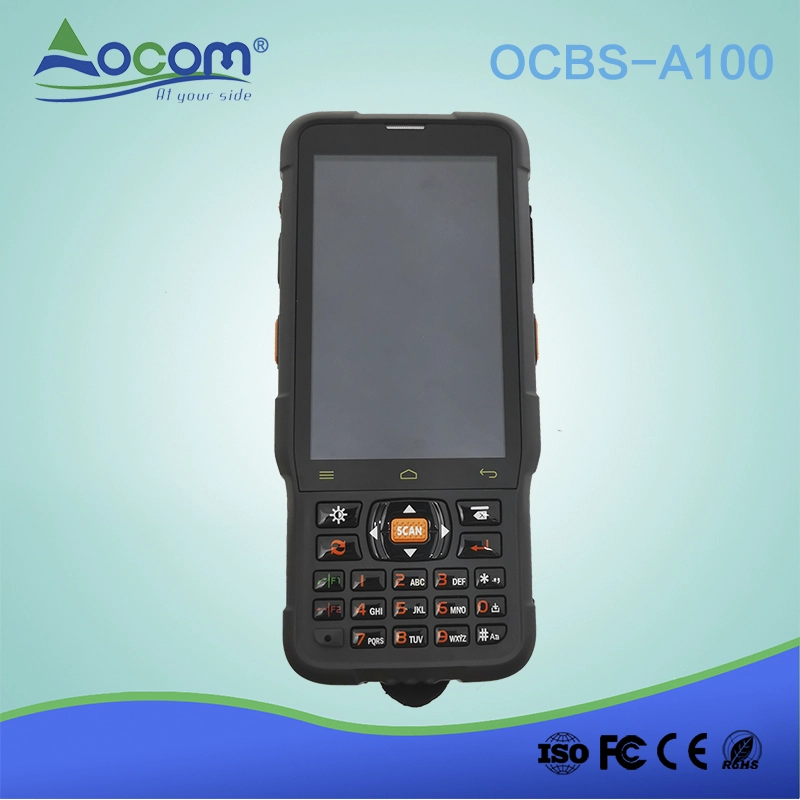

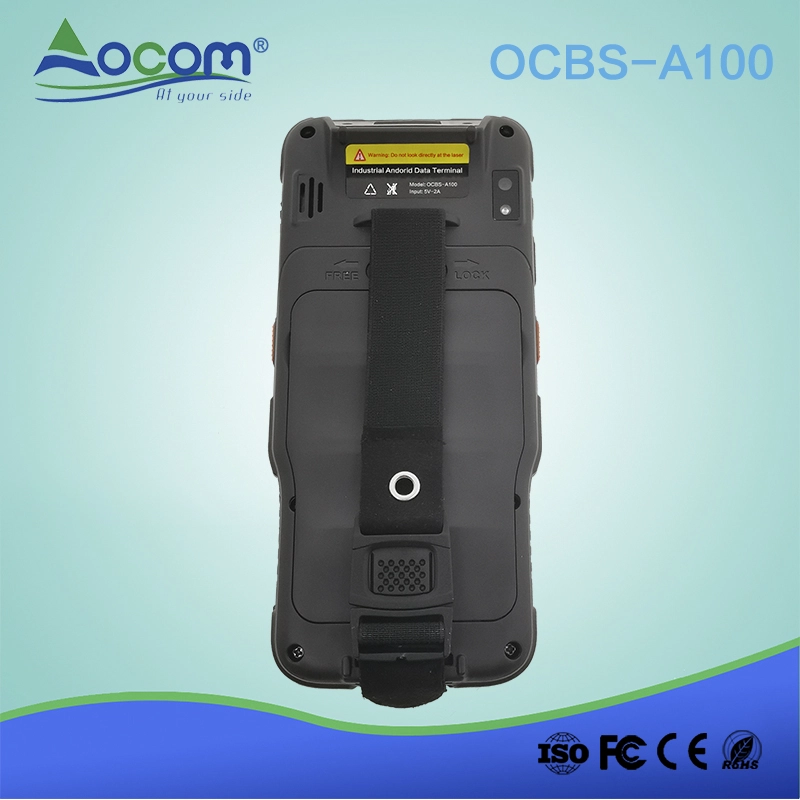

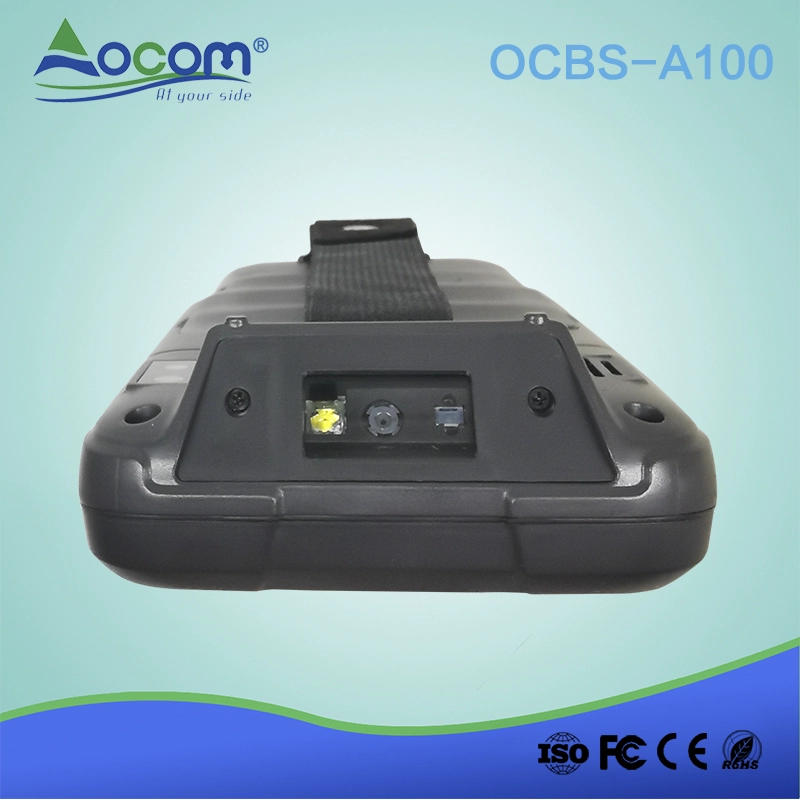

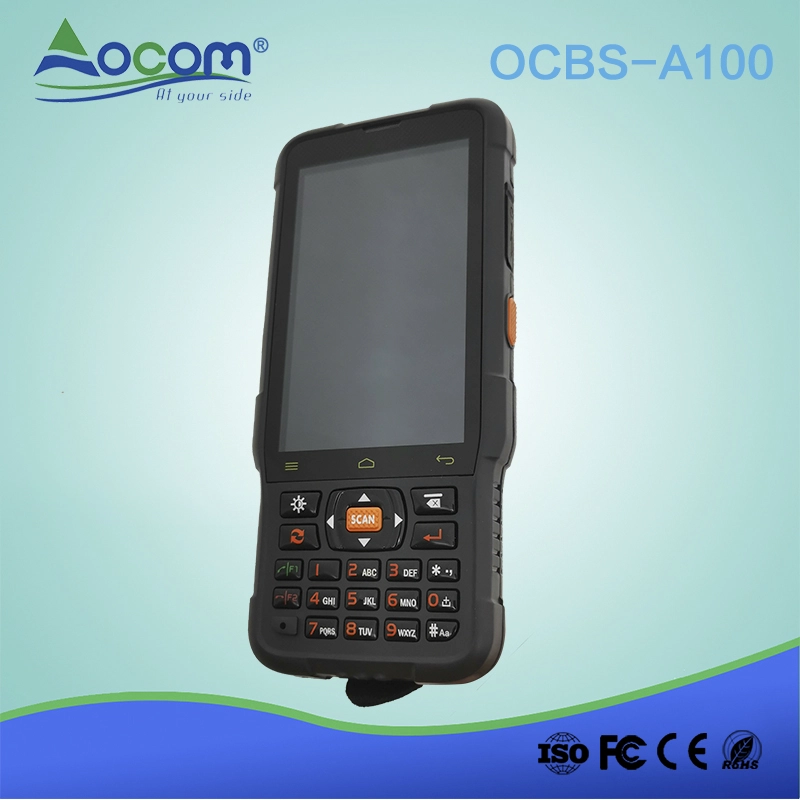

(OCBS-A100) Industrial Logistics Android 7.1 Handheld PDA with Numeric Keypads

  • Qualcomm Quad core Android 7.1
  • 1G RAM+8G ROM or 2G RAM+16G ROM for options
  • 4.0 in. 480*800 WVGA IPS Screen
  • Numeric&Functional Keypads
  • Support 4G Communication
  • 2.4G+5G Dual mode wifi and Bluetooth
  • Rechargeable li-ion polymer, 3.7V, 3200Ah Battery
  • Rugged IP54 /1.5 m Drop Tolerance
  • 8 megapixel camera auto-focus with LED flash of optional
  • 1D/2D Barcode Scanner for optional
  • POGO PIN charging port support optional cradle
  • GPS and NFC for options
  • Do the screen shot with pressing the "switch on" and "volumn-" buttons at same time

Handheld Android Industrial Data Terminal

(M/N:OCBS-A100)


Features:

  1. Qualcomm Quad core Android 7.1
  2. 1G RAM+8G ROM or 2G RAM+16G ROM for options
  3. 4.0 in. 480*800 WVGA IPS Screen
  4. Numeric&Functional Keypads
  5. Support 4G Communication
  6. 2.4G+5G Dual mode wifi and Bluetooth
  7. Rechargeable li-ion polymer, 3.7V, 3200Ah Battery
  8. Rugged IP54 /1.5 m Drop Tolerance
  9. 8 megapixel camera auto-focus with LED flash of optional
  10. 1D/2D Barcode Scanner for optional
  11. POGO PIN charging port support optional cradle
  12. GPS and NFC for options
  13. Do the screen shot with pressing the "switch on" and "volumn-" buttons at same time



SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

162mm(H)x73mm(W)x20mm(D)±2 mm

Weight

Net Weight :266g (including battery&wrist strap)

Display

4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 23 function keys, 4 side buttons

Expansions

2 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 3200mAh

PERFORMANCE CHARACTERSTICS

CPU

Qualcomm Quad core

Operating System

Android 7.1

Storage

1GB RAM+8GB ROM or 2GB RAM+16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP54, IEC compliance

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE,FDD-LTE,

B1/B2/B3/B5/B7/B8/B20/B38/B39/B40/B41

WLAN

IEEE 802.11 a/b/g/n 2.4G+5G

WPAN

Bluetooth v4.1+BR/EDR+BLE

DATA CAPTUER

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Mingde uE966 (Honeywell 4313 for Optional)

Symbologies

All major 1D barcodes

2D barcode

2D CMOS Imager

Mingde ME54800 (Honeywell 3680 for Optional)

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

RFID READER(OPTIONAL)

RFID HF

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

ACCESSORIES

Standard

1xPower Supply

1xLithium Polymer Battery

1xDC charging cable

1xUSB data cable

Optional

Cradle, GPS and NFC
