(OCBS-A168) 5.98" Windows 10 Pro System Handheld Industrial Data Terminal
- Windows 10 pro system;
- Z8350 CPU +4GB RAM+64GB ROM;
- 5.98 inch 720*1280 IPS Screen;
- Support 4G Communication;
- 2.4G+5G Dual mode wifi and Bluetooth;
- Rechargeable li-ion polymer, 3.7V, 5000Ah Battery;
- Rugged IP65 /1.2 m Drop Tolerance;
- 1D/2D Barcode Scanner for optional;
- Bluetooth scan pistol for optional;
- POGO PIN charging port support optional cradle.

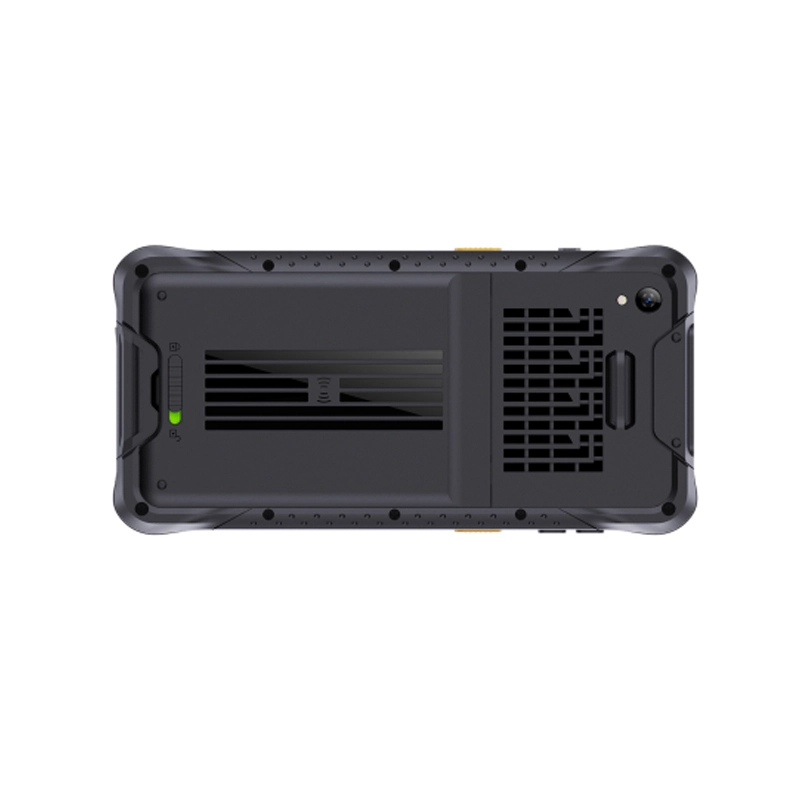

5.98" Windows 10 Pro System Handheld Industrial Data Terminal
(Model no.: OCBS-A168)
Feature:
Windows 10 pro system;
Z8350 CPU +4GB RAM+64GB ROM;
5.98 inch 720*1280 IPS Screen;
Support 4G Communication;
2.4G+5G Dual mode wifi and Bluetooth;
Rechargeable li-ion polymer, 3.7V, 5000Ah Battery;
Rugged IP65 /1.2 m Drop Tolerance;
1D/2D Barcode Scanner for optional;
Bluetooth scan pistol for optional;
POGO PIN charging port support optional cradle.
Specification
|
Basic parameters |
|
|
CPU |
Intel cherrytrail Z8350, 1.44Ghz-1.92GHz |
|
GPU |
Intel® HD Graphics |
|
RAM |
4GB LPDDR3 |
|
ROM |
64GB |
|
System |
Windows10 pro(No license by default) |
|
Physical parameter |
|
|
Resolution |
720*1280 720P IPS |
|
Brightness |
430Nit |
|
Touch Panel |
5 points capacitive screen, G+F, Corning University |
|
Front camera |
2.0MP |
|
Rear camera |
5.0MP |
|
Speaker |
built-in 8Ω/0.8W waterproof speaker |
|
Battery |
3.7V/5000mAh,Li_polyment, removable battery |
|
Battery life |
6 hours (default 50% volume, default Recognize 200 lumens brightness, play 720P HD video) |
|
G_sensor |
Support |
|
Gyro |
Support |
|
Indicator light |
Charging indicator light |
|
Keys |
Power key*1,volume key*2,scanner key*2（left and right）,Home key*1 |
|
Data Port |
Micro USB*1(charging and OTG function) |
|
Earphone Jack |
3.5mm standard headphone jack*1 |
|
TF Card |
Support SDHC/SDXC x1 |
|
SIM Card |
SIM Card slot*1 |
|
POGO PIN |
4pin for charging base |
|
Protection level |
IP65 |
|
size |
185*93*20.7mm |
|
Net weight |
380g |
|
Color |
Black |
|
Screen Size |
5.98 inch(16:9) |
|
Communication parameters |
|
|
Wifi |
IEEE 802.11a/b/g/n,2.4&5.8GHz |
|
Bluetooth |
BT4.1 BLE Class1,distance≤10m |
|
4G |
GSM850/900/1800 WCDMA2100(B1/B5/B8) TD-SCDMA:B34 B39 FDD-LTE:B1 B3 /B5/B7/B8/B20 TDD-LTE:B38 B39 B40 B41 |
|
GPS |
U-blox NEO-7, support |
|
Standard accessories |
|
|
Cable |
Micro USB cable 5P L=1.2M 4 core with aluminum foil |
|
Adaper |
Input: 100~240V AC50/60HZ output:5VDC 3A micro USB connector |
|
Anti-drop wrist strap |
Anti-drop wrist strap*1 |
|
Optional function |
|
|
1D Scanner |
Honeywell N4313 |
|
2D Scanner |
Honeywell N3680 |
|
Charging base |
Can charge a device and a separate battery |
|
Bluetooh Scan pistol |
Bluetooth Communication for trig scan function |
|
Reliability |
|
|
Drop height |
1.2m |
|
Operating temperature |
-10 Celsius--50 Celsius |
|
Storage temperature |
-30 Celsius--70 Celsius |
|
Humidity |
95% Non-Condensing |
|
Optional |
Carry Case,Cradle |
