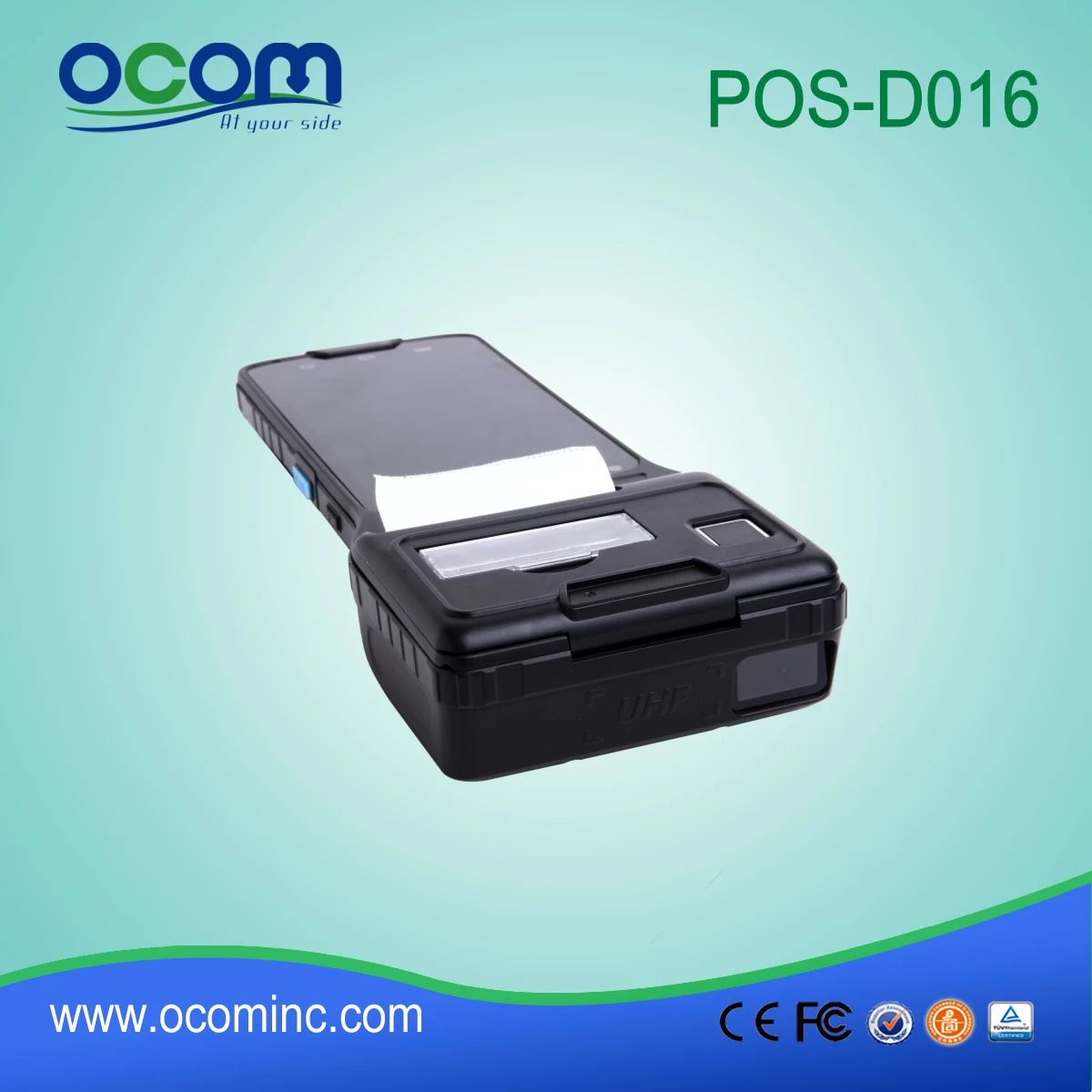

OCBS-D016 Portable warehouse Android PDA For warehouse

5" Handheld Android Smart Terminal with Printer
1)Android5.1 Operation system?
2)Magny-Cours high configuration CPU?
3)5inches touch screen ,resolution 1280*720 dpi,IPS
4)1GB SDRAM; 4GB NAND FLASH,Expandable 32G
5)4000mAH Large battery capacity
6)Printer,NFC,3G,Wifi,Bluetooth,GPS,AGPS, 8 million pixel camer for basic configuration
Scanner,Finger Print and UHF for optional
7)Default configerations: 4G+WIFI+BT+GPS+camera+thermal printer+NFC

OCBS-D016 Portable Warehouse Android PDA For Warehouse (OCBS-D016) Feature: Android4.2.2 Operation System 1.3GHz Quad core high configuration CPU 1GB SDRAM; 4GB NAND FLASH,Expandable 32G 5inches touch screen ,resolution 1280*720 dpi,IPS 4000mAH Large battery capacity 58mm Thermal Printer,NFC,3G,Wifi,Bluetooth,GPS,AGPS 8 million pixel camera for basic configuration Scanner,Finger Print and UHF for optional
Basic Information
Model:	OCBS-D016
OS:	Android4.2.2
CPU	1.3GHz Quad core
Memory	1GB SDRAM; 4GB NAND FLASH,Expandable 32G
Display	5inches touch screen ,resolution 1280*720 dpi,IPS
Operating Keys	2 scan button,1 power on/off button
Battery	Rechargeable 3.7V,4000mAH battery
Charging method	Enclosed power, separate battery charger cradle
Charging time	5hours
Dimensions	145(W)78(D)16(H)mm,544.5g (include battery) 463g (no battery)
Durability	IP54 design
Temp. in operation	Minus 10 degrees Celsius to 45 degrees Celsius
Temp. in storage	Minus 20 degrees Celsius to 55 degrees Celsius
Humidity	5 - 95% (non-condensing)
Communication
WLAN		802.11b/g/n
USB		1 Micro USB
Audio		850/900/1800/1900MHz
GSM/GPRS/3G		3G: WCDMA 2100Mhz ; CDMA2000
Bluetooth		BT 2.0
Multi functions
Thermal Printer		2 inch thermal printer,203dpi,15mm/sec,58mm width,30mm diameter,Basic
RFID		NFC :13.56Mhz (ISO14443A; ISO15693) Basic and UHF: 920-925Mhz for optional
Scaner(1D/2D)		1D Laser Barcode reader or 2D image reader,Honeywell engine for optional
Camera		8 million pixel; Auto-focusl,Basic
GPS		GPS and A-GPS,Basic
Finger Print		Sensor:FPC1011F1,processor:FPC2020Q1(64 pin QFN 9 * 9 mm)optional
