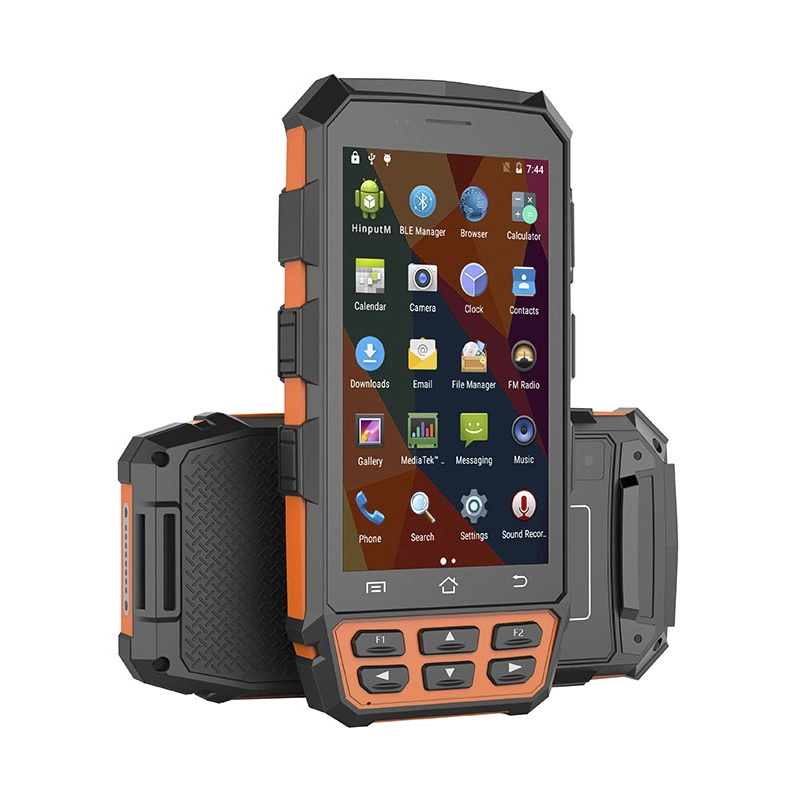

    (OCBS-D5000) Rugged Handheld Android 7.0 4G Industrial Data Terminal(OCBS-D5000) Rugged Handheld Android 7.0 4G Industrial Data Terminal(OCBS-D5000) Rugged Handheld Android 7.0 4G Industrial Data Terminal(OCBS-D5000) Rugged Handheld Android 7.0 4G Industrial Data Terminal

    (OCBS-D5000) Rugged Handheld Android 7.0 4G Industrial Data Terminal

    • Android 7.0
    • 2GB RAM, 16GB ROM
    • Gorilla 5.0 in. 720*1280 Gorilla HD Screen
    • Rugged IP65/1.5 m Drop Tolerance
    • Rechargeable li-ion polymer, 3.7V, 4500 or 8000mAh Battery
    • Rear Camera 8 MP, auto-focus with LED flash
    • Support 4G/Wifi/GPS/Bluetooth
    • HHW Software Development Kit
    • 1D/2D Barcode Scanner(optional)
    • RFID LF/HF/UHF/NFC (optional)
    • TCS1SM Capacitive Fingerprint Sensor(optional)



             Rugged Handheld Android 7.0 4G Industrial Data Terminal
                                                (Model no.: OCBS-D5000)


    Feature:

    - Android 7.0

    - 1GB RAM, 16GB ROM

    - Gorilla 5.0 in. 720*1280 Gorilla HD Screen

    - Rugged IP65/1.5m Drop Tolerance

    - Rechargeableli-ion polymer, 3.7V, 8000mAh Battery

    - Rear Camera 8 MP,auto-focus with LED flash

    - Support 4G/Wifi/GPS/Bluetooth

    - HHW SoftwareDevelopment Kit

    - 1D/2D BarcodeScanner(optional)

    - RFIDLF/HF/UHF/NFC (optional)

    - TCS1SMCapacitive Fingerprint Sensor(optional)



    SPECIFICATIONS

    PHYSICAL CHARACTERISTICS

    Dimension

    170mm(H)x85mm(W)x23mm(D)±2 mm

    Weight

    Net Weight :380g (including battery&wrist strap)

    Display

    Gorilla 5.0 in. TFT-LCD(720x1280)touch screen with backlight

    Backlight

    LED backlight

    Keypads

    3 TP keys, 6 function keys, 4 side buttons

    Expansions

    2 PSAM, 1 SIM, 1 TF

    Battery

    Rechargeable li-ion polymer, 3.7V, 8000mAh

    PERFORMANCE CHARACTERSTICS

    CPU

    Quad A53 1.5GHz quad-core

    Operating System

    Android 7.0

    Storage

    2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

    USER ENVIRONMENT

    Operating Temp.

    -20℃ to 50℃

    Storage Temp.

    -20℃ to 70℃

    Humidity

    5%RH to 95%RH(non-condensing)

    Drop Specifications

    5ft./1.5 m drop to concrete across the operating temperature range

    Sealing

    IP65, IEC compliance

    ESD

    ±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge

    DEVELOPMENT ENVIRONMENT

    SDK

    HHW Software Development Kit

    Language

    Java

    Environment

    Android Studio or Eclipse

    DATA COMMUNICATION

    WWAN

    TDD-LTE Band 38, 39, 40, FDD-LTE Band 1,2,3, 4,7;

    WCDMA(850/1900/2100MHz);

    GSM/GPRS/Edge 850/900/1800/1900MHz);

    WLAN

    2.4G/5G Dual Frequency, IEEE 802.11 a/b/g/n/ac

    WPAN

    Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

    GPS

    GPS(embedded A-GPS), accuracy of 5 m

    DATA CAPTUER

    BARCODE READER(OPTIONAL)

    1D barcode

    1D laser engine

    Honeywell N431x

    Symbologies

    All major 1D barcodes

    2D barcode

    2D CMOS Imager

    Honeywell N6603

    Symbologies

    PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

    COLOR CAMERA

    Resolution

    8.0 megapixel

    Lens

    Auto-focus with LED flash

    RFID READER(OPTIONAL)

    RFID LF

    Frequency

    125KHz/134.2KHz(FDX-B/HDX)

    Protocol

    ISO 11784&11785

    R/W Range

    2cm to 10 cm

    RFID HF

    Frequency

    13.56MHz

    Protocol

    ISO 14443A&15693

    R/W Range

    2cm to 8cm

    RFID UHF

    Frequency

    865~868MHz or 920~925MHz

    Protocol

    EPC C1 GEN2/ISO 18000-6C

    Antenna Gain

    Circular antenna(2dBi)

    R/W Range

    1 m to 1.5 m(tags and environment dependant)

    Active 2.45GHz

    Read range more than 200 m (customization)

    433MHz

    Read range more than 200 m (customization)

    ZigBee READER(OPTIONAL)

    Protocol

    IEEE 802.15.4 (customization)

    Reading Range

    100 m to 200 m(customization)

    FINGERPRINT READER(OPTIONAL)

    Sensor

    TCS1SM

    Sensor type

    Capacitive, area sensor

    Resolution

    508 DPI

    Performance

    FRR<0.008%, FAR<0.005%

    Capacity

    1000

    PSAM SECURITY(OPTIONAL)

    Protocol

    ISO 7816

    Baudrate

    9600, 19200, 38400,43000, 56000, 57600, 115200

    Slot

    2 slots(maximum)

    ACCESSORIES

    Standard

    1xPower Supply

    1xLithium Polymer Battery

    1xDC charging cable

    1xUSB data cable

    Optional

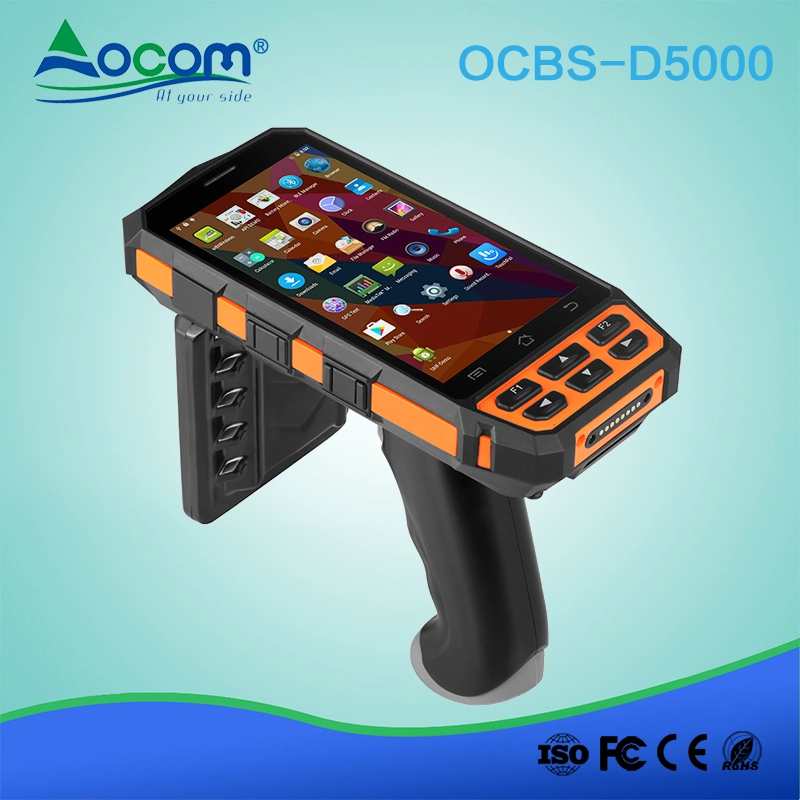

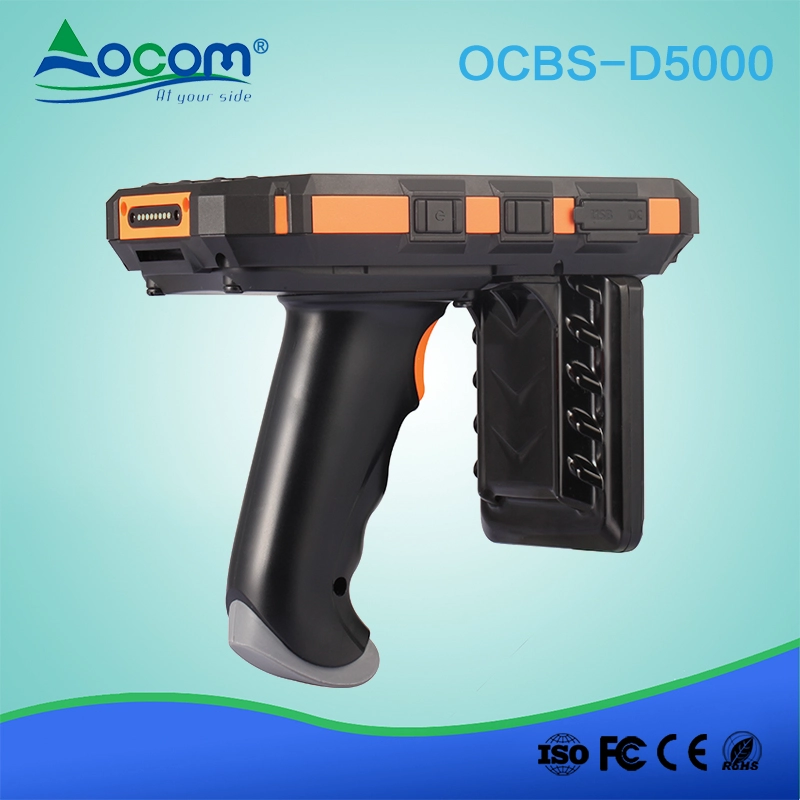

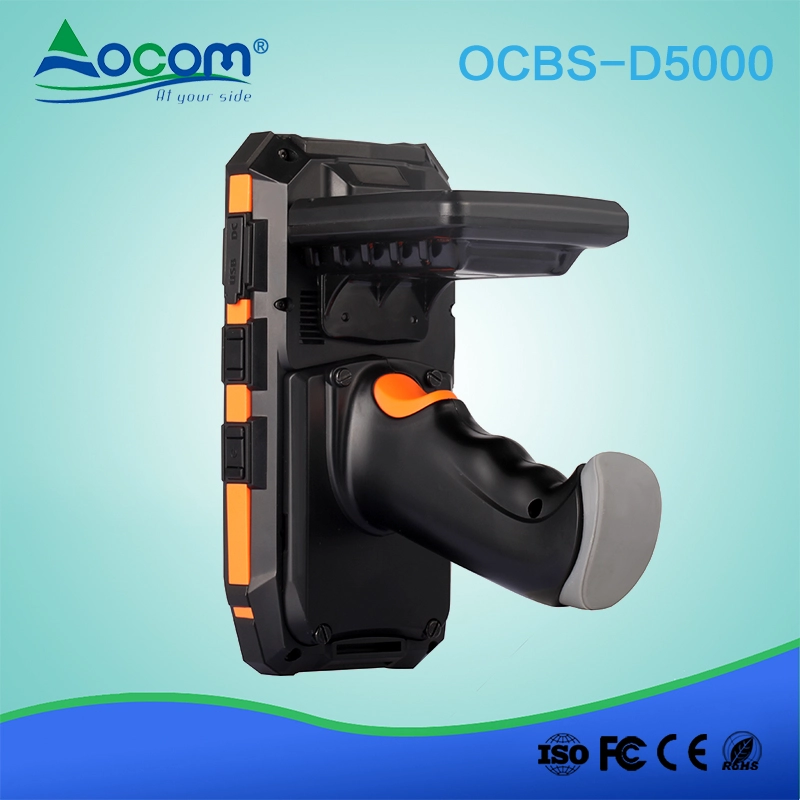

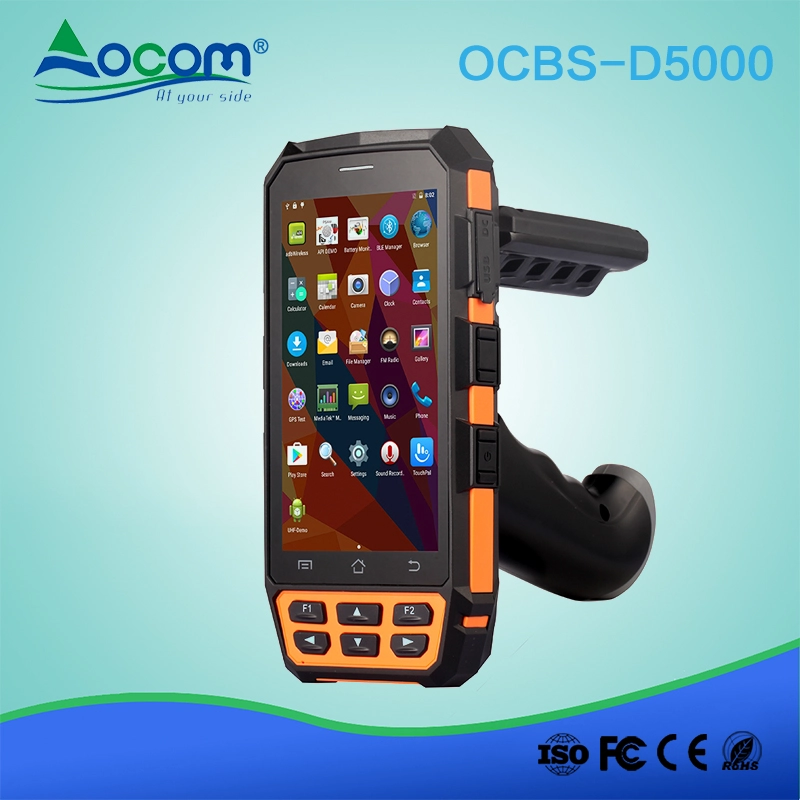

    Cradle,Handle, UHF gain board
