OCBS-D7000---China high quality newest rugged data collector android for saleOCBS-D7000---China high quality newest rugged data collector android for saleOCBS-D7000---China high quality newest rugged data collector android for saleOCBS-D7000---China high quality newest rugged data collector android for sale

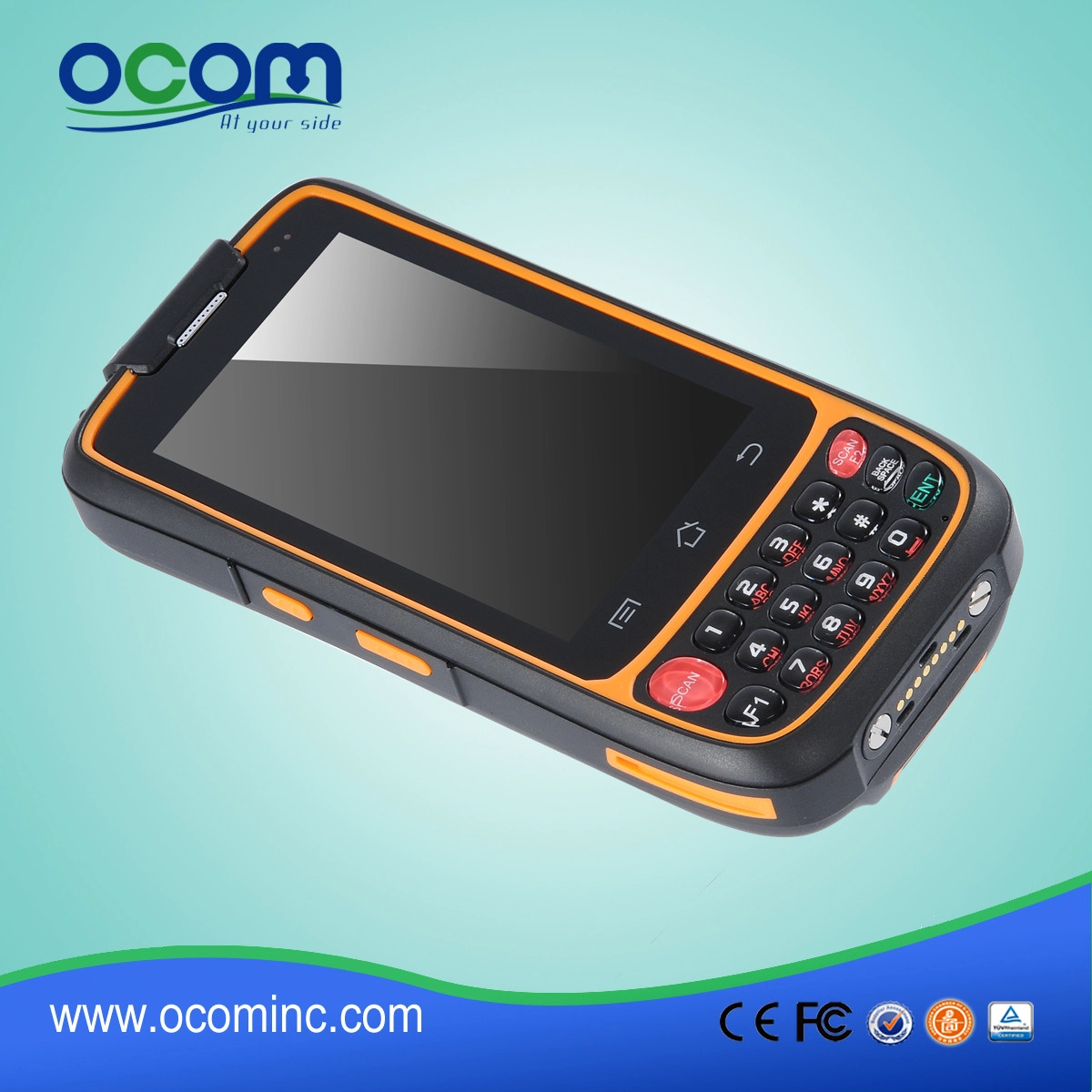

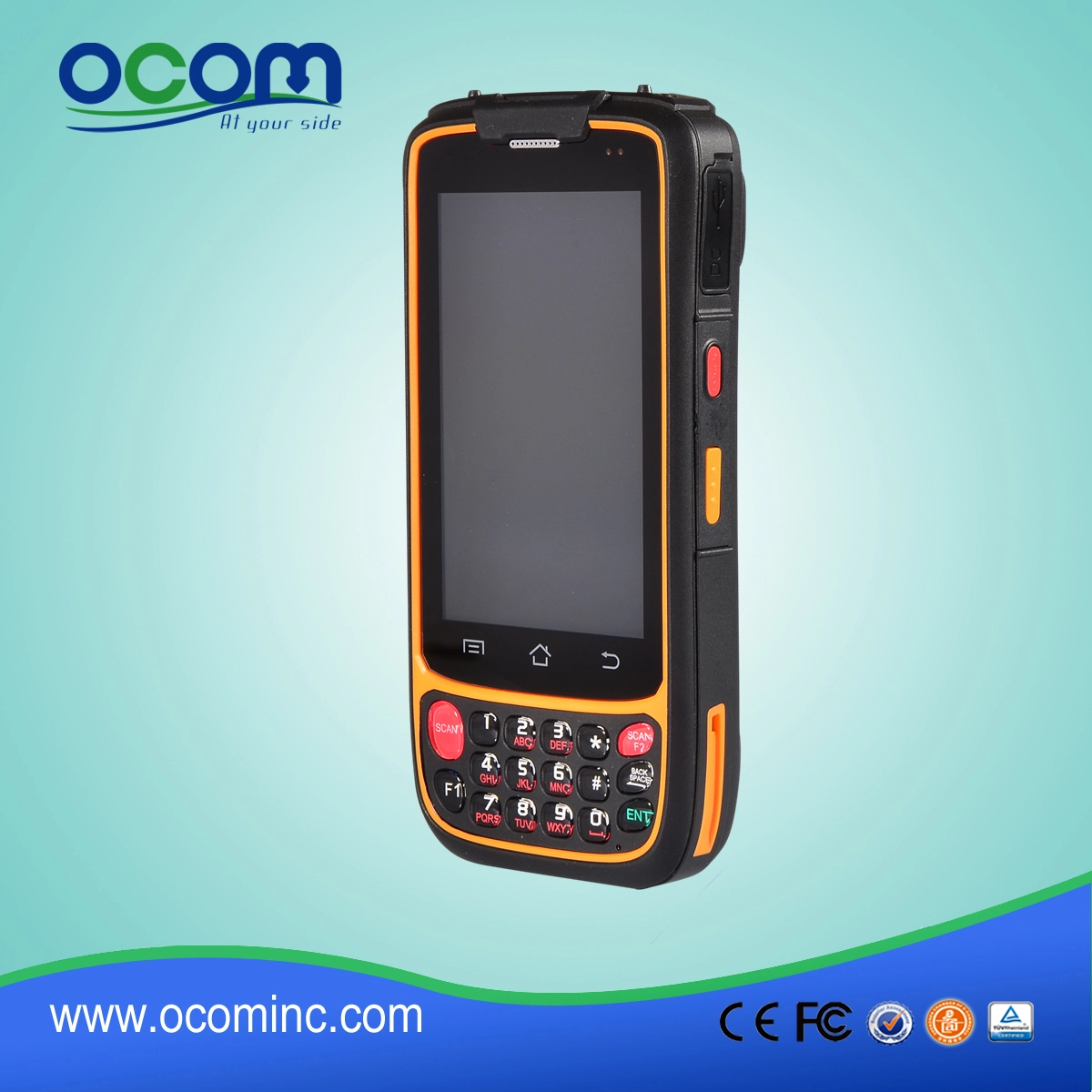

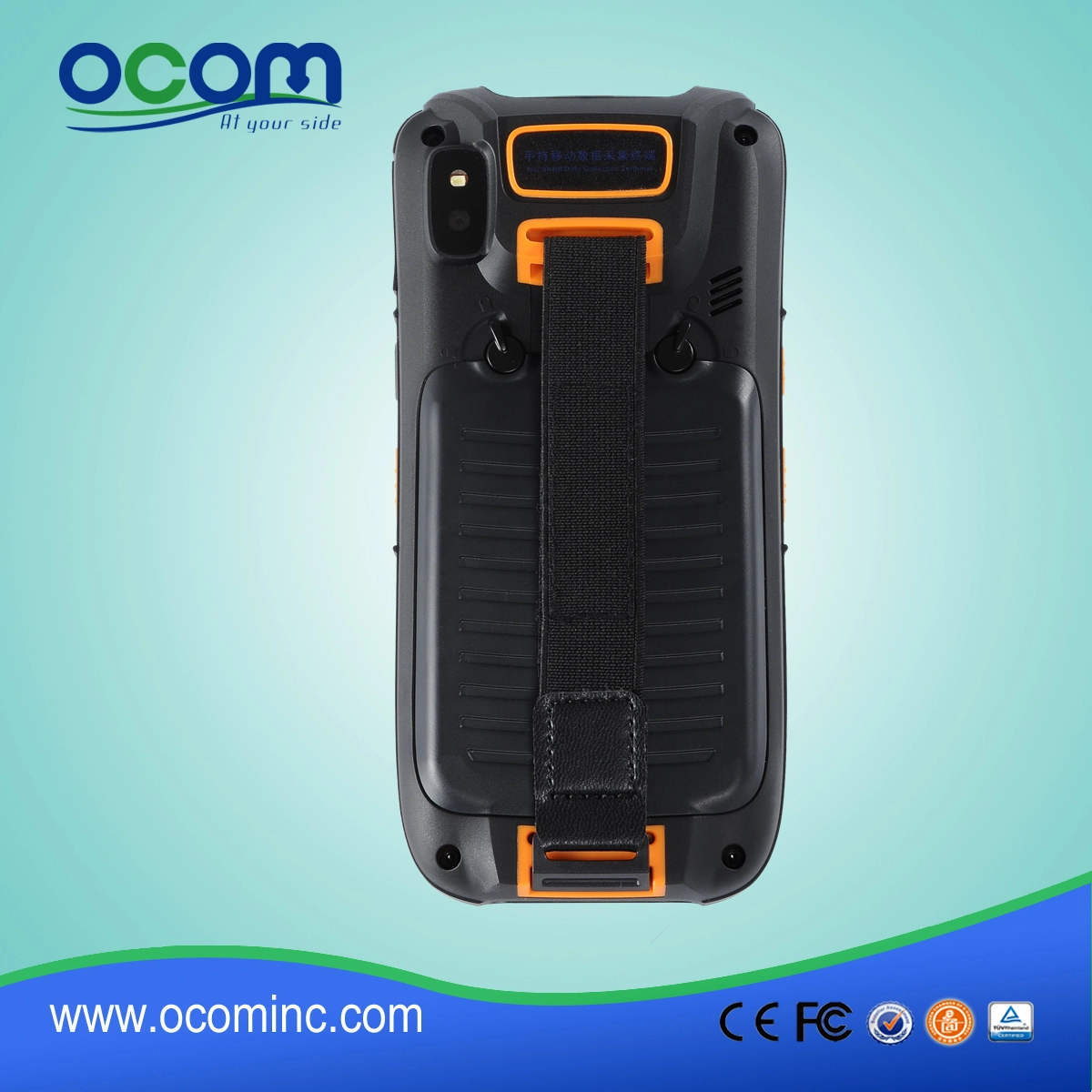

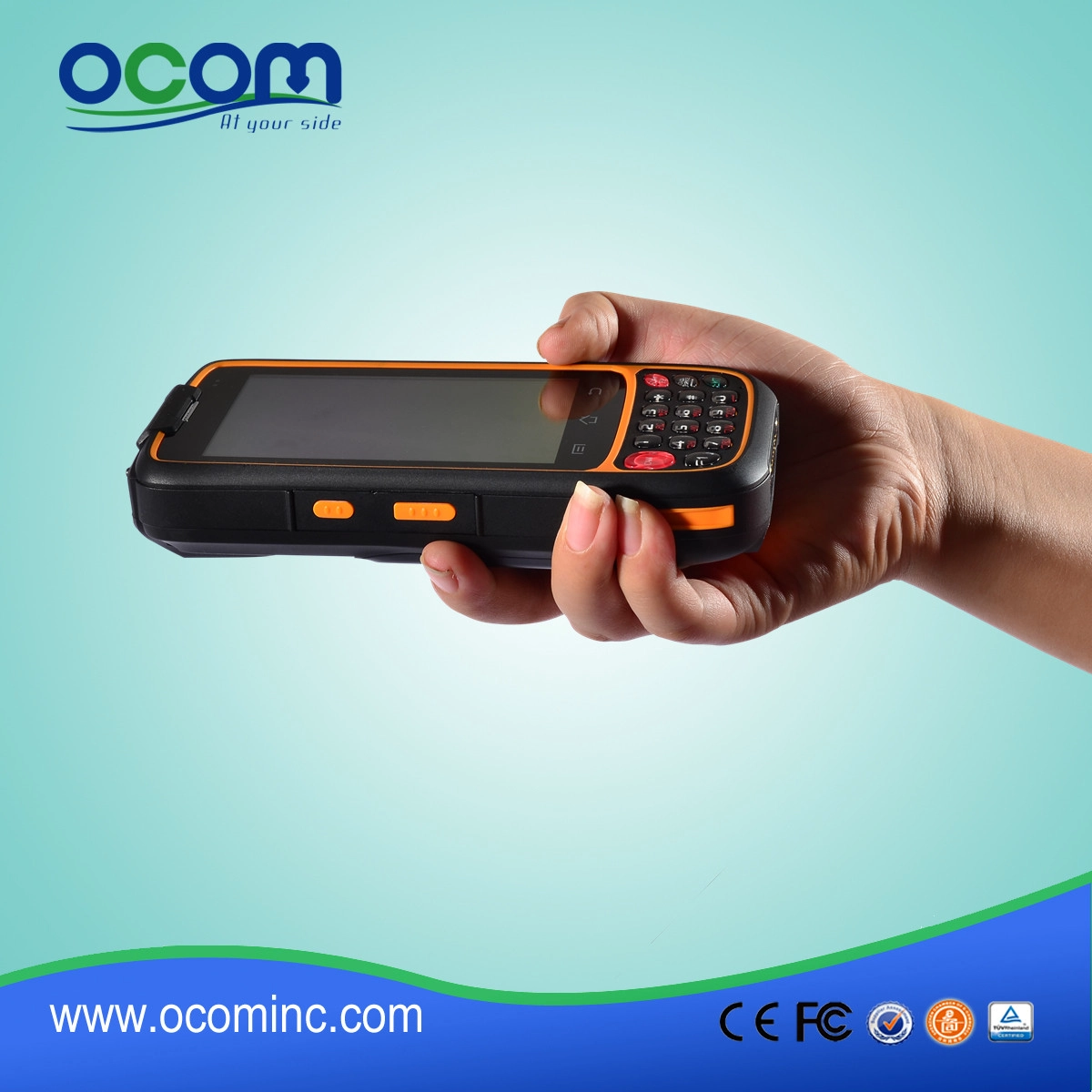

OCBS-D7000---China high quality newest rugged data collector android for sale

  • Android 4.4.2
  • 1GB RAM, 8GB ROM
  • 4.0 in. 480*800 WVGA IPS Screen
  • 1D/2D Barcode Scanner for optional
  • RFID LF/HF/UHF/ for optional
  • Numeric&Functional Keypads
  • Support 3G/Wifi/GPS/Bluetooth
  • Rear Camera 5 MP, auto-focus with LED flash
  • Rechargeable li-ion polymer, 3.7V, 5200mAh Battery
  • Rugged IP65/1.5 m Drop Tolerance
  China high quality newest rugged data collector android for sale                            OCBS-D7000

Feature
Android 4.4.2
1GB RAM, 8GB ROM
4.0 in. 480*800 WVGA IPS Screen
1D/2D Barcode Scanner for optional
RFID LF/HF/UHF/ for optional
Numeric&Functional Keypads
Support 3G/Wifi/GPS/Bluetooth
Rear Camera 5 MP, auto-focus with LED flash
Rechargeable li-ion polymer, 3.7V, 5200mAh Battery
Rugged IP65/1.5 m Drop Tolerance

Specification

PHYSICAL CHARACTERISTICS

Dimension

158mm(H)x75mm(W)x28mm(D)±2 mm

Weight

Net Weight :300g (including battery&wrist strap)

Display

4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 17 function keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 5200mAh

PERFORMANCE CHARACTERSTICS

CPU

Cortex A7 1.2GHz dual-core

Operating System

Android 4.4.2

Storage

1GB RAM, 8GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

WCDMA(850/1900/2100MHz), GSM/GPRS/Edge 850/900/1800/1900MHz)

WLAN

IEEE 802.11 b/g/n

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Honeywell N431x

Symbologies

All major 1D barcodes

2D barcode

2D CMOS Imager

Honeywell N6603

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

5.0 megapixel

Lens

Auto-focus with LED flash

RFID READER(OPTIONAL)

RFID LF

Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

PSAM SECURITY(OPTIONAL)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)

ACCESSORIES

Standard

1xPower Supply

1xLithium Polymer Battery

1xDC charging cable

1xUSB data cable

Optional

Carry Case
