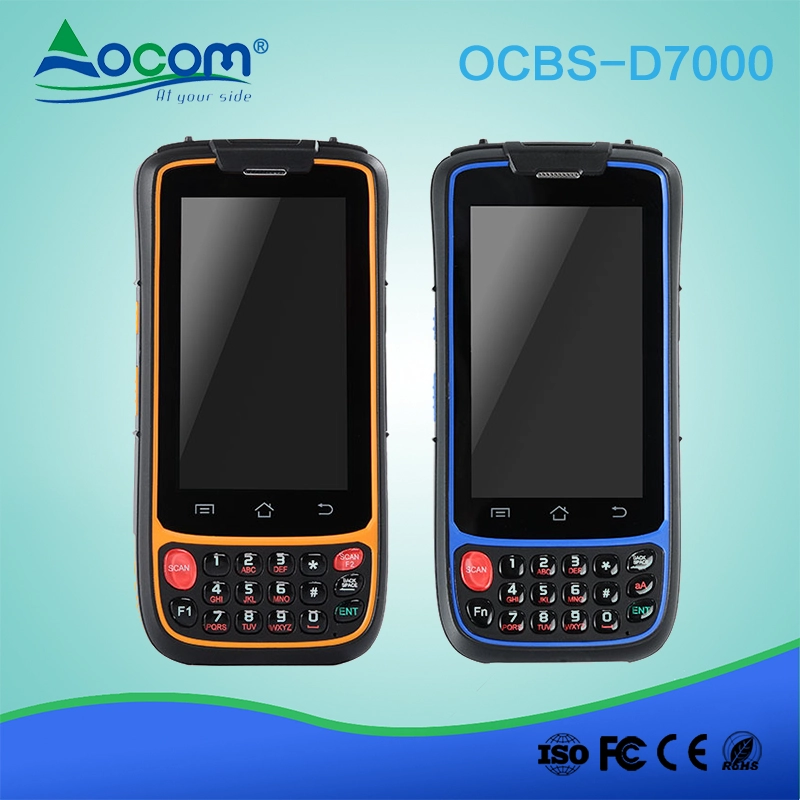

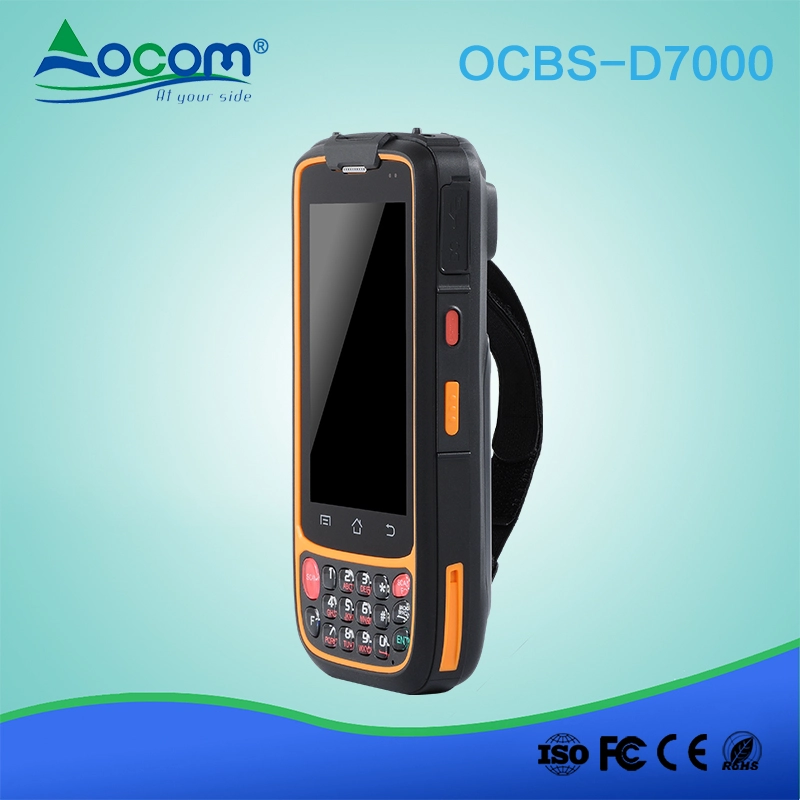

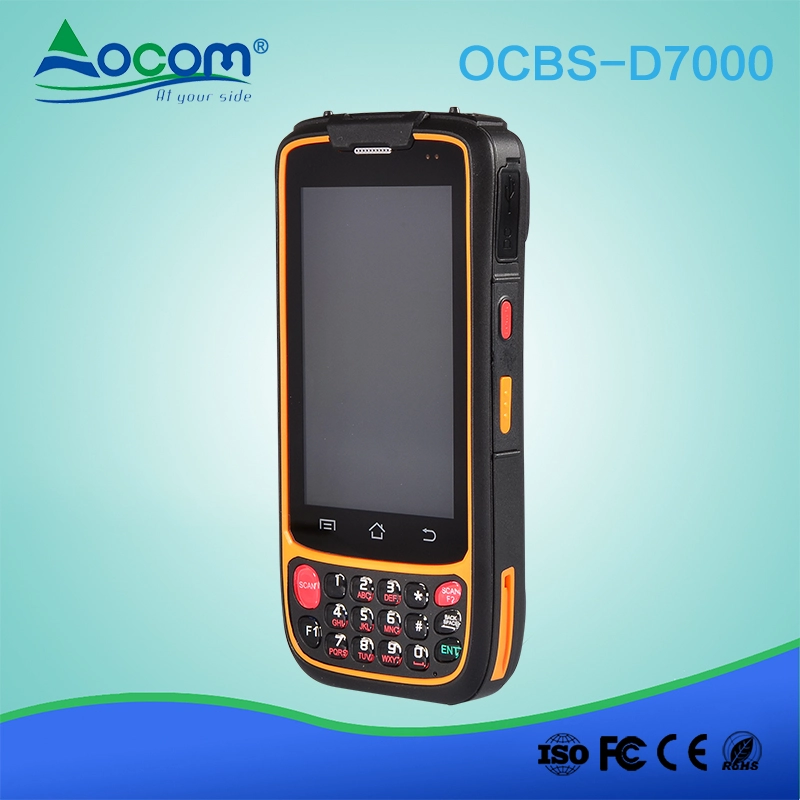

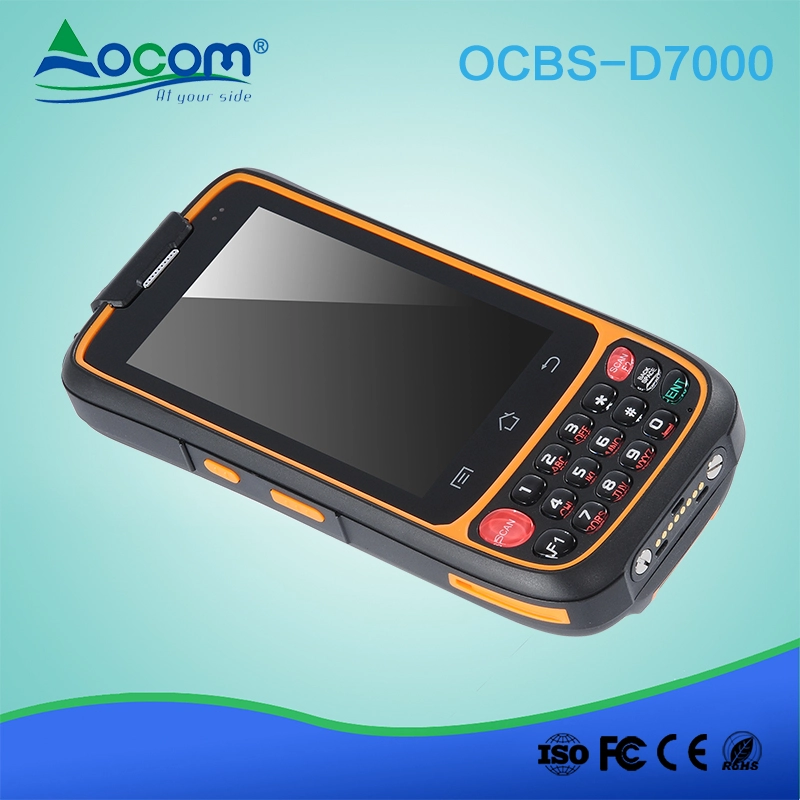

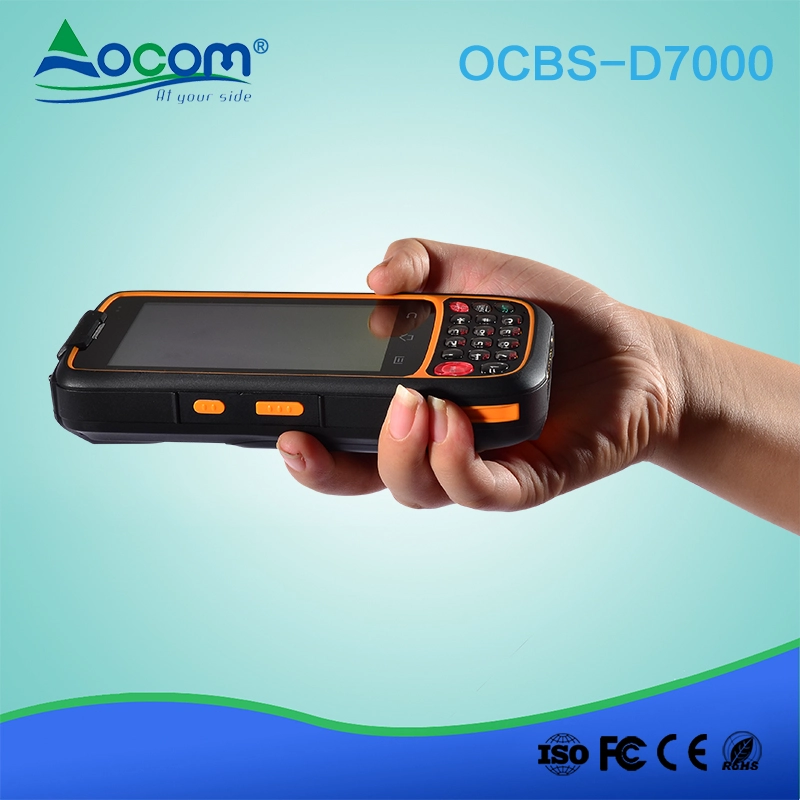

OCBS-D7000 SIM Card UHF PDA QR Code Scanneer Android Handheld Terminal
- Android 7.0
- 2 GB of RAM, 16 GB of ROM
- 4.0 inch 480 * 800 WVGA IPS screen
- 1D / 2D barcode scanner for optional
- RFID LF / HF / UHF / for optional
- Numerical and functional control panels
- Support 4G / Wifi / GPS / Bluetooth
- Camera behind 5 MP, autofocus with LED flash
- Rechargeable li-ion polymer, 3.7V, 5100mAh battery
- Robust IP65 / 1.5 m drop tolerance
Handheld AndroidTerminal for industrial data
(M / N: OCBS-D7000)
Characteristics
l Android 7.0
l 2 GB of RAM, 16 GB of ROM
l 4.0 in. 480 * 800 WVGAIPS screen
l 1D / 2D barcode scannerfor optional
l RFID LF / HF / UHF / foroptional
l Numeric & Functionalkeyboards
l Support 4G / Wifi / GPS / Bluetooth
l Rear view camera 5 MP,autofocus with LED flash
l Rechargeable li-ionpolymer, 3.7V, 5200 mAh Battery
l Robust IP65 / 1.5 mDrop tolerance
|
DATA |
||||
|
PHYSICAL CHARACTERISTICS |
||||
|
Dimension |
158 mm (H) x 75 mm (W) x 28 mm (D) ± 2 mm |
|||
|
Weight |
Net weight: 300 g (including battery and wrist strap) |
|||
|
show |
4.0 inch TFT-LCD (WVGA 480x800) touch screen with backlight |
|||
|
backlight |
LED backlight |
|||
|
keyboards |
3 TP keys, 17 function keys, 4 side keys |
|||
|
extensions |
2 PSAM, 1 SIM, 1 TF |
|||
|
Battery |
Rechargeable li-ion polymer, 3.7V, 5200mAh |
|||
|
PERFORMANCE CHARACTERISTICS |
||||
|
CPU |
Cortex A7 1.2 GHz dual-core |
|||
|
Operating system |
Android 7.0 |
|||
|
storage area |
2 GB RAM, 16 GB ROM, MicroSD (max 32 GB expansion) |
|||
|
USER ENVIRONMENT |
||||
|
Operating temperature. |
-20 ℃ to 50 ℃ |
|||
|
Storage temp. |
-20 ℃ to 70 ℃ |
|||
|
Humidity |
5% relative humidity to 95% RH (non-condensing) |
|||
|
Drop specifications |
5 ft./1.5 m fall to concrete over the operating temperature series |
|||
|
Sealing |
IP65, IEC conformity |
|||
|
ESD |
±15kV exhaust air, ± 8kv direct discharge, ± 8kv indirect discharge |
|||
|
DEVELOPMENT ENVIRONMENT |
||||
|
SDK |
HHW Software Development Kit |
|||
|
Language |
Java |
|||
|
Environment |
Android Studio or Eclipse |
|||
|
DATA COMMUNICATION |
||||
|
WWAN |
WCDMA (850/1900 / 2100MHz), GSM / GPRS / Edge 850/900/1800 / 1900MHz) |
|||
|
WLAN |
IEEE 802.11 b / g / n |
|||
|
WPAN |
Bluetooth Class v2.1 + EDR, Bluetooth v3.0 + HS, Bluetooth v4.0 |
|||
|
GPS |
GPS (embedded A-GPS), accuracy of 5 m |
|||
|
DATA CAPTUER |
||||
|
BARCODE READER (OPTIONAL) |
||||
|
1D bar code |
1D laser motor |
Honeywell N431x |
||
|
Symbologies |
All major 1D bar codes |
|||
