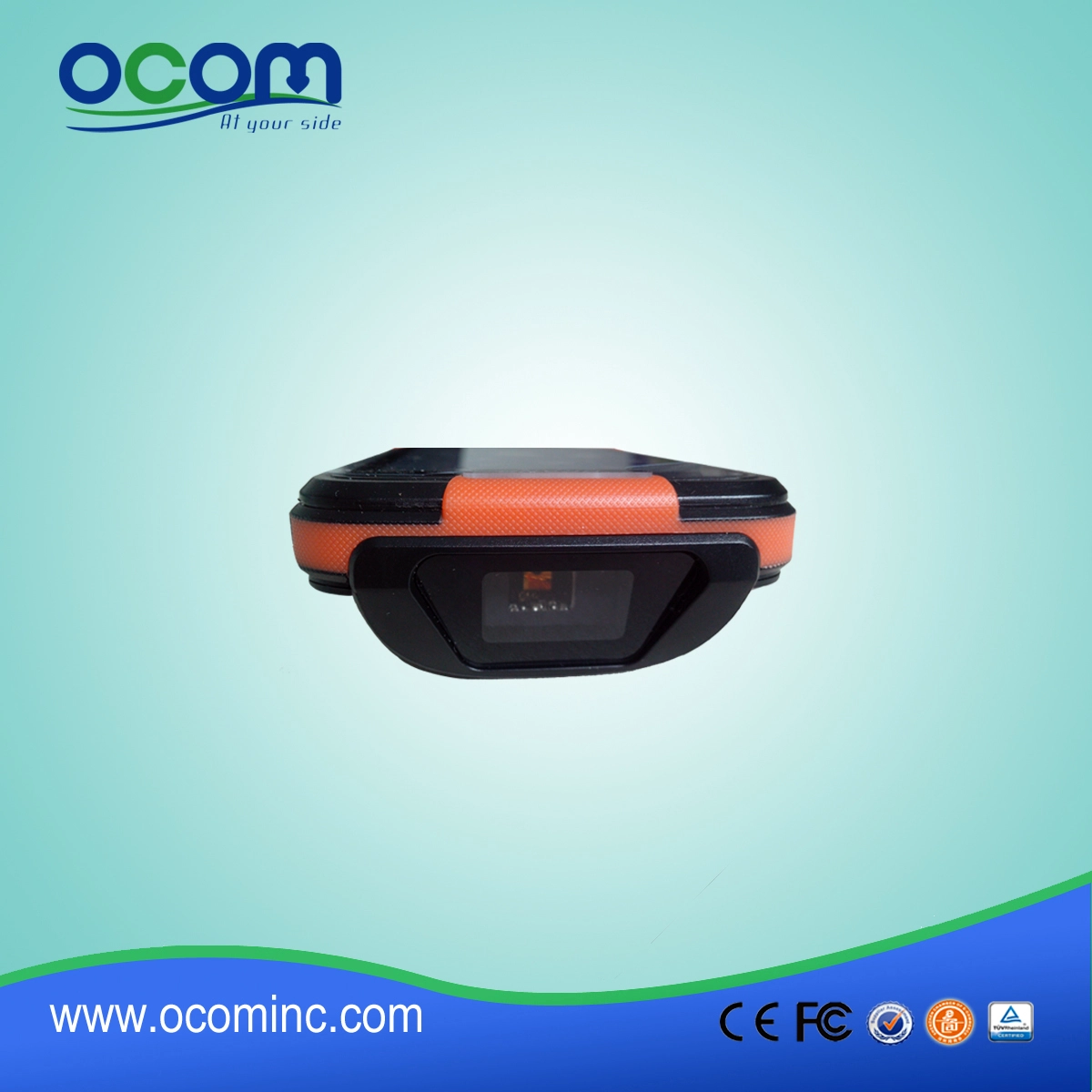

OCBS-D8000 China hot selling industrial pda portable data collector

OCBS-D8000 China hot selling industrial pda portable data collector

  • Android 4.1 Operation System;
  • Dual-Core ARM Cortex-A9 Dual-core 1.5G;
  • WCDMA, CDMA2000 Option;
  • A-GPS satellite positioning Option;
  • Hd 3 million pixels, with LED, automatic focusing;
  • SIM card, PSAM card, Micro SD (TF) Card Expand Port;
  • Rechargeable Li-polymer Battery 3.7V 4000mAh Option;
  • Color 4.0 inch QVGA imitative glass durable touch screen;
  • Sealed Environment: IP67;
  • 6 sides can bear impact from 1.5m drop to cement floor.

OCBS-D8000 China hot selling industrial pda portable data collector

        (Model No.: OCBS-D8000)

FEATURE:

  • Android4.1 Operation System;
  • Dual-Core ARM Cortex-A9 Dual-core 1.5G;
  • WCDMA, CDMA2000 Option
  • A-GPS satellite positioning Option
  • Hd 3 million pixels, with LED, automatic focusing;
  • SIM card, PSAM card, Micro SD (TF) Card Expand Port;
  • Rechargeable Li-polymer Battery 3.7V 4000mAh Option;
  • Color 4.0 inch QVGA imitative glass durable touch screen.
  • Sealed Environment: IP67,
  • 6 sides can bear impact from 1.5m drop to cement floor


Specification:

Physical Parameter



Size

152mm(L)×77mm(H)×29mm(W)

Weight

<500g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card, Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh Optional

Frequency

8Ω1W speaker

Key

29pcs soft silicon key

Performance Parameter



CPU

Dual-Core ARM Cortex-A9 Dual-core 1.5G

RAM

2G RAM

Flash ROM

Standard 4G NAND Flash Storage

Micro SD/TF port (Max up to 32G)

Data Communication



WI-FI

Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover

WCDMA

UMTS2100/900MHz

UMTS1900/850MHz

GSM850/900/1800/1900MHz

CDMA2000

CDMA2000 1x,CDMA2000 EV-DO Rev 0,CDMA2000 EV-DO Rev A

Supports BC0(800MHz band),BC1(1900MHz band)

Bluetooth

Support Bluetooth 2.0+EDR, transmission distance is 5-10m

Operating Environment



Operating Temperature

—20℃ to 50℃

Storage Temperature

—25℃ to 70℃

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP67

Development Environment



Operating System

Android4.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect



One dimensional CCD scanners

Symbol SE655

Resolution

5Mil minimum width

Ambient Light

0ft.candles-10000ft.candles

Scanning Speed

50/sec

Scanning Angle

53º±3º

Support Bar Code Type

UPC/EAN, Bookland EAN, Code 128, Code39, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of5, Matrix 2 of 5,Inverse 1D, MSI, Gs1 DataBar, etc.
