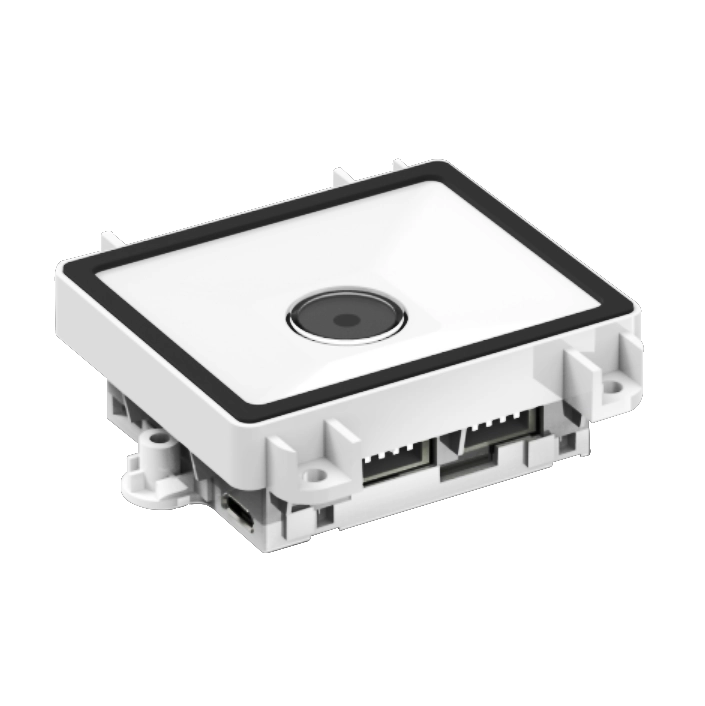

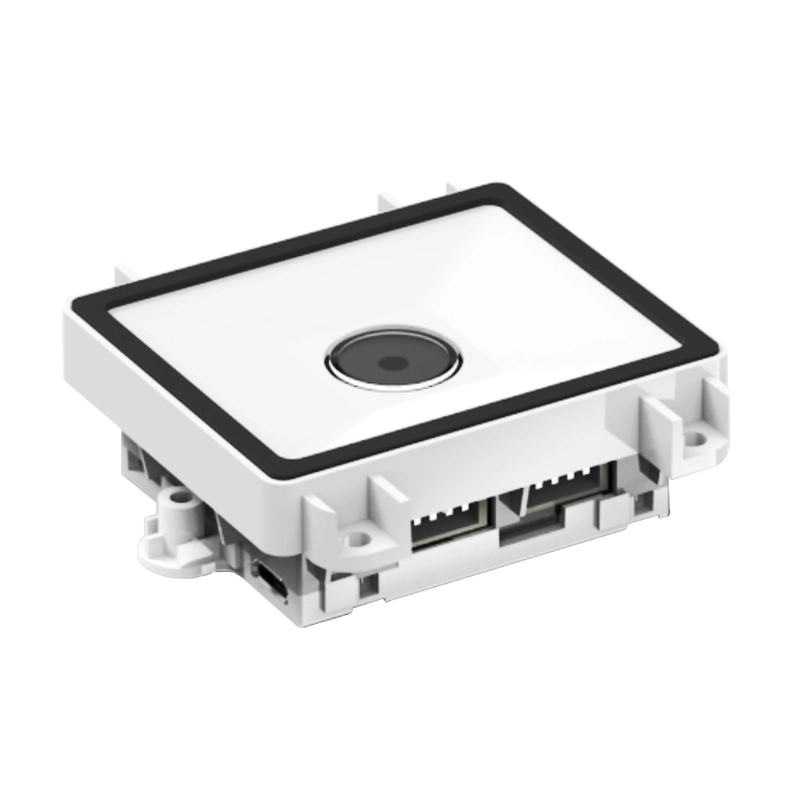

OCBS-F2203 Auto Sense Fixed Scanner Module 2D Embedded Mount QR Barcode Scanner
- F2203 can read all kinds of mainstream one-dimensional bar codes and standard two-dimensional barcodes (various versions of PDF417, QR Code and Data Matrix. F2203 supports fast reading of bar codes on various printed and display media such as paper, plastic, LCD screens. The integrated design of a single structure with its own decoding engine and multiple external interfaces only requires minimal installation space and is very convenient to embed into various applications such as self-service terminals express cabinets vending machines parking charges and so on.
- Application scenario: car park exit self-service payment, subway ticket machine, ticket gate machine, VTM machine, e-commerce self-withdraw cabinet, smart home storage cabinet, ATM self-service cabinet, self-help inquiry terminal, queuing call number equipment, certificate manufacturing equipment, etc.
Auto Sense Fixed Scanner Module 2D Embedded Mount QR Barcode Scanner
(M/N:OCBS-F2203)
Barcode Scanner,Auto Sense Barcode Scanner,Barcode Reader,Fixed Scanner,Barcode,Embedded Scanner,Scanner
Brief introduction
F2203 can read all kinds of mainstream one-dimensional bar codes and standard two-dimensional barcodes (various versions of PDF417, QR Code and Data Matrix. F2203 supports fast reading of bar codes on various printed and display media such as paper, plastic, LCD screens. The integrated design of a single structure with its own decoding engine and multiple external interfaces only requires minimal installation space and is very convenient to embed into various applications such as self-service terminals express cabinets vending machines parking charges and so on.
Application scenario: car park exit self-service payment, subway ticket machine, ticket gate machine, VTM machine, e-commerce self-withdraw cabinet, smart home storage cabinet, ATM self-service cabinet, self-help inquiry terminal, queuing call number equipment, certificate manufacturing equipment, etc.
Inlay
When integrating F2203, you can refer to the following physical size specifications. The structure is designed to note that other components cannot oppress F2203 devices.
When integrating F2203, you can refer to the following physical size specifications. The structure is designed to note that other components cannot oppress F2203 devices.
Power requirement
Supply of power input must be allowed after the F2203 is connected. If the cable is plugged or removed from the F2203 (live hot-swappable) when the cable is live, the electronic parts of the F2203 will be damaged, make sure the power supply is cut off when the cable is plugged out.
Bad power connection or too short interval power off operation, or too large voltage drop pulse may cause the F2203 not to be in a stable and normal working state, so it is necessary to keep the power input stable. After the power input is turned off, it takes more than 2 seconds to turn on the power input again.
Supply of power input must be allowed after the F2203 is connected. If the cable is plugged or removed from the F2203 (live hot-swappable) when the cable is live, the electronic parts of the F2203 will be damaged, make sure the power supply is cut off when the cable is plugged out.
Bad power connection or too short interval power off operation, or too large voltage drop pulse may cause the F2203 not to be in a stable and normal working state, so it is necessary to keep the power input stable. After the power input is turned off, it takes more than 2 seconds to turn on the power input again.
|
Specifications |
|
|
Physical Characteristics |
|
|
Sensor |
CMOS |
|
Sensor Revolution |
642*484 |
|
Interface |
USB and RS-232 |
|
Reading Distance |
EAN13（0-45mm @13mil） QR Code（0-40mm @15mil） |
|
Printing contrast |
0.2 |
|
Scan Angel |
Roll 360° Pitch ±40° Skew ±30° |
|
Symbologies 1D |
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5 |
|
Symbologies 2D |
QR Code ,PDF417, Data Matrix |
|
Electrical parameters |
|
|
Voltage |
4.5~5.5 V DC |
|
Max Current |
236mA |
|
Operating Current |
198mA |
|
Standby Current |
60mA 10mA（sleep） |
|
Environmental |
|
|
Operating Temperature |
-20℃～50℃ |
|
Storage Temperature |
-30℃～70℃ |
|
Humidity |
5%～95% |
