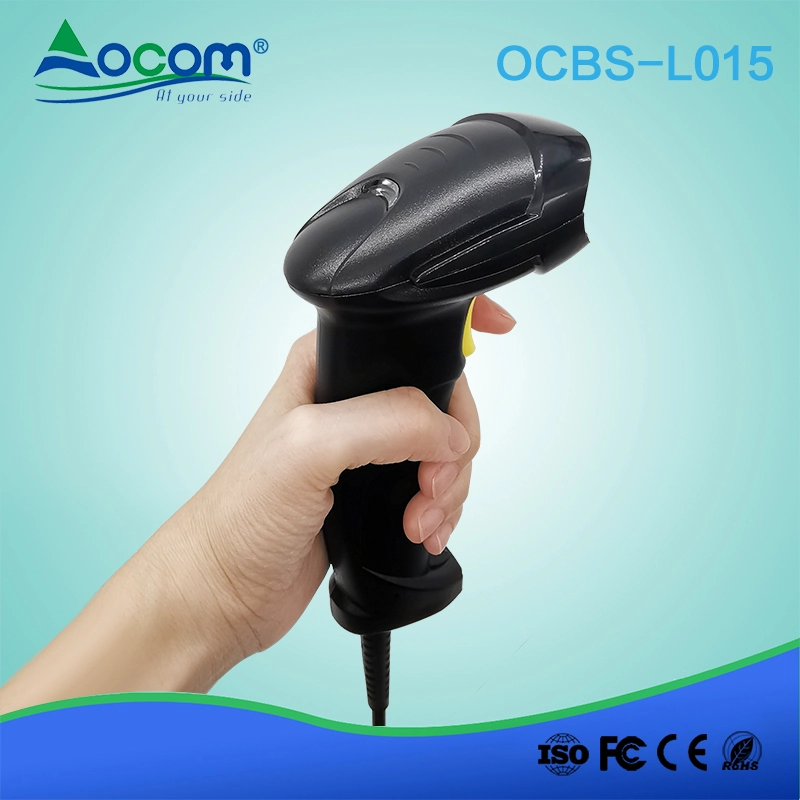

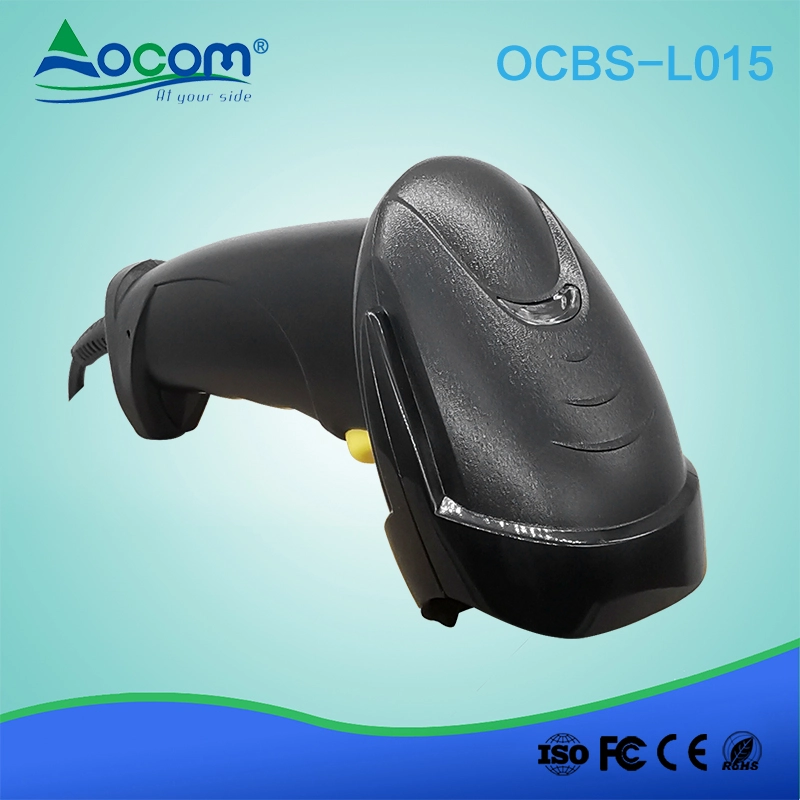

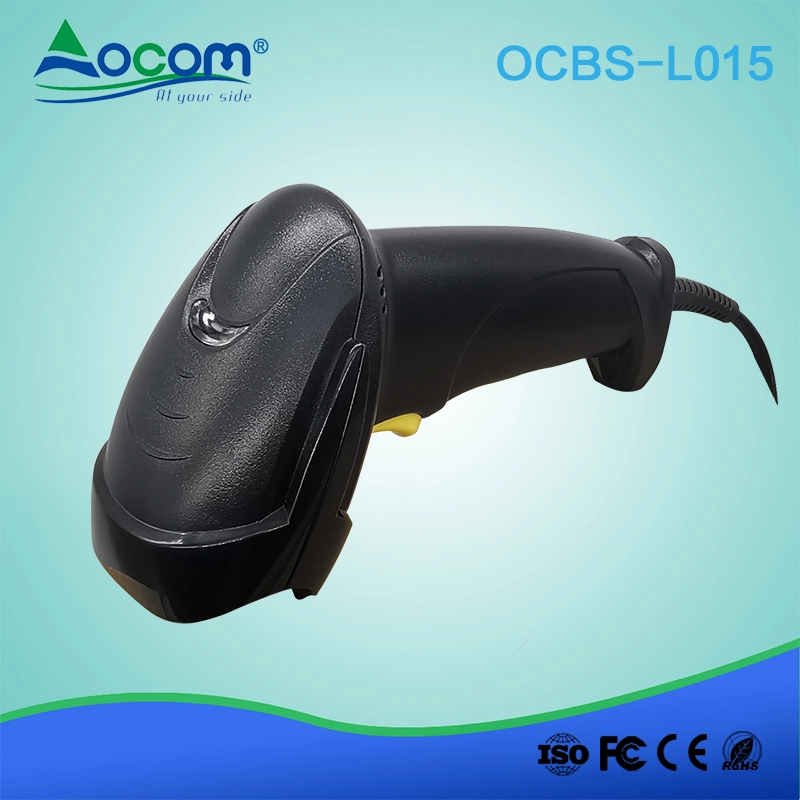

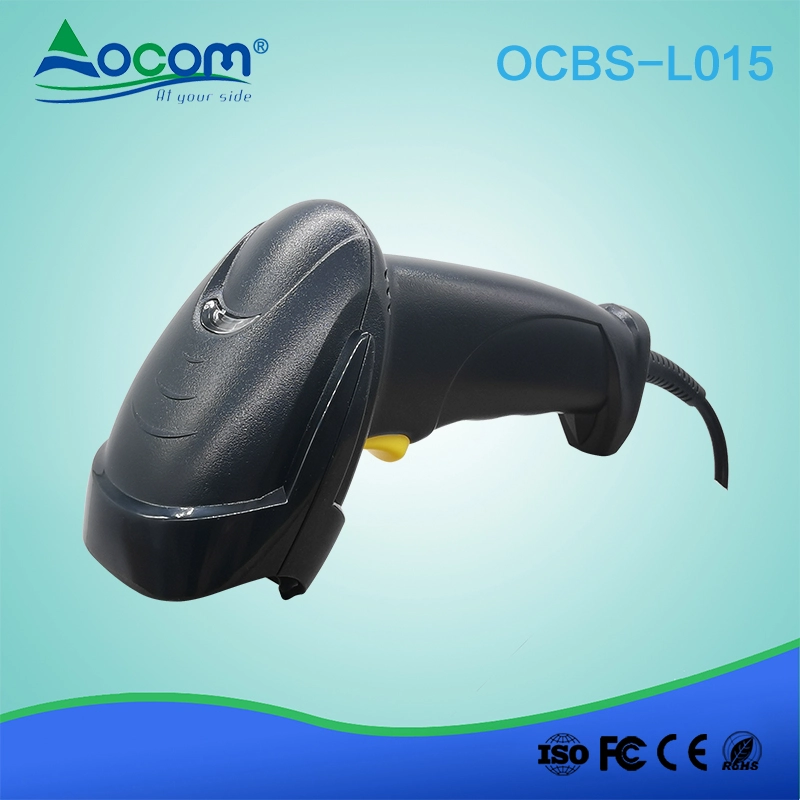

OCBS-L015 Trending 2020 other 1D Laser Barcode Scanner for POS systems

  • 200MM/S Scan Speed
  • 10-60cm long depth of field
  • Compatible with multiple language layouts
  • 1.5m free fall on concrete surface
  • Can switch to Manual , Continuous scanning, Auto Sensing

Laser Barcode Scanner

 (Model No.: OCBS-L015)



Feature:

200MM/S Scan Speed

10-60cm long depth of field

Compatible with multiple language layouts

1.5m free fall on concrete surface

Can switch to Manual , Continuous scanning, Auto Sensing



Specification:

Item

Parameter

Light Source

Visible laser 650nm

Safety

Accord with China National Laser Safety

Decoding Capability

UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code39, Code Bar, Interleaved / ITF 25, Industrial 25, Code 128, Code 93, Code 11, MSI/PIESSEY, UCC/EAN128

Interface

USB ,RS232 ,PS/2

Trigger Mode

Manual , Continuous scanning, Auto Sensing

Transmission Speed

RS232  baudrate: 1200-19200

Scanning Width

Min 0.1mm(4mils)

Scanning Depth

2-9cm(0.1mm Width), 3-50cm(0.3mm Width)

Scanning Speed

200scans / sec

Scanning Distance

10-600mm  Roll 60º, Pitch45º

Operating Temp.

-20ºC-50ºC

Storage Temp.

-20℃-60℃

Operating Humidity

0-95%

Storage Humidity

5%-95%

Power Supply

DC 5V±5%

Operating Current

50ma(Operating), 40ma(Stand By), 100ma(Max)

Quiescent Current

20mA

Shock Resistance

1.5m free fall on concrete surface

Language

multiple languages

Material

ABS+PVC+PC

Casing Size

167*97*65mm

ESD Protection

15KV air discharge
