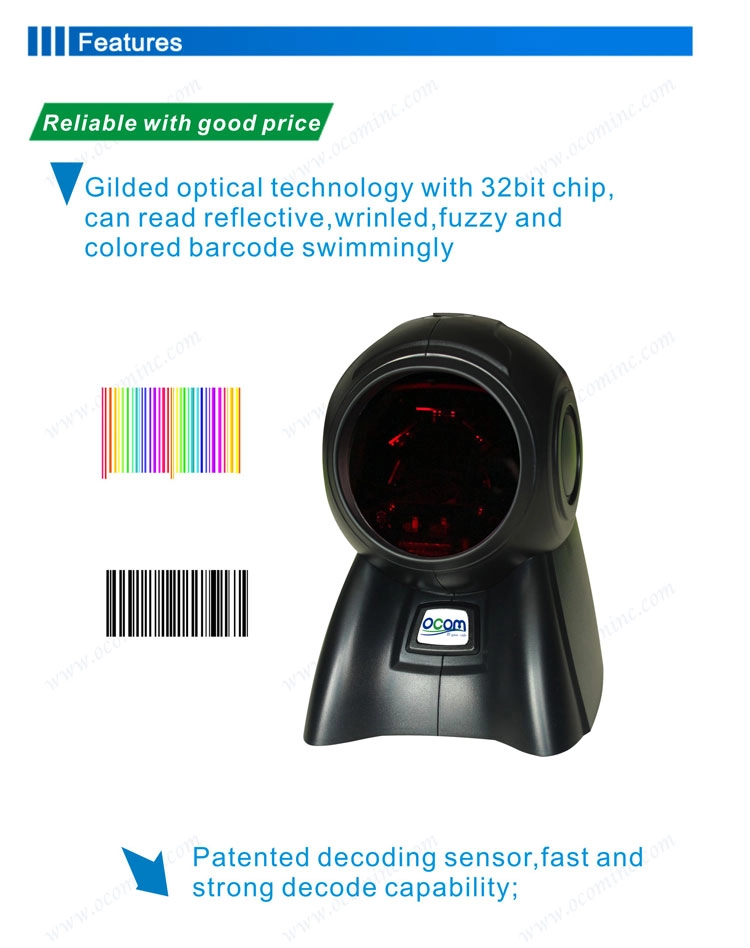

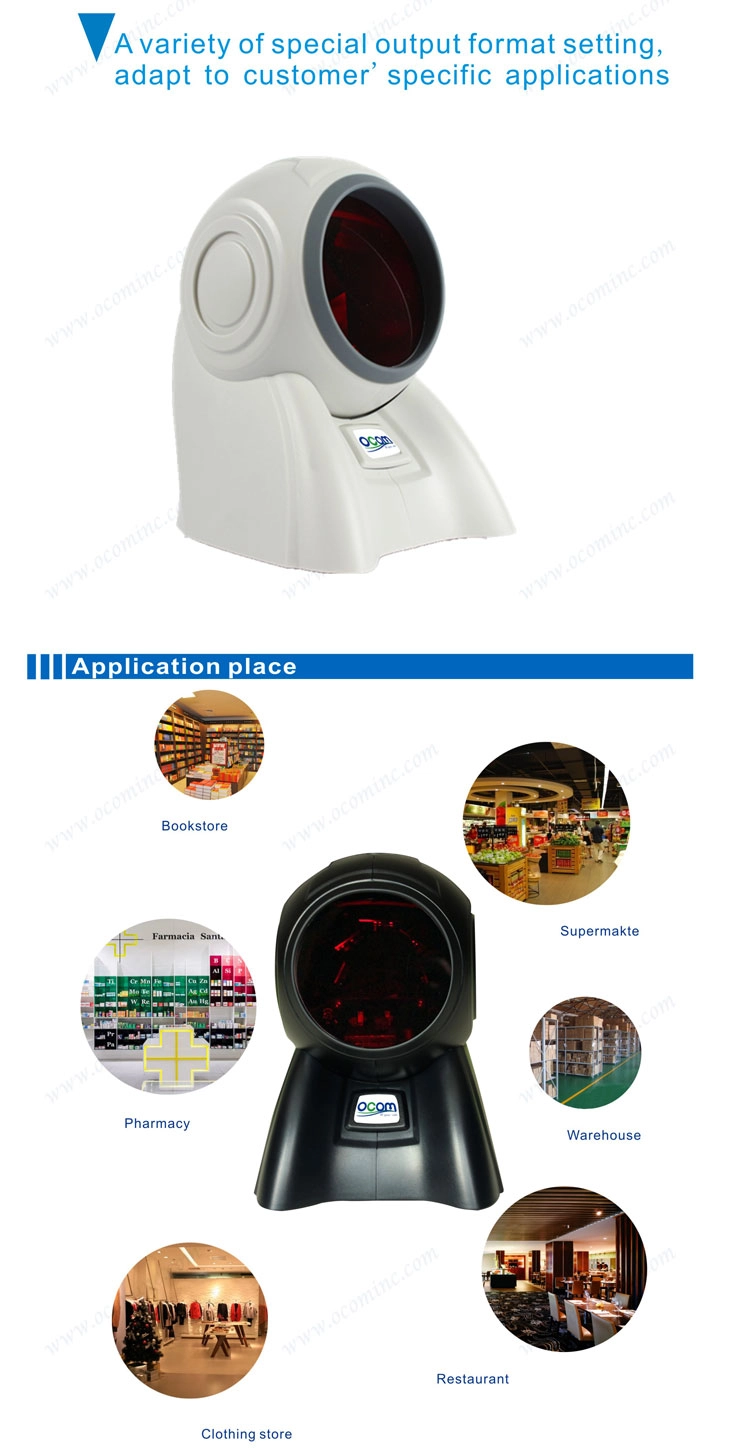

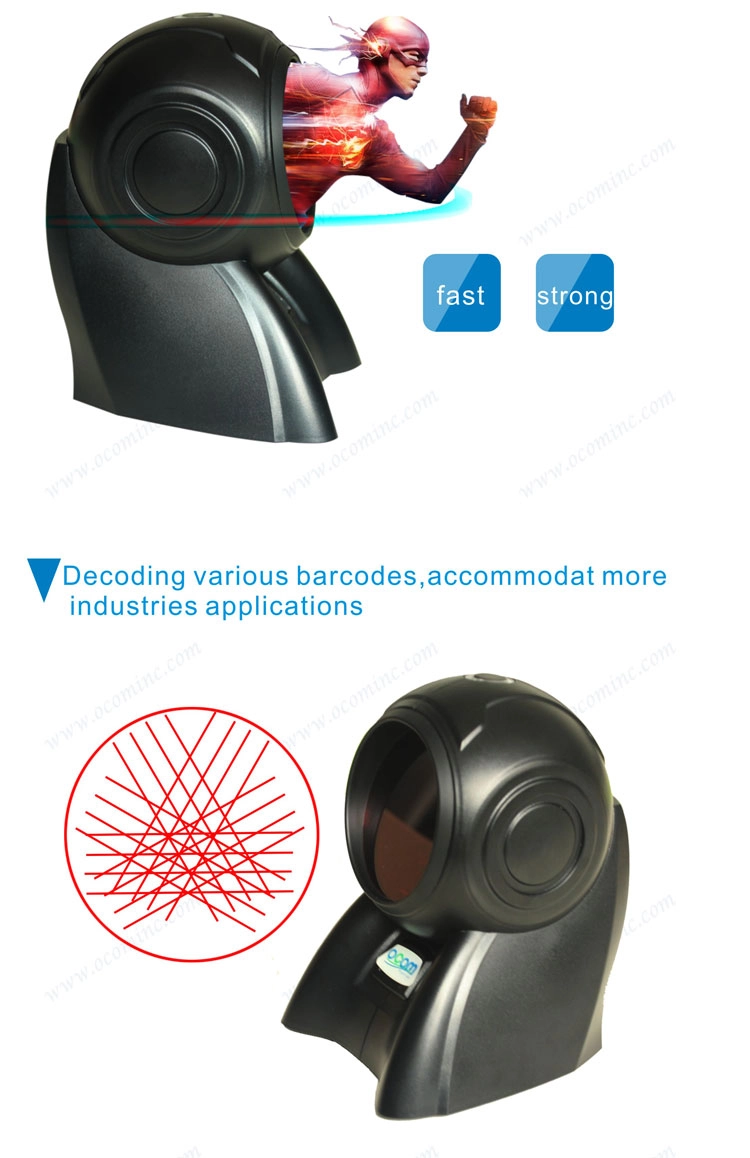

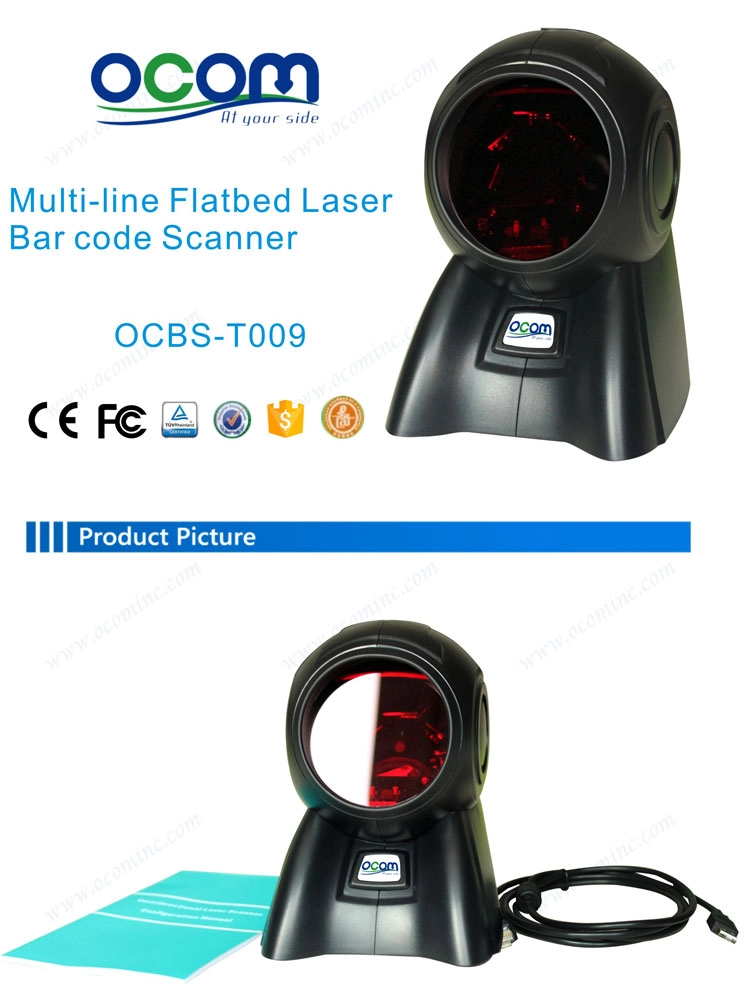

OCBS-T009 lector codigo de barras omnidireccional Barcode Scanner

  • new high quality desktop omni barcode scanner
  • Number of Scan Lines:20;
  • Scan Pattern: 5 directions of scan field;
  • Multiple/Single line scanning capability, meet different requirement;
  • The base can be removed;
  • 650nm visible laser diodes (VLD) Source;
  • Scan Rate: 1500 scans per second (omni-directional);
  • Multiple interfaces: KBW, RS232 or USB optional.

OCBS-T009 lector codigo de barras omnidireccional Barcode Scanner

new high quality desktop omni barcode scanner
Number of Scan Lines:20;
Scan Pattern: 5 directions of scan field;
Multiple/Single line scanning capability, meet different requirement;
The base can be removed;
650nm visible laser diodes (VLD) Source;
Scan Rate: 1500 scans per second (omni-directional);
Multiple interfaces: KBW, RS232 or USB optional.

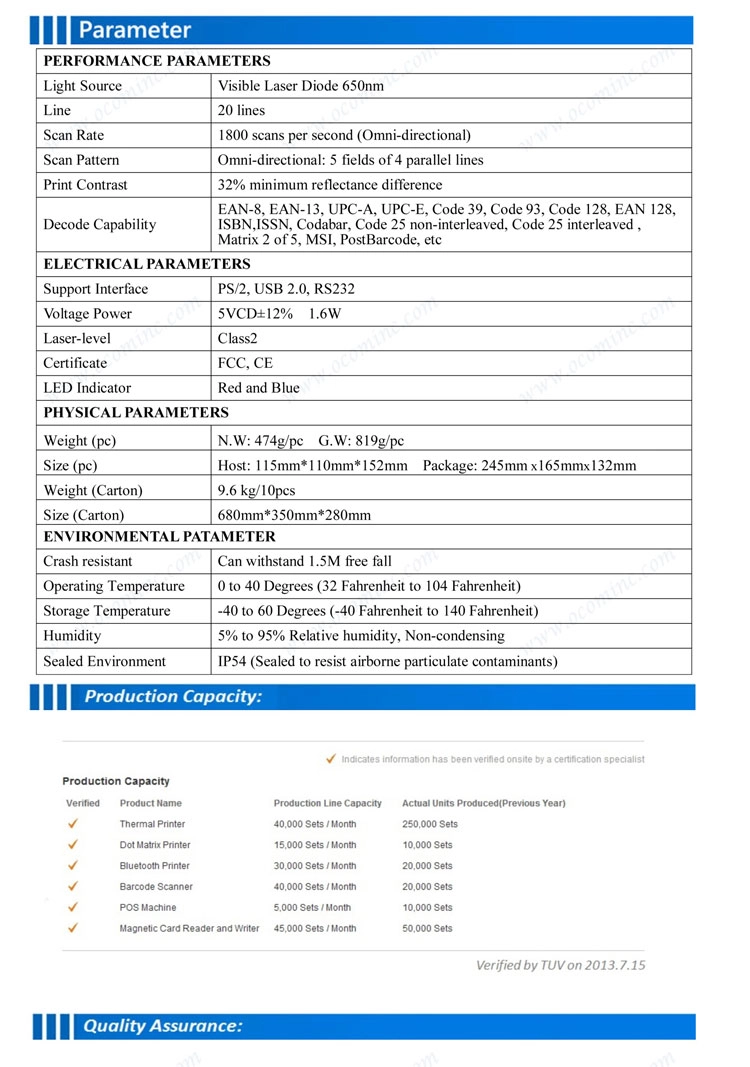

PERFORMANCE PARAMETERS

Light Source

Visible Laser Diode 650nm

Line

20 lines

Scan Rate

1800 scans per second (Omni-directional)

Scan Pattern

Omni-directional: 5 fields of 4 parallel lines

Print Contrast

32% minimum reflectance difference

Decode Capability

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, ISBN,ISSN, Codabar, Code 25 non-interleaved, Code 25 interleaved , Matrix 2 of 5, MSI, PostBarcode, etc

ELECTRICAL PARAMETERS

Support Interface

PS/2, USB 2.0, RS232

Voltage Power

5VCD±12%  1.6W

Laser-level

Class2

Certificate

FCC, CE

LED Indicator

Red and Blue

PHYSICAL PARAMETERS

Weight (pc)

N.W: 474g/pc  G.W: 819g/pc

Size (pc)

Host: 115mm*110mm*152mm  Package: 245mm x165mmx132mm

Weight (Carton)

Package

9.6 kg/10pcs

Size (Carton)

680mm*350mm*280mm

ENVIRONMENTAL PATAMETER

Crash resistant

Can withstand 1.5M free fall

Operating Temperature

0 to 40 Degrees (32 Fahrenheit to 104 Fahrenheit)

Storage Temperature

-40 to 60 Degrees (-40 Fahrenheit to 140 Fahrenheit)

Humidity

5% to 95% Relative humidity, Non-condensing

Sealed Environment

IP54 (Sealed to resist airborne particulate contaminants)






   Relevant documents:

      User manual
