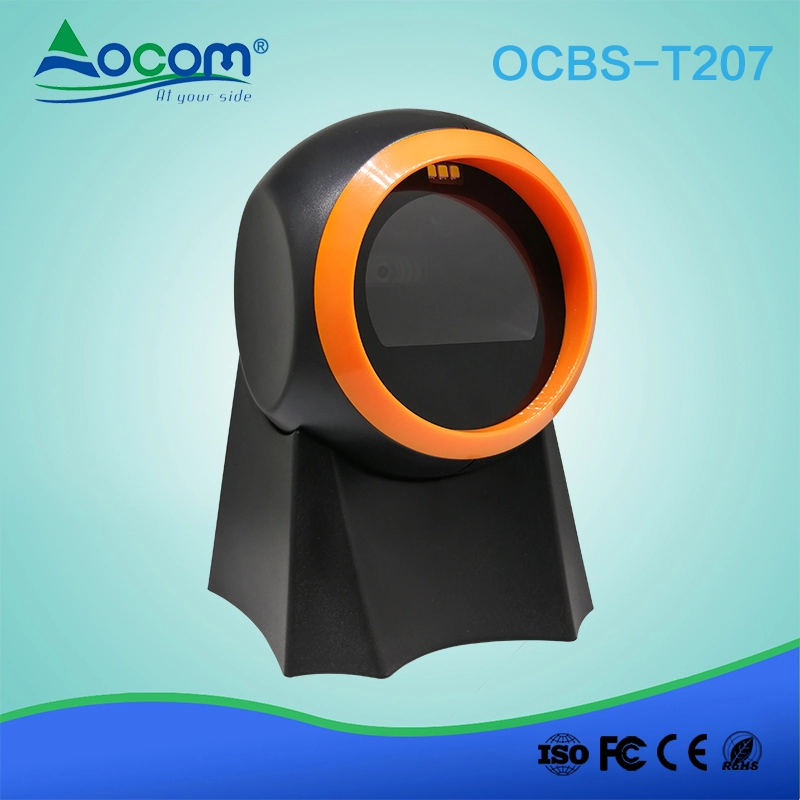

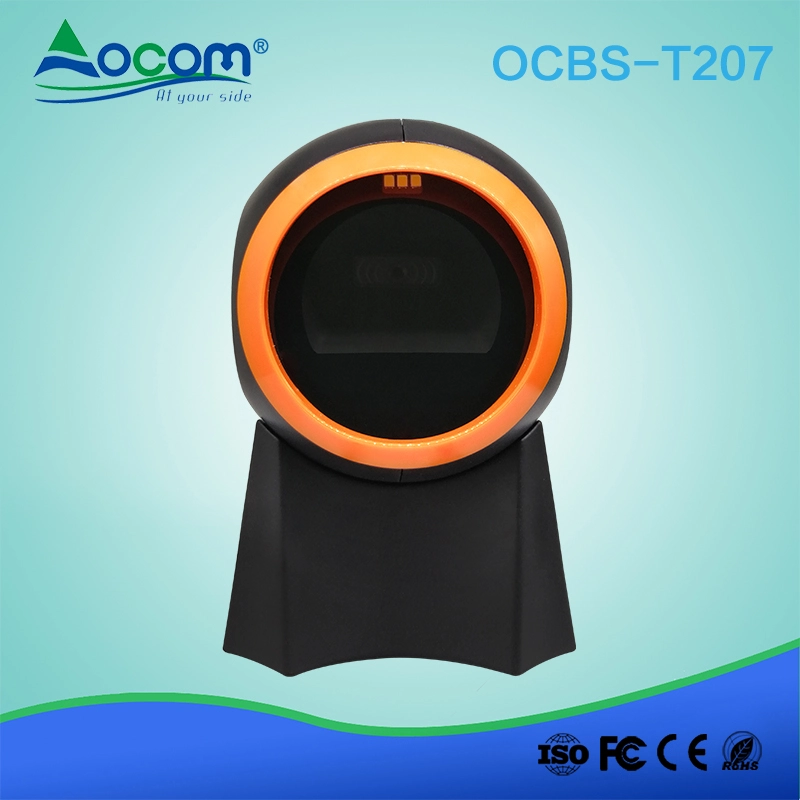

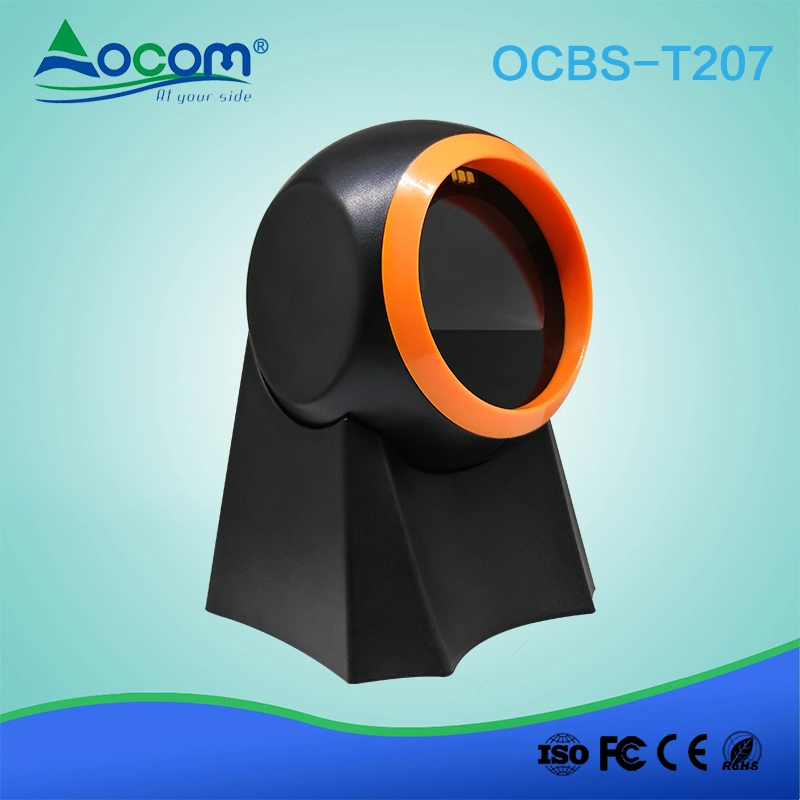

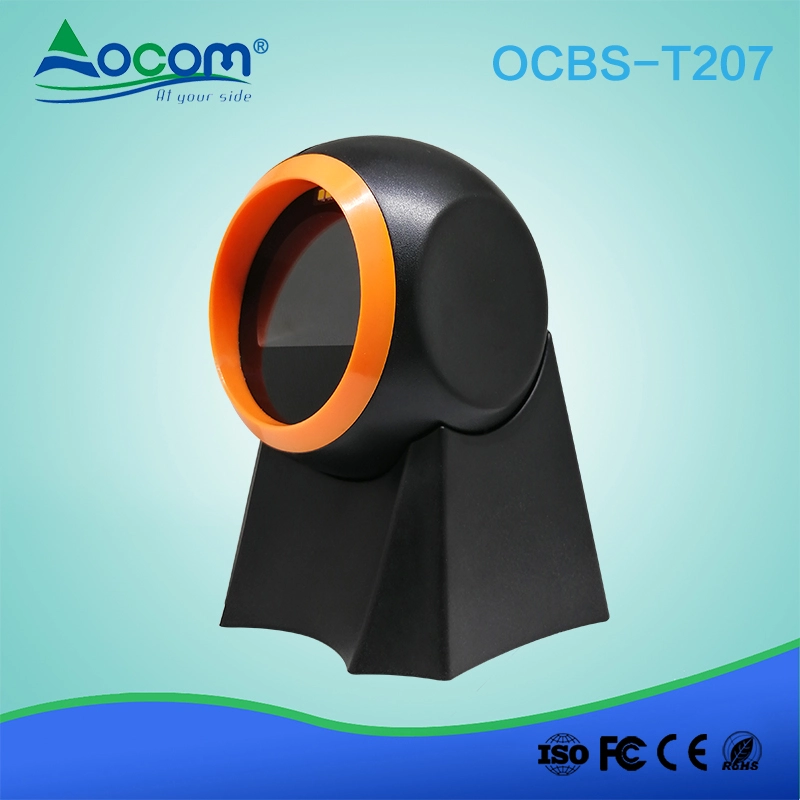

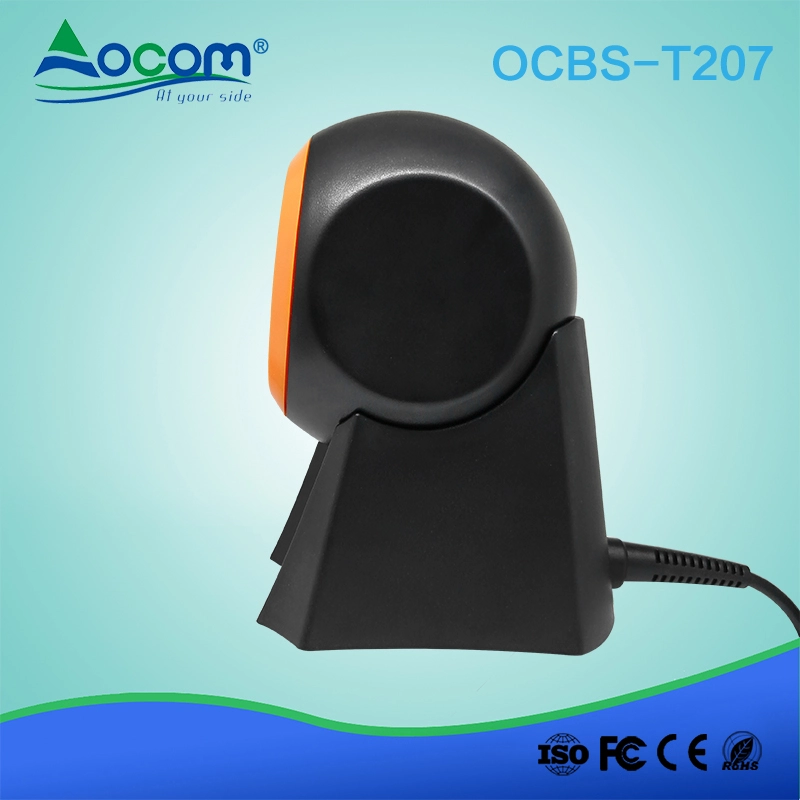

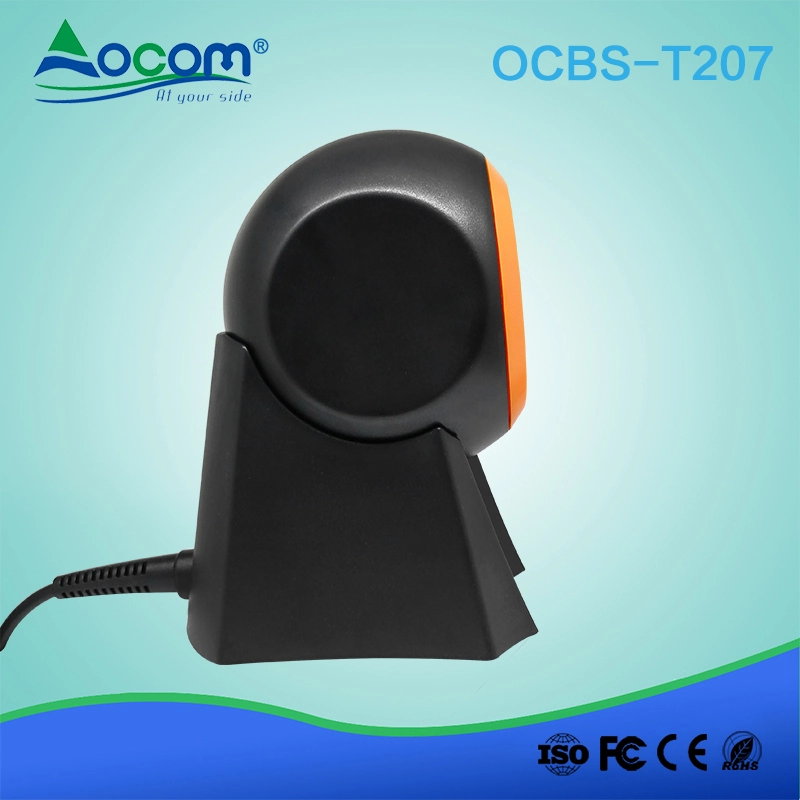

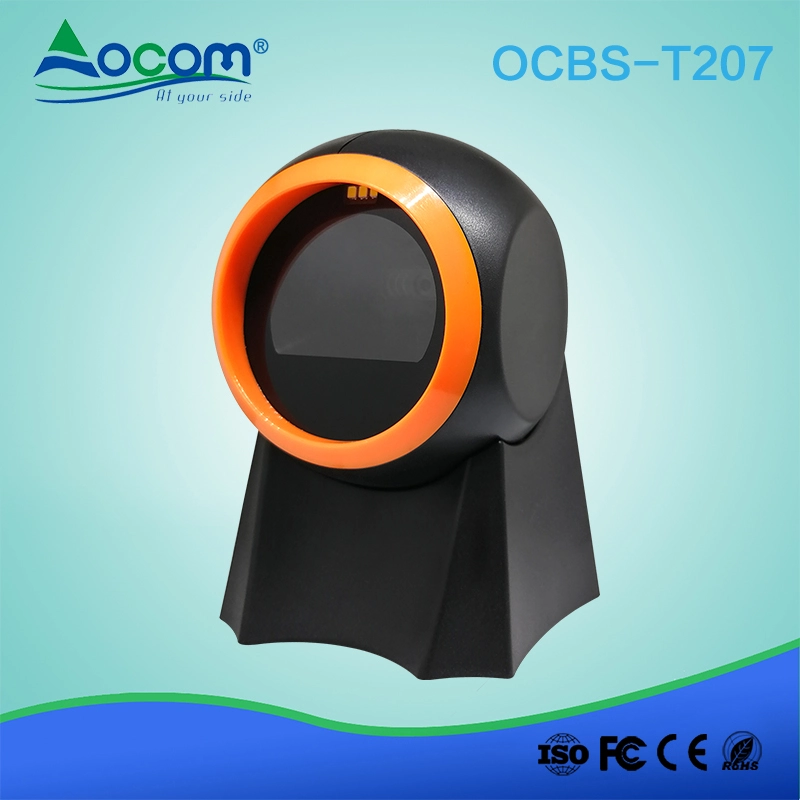

(OCBS-T207）2D Omni-Directional Barcode Scanner

Support Multiple kinds of 1D and 2D barcodes;
4mil scanning resolution;
480*640 CMOS Sensor;
Easy to scan screen barcodes.

2D Omni-Directional Barcode Scanner

（M/N:OCBS-T207）

Features:

Support Multiple kinds of 1D and 2D barcodes;
4mil scanning resolution;
480*640 CMOS Sensor;
Easy to scan screen barcodes.

Specification

General
Model	OCBS-T207
Color	orange+black /blue+black/red+black for optional
IP grade	IP52
Material	ABS+PC
Processor	32-bit ARM MCU
Interface	USB
Invoices	support
Indicator	Buzzer+Lamp indicator（LED）
Power Supply	DC 5V ±5%
Electric current	200mA（standby）；231mA（working）；290mA（maximum）
Power Consumption	1.0W（standby）；1.16W（working）；1.45W（maximum）
Language	AmericanEnglish;Belgium;Brazil;Canada (French);Denmark;Finland,(Swedish); TheFrench;Germany/Austria;Greece;Hungary;Israel (Hebrew);Italy;LatinAmerica;Dutch (Dutch);Norway;Poland;Portugal;Romania;Russia;Spain; Sweden;Switzerland(German);TurkeyF;TurkeyQ;The UK;Japan [support virtual keyboard]
OS Support	Linux，Android，Windows XP、7、8、10，MAC
Electrostatic Protection	15KV air charging
Shock Resistance	Drop Test 1.2m（ concrete surface）
Performance
Sensor	CMOS sensor
Moving Tolerence	25cm/sec(10mil QR code)
Reading Angles	Roll360°, Pitch45°,Yew60°
Scanning Angles	32°* 30°
Contrast	≥30%
Ambient light illumination	0~100000LUX
Error Rate	1/500Million
Reading Mode	Image
Trigger Mode	Auto-Sensing
Resolution	Code39 4mil
Scanning Depth	Code39 4.17mil（15 bytes）： 7cm - 13cm Code39 10.83mil（16 bytes）：8cm - 15cm Data Matrix 10.83mil（8 bytes）： 6cm - 11cm Code QR 10.83mil（8 bytes）： 5cm - 13cm
Decoding ability	1D:Code 128, EAN-8,Code 39,EAN-13,UPC-E0,Code 93, UPC-E1,UPC-A, Plessey, Interleaved 2 of 5, Industrial 25, Standard 25, Codabar, MSI-Plessey, UPCE0/E1, GS1-128, GS1 Databar, Matrix 2 of 5,ITF-14, Code32,Code 11,ISBN, ISSN,Standard 25, 2D:Data Matrix ,QR,PDF417
Physical
Weight	Gross:200g
Package	190180123mm
20 in 1 carton	645390400mm/11.3kg
Environment
Working temperature& humidity	0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity	-20 to 60 degrees centigrade , 10%~90% No condensation
