(OCBS-T210) Desktop screen reading QR code 2D barcode scanner(OCBS-T210) Desktop screen reading QR code 2D barcode scanner(OCBS-T210) Desktop screen reading QR code 2D barcode scanner(OCBS-T210) Desktop screen reading QR code 2D barcode scanner(OCBS-T210) Desktop screen reading QR code 2D barcode scanner

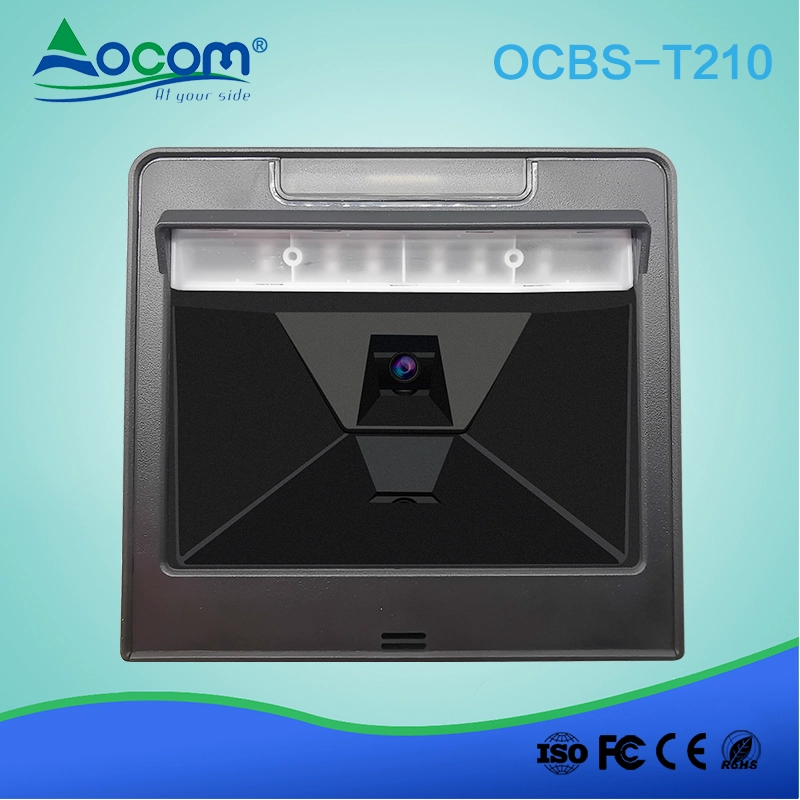

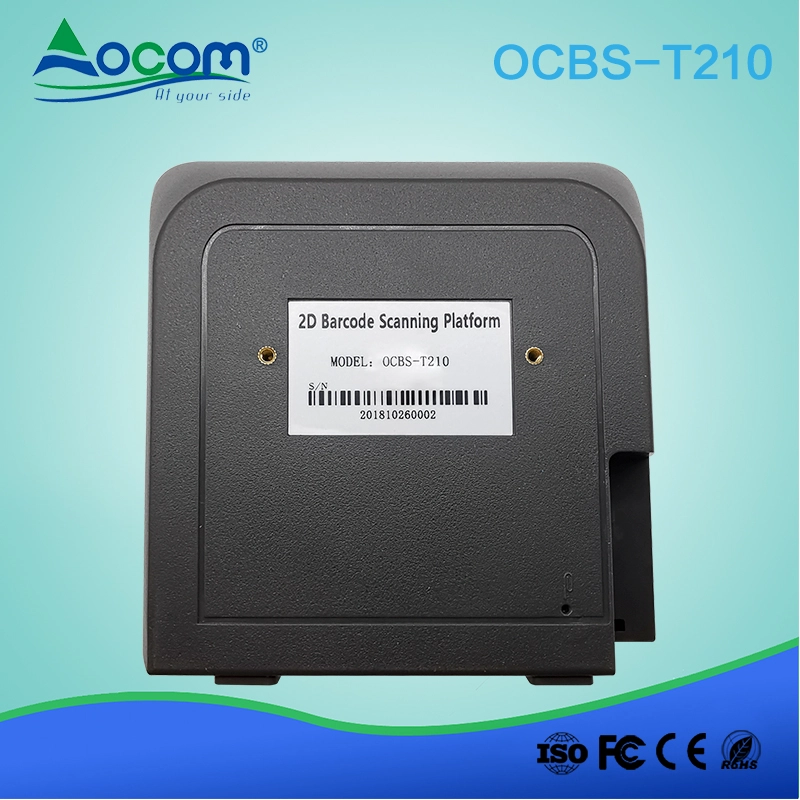

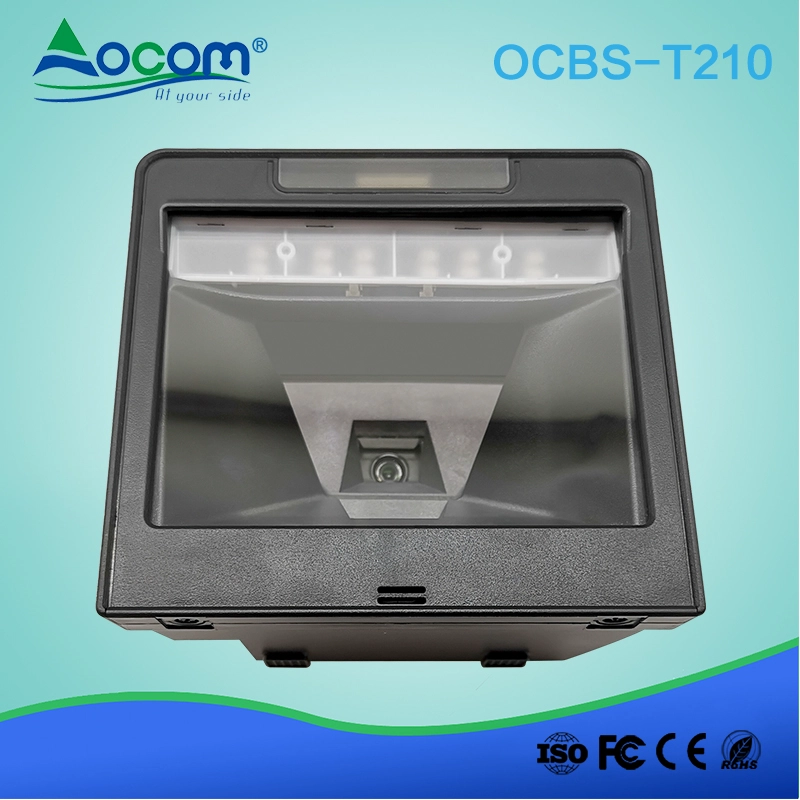

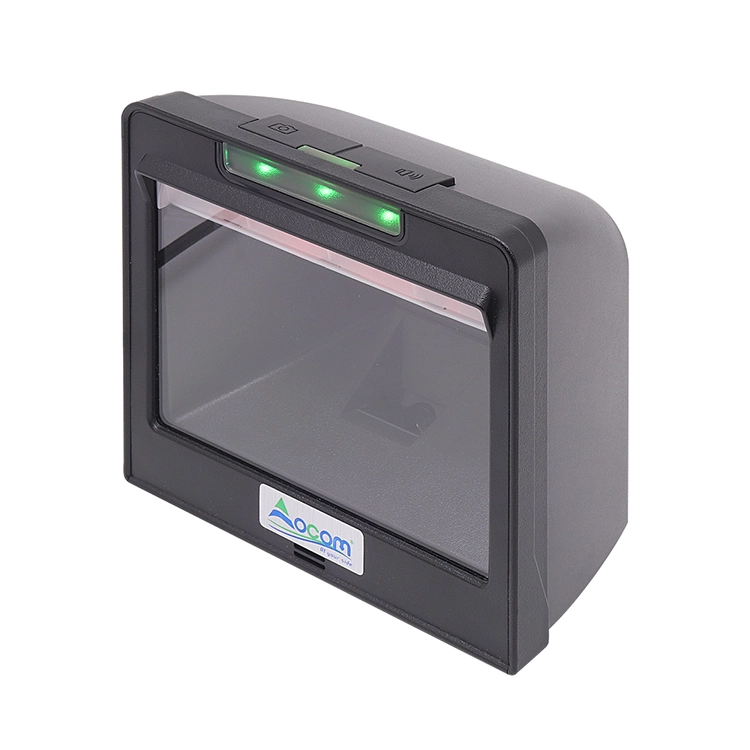

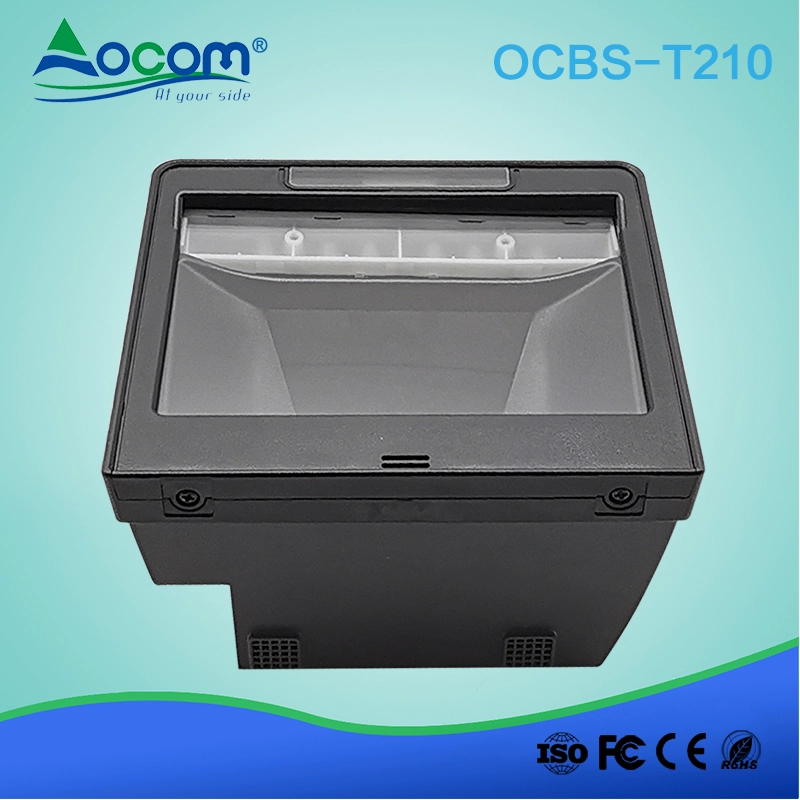

(OCBS-T210) Desktop screen reading QR code 2D barcode scanner

  • Ultra-high-speed two-dimensional imaging technology can read both high-density bar code and wide-width bar code.
  • Excellent screen bar code reading ability,Can directly read the payment bar code on mobile devices.
  • The high speed camera optical technology and the supporting high speed kernel architecture are adopted.
  • Especially suitable for high speed register bar code in retail industry.
  • Stylish, sophisticated, read code scanning window wider and wider.
  • Solid-state hardware design, high durability, stable and reliable.

OCBS-T210 Desktop screen reading QR code 2D barcode scanner



(M/N:OCBS-T210)



Features:

Ultra-high-speed two-dimensional imaging technology can read both high-density bar code and wide-width bar code.

Excellent screen bar code reading ability,Can directly read the payment bar code on mobile devices.

The high speed camera optical technology and the supporting high speed kernel architecture are adopted.

Especially suitable for high speed register bar code in retail industry.

Stylish, sophisticated, read code scanning window wider and wider.

Solid-state hardware design, high durability, stable and reliable.









Performance Parameters

Light Source

Illumination 650nm LED

Optical Resolution

1280*720

Print contrast Signal

25% minimum reflective difference

Field of View:

45° (H) x 35° (V)

Roll/Pitch/Yaw

360° / ± 65° /  ± 60°

Motion Tolerance

Up to 600cm per second(theoretical value)

Indicator

Blue LED & beeper

Interface

USB OR RS232

Symbologies: 2D

PDF417, MicroPDF417,Data Matrix,
Maxicode,QR Code,MicroQR,Aztec

Symbologies: 1D

UPC/EAN, Code 128, Code 39, Code 39 , Code 93, Code 11,
Matrix 2 of 5, Interleaved 2 of 5, Industrial 2of 5,
Martrix 2 of 5, Codabar, MSI/Plessy, GS1 Databar

Electrical Parameters

Input Voltage

5V DC ±5%

Current - Standby

90mA

Current - Operating

400mA

Mechanical Parameters

Case Material:

ABS

Dimension:

104mm×(L)96mm(W)×166mm(H)

Weight:

300g (without package); 530g (Include package and accessories)

Cable:

USB: HID KEYBOARD(default mode)

Environmental Parameters

Operating Temperature

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications

Withstands 10Gs 0.06" double amp

Ambient Light Immunity

Immune to indoor lighting up to 1600 Lux.
Immune to sunlight up to 86,000 Lux.
