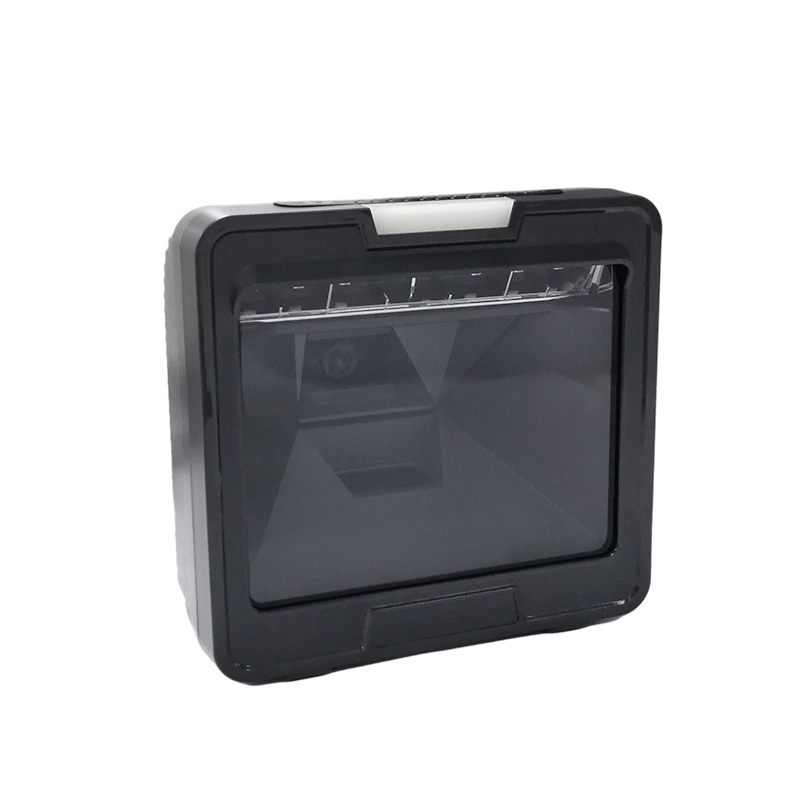

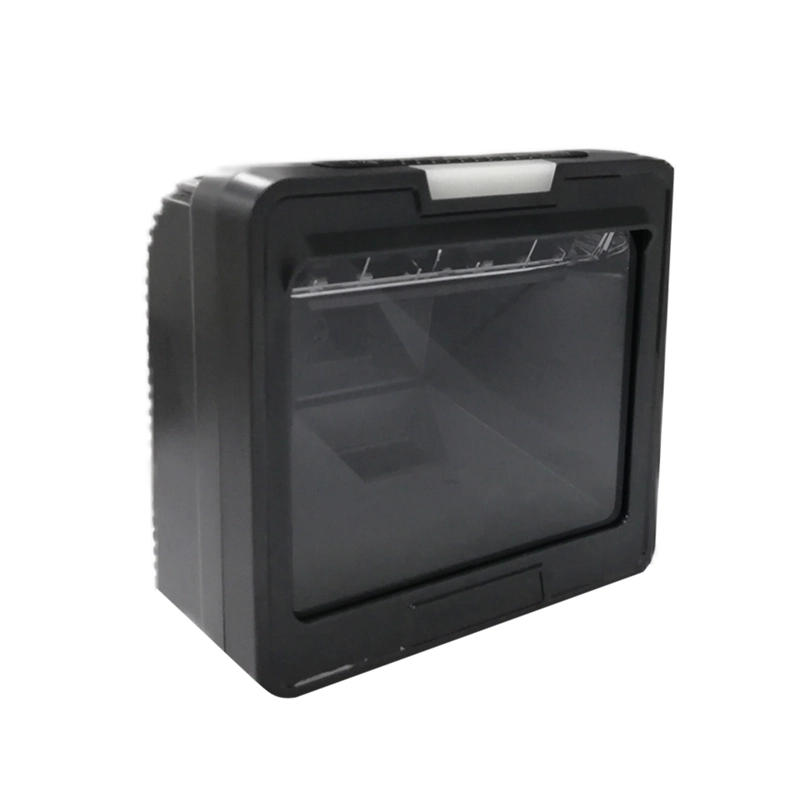

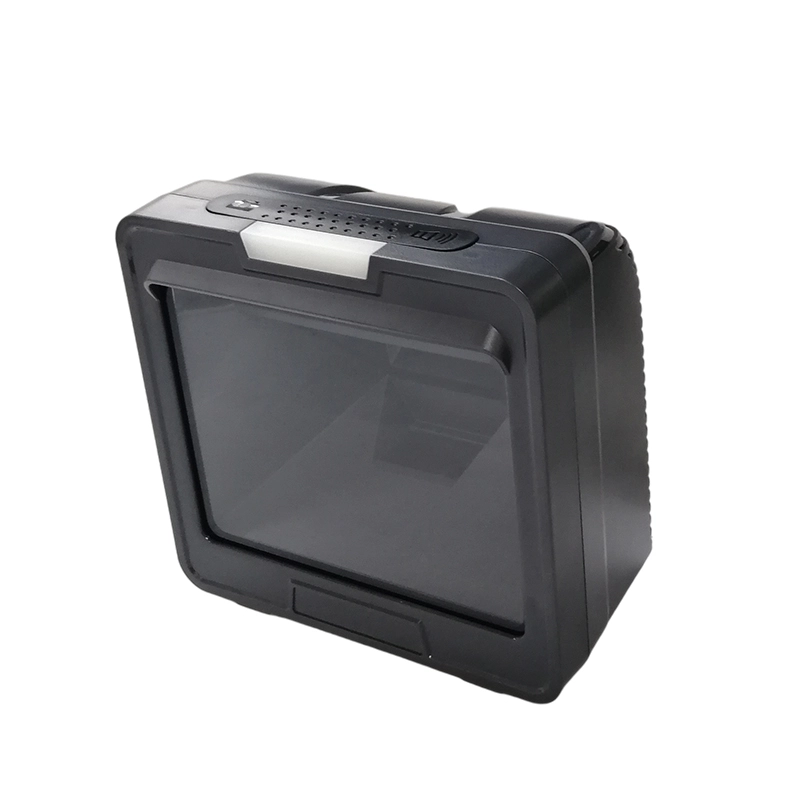

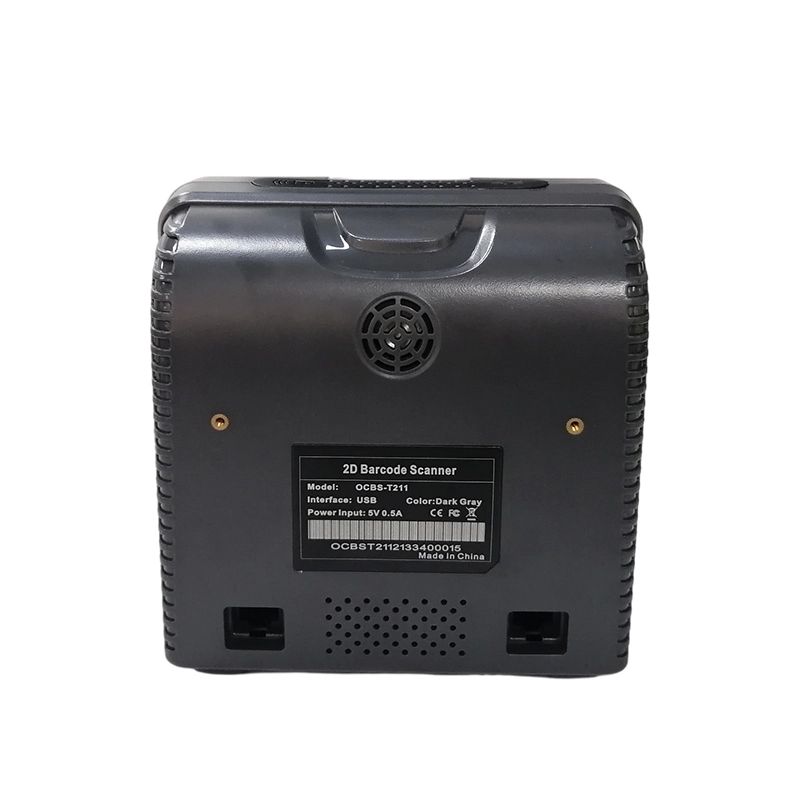

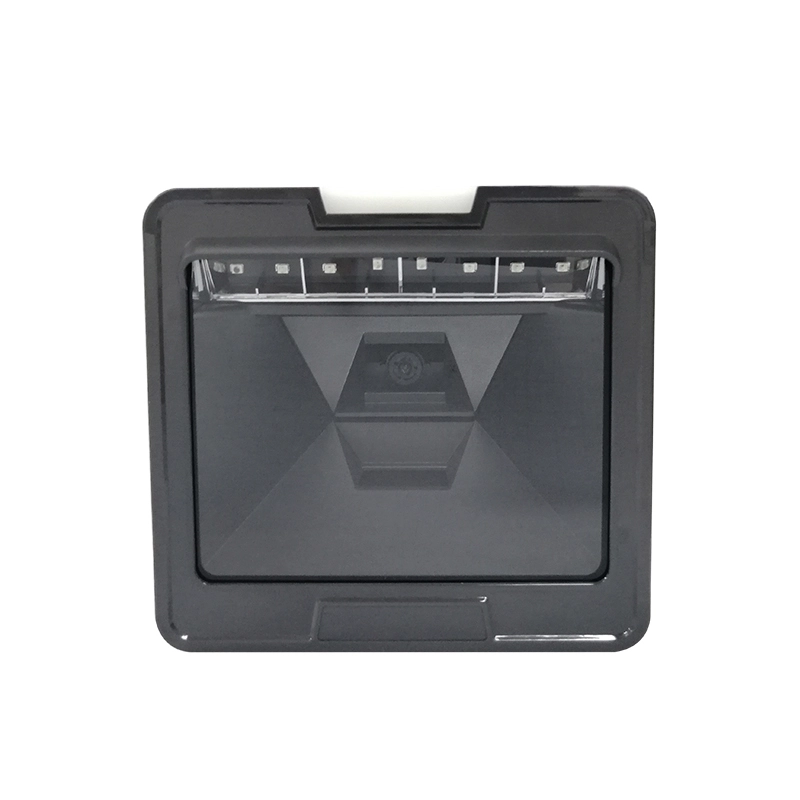

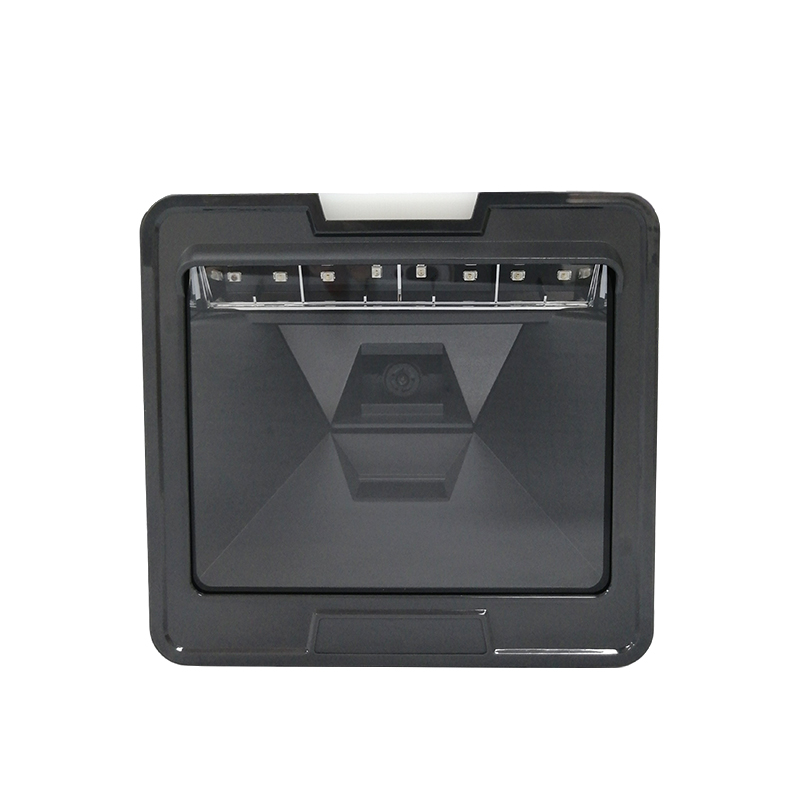

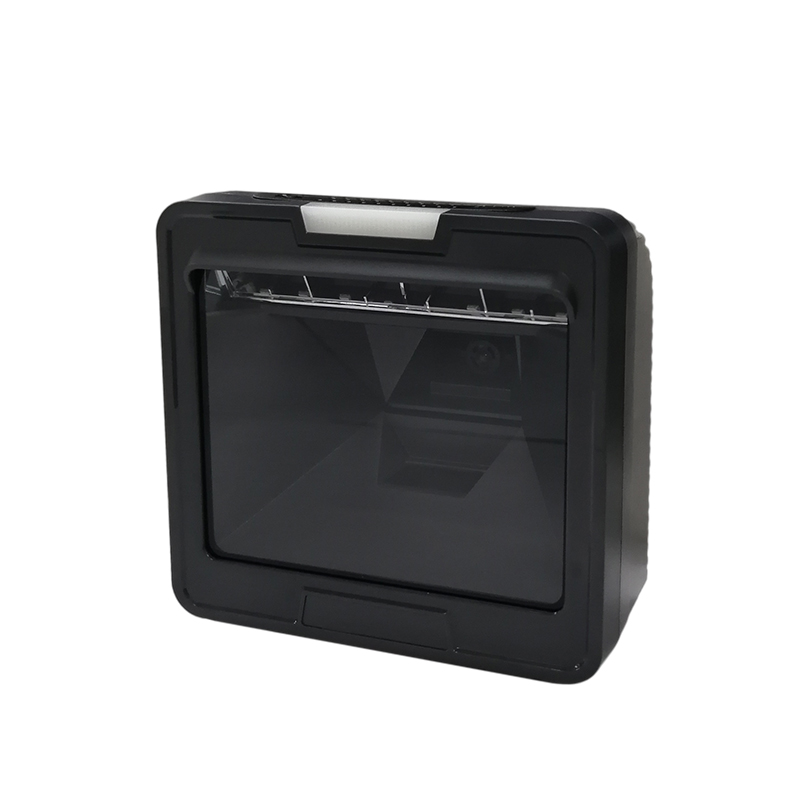

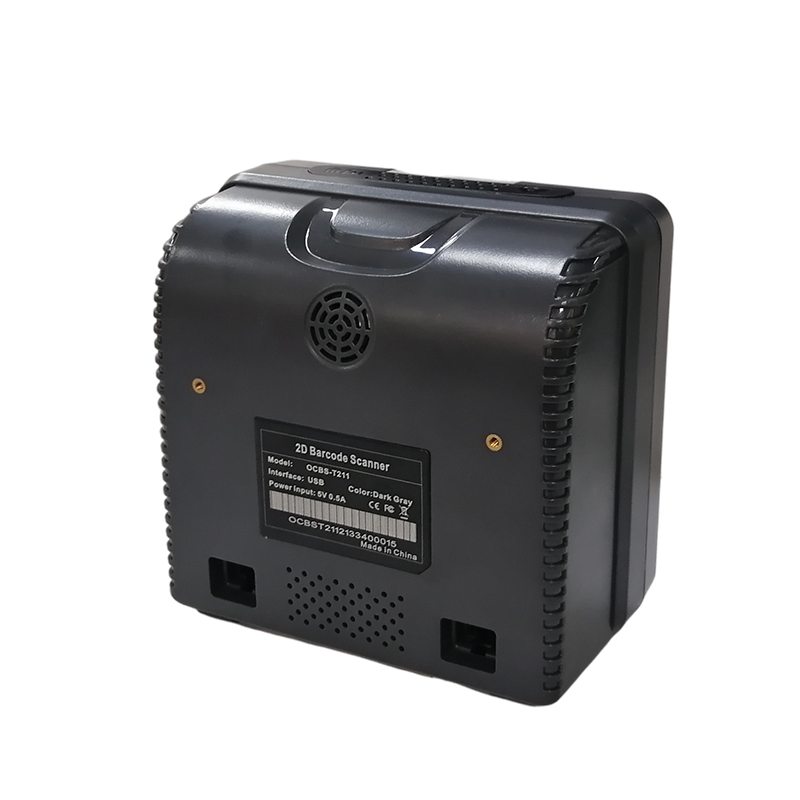

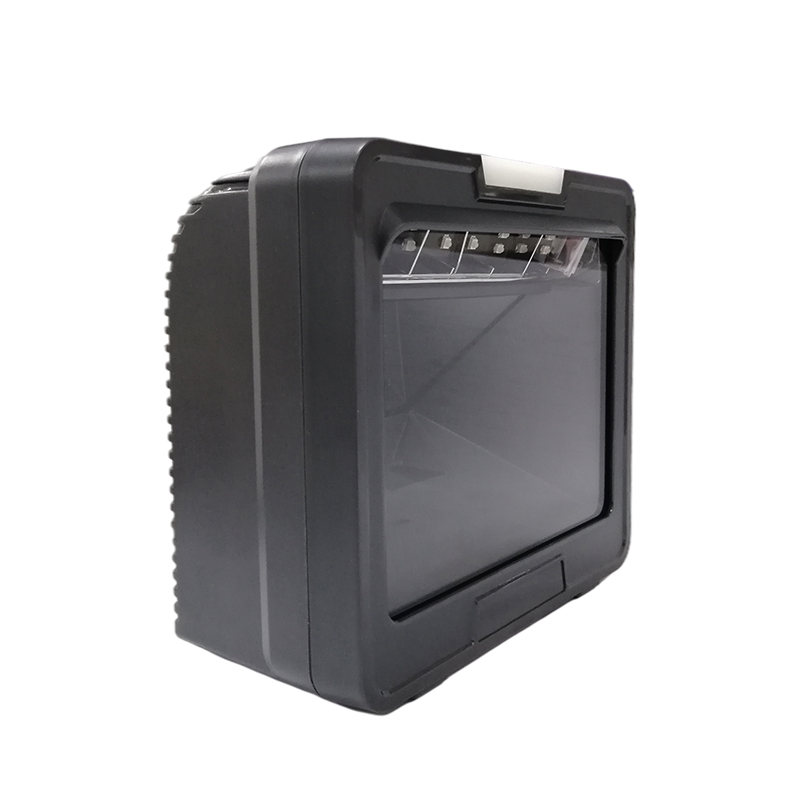

OCBS-T211 Large Window payment countertop 2D wired Automatic Read barcode scanner

  • Features:
  • 1280*1024 Millions high resolution, super large window
  • Support high-density anti-white code
  • High-speed 2D imaging technology can high-density bar code and wide-width bar code
  • Can directly read the payment bar code on mobile devices
  • Especially suitable for high speed register bar code in retail industry
  • High-strength shell that can withstand 1.5 meters drop,IP52 seal Grade

Image 2D Omnidirectional Barcode Scanner

              (M/N:OCBS-T211)

Model

OCBS-T211

Item

Omnidirectional 2D Desktop Barcode Scanner

Color

Black

Material

ABS+PC

IP Grade

IP52

Interface

USB(RS232 can be customized)

Professor

32-bit ARM MCU + DSP

Trigger Mode

Auto-Sensing

Prompt Mode

Buzzer, Indicator Light(LED)

Mirror code

Support

Invoice function

Support

Button

Switch sound frequency; Switch 1D Only or 1D & 2D mode

Power Supply

DC 5V 2A

Power Consumption

1.71W(working);0.87W(standby);2.45W(maximum)

Language Supported

English, German, French, Italian, Russian, Finnish, Norwegian,etc.

System Supported

Linux,Android,Windows XP,7,8,10,MAC

ESD Protection

15KV air discharge

Shock Resistance

1.5m free fall on concrete surface

Sensor

Planar CMOS sensor 1280 * 1024

Light Source

RED LED

Motion tolerance

3.82m/sec

Bit error rate

1/5000000

Reading Mode


Scanning Angel

Roll360°, Pitch45°,Yew45°

Print Contrast

≥30%

Resolution

Code39 4mil

Scanning Depth

5mil code39: 1 cm -- 14 cm, 13mil UPC-A : 2 cm -- 34 cm
20mil code39 : 1 cm -- 35 cm,6.7mil PDF417 : 1 cm -- 9 cm

10mil Data Matrix : 1 cm -- 10 cm

15mil Data Matrix : 1 cm -- 20 cm
1D Payment: 0 cm -- 50 cm,2D Payment : 0 cm -- 50 cm

Decoding ability

1D:Interleaved 2 of 5 ,Standard 2 of 5 ,Matri 2 of 5
Code39-Regular ,Code39-Full ASCII ,Code32
Code93-Regular ,Code93-Full ASCII ,Code128
EAN/GSL/UCC-128 ,Codabar ,MSI
EAN/JAN-13 ,UPC-A ,EAN/JAN-8
Code11 ,UPC-E0/E1
2D:MICRO QR ,Data Matrix ,QR
AZTEC ,PDF417
